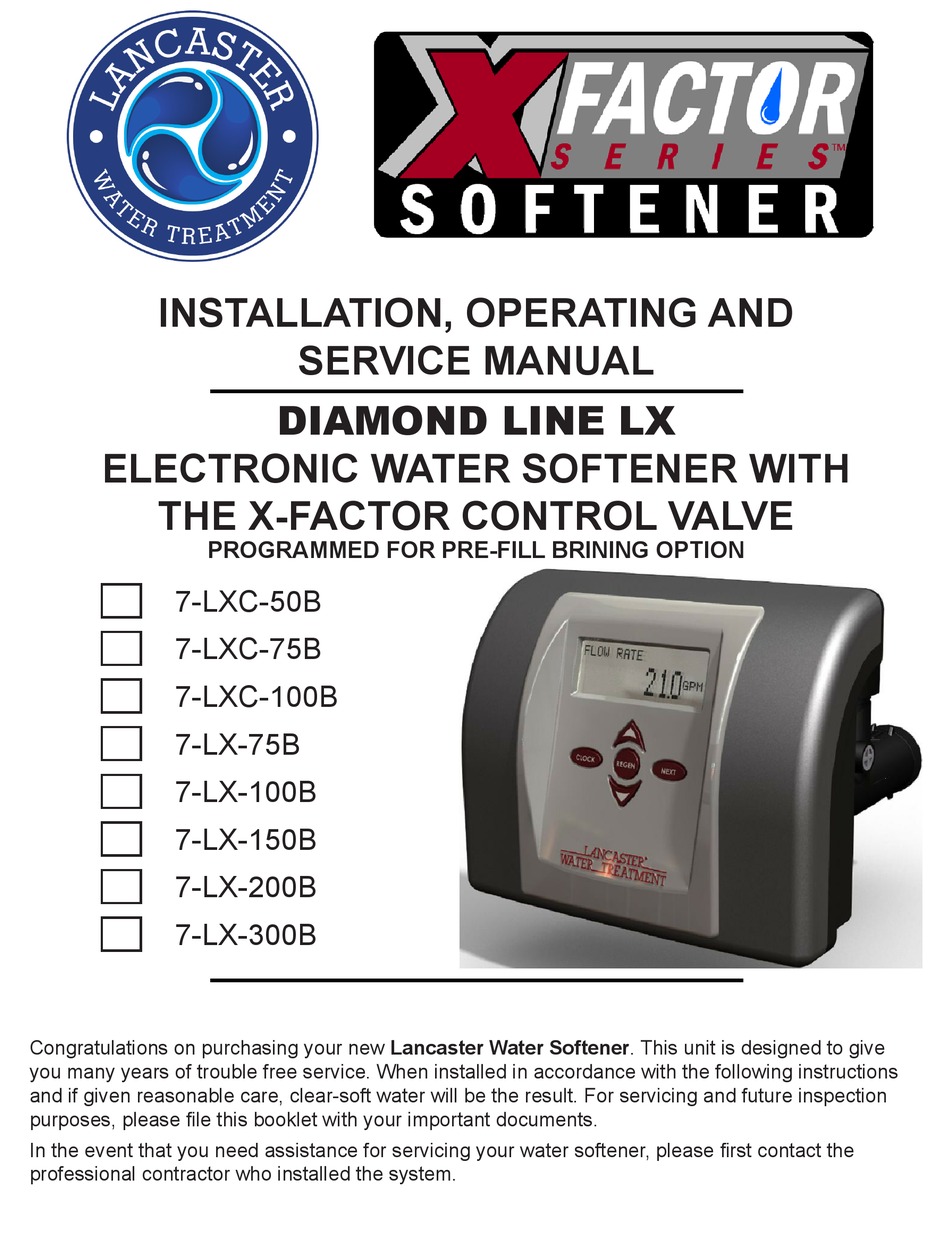

INSTALLATION, OPERATING AND

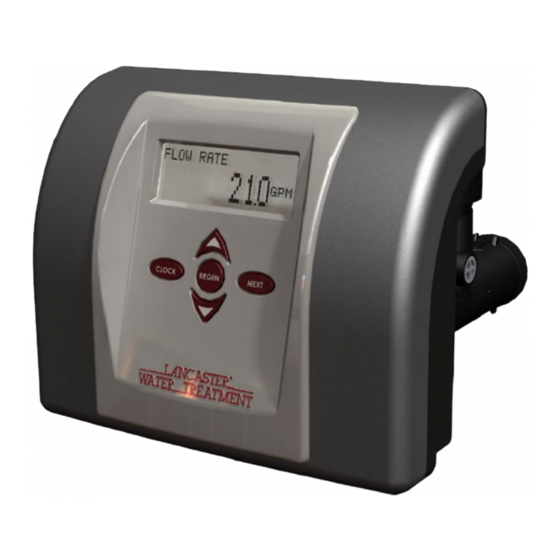

ELECTRONIC WATER SOFTENER WITH
THE X-FACTOR CONTROL VALVE
PROGRAMMED FOR PRE-FILL BRINING OPTION
7-LXC-50B
7-LXC-75B
7-LXC-100B
7-LX-75B
7-LX-100B
7-LX-150B
7-LX-200B
7-LX-300B
Congratulations on purchasing your new Lancaster Water Softener. This unit is designed to give
you many years of trouble free service. When installed in accordance with the following instructions
and if given reasonable care, clear-soft water will be the result. For servicing and future inspection
purposes, please file this booklet with your important documents.
In the event that you need assistance for servicing your water softener, please first contact the
professional contractor who installed the system.
SERVICE MANUAL
DIAMOND LINE LX
PAGE 1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Lancaster diamond 7-LXC-50B
Summary of Contents for Lancaster diamond 7-LXC-50B
- Page 1 7-LX-200B 7-LX-300B Congratulations on purchasing your new Lancaster Water Softener. This unit is designed to give you many years of trouble free service. When installed in accordance with the following instructions and if given reasonable care, clear-soft water will be the result. For servicing and future inspection purposes, please file this booklet with your important documents.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Job Specifications ......................... 2 General Installation and Service Warnings .................. 3 Pre-Installation Review ......................... 4 Bypass Valve Operation ....................... 5 Installation Instructions, Diagrams ....................6-8 Placing Softener into Service ....................... 9 General Operation ........................9 Set Time of Day ..........................10 Adjust Hardness, Days Between Regenerations or Time of Regeneration ........ -
Page 3: General Installation And Service Warnings
GENERAL INSTALLATION AND SERVICE WARNINGS The control valve, fittings and/or bypass are designed to accommodate minor plumbing misalignments but are not designed to support the weight of a system or the plumbing. HYDROCARBONS SUCH AS KEROSENE, BENZENE, GASOLINE, ETC., MAY DAMAGE PRODUCTS THAT CONTAIN O-RINGS OR PLASTIC COMPONENTS. -
Page 4: Pre-Installation Review
PRE-INSTALLATION REVIEW WATER QUALITY: If sand or sediment is present in the water supply, a sediment filter should be installed ahead of the water softener. Your water softener has been designed to adequately reduce hardness from levels up to 100 grains per gallon. Ferrous bicarbonate iron levels up to 0.5 ppm can also be reduced. -
Page 5: Bypass Valve Operation
BYPASS VALVE The bypass valve is typically used to isolate the control valve from the plumbing system’s water pressure in order to perform control valve repairs or maintenance. The X-Factor bypass valve is particularly unique in the water treatment industry due to its versatility and state of the art design features. -
Page 6: Installation Instructions, Diagrams
INSTALLATION INSTRUCTIONS (All electrical & plumbing should be done in accordance to all local codes) 1. Place the softener where you want to install it, making sure it is on a clean, level and firm base. 2. Do all necessary plumbing (inlet to inlet, outlet to outlet, and drain line to drain). - Page 7 INSTALLATION INSTRUCTIONS CONT’D (All electrical & plumbing should be done in accordance to all local codes) 6. Assemble the brine tank. Install a brine well cap (Item A) on the bottom of the brine well (Item B). Remove the brine valve assembly (Item C) from the brine well by removing the nut (Item D).
- Page 8 MINIMUM 10 FEET BETWEEN WATER SOFTENER OUTLET OUTSIDE WATER HEATER INLET LOCATE WATER SOFTENER CLOSE TO A DRAIN. COLD BYPASS PLUMBING AVOID OVERHEAD DRAIN LINES IF POSSIBLE TO RECOMMENDED PREVENT BACK PRESSURE ON BRINE INJECTOR. OPTIONAL BP2000 IF OVERHEAD DRAIN LINE IS USED AND EXCEEDS BYPASS VALVE 5 FEET ABOVE CONNECTION ON CONTROL VALVE IS NOT USED.
-
Page 9: Placing Softener Into Service
PLACING SOFTENER INTO SERVICE Do not add salt to the brine tank yet. Do not plug the transformer into the receptacle yet. Make sure inlet and outlet valves are to their closed positions. If using optional bypass, place in bypass position. Turn on main water supply. Open a cold water faucet. This will clear the line of any debris (solder, pipe dope, etc.) that may be in the line. -
Page 10: Set Time Of Day
SET TIME OF DAY Current time of day needs to be entered during initial installation, and adjusted when daylight saving time begins or ends. If an extended power outage occurs and depletes the on-board non-rechargeable coin cell battery, when power resumes the time of day should be reset and battery replaced. -
Page 11: Low Battery
STEP 5 – Next Regeneration Time (minutes): Set the minutes of day for regeneration using STEP 5 buttons. Press to return to normal operation. Press to return to NEXT REGEN previous step. RETURN TO NORMAL MODE LOW BATTERY A non-rechargeable coin cell battery is located on the circuit board, used only to maintain the time of day during power outages (all other information will be stored in memory no matter how long the power outage). -
Page 12: Specifications
X FACTOR SERIES GENERAL SPECIFICATIONS 1” Control Valve Size; 9.3 x 10.5 x 7.0 W” x L” x H” Inlet/Outlet Fitting 3/4 to 1.25 Options; inches Drain Pipe NPT (OD 3/4 (5/8) Poly Tube) Size; inches Working Pressure; 20 to 100 Min to Max (PSI) Water Operating Temp;... - Page 13 X FACTOR SERIES LX SPECIFICATIONS MODEL NUMBER 7-LX-75B 7-LX-100B 7-LX-150B 7-LX-200B 7-LX-300B Service Flow (GPM) at 15 PSI Pressure Drop Resin Tank Size; 8 x 44 10 x 40 10 x 54 12 x 48 14 x 65 Diameter x Height (inches) Resin;...
- Page 14 X FACTOR SERIES LX SPECIFICATIONS MODEL NUMBER 7-LX-75B 7-LX-100B 7-LX-150B 7-LX-200B 7-LX-300B CYCLES* (Downflow Regenerant, Prefill) 1st: Fill; Lbs NaCl 12.0 16.0 24.0 2nd: Softening; Minutes (Regenerant Production) 3rd: Backwash; Minutes 4th: Regenerant Draw DN; Minutes (Draw & Slow Rinse) 5th: Backwash;...
-
Page 15: Specifications
X FACTOR SERIES LXC SPECIFICATIONS 7-LXC-50B 7-LXC-100B MODEL NUMBER 7-LXC-75B (PACKED BED) (PACKED BED) CYCLES* (Downflow Regenerant, Prefill) 1st: Fill; Lbs NaCl 2nd: Softening; Minutes (Regenerant Production) 3rd: Backwash; Minutes 4th: Regenerant Draw DN; Minutes (Draw & Slow Rinse) 5th: Backwash; Minutes 6th: Rinse;... -
Page 16: Parts Diagrams
SOFTENER ASSEMBLY Dwg. Order No. Description LXCV1 (detailed components shown in this manual) Metered Control Valve D1203 Top Distributor FG844VT, D1130-12 Ft. (cut for 44 in.), R-DIP1050 Tank, Pipe, Connector, Assy for Model 7-LX-75B FG1040VT, D1130-12 Ft. (cut for 40 in.), R-DIP1050 Tank, Pipe, Connector, Assy for Model 7-LX-100B 3,4,5 FG1054VT, D1130-12 Ft. - Page 17 X-FACTOR FRONT COVER AND DRIVE ASSEMBLY Drawing No. Order No. Description Quantity V3692-02LW LP Front Cover Assembly V3107-01 Motor V3106-01 Drive Bracket & Spring Clip V3757LP PC Board V3110 Drive Gear 12x36 V3109 Drive Gear Cover When replacing the battery, align Correct positives and push down to fully seat.
- Page 18 DRIVE CAP ASSEMBLY, DOWNFLOW PISTON, REGENERANT PISTON AND SPACER STACK ASSEMBLY Do not use Vaseline, oils, other hydrocarbon lubricants Drawing Order No. Description or spray silicone anywhere. A silicone lubricant may be used on black o-rings but is not necessary. Avoid any V3005 Spacer Stack Assembly type of lubricants, including silicone, on the clear...
- Page 19 V4144-01 Elbow 3/8 Liquifi t Asy w/RFC Not Shown V3552 WS1 Brine Elbow Asy w/RFC Not Shown H4650 Elbow ½” with nut and insert REFILL FLOW CONTROL ASSEMBLY *Assembly includes V3182 WS1 (0.5 gpm) RFC. Drawing No. Order No. Description H4615 Elbow Locking Clip...
-
Page 20: Installation Fitting Assemblies
DRAIN LINE - 3/4” Order No. Description H4615 Elbow Locking Clip V3194 Polytube insert 5/8 Option V3192 Nut ¾ Drain Elbow Option V3158 Drain Elbow ¾ Male V3163 O-ring 019 V3159 DLFC Retainer Assy V3162-007 DLFC 0.7 gpm for ¾ ... - Page 21 BYPASS VALVE (Order No. BP2000) Drawing No. Order No. Description V3151 Nut 1” Quick Connect V3150 Split Ring V3105 O-Ring 215 V3145 Bypass 1” Rotor V3146 Bypass Cap V3147 Bypass Handle V3148 Bypass Rotor Seal Retainer V3152 O-ring 135...
- Page 22 OPTIONAL INSTALLATION FITTING ASSEMBLIES Order No: V3007-03 Order No: V3007-01 Order No: V3007-02 Description: Fitting ¾” Brass Sweat Assembly Description: Fitting ¾” & 1” PVC Solvent 90° Description: Fitting 1” Brass Sweat Assembly Assembly Drawing Drawing Order Order No. Description Quantity Description Quantity...
- Page 23 CABINET SOFTENER ASSEMBLY Order No. Description G2700T, G2718B Cabinet, Top Cover for Model 7-LXC-50B G2700T, G2735B Cabinet, Top Cover for Model 7-LXC-75B, -100B LXCV1 (detailed components shown in this manual) Metered Control Valve D1203 Top Distributor FG918VT, D1130-12 Ft. (cut for 18 in.), R-DIP1050 Tank, Pipe, Connector, Assy for Model 7-LXC-50B FG1035VT, D1130-12 Ft.
-
Page 24: Service Instructions
Page 36 Page 36 WS1 & WS1.25 Drawings and Service Manual WS1 & WS1.25 Drawings and Service Manual SERVICE INSTRUCTIONS Service Instructions Service Instructions When servicing the valve, water may leak from Disconnect from electrical power prior to When servicing the valve, water may leak from Disconnect from electrical power prior to When servicing the valve, water may leak Disconnect from electrical power prior to... - Page 25 DRIVE CAP ASSEMBLY, MAIN PISTON AND REGENERANT PISTON: The drive assembly must be removed to access the drive cap assembly. The drive cap assembly must be removed to access the piston(s). The drive cap assembly is threaded into the control valve body and seals with an o-ring. To remove the drive cap assembly use the special plastic wrench or insert a ¼”...
- Page 26 SPACER STACK ASSEMBLY: To access the spacer stack assembly remove the drive assembly, drive cap assembly and piston. The spacer stack assembly can be removed easily without tools by using thumb and forefinger. Inspect the black o-rings and clear lip seals for wear or damage. Replace the entire stack if necessary.
-
Page 27: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution a. No power at electric outlet a. Repair outlet or use working outlet b. Control valve Power Adapter not plugged b. Plug Power Adapter into outlet or connect into outlet or power cord end not power cord end to PC Board connection connected to PC board connection 1. -
Page 28: Troubleshooting
Problem Possible Cause Solution a. Bypass valve is open or faulty a. Fully close bypass valve or replace b. Media is exhausted due to high water b. Check program settings or diagnostics for usage abnormal water usage c. Meter not registering c. - Page 29 Problem Possible Cause Solution a. Power outage during regeneration a. Upon power being restored control will finish the remaining regeneration time. Reset time of day. b. Damaged seal/ stack assembly b. Replace seal/ stack assembly 13. Water running to drain c.
- Page 30 PC Board for 5 seconds and then reconnect. A DIVISION OF C-B TOOL CO. 5/16 1340 MANHEIM PIKE ● LANCASTER PA 17601-3196 ● TEL:717-397-3521 ● FAX: 717-392-0266 PAGE 30 www.lancasterwatertreatment.com ● E-mail: info@lancasterpump.com...
