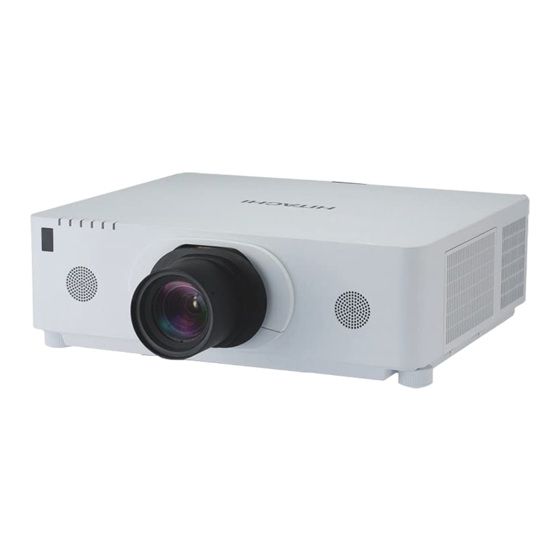

Hitachi CP-WU8700 User Manual
  1. Manuals
  2. Brands
  3. Hitachi Manuals
  4. Projector
  5. CP-WU8700
  6. User manual
Hitachi CP-WU8700 User Manual

Hitachi CP-WU8700 User Manual

Hide thumbs Also See for CP-WU8700:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Projector
CP-WU8700/CP-WX8750/CP-X8800
CP-WU8600/CP-WX8650
User's Manual (concise)
Thank you for purchasing this projector.
Please read through this manual before using this product, in order to use safely
and utilize well the product.
WARNING ►Before using this product, be sure to read all manuals for this
product. After reading them, store them in a safe place for future reference.
►Heed all the warnings and cautions in the manuals or on the product.
►Follow all the instructions in the manuals or on the product.
NOTE • In this manual, unless any comments are accompanied, "the manuals"
means all the documents provided with this product, and "the product" means this
projector and all the accessories came with the projector.
Contents
First of all ............................................ 2
Important safety instruction ..............................2
Regulatory notices .............................. 3
Contents of package........................... 4
Installing the lens unit ......................... 5
Arrangement ....................................... 6
Connecting power supply ................. 12
Turning on the power ........................ 13
Adjusting the lens position ................ 14
Displaying the picture ....................... 15
Turning off the power ........................ 16
Replacing the lamp ........................... 17
Using the CD manual ....................... 22
Specifications ................................... 23
1

Advertisement

Table of Contents
loading

Related Manuals for Hitachi CP-WU8700

Summary of Contents for Hitachi CP-WU8700

  • Page 1: Table Of Contents

    Projector CP-WU8700/CP-WX8750/CP-X8800 CP-WU8600/CP-WX8650 User's Manual (concise) Thank you for purchasing this projector. Please read through this manual before using this product, in order to use safely and utilize well the product. WARNING ►Before using this product, be sure to read all manuals for this product.

  • Page 2: First Of All

    First of all Entries and graphical symbols explanation The following entries and graphical symbols are used for the manuals and the product as follows, for safety purpose. Please know their meanings beforehand, and heed them. WARNING This entry warns of a risk of serious personal injury or even death. CAUTION This entry warns of a risk of personal injury or physical damage.

  • Page 3: Regulatory Notices

    Regulatory notices About Electro-Magnetic Interference This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts.

  • Page 4: About Waste Electrical And Electronic Equipment

    Regulatory notices (continued) About Waste Electrical and Electronic Equipment The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.

  • Page 5: Installing The Lens Unit

    Installing the lens unit See the manual of the optional lens. Preparing for the remote control Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

  • Page 6: Arrangement

    Arrangement Refer to tables T-1 to T-3 at the back of this manual as well as the following to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen. Ⓗ × Ⓥ : Screen size ⓐ...
  • Page 7 Arrangement (continued) Secure a clearance of 50cm or greater when installing the projectors side by side. As for the required clearance not shown in the figure below, follow the installation mentioned above. 50cm or greater Secure a clearance of 30cm or greater between the intake vents and walls when installing the projector in portrait mode.
  • Page 8 Arrangement (continued) WARNING ►Install the projector where you can access the power outlet easily. ►Install the projector in a stable horizontal position. • Do not use any mounting accessories except the accessories specified by the manufacturer. Read and keep the manuals of the accessories used. •...

  • Page 9: Connecting With Your Devices

    Connecting with your devices Before connecting the projector to a device, consult the manual of the device to confirm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged.

  • Page 10: Fastening The Adapter Cover

    Fastening the adapter cover When using the USB wireless adapter, use the supplied adapter cover for theft prevention. USB wireless adapter: USB-WL-11N Temperature range: 0 ~ 45°C(operating) Loosen the screw on the bottom left of the WIRELESS port. WIRELESS DC5V 0.5A Insert the tab of the cover into the hole at the upper right of the WIRELESS port in the direction of the arrow.

  • Page 11: Attaching The Terminal Cover

    Attaching the terminal cover Terminal cover Insert the two claws of the Terminal cover into the hole of Hook the case and confirm two Hooks are fitting into the case. When detaching the Terminal cover, push the Hook in the direction of the arrow and pull it forward. NOTE •...

  • Page 12: Connecting Power Supply

    Connecting power supply Put the connector of the power cord into the AC (AC inlet) of Power the projector. cord Push the Cord Stopper until it is caught by the hook. Cord Power Stopper Cord Firmly plug the power cord’s plug into the outlet.

  • Page 13: Turning On The Power

    Turning on the power Make sure that the power cord is firmly and correctly connected to the projector and the outlet. POWER indicator Make sure that the POWER indicator is lighted in steady orange. Then remove ON button the lens cover. Press the STANDBY/ON button on the projector or the ON button on the remote control.

  • Page 14: Adjusting The Projector's Elevator

    Adjusting the projector’s elevator Lengthening or shortening the length of the elevator feet shifts the projection position and the projection angle. Turn the elevator feet each to adjust their length. max. 30mm 5° 5° WARNING ►Do not lengthen the elevator feet exceeding 30 mm. The foot lengthened exceeding the limit may come off and drop the projector down, and result in an injury or damaging the projector.

  • Page 15: Displaying The Picture

    You can also use the remote control to select an input signal. Press any of the buttons from COMPUTER 1, VIDEO, LAN, HDMI 1 / 2, DisplayPort, HDBaseT, SDI (CP-WU8700 only) Buttons for input ports to select the input signal from each port.

  • Page 16: Turning Off The Power

    Turning off the power POWER indicator Press the STANDBY/ON button on the projector or the STANDBY button on STANDBY button the remote control. The message “Power off?” will appear on the screen for about 5 seconds. Press the STANDBY/ON or STANDBY button again while the message appears.

  • Page 17: Replacing The Lamp

    Preparation of a new lamp and early replacement are recommended. To prepare a new lamp, make contact with your dealer and tell the lamp type number. Type number : DT01881 <CP-WU8700/CP-WX8750/CP-X8800> DT01871 <CP-WU8600/CP-WX8650> Turn the projector off, and unplug the power cord.
  • Page 18 Replacing the lamp (continued) HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE WARNING ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.

  • Page 19: Cleaning And Replacing The Air Filter

    Cleaning and replacing the air fi lter Please check and clean the air fi lter periodically. When the indicators or a message prompts you to clean the air fi lter, comply with it as soon as possible. The fi lter unit with 2 sheets of fi lters is inside of the fi lter cover. In addition, the extra air fi lter is attached to inner side of the fi lter cover.
  • Page 20 Cleaning and replacing the air filter (continued) Put the filter cover back into the place. Turn the projector on and reset the filter time using the FILTER TIME item in the EASY MENU. (1) Press the MENU button to display a menu. (2) Point at the FILTER TIME using the ▲/▼...

  • Page 21: Replacing The Internal Clock Battery

    While prying it up, put a finger lightly on the battery since it may pop out of the holder. Replace the battery with a new HITACHI MAXELL, Part No.CR2032 or CR2032H. Slide the battery in under the plastic claw, and push it into the holder until it clicks.

  • Page 22: Using The Cd Manual

    Using the CD manual The other manuals for this product are written into the included CD-ROM titled “User’s Manual (detailed)”. Before using the CD-ROM, please read the following to ensure the proper use. System requirements The system for using the CD-ROM requires the following. Windows OS:Microsoft ®...

  • Page 23: Specifications

    CP-WX8650/CP-WX8750: Liquid Crystal Panel 1,024,000 pixels (1280 horizontal x 800 vertical) CP-WU8600/CP-WU8700: 2,304,000 pixels (1920 horizontal x 1200 vertical) CP-WU8600/CP-WX8650: 370W UHP Lamp CP-WU8700/CP-WX8750/CP-X8800: 430W UHP 8W x2 Speaker CP-WU8600/CP-WX8650: AC100V-120V: 5.2A, AC220V-240V: 2.5A Power supply/ Rated current CP-WU8700/CP-WX8750/CP-X8800: AC100V-120V: 5.9A, AC220V-240V: 2.9A...
  • Page 24 HDMI 1 ........... HDMI connector x1 HDMI 2 ........... HDMI connector x1 HDBaseT ............RJ45 jack x1 SDI (CP-WU8700 only) ........BNC jack x1 DisplayPort ........DisplayPort connector x1 MONITOR OUT ......D-sub 15 pin mini jack x1 VIDEO ............... RCA jack x1 Ports AUDIO IN1 .......

  • Page 25: Troubleshooting - Warranty And After-Service

    If this does not resolve the problem, please consult your dealer or service company. They will tell you what warranty condition is applied. Please check the following web address where you may find the latest information for this projector. Product information http://www.hitachi-america.us/projectors and Manuals : Production http://www.hitachidigitalmedia.com information : Direct link to http://www.hitachiserviceeu.com/support/guides/userguides.htm...
