ascon AWM 07F User Manual

Wall mounted split systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Models:
AWM 07 F/FR
AWM 10 F/FR
AWM 15 F/FR
AWM 20 F/FR
AWM 25 F/FR
Wall Mounted Split Systems
Manual No: TMA-AWM-FR-1210

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWM 07F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ascon AWM 07F

Summary of Contents for ascon AWM 07F

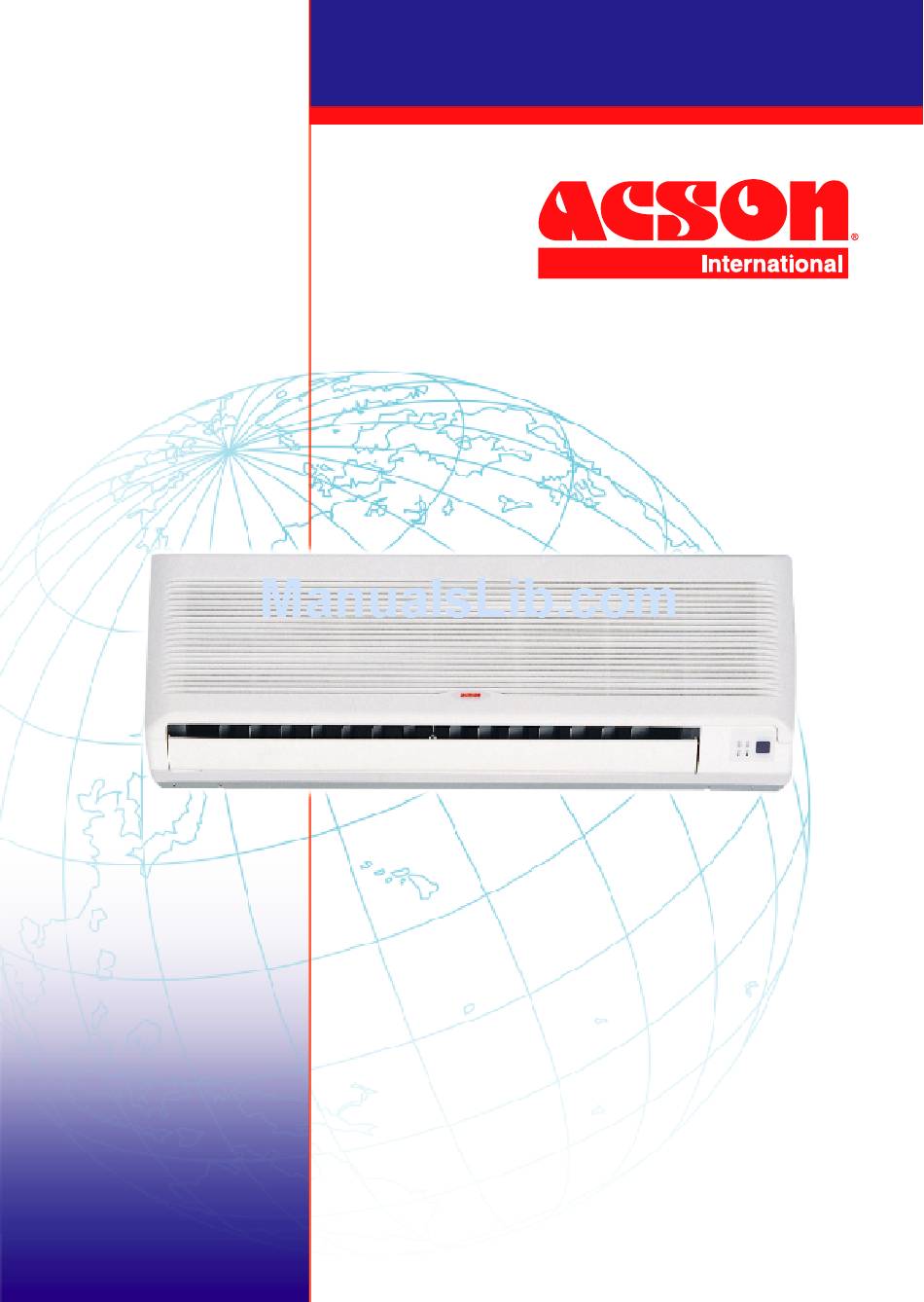

  • Page 1 Models: AWM 07 F/FR AWM 10 F/FR AWM 15 F/FR AWM 20 F/FR AWM 25 F/FR Wall Mounted Split Systems Manual No: TMA-AWM-FR-1210...

  • Page 2: Table Of Contents

    CONTENTS PAGE SPECIAL FEATURES SPECIFICATIONS 3 - 6 OUTLINES AND DIMENSIONS 7 - 8 WIRING DIAGRAMS 9 - 15 SAFETY PRECAUTIONS BEFORE INSTALLATION 16 – 17 SPECIAL PRECAUTIONS FOR R407C 18 - 19 INSTALLATION 20 - 28 REMOTE CONTROL OPERATION GUIDE 30 - 32 SPECIAL FUNCTION 33 - 34...

  • Page 3: Special Features

    1. SPECIAL FEATURES • EASY INSTALLATION - The wall mounted fan coil unit is easily installed because of its compact size, slimness and light weight. - Slim and short outdoor unit can be easily installed even in a narrow balcony and passageway and yet have a stable profile.

  • Page 4: Specifications

    2. SPECIFICATIONS COOLING MODELS MODEL INDOOR UNIT AWM 07F AWM 10F AWM 15F AWM 20F AWM 25F OUTDOOR UNIT ALC 07B ALC 10B ALC 15B ALC 20B ALC 25B NOMINAL kcal/h 1,940 2,444 3,200 4,788 6,050 COOLING 2,257 2,843 3,721...
  • Page 5 HEATPUMP MODELS MODEL INDOOR UNIT AWM 07FR AWM 10FR AWM 15FR AWM 20FR AWM 25FR OUTDOOR UNIT ALC 07BR ALC 10BR ALC 15BR ALC 20BR ALC 25BR NOMINAL kcal/h 1,940 2,394 3,100 4,788 6,050 COOLING 2,257 2,784 3,604 5,569 7,034 CAPACITY Btu/h 7,700...
  • Page 6 COOLING MODELS (R407C) MODEL INDOOR UNIT AWM 10F AWM 15F AWM 20F AWM 25F OUTDOOR UNIT A4LC 10B A4LC 15B A4LC 20B A4LC 25B NOMINAL kcal/h 2,268 2,772 4,612 5,292 COOLING 2,637 3,223 5,363 6,155 9,000 11,000 18,300 21,000 CAPACITY Btu/h 1,438 2,298...
  • Page 7 HEATPUMP MODELS (R407C) MODEL INDOOR UNIT AWM 10FR AWM 15FR AWM 20FR AWM 25FR OUTDOOR UNIT A4LC 10BR A4LC 15BR A4LC 20BR A4LC 25BR NOMINAL kcal/h 2,268 2,772 4,410 5,170 COOLING 2,637 3,223 5,129 6,008 9,000 11,000 17,500 20,500 CAPACITY Btu/h NOMINAL kcal/h...

  • Page 8: Outlines And Dimensions

    3. OUTLINES AND DIMENSIONS INDOOR UNIT MODEL: AWM 07F / 07FR / 10F / 10FR / 15F / 15FR Note : Dimension in mm OUTDOOR UNIT MODEL : ALC 07B / 07BR / 10B / 10BR / 15B / 15BR...
  • Page 9 INDOOR UNIT MODEL : AWM 20F / 20FR / 25F / 25FR Note : Dimension in mm OUTDOOR UNIT MODEL : ALC 20B / 20BR / 25B / 25BR A4LC 20B / 20BR / 25B / 25BR Note : Dimension in mm...

  • Page 10: Wiring Diagrams

    4. WIRING DIAGRAMS INDOOR UNIT MODEL : AWM 07F / 10F / 15F OUTDOOR UNIT MODEL : ALC 07B / 10B / 15B A4LC 10B / 15B...
  • Page 11 INDOOR UNIT MODEL : AWM 07FR / 10FR / 15FR FIELD SUPPLY WIRING OUTDOOR UNIT MODEL : ALC 07BR / 10BR / 15BR A4LC 10BR / 15BR...
  • Page 12 INDOOR UNIT MODEL : AWM 20F / 25F OUTDOOR UNIT MODEL : ALC 20B / 25B A4LC 20B / 25B...
  • Page 13 INDOOR UNIT MODEL : AWM 20FR / 25FR OUTDOOR UNIT MODEL : ALC 20BR / 25BR A4LC 20BR / 25BR...
  • Page 14 INDOOR UNIT MODEL : AWM 20F / 25F OUTDOOR UNIT (3 PHASE) MODEL : ALC 20B / 25B...
  • Page 15 INDOOR UNIT MODEL : AWM 20FR / 25FR OUTDOOR UNIT (3 PHASE) MODEL : ALC 20BR / 25BR...
  • Page 16 OUTDOOR UNIT MODEL : ALC 20BR / 25BR (HIGH AMBIENT)
  • Page 17 LOW AMBIENT UNIT (OPTIONAL) MODEL : ALC 10B / 15B (50Hz) MODEL : ALC 20B / 25B (50Hz)

  • Page 18: Safety Precautions Before Installation

    5. SAFETY PRECAUTIONS BEFORE INSTALLATION Before operating, please read the following "Safety Precautions" carefully. To prevent injury to the user or other people and properties damage, the following instructions must be followed. § Incorrect operation due to ignoring of instruction will cause harm or damage, the seriousness is classified by the following indications.
  • Page 19 Symbol (with white background) denotes item that is PROHIBITED from doing. Symbol (with black background) denotes item that is COMPULSORY to be carried out. Caution Please confirm the following important points when installation • Grounding is necessary It may cause electrical shock if grounding is not perfect. •...

  • Page 20: Special Precautions For R407C

    6. SPECIAL PRECAUTIONS FOR R407C SPECIAL PRECAUTIONS WHEN DEALING WITH REFRIGERANT R407C UNIT What is new refrigerant R407C? R407C is a zeotropic refrigerant mixture which has Zero Ozone Depletion Potential (ODP = 0) and thus conformed to the Montreal Protocol regulation. It requires Polyol-ester oil (POE) oil for its compressor's lubricant.
  • Page 21 Ensure that the compressor is not expose to open air for more than the recommended time specified by its manufacturer (typically less than 10 minutes). Removed the seal-plugs only when the compressor is about to be brazed. The system should be thoroughly vacuumed to 1.0 Pa (-700mmHg) or lower. This vacuuming level is more stringent than R22 system so as to ensure no incompressible gas and moisture in the system.

  • Page 22: Installation

    7. INSTALLATION INSTALLATION DIAGRAM...

  • Page 23: Installation

    CAUTION: Before installing the unit, ensure that the power supply matches the power requirement of the air conditioner. 1) SELECTION OF LOCATION AND SPACE (A) INDOOR UNIT Install the fan coil (indoor) unit at a location with the following requirements •...
  • Page 24 (B) OUTDOOR UNIT As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to achieve maximum cooling capacity, the location selected for outdoor unit should fulfill the following requirements : • Install the condensing (outdoor) unit in away such that hot air distributed by the outdoor condensing unit cannot be drawn in again (as in the case of short circuit of hot discharge air).
  • Page 25 2) DRILLING HOLES AND MOUNTING INSTALLATION PLATE CAUTION: i) Please check the unit weight for each model. Always ensure that the wall is sufficiently strong to withstand the weight. If not, it is necessary to reinforce the wall with plate, beams or pillars.
  • Page 26 3) INDOOR UNIT PREPARATION • • Carefully bend the pipes to the required The refrigerant piping can be routed to position to align with the hole. For right the unit in 5 direction, by using the cut outs in the unit casing. (See fig. 1) hand and rear side draw out, hold the bottom of the piping and fix direction before shaping it to the desired position...
  • Page 27 5) WATER DRAINAGE PIPING The indoor drain pipe must be downward gradient for smooth drainage. Avoid situation as shown in figure below. 6) WIRING ELECTRICAL CONNECTION • Wiring regulation on wire diameters differ from country to country. Please refer to your LOCAL ELECTRICAL CODES for field wiring rules.
  • Page 28 7) REFRIGERANT PIPING MAXIMUM PIPE LENGTH AND MAXIMUM NUMBER OF BENDS Always choose the shortest path for refrigerant piping and follow the recommendations as tabulated below: MODEL DATA 07F/FR 20F/FR 25F/FR 10FR 15FR Max. Length, L (m) Max. Elevation, H (m) Max.

  • Page 29: Additional Charge

    STANDARD CONDITION HEAVY LOAD CONDITION Indoor 27°C/ Outdoor 35°C Indoor 32°C/ Outdoor 43°C kg/cm psig kg/cm psig AWM 07F/FR 5.2 ~ 6.0 74.0 ~ 85.0 5.7 ~ 6.4 81.0 ~ 92.0 AWM 10F/FR 5.2 ~ 6.0 74.0 ~ 85.0 5.7 ~ 6.4 81.0 ~ 92.0...
  • Page 30 Diagram shows typical charging method. Note : R407C – Fix filter dryer R22 - Nil CAUTION FOR R407C Avoid prolong exposure of an opened compressor, or the internal part of refrigerant piping to moist air. The POE oil in the compressor and piping can absorb moisture from air.

  • Page 31: Remote Control Operation Guide

    8. REMOTE CONTROL OPERATION GUIDE FAN SPEED AND SIGNAL TRANSMISSION TEMPERATURE SETTING • VENTILATION MODE INDICATION Set the desire room • SELECTION Blink to confirm the temperature. • • Press the button until last setting has been Press button to increase the desired fan speed is send to the unit.
  • Page 32 INDICATOR LIGHTS (cooling only unit) IR signal receiver When there is infrared remote control operating signal, the signal receiver on indoor unit will made a (beep) for signal acceptance confirmation. LED Indicator Lights The table below shows the LED indicator light for air conditioner unit under normal operation and fault condition.
  • Page 33 Heatpump unit : LED Indicator Lights Display Cooling mode Dry mode (Green) (Orange) Heat/Fan Sleep mode mode (Red) (Red/Green) The heat pump units is equipped with an "auto" mode, whereby the unit will provide reasonable room temperature by switching the unit automatically to either "cool" mode or "heat" mode, according to the temperature setting set by the user.

  • Page 34: Special Function

    9. SPECIAL FUNCTION (A) 3 HOT SYSTEM (Heating cycle) a) Hot start At the beginning of heating operation (cold start, after defrosting or thermostat resumes operation) the indoor fan operation is controlled in accordance with the temperature of the indoor heat exchanger to send warm air from the start.
  • Page 35 (B) COLD BLAST (Cooling cycle) During cold start, the set temperature of controller is decreased by 2°C to stabilize the room temperature quickly. (C) OVERLOAD PREVENTION IN HEATING OPERATION During heating operation, if the room temperature and outdoor temperature are high, or when the indoor air filter is choked, the condensing pressure will increase rapidly.

  • Page 36: Servicing And Maintenance

    10. SERVICING AND MAINTENANCE CAUTION: After installing or servicing the unit, please ensure that the front panel is secured by the 1 hook underneath the front panel. The unit is designed to give a long life operation with minimum maintenance required. However, it should be regularly checked and the following items should be given due attention.

  • Page 37: After Extended Shutdown

    PRE-START UP MAINTENANCE (AFTER EXTENDED SHUTDOWN) Inspect thoroughly and clean indoor and outdoor units. Clean or replace air filters. Clean condensate drain line. Clean clogged indoor and outdoor coils. Check fan imbalance before operation. Tighten all wiring connections and panels. Check for refrigerant leakage.

  • Page 38: Troubleshooting

    11. TROUBLESHOOTING By means of pressure readings : PRESSURE PROBABLE CAUSE Data Circuit 1. Overcharged with refrigerant. High Side 2. Non-condensable gases in refrigerant circuit (e.g. oil). Low Side 3. Obstructed air-intake/discharge. 4. Short circuiting of hot air at condensing unit. 1.
  • Page 39 The most common causes of air conditioner failure to "start" are : a) Voltage not within +/- 10% of rated voltage. b) Power supply interrupted. c) Control settings improper d) Air Conditioner is disconnected from main power source. e) Fuse blown or circuit breaker off. ii) Diagnosis Of Refrigerant Circuit /Application There might be some cases where the unit starts running but does not perform satisfactory, i.e.

  • Page 40: Parts List

    12. PARTS LIST MODEL: AWM 07F / 07FR / 10F / 10FR / 15F / 15FR 1. ASSY. MOUNTING PLATE 10. BUSH, FAN 2. CLAMP. PIPING 11. ASSY. EVAPORATOR COIL 3. ASSY. CHASIS 12. ASSY. FRONT FRAME A 4. ASSY. FAN MOTOR 13.
  • Page 41 MODEL : AWM 20F / 20FR / 25F / 25FR 1. ASSY. CHASIS 8. ASSY. EVAPORATOR COIL 2. PIPING, CLAMP 9. ASSY. AIR DISCHARGE HOUSING 3. ASSY. CONTROL BOX 10. CROSS FLOW FAN 4. ASSY. CONTROL BOX COVER 11. SCREW, SELF TAPPING ROUND HEAD 5.
  • Page 42 MODEL : ALC 07B / 10B / 15B 1. ASSY., BACK PANEL 15. ASSY., BASE PAN 2. ASSY., TOP PANEL 16. ASSY., CAPILLARY TUBE 3. ASSY., CONDENSER COIL 17. ASSY., PARTITION 4. BRACKET, MOTOR MOUNTING 18. ASSY., TERMINAL PANEL W/O CONT. 5.
  • Page 43 MODEL : ALC 20B / 25B 1. ASSY., BACK PANEL 17. GROMMET, RUBBER 2. ASSY., TOP PANEL 18. NUT, WITH WASHER 3. ASSY., CONDENSER COIL 19. ASSY., BASE PAN 4. BRACKET, MOTOR MOUNTING 20. ASSY., CAPILLARY TUBE 5. MOTOR, FAN 21.

  • Page 44: Selection Chart

    13. SELECTION CHART AWM 07F / 10F / 15F / 20F / 25F • CHARACTERISTICS OF COOLING CAPACITY. The cooling capacity could be obtained by using the following correction factors, C1 and C2. Particular cooling capacity = Cooling capacity standard rating conditions x C1 x C2.
  • Page 45 AWM 07FR / 10FR / 15FR / 20FR / 25FR Correct the cooling (heating) capacity in relation to the surrounding conditions. The estimated cooling (heating) capacity can be obtained in the following way. Correction of cooling & heating capacity in relation to air flow rate control. (fan speed) Coefficient: 1 .00 at High, 0.96 at Medium, 0.92 at Low.
  • Page 46 In addition, subtract following values in the table below from the values written in the above table when the outdoor unit is located at lower height than the indoor unit in cooling operation and when the outdoor unit is located at higher height than the indoor unit heating operation. Height different between the indoor and outdoor units Adjustment coefficient 0.01...
