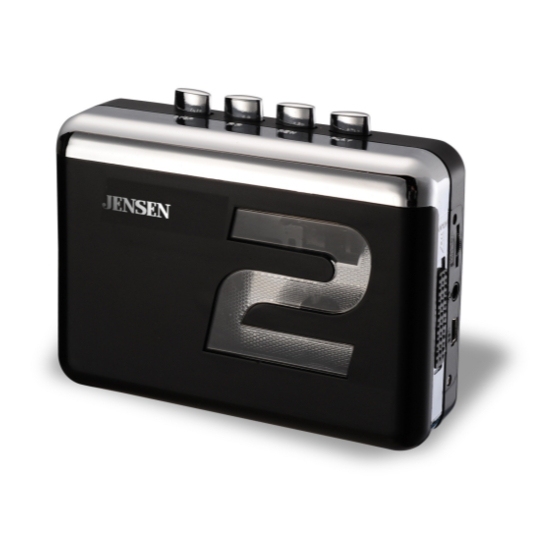

- Page 1 CASSETTE PLAYER WITH MP3 ENCODER INSTRUCTION MANUAL JSCR-75 PLEASE READ THIS INSTRUCTION MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN IT FOR FUTURE REFERENCE.
-
Page 2: Functions Of Controls
FEATURES Rediscover your old cassette tapes on the go. ● Convert your old mix tapes and cassettes to MP3 and play them back on any MP3 player, or burn ● them to a CD. The portable design is easy to carry and enables you to play and transfer almost anywhere. ●... -
Page 3: Software Installation
3. Insert 2 ‘AA’ batteries, according to the polarity on Cassette Compartment, into the battery compartment and replace the Battery Door. IMPORTANT: Be sure that the batteries are installed correctly. Wrong polarity may damage the unit and void the warranty. For best performance and longer operating time, we recommend the use of good quality alkaline-type batteries. - Page 4 USING THE JYK Recorder (MP3 ENCODING SOFTWARE) 1. Connecting the USB: Plug in the small end of the USB cable into the matching USB port on the Cassette Player (#4) and the large end of the USB cable into a matching USB port on your computer. (These are rectangular and are usually located on the front or back of desktop computers, and on the side of laptop computers).
- Page 5 Note: If another program opens up other than the JYK Recorder software when you plug your Cassette Player into the computer, click “Cancel” or “Close” to exit and return to the JYK Recorder software. To insure a good quality transfer, make sure all other programs are closed while recording. 4.
- Page 6 A. Audio Wave: If two bars are present, the Tape to MP3 Converter is connected correctly. If bars are moving, playback is being detected. Starts the Recording Stops the Recording Playback the recorded tracks Pauses the recording (Note: Does not stop playback on the converter.) Adjust recorded volume;...
- Page 7 11.2 If you want to save the tracks as MP3 type, you will need the “Lame MP3 encoder” software to do it. Open your Internet Browser and key in below website address and the download page will show as below diagram. Note: You need to download the “Lame MP3 encoder” for the first time use only.
- Page 8 On the download page, choose “Lame3.98.4.zip” to download and save into your PC desktop. After finish downloading the “Lame MP3 encoder”, go to your PC desktop to extract (unzip) it. Please refer to the following diagrams. 11.2.1 Right click on the downloaded Lame encoder “lame3.98.4” on your PC desktop, select “Extract All”...
- Page 9 T o s a v e y o u r r e c o r d e d t r a c k a s M P 3 f i l e , p l e a s e p r o c e e d a s b e l o w : 1 1 .
- Page 10 11.2.3 Select MP3 encode bitrate: 64k bps~320k bps (say 128K bps) and click “OK” to confirm. Diagram: MP3 Encode Bitrate Selection. 11.2.4 When the following JYK Recorder window pops up, click “OK” to confirm since you have already downloaded the “Lame MP3 encoder”.
- Page 11 11.2.5 Now select your PC desktop to look for the Lame MP3 encoder, select “lame3.98.4” folder and then click “Open” button as illustrated in the following diagram. “ ” “ ” T h e n s e l e c t t h e l a m e f i l e a n d t h e n c l i c k t h e O p e n...
-
Page 12: Care And Maintenance
If it is loaded correctly, your screen will show “Conversion success”. Click “OK” then your MP3 is saved successfully. Note: The JYK recorder software default record type is WAV. Every time you want to save the tracks as MP3 type, you will need to choose MP3 type from the list as shown in the diagram, JYK Recorder software will save the music in the file format according to your choice. - Page 13 maximum. A. The TAPE-TO-MP3 Converter may not be plugged in correctly. Make sure that you have properly followed Step 2 of the “USING THE TAPE-TO-MP3 CONVERTER” section. Q. Where is the Audio Tab in the Sound and Audio Properties Screen? A.
- Page 14 MP3 players or burned onto an audio CD. SERVICE All necessary care is taken at the point of manufacture to ensure this unit will perform to the Jensen’s high quality standards. However if this unit becomes faulty within the warranty period please return it to the point of purchase with your proof of purchase for a replacement.
