PUB. DIE-0332-000
HD Camcorder

Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Canon Legria HF21

Summary of Contents for Canon Legria HF21

  • Page 1: Instruction Manual

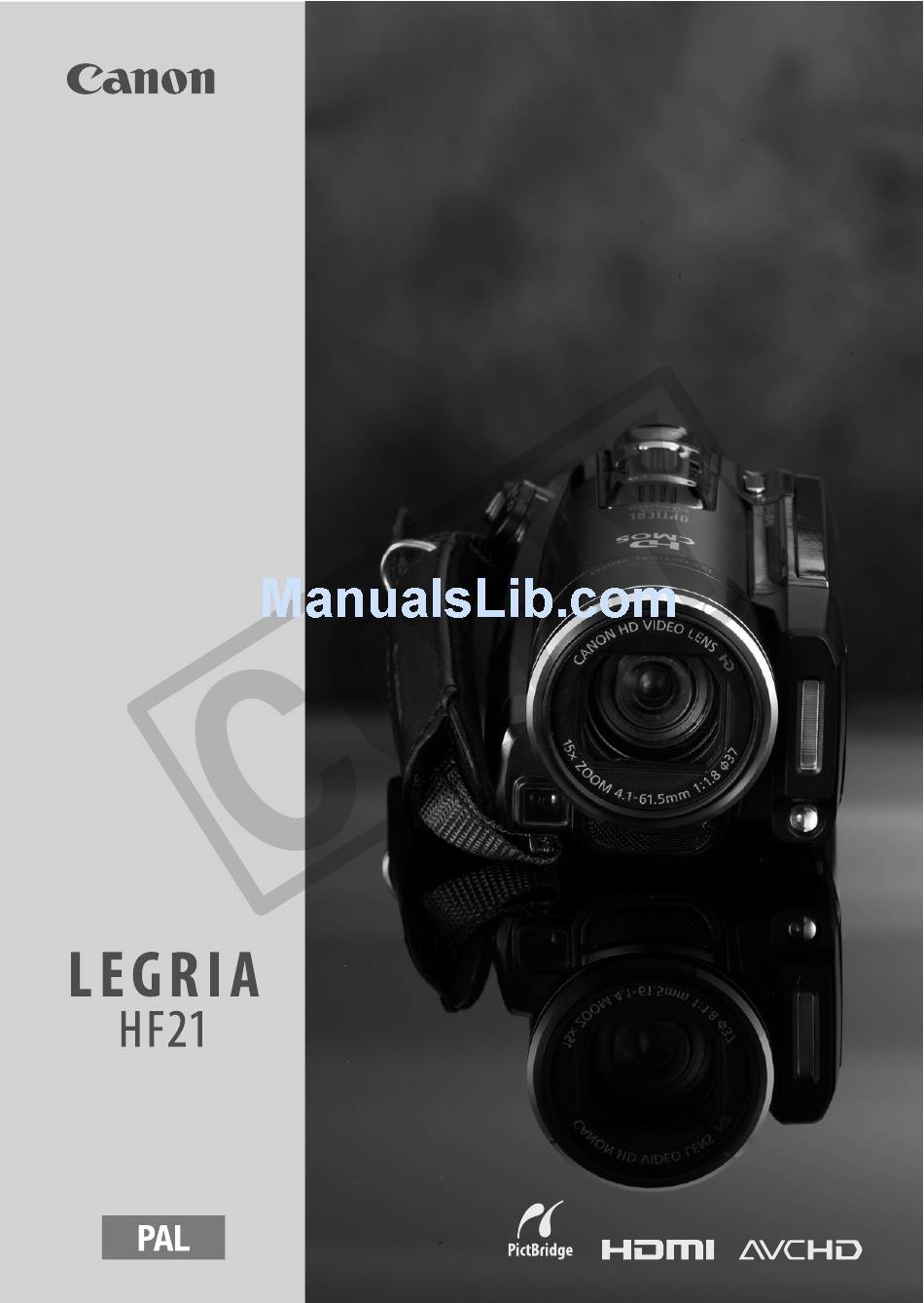

    PUB. DIE-0332-000 HD Camcorder Instruction Manual...

  • Page 2: Important Usage Instructions

    Introduction Important Usage Instructions WARNING! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
  • Page 3 For more information about the recycling of this product, please contact your local city office, waste authority, approved scheme or your household waste disposal service or visit www.canon-europe.com/environment. (EEA: Norway, Iceland and Liechtenstein) Trademark Acknowledgements •...

  • Page 4: Enjoying High-Definition Video With Your Camcorder

    Approximately 5 times the number of pixels. Almost 90% more scanning lines. “Full HD 1080” refers to Canon camcorders compliant with high-definition video composed of 1,080 vertical pixels (scanning lines). Video is recorded at this resolution only when the recording mode is set to MXP or FXP mode.

  • Page 5: Cinema Mode

    What are the advantages of flash memory? Your videos and photos are recorded in the built-in memory or on commercially available SD/SDHC memory cards using AVCHD specifications . Recording on flash memory means that there are no moving parts in the recorder unit of the camcorder. To you, it means a camcorder that is smaller, lighter and faster.
  • Page 6 Can I play back my high-definition video on other devices? Needless to say, you can connect your camcorder to an HDTV to enjoy your recordings with family and friends ( 120). You also have the following options: • You can easily play back video recorded on the memory card by inserting the memory card directly into AVCHD-compatible TV sets and HDD or DVD recorders that feature an SD/SDHC memory card slot...

  • Page 8: Table Of Contents

    Table of contents Introduction Enjoying High-Definition Video with your Camcorder About this Manual Getting to Know the Camcorder Supplied Accessories and CD-ROMs Names of Parts Screen Displays Preparations Getting Started Attaching the Ferrite Core Charging the Battery Pack Preparing the Wireless Controller and Accessories Adjusting the Position and Brightness of the LCD Screen Basic Operation of the Camcorder...
  • Page 9 Video Basic Recording Shooting Video Selecting the Video Quality (Recording Mode) Zooming Quick Start Function Basic Playback Playing Back the Video Selecting what Recordings to Play Back Searching for Scenes Selecting the Playback Starting Point Pre-selecting Recordings from the Index Screen Deleting Scenes Advanced Functions Special Scene Recording Programs...
  • Page 10 Playlist and Scene Operations Dividing Scenes Editing the Playlist: Adding, Deleting, Moving and Playing Back Copying Scenes Photos Basic Recording Taking Photos Selecting Photo Size and Quality Deleting a Photo Right After Recording It Basic Playback Viewing Photos Deleting Photos Magnifying Photos during Playback Additional Functions Flash...
  • Page 11 External Connections 116 Terminals on the Camcorder Connection Diagrams Playback on a TV Screen 121 Saving Your Recordings Saving Your Recordings on a Computer Authoring High-Definition (AVCHD) Discs and Photo DVDs Copying your Recordings to an External Video Recorder Transferring Photos to a Computer (Direct Transfer) Transfer Orders Additional Information 133 Appendix: Menu Options Lists...

  • Page 12: About This Manual

    About this Manual Thank you for purchasing the Canon LEGRIA HF21. Please read this manual carefully before you use the camcorder and retain it for future reference. Should your camcorder fail to operate correctly, refer to Troubleshooting ( 148). Conventions Used in this Manual •...
  • Page 13 Selecting the Video Quality (Recording Mode) The camcorder offers 5 recording modes. Changing the recording mode will change the recording time available on the memory. Select MXP or FXP mode for better movie quality; select LP mode for longer recording times. The following table gives approximate recording times.

  • Page 14: Supplied Accessories And Cd-Roms

    Getting to Know the Camcorder Supplied Accessories and CD-ROMs The following accessories are supplied with the camcorder: CA-570 Compact Power Adapter (incl. power cord and ferrite core) BP-809 Battery Pack WL-D88 Wireless Controller (incl. CR2025 lithium button battery) STV-250N Stereo Video Cable Yellow •...
  • Page 15 The following CD-ROMs and software are supplied with the camcorder: • PIXELA Application - Disc 1 CD-ROM* and ‘PIXELA ImageMixer 3 SE’ Installation Guide - ImageMixer 3 SE Transfer Utility – Software for saving and transferring movies. - Music Transfer Utility – Software for transferring to the camcorder music data for video snapshot playback.

  • Page 16: Names Of Parts

    Names of Parts Left side view RESET button ( 151) VIDEO SNAP (video snapshot) button 63)/ (print/share) button 109, 129) DISP. (on-screen display) button 76)/ BATT. INFO button ( Speaker ( Memory card slot cover Memory card slot ( AV OUT terminal ( 116, 118)/ (headphones) terminal ( Camera mode dial (...
  • Page 17 Top view Mini advanced shoe ( PHOTO button ( Zoom lever ( ON/OFF (CHG) (charge) indicator: Green – ON Orange – Standby ( Red – Charging ( POWER button Remote sensor ( LCD screen ( Joystick ( FUNC. button ( 33, 133) (play/pause) button ( 46)/...
  • Page 18 Bottom view BATTERY RELEASE switch ( Tripod socket ( 164) Wireless Controller WL-D88 START/STOP button ( FUNC. button ( 33, 133) MENU button ( 33, 136) PLAYLIST button ( Navigation buttons ( (frame reverse) button ( (fast reverse) button ( (play) button ( (pause) button ( (stop) button (...

  • Page 19: Screen Displays

    Screen Displays Recording Movies Remaining recording time Operating mode ( On the memory card Recording program ( 57, 60, 62) In the built-in memory White balance ( Image stabilizer ( 138) Image effect ( 25F progressive frame rate Digital effect ( 22, 62) Recording mode ( Face detection (...
  • Page 20 Recording Photos Zoom ( 43), Number of available photos Exposure On the memory card In the built-in memory Light metering mode ( 101) Camcorder shake warning ( 139) Drive mode ( AF frame ( 138) Photo quality/size ( Focus and exposure lock ( Self timer ( Flash ( Playing Movies (During Playback)
  • Page 21 Viewing Photos Manual focus ( Histogram ( 103) File size Current photo / Total number of Manual exposure ( photos Photo size ( Photo number ( 145) Aperture value ( Protected photo mark ( 104) Shutter speed ( Date and time of recording Introduction...

  • Page 22: Memory Operation

    Memory operation Record, Record pause, Playback, Playback pause, Fast playback, Fast reverse playback, Slow playback, Slow reverse playback, Frame advance, Frame reverse. Remaining battery time • The first time you use a battery pack, fully charge it and then use the camcorder until the battery pack is completely exhausted.

  • Page 23: Preparations

    Preparations This chapter describes basic operations, such as navigating the menus, and first time settings to help you learn more about your camcorder. Getting Started Attaching the Ferrite Core Attach the enclosed ferrite core before you connect the compact power adapter to the camcorder. Attach the ferrite core to the cable about 4 cm from the plug end (the plug to be connected to the camcorder) of...
  • Page 24 1 Connect the power cord to the compact power adapter. 2 Plug the power cord into a power outlet. 3 Connect the compact power adapter to the camcorder’s DC IN terminal. DC IN 4 Attach the battery pack to the terminal camcorder.
  • Page 25 IMPORTANT • Turn off the camcorder before connecting or disconnecting the com- pact power adapter. After pressing POWER to turn off the camcorder, important data is updated in the memory. Be sure to wait until the green ON/OFF (CHG) indicator goes out. •...

  • Page 26: Preparing The Wireless Controller And Accessories

    Preparing the Wireless Controller and Accessories First, insert the supplied CR2025 lithium button battery into the wire- less controller. 1 Press the tab in the direction of the arrow and pull out the battery holder. 2 Place the lithium button battery with the + side facing up.
  • Page 27 Accessories Fasten the grip belt. Adjust the grip belt so that you can reach the zoom lever with your index finger, and START/STOP button with your thumb. To remove the grip belt 1 Lift the padded handgrip's flap and detach the strap from the Velcro pad.

  • Page 28: Adjusting The Position And Brightness Of The Lcd Screen

    To attach a shoulder strap Pass the ends of the shoulder strap through the strap mount on the grip belt and adjust the length of the strap. Adjusting the Position and Brightness of the LCD Screen Rotating the LCD Panel Open the LCD panel 90 degrees.
  • Page 29 LCD Backlight When recording in bright places it may be difficult to use the LCD screen. Turn on the LCD backlight to make it brighter. DISP. With the camcorder on, hold pressed down for more than 2 seconds. • Repeat this action to switch the LCD backlight between off (normal) and on (bright).

  • Page 30: Basic Operation Of The Camcorder

    Basic Operation of the Camcorder Operating Modes Recording When recording video or photos, the camcorder’s operating mode is determined by the position of the camera mode dial. Operating Camera mode Onscreen icon Operation mode dial Easy recording of movies and photos ( 41, 90).
  • Page 31 • In mode, menus cannot be accessed but the following settings can be changed in advance, before setting the camera mode dial to - Recording mode of movies - Size/quality of photos - Your selection of recording media for movies/photos - Auto slow shutter - Backlight correction - All settings under the setup menu’s...

  • Page 32: Joystick And Joystick Guide

    Joystick and Joystick Guide Use the joystick to operate the camcorder's menus. Push the joystick up, down, left or right Press the joystick itself ( ) to save ) to select an item or the settings or confirm an action. On change settings.
  • Page 33 Selecting an Option from the FUNC. Menu The following is an example of selecting a FUNC. menu option in mode (the operation is similar in mode). In playback modes, the operation varies depending on the function selected so refer to the rel- evant chapter as necessary.
  • Page 34 • Move ( ) the orange selection bar to the tabs at the top of the screen to select a different menu (step 3). 5 Select ( ) the desired option and press to save the setting. FUNC. 6 Press FUNC.

  • Page 35: First Time Settings

    First Time Settings Setting the Date and Time You will need to set the date and time of the camcorder before you can start using it. The [Date/Time] screen will appear automatically when the cam- corder’s clock is not set. When the [Date/Time] screen appears, the year will be selected.

  • Page 36: Changing The Language

    Changing the Language The default language of the camcorder is English. You can set it to one of 22 other languages. Operating modes: FUNC. Menu] [Language FUNC. Desired language NOTES • The displays that appear in some menu screens refer to the name of buttons on the camcorder and will not change, regardless of the language selected.

  • Page 37: Using A Memory Card

    Using a Memory Card Memory Cards Compatible for Use with the Camcorder You can use commercially available SDHC (SD high capacity) memory cards and SD memory cards with this camcorder. How- ever, depending on its Speed Class, you may not be able to record movies on the memory card.

  • Page 38: Inserting And Removing A Memory Card

    Inserting and Removing a Memory Card Make sure to initialize ( 39) all memory cards before using them with this camcorder. 1 Turn off the camcorder. Make sure the indicator ON/OFF (CHG) is off. 2 Open the memory card slot cover. 3 Insert the memory card straight, with the label facing up, all the way into the memory card slot until it...

  • Page 39: Selecting The Memory For The Recordings

    Selecting the Memory for the Recordings You can select to record your movies and photos in the built-in mem- ory or on a memory card. The built-in memory is the default memory for recording both. Operating modes: FUNC. Menu] [Rec Media for Movies] or [Rec Media for Photos] FUNC.
  • Page 40 IMPORTANT • Initializing the memory will permanently erase all recordings. Lost origi- nal recordings cannot be recovered. Make sure you save important recordings in advance using an external device ( 121). • When the memory is initialized, music files will be erased as well. Use the supplied software Music Transfer Utility to transfer music files from the supplied Instruction Manual/Music Data CD-ROM to the...

  • Page 41: Basic Recording

    Video This chapter covers functions related to shooting movies, including recording, playback, advanced functions and playlist and scene operations. Basic Recording Shooting Video Operating modes: 1 Set the camera mode dial to 2 Turn on the camcorder. By default, movies are recorded in the built-in memory.

  • Page 42: Selecting The Video Quality (Recording Mode)

    - Do not change the camcorder’s operating mode. • Be sure to save your recordings regularly ( 121), especially after mak- ing important recordings. Canon shall not be liable for any loss or cor- ruption of data. NOTES • About the Power Save mode: If...

  • Page 43: Zooming

    Approximate recording times Default value Recording mode → Memory ↓ 64 GB 5 hr. 8 hr. 11 hr. 19 hr. 24 hr. 55 min. 20 min. 30 min. 10 min. 30 min. Built-in memory 4 GB 20 min. 30 min. 40 min.

  • Page 44: Quick Start Function

    15x Optical Zoom Move the zoom lever toward W (wide angle) to zoom out. Move it toward T (telephoto) to zoom in. By default, the zoom lever operates at a variable speed – press gently for a slow zoom; press harder for faster zooms. NOTES •...
  • Page 45 1 With the camcorder on and in a recording mode, close the LCD panel. A beep will sound and the green ON/OFF (CHG) indicator will change to orange to indicate the camcorder entered standby mode. 2 When you wish to resume recording, open the LCD panel. The ON/OFF (CHG) indicator turns back green and the camcorder is ready to record.

  • Page 46: Basic Playback

    Basic Playback Playing Back the Video Operating modes: 1 Set the camera mode dial to 2 Press • Even if the camcorder is off, pressing will turn on the camcorder in playback mode. • The index screen appears after a few seconds.
  • Page 47 - Do not open the memory card slot cover. - Do not disconnect the power source or turn off the camcorder. - Do not change the camcorder’s operating mode. • You may not be able to play back with this camcorder movies recorded on a memory card using another device.

  • Page 48: Selecting What Recordings To Play Back

    Skipping scenes Camcorder: Open ( ) the joystick guide Select ( ) the bottom row Push the joystick ( ) toward * to skip to the beginning of the current scene or to skip to the next scene. Wireless controller: Perform the procedure above using the wireless controller navigation buttons.

  • Page 49: Searching For Scenes

    3 Return ( ) to the index screen to select a scene or photo. By default, the index screen will show up to 6 items (scenes or photos). Move the zoom lever toward W to show up to 15 items per screen. Move it toward T to return to the default index screen display.
  • Page 50 • You can select ( ) the year or month field and change ( ) the year or month to move faster between calendar months. 4 Press to return to the index screen. The orange selection frame will appear on the first scene recorded on the selected date.

  • Page 51: Selecting The Playback Starting Point

    Selecting Only Scenes in which People’s Faces Were Detected If you recorded movies with the Face Detection function ( 71) acti- vated, the camcorder can narrow down the scenes shown in the index screen, leaving only those scenes where a face was detected. This function is not available from the index screen for video snapshot scenes.
  • Page 52 Movie Timeline 1 Open the original movies index screen. You can select the original movies in the built-in memory or on the memory card. DISP. 2 Select ( ) the scene you want to view and press • The [Timeline] screen appears. The large thumbnail will show the first frame of the scene.

  • Page 53: Pre-Selecting Recordings From The Index Screen

    DISP. 2 Select ( ) the scene you want to view and press • The [Timeline by Faces] screen appears. The large thumbnail shows the point at which a face was first detected. Below it, frames are taken from the scene every time the main subject detected by the camcorder changed.

  • Page 54: Deleting Scenes

    VIDEO SNAP • You can press to open the index screen for video snapshot scenes ( 63). 2 Open the selection screen. FUNC. Select] [Individual Scenes] or [Individual Photos] • The selection screen appears. 3 Move ( ) between the scenes or photos in the index screen and press to select an individual scene/photo.
  • Page 55 Options [All Scenes] Deletes all the scenes. [All Scenes (this date)] Deletes all the scenes recorded on the same day as the selected scene. [This Scene] Deletes only the scene marked with the orange selec- tion frame. [Selected Scenes] Deletes all the scenes selected in advance (marked with a checkmark).
  • Page 56 NOTES • Deleting a scene from the original index screen also deletes that scene from the playlist. • To delete all movies and make all recordable space available again you may prefer to initialize the memory ( 39). • You may not be able to delete scenes recorded or edited using another device.

  • Page 57: Advanced Functions

    Advanced Functions Special Scene Recording Programs Recording in a very bright ski resort or capturing the full colors of a sunset or a fireworks display becomes as easy as selecting a Special Scene recording program. Operating modes: Options ( Default value) Portrait] The camcorder uses a large aperture, to achieve a sharp focus on the sub-...
  • Page 58 Low Light] To record in low-light situations. Spotlight] To record spotlit scenes. Fireworks] To record fireworks. Underwater] To record underwater scenes in natural colors. Surface] To record after getting out of the water, such as on a boat after diving. FUNC.
  • Page 59 - Autofocus may not work as well as in other modes. In such case, adjust the focus manually. • [ Fireworks]: - To avoid camcorder blur (blur due to the camcorder moving) we recommend using a tripod. - In mode, slower shutter speeds are used so blur is more likely to occur.

  • Page 60: Changing The Shutter Speed And Aperture

    Changing the Shutter Speed and Aperture Select the [ Programmed AE] recording program to use functions like the white balance or image effects. Select one of the other automatic exposure recording programs to control the shutter speed or aperture. Operating modes: Options ( Default value) Programmed AE]...
  • Page 61 [1/2]*, [1/3]*, [1/6], [1/12], [1/25] To record in low-light situations. [1/50] To record under most ordinary conditions. [1/120] To record indoor sports scenes. [1/250], [1/500], [1/1000]** To record from within a moving car or train or to shoot fast-moving subjects such as roller coasters. [1/2000]** To record outdoor sports scenes on sunny days.

  • Page 62: Cinema Mode: Giving A Cinematic Look To Your Recordings

    Cinema Mode: Giving a Cinematic Look to your Recordings Give your recordings a cinematic look by using the [ Cine Mode] recording program. Combine this recording program with the 25 fps progressive frame rate [ PF25] to get the enhanced effect of the 25p Cinema Mode.

  • Page 63: Video Snapshot

    NOTES • We recommend not using the mini video light while the optional Wide- converter or Tele-converter is attached; its shadow can appear on the screen. Using an External Video Light You can use the optional VL-5 Video Light or VFL-2 Video Flash Light when you need a video light that is stronger than the built-in mini video light.
  • Page 64 • When the camcorder stops recording, the screen will momentarily turn black as if a camera shutter had released. • In the movie index screen, video snapshot scenes are indicated with mark. Capturing Video Snapshot Scenes from a Movie Operating modes: 1 Play back the movie containing the scene you want to capture.
  • Page 65 Combining Video Snapshot Scenes with Music Operating modes: 1 Open the original movies index screen and press VIDEO SNAP • The button’s blue light will turn on and only the video snapshot scenes will appear in the index screen. • You can select their original movies in the built-in memory or on the memory card.
  • Page 66 IMPORTANT • Music files transferred to the camcorder with the supplied software Music Transfer Utility may not be used without permission from the copyright holder, except for cases permitted under applicable laws, such as for personal use. Make sure to follow applicable laws when using music files.

  • Page 67: Pre-Recording Function

    Pre-recording Function The camcorder will start recording 3 seconds before you press START/STOP , ensuring you do not miss important shooting opportuni- ties. This is especially useful when it is difficult to predict when to start recording. Operating modes: 1 Open ( ) the joystick guide.

  • Page 68: Manual Exposure Adjustment And Automatic Backlight Correction

    START/STOP mode: In record pause mode, press The camcorder starts recording after a 10-second countdown*. The countdown appears on the screen. PHOTO mode: Press , first halfway to activate the autofocus and then fully. The camcorder will record the photo after a 10-second countdown*. The countdown appears on the screen.
  • Page 69 Manual Exposure Adjustment 1 Open ( ) the joystick guide. Exposure 2 Select ( Exposure] and press • The current exposure is locked. • The exposure adjustment indicator and the neutral value “±0” appear on the screen. • The adjustment range and the length of the exposure adjustment indicator will vary depending on the initial brightness of the picture.

  • Page 70: Manual Focus Adjustment

    Manual Focus Adjustment Autofocus may not work well on the following subjects. In such case, focus manually. • Reflective surfaces • Fast moving subjects • Subjects with low contrast • Through wet windows or without vertical lines • Night scenes Operating modes: POINTS TO CHECK •...

  • Page 71: Face Detection

    Face Detection You can have the camcorder automatically detect people’s faces and use this information to adjust the focus and set the best exposure for beautiful videos and photos. When there are a number of people in the picture, one person (with the white face frame) will be determined to be the main subject.

  • Page 72: White Balance

    • Face detection cannot be used when the shutter speed used is slower than 1/25 or when the digital zoom is activated at more than 60x zoom (dark blue area on the zoom bar). • When face detection is activated, the slowest shutter speed used by the camcorder is 1/25.

  • Page 73: Image Effects

    To set the custom white balance 1 Point the camcorder at a white object, zoom in until it fills the whole screen and press When the adjustment is completed, stops flashing and stays on. The camcorder retains the custom setting even if you turn off the camcorder.
  • Page 74 Options ( Default value) Image Effect Off] Records with no image enhancing effects. Vivid] Emphasizes the contrast and color saturation. Neutral] Tones down the contrast and color saturation. Low Sharpening] Records subjects with softened outlines. Soft Skin Detail] Softens the details in the skin tone area for a more complimentary appearance.

  • Page 75: Digital Effects

    Digital Effects Operating modes: Options ( Default value) Digital Effect Off] Select this setting when you do not intend to use the digital effects. Fade Trigger] Wipe] Select one of the faders to begin or end a scene with a fade from or to a black screen. Black &...

  • Page 76: On-Screen Displays And Data Code

    To activate an effect mode: Activate the selected effect while recording or in record pause mode. PHOTO mode: Activate the selected effect and then press record the photo. NOTES • When you apply a fader, not only the picture but also the sound will fade in or out.

  • Page 77: Audio Recording Level

    About the Data Code With every scene or photo recorded, the camcorder keeps a data code (date/time of recording, information about the camera setup, etc.). In mode, this information is displayed on the bottom bar and as information icons; in mode, you can select the information to be displayed with the [Data Code] setting.

  • Page 78: Using Headphones

    • Press twice to return the camcorder to automatic adjustment of the audio recording level. To display the audio level indicator Usually, the audio level indicator will be displayed only after activating the manual adjustment of the audio recording level. You can choose to display it also when the audio level is adjusted automatically.
  • Page 79 To adjust the volume of the headphones mode, adjust ( ) the volume of the headphones with the [Headphone Volume] setting. mode, and in mode during slideshow playback, adjust the headphones volume the same way you adjust the speaker’s volume ( 46).

  • Page 80: Using The Mini Advanced Shoe

    Using the Mini Advanced Shoe Using the mini advanced shoe, you can attach to the camcorder a range of optional accessories to expand its functionality. For details about optional accessories available for use with your camcorder, refer to Accessories ( 171).

  • Page 81: Using An External Microphone

    Using an External Microphone When recording in very quiet surroundings, the built-in microphone may pick up the sound of the camcorder's internal machinery. In such case, we recommend using an external microphone. Using the DM-100 Directional Stereo Microphone Operating modes: Attach the optional DM-100 Directional Stereo Microphone to the mini advanced shoe.

  • Page 82: Using A Zoom Remote Controller

    Using a Zoom Remote Controller Operating modes: By attaching the optional RA-V1 Remote Control Adapter to the mini advanced shoe, you can use the optional ZR-2000 or ZR-1000 Zoom Remote Controller. Doing so will allow you to use certain functions while viewing the picture on an external monitor without touching the camcorder.

  • Page 83: Playlist And Scene Operations

    Playlist and Scene Operations Dividing Scenes You can divide scenes (original scenes only) in order to leave out the best parts and later cut out the rest. Operating modes: 1 Open the original movies index screen. You can select the original movies in the built-in memory or on the memory card ( 48).

  • Page 84: Editing The Playlist: Adding, Deleting, Moving And Playing Back

    - Scenes that were recorded or edited using another device. - Scenes that were edited using the software on the supplied Video Tools CD-ROM and were then written back to the camcorder. • Scenes cannot be divided within 1 second from the beginning or the end of the scene.
  • Page 85 • When the operation is completed [Scene(s) added to the playlist] will be displayed. • Scenes are added to the playlist on the same memory they are recorded on. • Press PLAYLIST on the camcorder or on the wireless controller to switch between the original movies index screen and the playlist.
  • Page 86 1 Open the playlist index screen. PLAYLIST • Open the original movies index screen and press PLAYLIST • Before pressing , you can select the original movies in the built-in memory or on the memory card to open the playlist of the respective memory.
  • Page 87 Playing Back Scenes in the Playlist with Music You can play back the scenes in the playlist set to background music. 1 Open the playlist index screen. PLAYLIST • Open the original movies index screen and press PLAYLIST • Before pressing , you can select the original movies in the built-in memory or on the memory card to open the playlist of the respective memory.

  • Page 88: Copying Scenes

    Copying Scenes You can copy original movies or the entire playlist only from the built-in memory to the corresponding location on the memory card. See Copying Photos ( 105) for details on copying photos to the memory card. Operating modes: Copying Original Movies Options [All Scenes]...
  • Page 89 Copying the Entire Playlist 1 Open the index screen of the built-in memory's playlist. • In the original movies index screen, select the tab under the PLAYLIST icon, and press VIDEO SNAP • You can press to open the playlist index screen for video snapshot scenes ( 63).

  • Page 90: Photos

    Photos Refer to this chapter for details on shooting photos – taking photos and playing them back, capturing photos from video and printing photos. Basic Recording Taking Photos Operating modes: 1 Set the camera mode dial to 2 Turn on the camcorder. By default, photos are recorded in the built-in memory.

  • Page 91: Selecting Photo Size And Quality

    NOTES • If the subject is not suitable for autofocus, turns yellow. Adjust the focus manually ( 70). • When the subject is too bright, [Overexp.] will flash on the screen. In such case, use the optional FS-H37U ND filter. Selecting Photo Size and Quality Photos are recorded as JPG files.

  • Page 92: Deleting A Photo Right After Recording It

    FUNC. 2100x1575] Desired photo size* Desired photo quality* FUNC. * Press to move back and forth between size and quality selection. The number displayed on the right corner indicates the approximate number of photos that can be recorded with the current quality/size setting. NOTES •...

  • Page 93: Basic Playback

    Basic Playback Viewing Photos Operating modes: To start directly in single photo view 1 Set the camera mode dial to 2 Press The last photo recorded will be displayed in single photo view. 3 Push the joystick ( ) to move between photos.

  • Page 94: Deleting Photos

    You can also move the zoom lever toward W to open the photo index screen. Photo Jump Function When you have recorded a large number of photos, you can jump 10 or 100 photos at a time. 1 Open ( ) the joystick guide.
  • Page 95 Using the FUNC. Menu 1 In single photo view, open the photo selection screen. FUNC. Delete] Delete] appears on the screen. 2 Select ( ) the photo you want to delete and press 3 Select ( ) [Yes] and press to delete the photo.

  • Page 96: Magnifying Photos During Playback

    Magnifying Photos during Playback In single photo view, photos can be magnified up to 5 times. will appear for photos that cannot be enlarged. Operating modes: 1 Move the zoom lever toward T. • The photo is magnified by 2 times and a frame appears indicating the position of the magnified area.

  • Page 97: Additional Functions

    Additional Functions Flash You can use the flash to take photos in dark places. Operating modes: POINTS TO CHECK • Select a recording program other than [ Fireworks], [ Underwater] or [ Surface]. Options ( Default value) (auto) The flash fires automatically according to the brightness of the subject.
  • Page 98 Using the VFL-2 Video Flash Light You can use the optional VFL-2 Video Light Flash as an external flash when its POWER switch is set to ON. The procedure for setting the external flash is the same as for the built-in flash. Attach the optional VFL-2 Video Flash Light to the mini advanced shoe.

  • Page 99: Drive Mode: Continuous Shooting And Exposure Bracketing

    Drive Mode: Continuous Shooting and Exposure Bracketing Take a series of photos of a moving subject or record the same picture in 3 levels of exposure in order to choose later the photo you like the best. Operating modes: POINTS TO CHECK •...

  • Page 100: Taking Photos While Recording Movies (Simultaneous Recording)

    • When the flash is used, continuous shooting speed will decrease to approx. 1.7 photos/second. Continuous shooting speed will decrease also when using slow shutter speeds (1/25 or slower). Taking Photos while Recording Movies (Simultaneous Recording) You can record photos even while the camcorder is set to mode.

  • Page 101: Light Metering Mode

    Light Metering Mode The camcorder measures the light reflected from the subject in order to calculate the optimal exposure settings. Depending on the subject, you may want to change the way the light is measured and evaluated. Operating modes: POINTS TO CHECK •...

  • Page 102: Rotating Photos

    FUNC. 3 Select ( ) a music track and press twice. • You can press to listen to the track selected. Press to stop the playback. • Select [Off] to play back slideshow without background music. 4 Back in the index screen, select ( ) the first photo of the slideshow.

  • Page 103: Histogram Display

    2 Select ( ) the photo you want to rotate. 3 Press to rotate the photo. 4 Repeat steps 2-3 to change the orientation of additional photos or FUNC. press twice to close the menu. Histogram Display In single photo view, you can display the histogram and the icons of all the functions used at the time of recording.

  • Page 104: Protecting Photos

    Continue from the same menu: [Photo Capture Quality] Desired photo quality* FUNC. * The number displayed at the bottom indicates the approximate number of photos that can be recorded with the current quality setting. To capture the photo(s) 1 Play back the scene containing the picture you want to capture. 2 Pause the playback at the point you want to capture.

  • Page 105: Copying Photos

    3 Press to protect the photo. appears on the bottom bar and the photo cannot be deleted. Press again to remove the protection. 4 Repeat steps 2-3 to protect additional photos or press FUNC. twice to close the menu. Protecting Photos from the Index Screen Options [Individual Photos] Opens the same screen described previously...
  • Page 106 Copying a Single Photo 1 Select to view the photos recorded in the built-in memory. In the index screen, select the tab under the icon and move the zoom lever toward T to return to single photo view. 2 Open the photo selection screen. FUNC.
  • Page 107 IMPORTANT • Observe the following precautions while the ACCESS indicator is on or flashing. Failing to do so may result in permanent data loss. - Do not open the memory card slot cover. - Do not disconnect the power source or turn off the camcorder. - Do not change the camcorder’s operating mode.

  • Page 108: Printing Photos

    You can mark in advance the photos you want to print and set the desired number of copies as a print order ( 113). Canon printers: SELPHY printers of the CP, DS and ES series and inkjet printers marked with the PictBridge logo. Operating modes:...
  • Page 109 • During the following operations, even if you connect a printer to the camcorder it will not be recognized. - Deleting all photos - Removing all transfer orders - Removing all print orders NOTES • will appear for photos that cannot be printed. •...

  • Page 110: Selecting The Print Settings

    Select [On], [Off] or [Default]. ] (Print effect) Available only with printers compatible with the Image Optimize function. Select [On], [Off] or [Default]. Canon inkjet/SELPHY DS printers: You can also select [Vivid], [NR] and [Vivid+NR]. [ ] (Number of copies) Select 1-99 copies.
  • Page 111 [x photos/sheet]: Printing multiple photos on the same sheet When using Canon printers you can print the same photo multiple times on the same sheet of paper. Use the following table as a guideline for the recommended number of copies depending on the [ Paper Size] setting.

  • Page 112: Trimming Settings

    If that option is not available, select [Stop] and press and then restart printing from the beginning. • Other printers or if the error still persists with a Canon printer: If printing does not resume automatically, disconnect the USB cable and turn off the camcorder.

  • Page 113: Print Orders

    1 Open the print settings menu. Refer to steps 1-2 in Printing after Changing the Print Settings 111). 2 Select ( ) [Trimming] and press The trimming frame appears. 3 Change the size of the trimming frame. • Move the zoom lever toward T to shrink the frame, and move it toward W to enlarge it.
  • Page 114 out the print orders by connecting the camcorder to a PictBridge-com- patible printer ( 108). You can set print orders for up to 998 photos. Operating modes: POINTS TO CHECK • Set the print orders before connecting the supplied USB cable to the camcorder.
  • Page 115 2 Select ( ) the photo you want to mark with a print order. This step is not necessary to set print orders for previously selected photos or to remove all the print orders. 3 Set the print orders. FUNC. Print Orders] Desired option [Yes]...

  • Page 116: External Connections

    External Connections This chapter explains how to connect your camcorder to an external device such as a TV, VCR, or computer. Terminals on the Camcorder USB Terminal Access: Open the side terminal cover. HDMI OUT Terminal* Access: Open the side terminal cover. The HDMI OUT terminal offers a high-quality digital connection that combines audio and video in a single convenient cable.

  • Page 117: Connection Diagrams

    Connection Diagrams In the following connection diagrams, the left side shows the terminals on the camcorder and the right side shows (for reference only) an example of terminals on a connected device. Type: Digital Quality: High definition Output only Connection Connect to a high-definition TV (HDTV) with an HDMI input terminal.
  • Page 118 Type: Analog Quality: Depends on the settings Output only Connect to a high-definition TV (HDTV) or a standard TV with component video input terminals. Change the following settings on Connection the camcorder: [Component Output] according to the TV set (standard or high definition) [AV/Headphones] to [ Blue...
  • Page 119 In all respects, exactly the same connection as connection Connection Connect to a standard TV or VCR with SCART input terminal. Requires a SCART adapter (commercially available). White Yellow STV-250N Stereo Video Cable SCART adapter (supplied) (commercially available) Type: Digital data connection Connect to a computer to save your recordings, to the optional Connection DW-100 DVD Burner to create DVD discs from them, or to a printer to...

  • Page 120: Playback On A Tv Screen

    Playback on a TV Screen Connect the camcorder to a TV to enjoy your recordings with family and friends. Playback on an HDTV using one of the high-definition con- nections will ensure the best playback quality. Operating modes: 1 Turn off the camcorder and the TV. 2 Connect the camcorder to the TV.

  • Page 121: Saving Your Recordings

    Saving Your Recordings Saving Your Recordings on a Computer Movies recorded with this camcorder are saved in the built-in memory or on the memory card. Because space is limited, make sure to save your recordings on a computer on a regular basis. PIXELA ImageMixer 3 SE With the software supplied on the Transfer Utilities CD-ROM you can save scenes to your computer's hard disk.

  • Page 122: Authoring High-Definition (Avchd) Discs And Photo Dvds

    • When the camcorder is connected to a computer: Do not access, change or delete any of the camcorder’s folders or files directly from the computer as this may result in permanent data loss. Always save your recordings on the computer, and restore the files to the camcorder, using only the software on the supplied Transfer Utilities CD-ROM.
  • Page 123 • Select in advance the memory that contains the recordings you want to add to the disc. 2 Select the scenes or photos you want to add to the disc. FUNC. Menu] [Add Recordings to Disc] FUNC. Desired option Connecting to the DW-100 DVD Burner and Creating a Disc 1 Turn on the DVD Burner.
  • Page 124 When the data requires multiple discs After a disc is finalized, it will be ejected automatically and a message will appear. Insert the next disc and close the disc tray. To create an additional copy of the same disc After the operation is finished, insert a brand new disc, close the disc tray and repeat the operation.
  • Page 125 Playing back high-definition (AVCHD) discs created with the DW-100 DVD Burner Type of external player → DVD players or Blu-ray Disc DVD players not compatible players compatible with Disc content ↓ with AVCHD* AVCHD Discs containing only scenes recorded in Can be played back Cannot be played back* FXP/XP+/SP/LP mode...

  • Page 126: Copying Your Recordings To An External Video Recorder

    • After the disc is recognized, the disc's content will be displayed in an index screen. 6 Select ( ) the scene you want to play back and press to begin the playback. IMPORTANT • While the camcorder is connected to the DVD Burner, do not open the memory card slot cover and do not remove the memory card.

  • Page 127: Transferring Photos To A Computer (Direct Transfer)

    Connecting Connect the camcorder to the VCR using Connection . Refer to Connection Diagrams ( 118). Recording 1 External device: Load a blank cassette or disc and set the device to record pause mode. 2 Turn on the camcorder and set it to mode.
  • Page 128 Preparations Install the software before you connect the camcorder to the computer for the first time. (Windows users only: you also need to select Camer- aWindow's auto-launch setting.) After that, just connect the camcorder to the computer (steps 2 and 3) and proceed directly to transfer the photos ( 1 Install the software on the supplied DIGITAL VIDEO Solution Disk CD-ROM.
  • Page 129 • Operation may not work correctly depending on the software and the specifications/settings of your computer. • If you wish to use the image files on your computer, make copies of them first. Use the copied files, retaining the originals. •...

  • Page 130: Transfer Orders

    Automatic Transfer Options All the relevant photos will be transferred to the computer in one batch and their thumbnails will be displayed on the computer. All Photos] Transfers all photos. New Photos] Transfers only those photos that have not yet been transferred to the computer.
  • Page 131 FUNC. 3 Press to return to the transfer menu. NOTES • When the camcorder is connected to the computer and the photo FUNC. selection screen is displayed, press to return to the transfer menu. Transfer Orders You can mark in advance the photos you want to transfer to the com- puter as transfer orders.
  • Page 132 Setting Transfer Orders from the Index Screen Options [Individual Photos] Opens the same screen described previously in Marking Single Photos with Transfer Orders. Continue from step 3 of that procedure to set the transfer order. [Selected Photos] Marks all the photos selected in advance (marked with a checkmark) with a transfer order.

  • Page 133: Additional Information

    Additional Information This chapter contains troubleshooting advice, screen mes- sages, handling and maintenance tips, and other information. Appendix: Menu Options Lists Menu items not available appear grayed out. For details about how to select an item, refer to Using the Menus ( 32).
  • Page 134 Menu item Setting options Digital effects Digital Effect Off], [ Fade Trigger], – Wipe], [ Black & White], [ Sepia], Art] Digital Effect Off], [ Black & White], – Sepia] Drive mode Single], [ Continuous Shooting], – Hi-Speed Continuous Shooting], Auto Exposure Bracketing] Recording mode High Quality 24 Mbps],...
  • Page 135 Setup Menus FUNC. Menu - Playback Modes (movie playback), (playback of video snapshot scenes): - available only in the original index screen; - available only in the playlist index screen; - avail- able in both; — - not available in either. (photo playback): - available only in single photo view;...

  • Page 136: Setup Menus

    Menu item Setting options [Rotate] – – – [Delete] [All Scenes], [All Scenes (this date)], – [This Scene], [Selected Scenes] [All Scenes], [This Scene] – [No], [Yes] – – [All Photos], [This Photo], – – [Selected Photos] [Scene Search] [Calendar Screen], [Date Selection] –...
  • Page 137 are played back on a non-compatible TV, colors may not be reproduced correctly. [Auto Rotate]: Photos that were recorded in portrait orientation (by turning the camcorder on its side), will be rotated automatically and displayed correctly during playback. Camera Setup 2 Menu item Setting options [Digital Zoom]...
  • Page 138 [AF Mode]: Select how fast the autofocus will operate. • With [ Instant AF] the autofocus adjusts quickly to a new subject. This is convenient for example when changing the focus from a near subject to a far subject in the background, or when recording fast-mov- ing subjects.
  • Page 139 [Auto Slow Shutter]: The camcorder automatically uses slow shutter speeds to obtain brighter recordings in places with insufficient lighting. • Minimum shutter speed used: 1/25; 1/12 when the frame rate is set to PF25]. • The auto slow shutter can only be activated when the recording pro- gram is set to [ Programmed AE], but the setting will not change even if you set the camcorder to...
  • Page 140 Camera Setup 3 Menu item Setting options [Self Timer] ], [ Off] [Focus Assist On], [ Off] – Functions] [Onscreen Markers] Off], [ Level (White)], – Level (Gray)], [ Grid (White)], Grid (Gray)] [Audio Level On], [ Off] – Indicator] [Photo Review Time] Off], [ 2 sec], [...
  • Page 141 Playback Setup Menu item Setting options [Rec Media for [Built-in Mem.], [Mem. Card] – Photos] [Photo Capture from Single Photo], [ Photo Sequence] – Video] [Photo Capture Super Fine], [ Fine], [ Normal] – Quality] [Data Code] Date], [ Time], [ Date and Time], –...
  • Page 142 System Setup 1 Menu item Setting options [Font Size] Large], [ Small] – [Output Onscreen On], [ Off] – – – Displays] [LCD Brightness] – [LCD Screen On], [ Off] – Dimmer] [Component 576i], – 1, 2 Output] 1080i] [TV Type] Normal TV], [ Wide TV] –...
  • Page 143 [LCD Screen Dimmer]: When set to [ On], the LCD screen is dimmed. Doing so is ideal when using the camcorder in locations where the LCD’s DISP. illumination could become a nuisance to others. Hold pressed down for about 2 seconds to restore the LCD’s normal brightness. •...
  • Page 144 System Setup 2 Menu item Setting options [Wireless Remote On], [ – Control] [Notification Sounds] [ High Volume], – Low Volume], [ Off] [Power Saving Mode] [ On], [ Off] – [Quick Start] Off], [ 10 min], – – – 20 min], [ 30 min] [Control for HDMI]...
  • Page 145 [Control for HDMI]: Activates the HDMI-CEC (Consumer Electronics Con- trol) function. When you connect the camcorder to an HDTV compatible with HDMI-CEC using an HDMI cable, you can control the camcorder’s playback using the remote control of the TV. • If set to [ On], when the camcorder is connected to a compatible HDTV using an HDMI cable, the video input on the TV will automatically be set to the camcorder’s video input.

  • Page 146: Date Format

    Language and Date/Time Setup Menu item Setting options [Language ], [DEUTSCH], ], [ENGLISH], [ESPAÑOL], [FRANÇAIS], [ITALIANO], [MAGYAR], [MELAYU], [NEDERLANDS], [POLSKI], [PORTUGUÊS], [ [TÜRKÇE], [ ], [ ], [ ], [ ], [ ], [ [Time Zone/DST] List of world time zones [Date/Time] –...
  • Page 147 Information Screens Menu item Setting options [Memory Info] – – [Memory Card Info] – – [Battery Info] – – [HDMI Status] – – [Memory Info]/[Memory Card Info]: Displays a screen where you can ver- ify how much of the built-in memory or the memory card is currently in use total recording time and total number of photos) and how much space remains available for recording.

  • Page 148: Troubleshooting

    - please read the “CHECK THIS FIRST” box before going on to the more detailed problems and solutions. Consult your dealer or a Canon Service Center if the problem persists. CHECK THIS FIRST Power supply •...
  • Page 149 - The camcorder may become hot after using it continuously for long periods of time; this is not a malfunction. If the camcorder becomes unusually hot or it becomes hot after using it only for a short while, it may indicate a problem with the camcorder. Consult a Canon Service Cen- ter.
  • Page 150 Cannot record a photo. - In mode: You cannot take photos in this mode if the simultaneous recording option in the FUNC. menu is set to [Simultaneous Recording Off] ( 100), or if either the digital zoom 137) or a digital effect ( 75) is activated.
  • Page 151 - The camcorder has malfunctioned. Consult a Canon Service Center. Even after stopping recording, the ACCESS indicator does not go off. - The scene is being recorded in the memory. This is not a malfunction.
  • Page 152 Sound is distorted or is recorded at lower levels. - When recording near loud sounds (such as fireworks, shows or concerts), sound may become distorted or it may not be recorded at the actual levels. Activate the microphone attenuator 139) or adjust the audio recording level manually ( 77).
  • Page 153 There is no sound from the TV. - When connecting the camcorder to an HDTV using the CTC-100/S Component Cable, make sure to connect also the audio connections using the white and red plugs of the STV-250N Stereo Video Cable. The camcorder is connected using the optional HTC-100 HDMI Cable, but there is no picture or sound from the HDTV.

  • Page 154: List Of Messages

    Cannot communicate with the battery pack. Continue using this battery pack? - You attached a battery pack that is not recommended by Canon for use with this camcorder. - If you are using a battery pack recommended by Canon for use with this camcorder, there may be a problem with the camcorder or battery pack.
  • Page 155 Cannot divide the scene. Initialize only using the camcorder. - The scene could not be divided because the camcorder’s internal scene management data log is full. Save your recordings ( 121) and initialize the memory ( 39). Write back the backup files and try dividing the scene again.
  • Page 156 Cannot record movies on this memory card - Movies cannot be recorded on a 64 MB or smaller memory card. Cannot record movies on this memory card Initialize only using the camcorder - The memory card in the camcorder was initialized using a computer. Initialize the memory card with this camcorder ( 39).
  • Page 157 Do not disconnect the USB cable or the power source until you safely end the connection from the computer. Connect the compact power adapter - When the camcorder is in mode and is connected to the computer with the supplied USB cable, the camcorder cannot be operated.
  • Page 158 Memory card is write-protected - The LOCK switch on the memory card is set to prevent accidental erasure. Change the posi- tion of the LOCK switch ( 167). Need to recover files from the memory card. Change the position of the LOCK switch on the memory card.
  • Page 159 The lens cover is not fully open. Turn the camcorder off, then on again. - The lens cover did not open fully. Turn the camcorder off, then on again. If this does not solve the problem, consult a Canon Service Center. This...
  • Page 160 Too many photos. Disconnect the USB cable. - Disconnect the USB cable. Try using a memory card reader or decrease the number of photos on the memory card to fewer than 2,500 photos. - If a dialog box appeared on the computer screen, close it. Disconnect the USB cable, and restore the connection after a short while.
  • Page 161 No disc - Insert a disc into the DVD Burner. - This message can appear also if condensation has formed ( 169). Wait until the DVD burner dries completely before resuming use. No photos - There are no photos to add to the disc. No scenes - There are no scenes to add to the disc.
  • Page 162 - The paper settings of the camcorder conflict with the printer’s settings. Ink absorber full - Select [Continue] to resume printing. Consult a Canon Service Center (refer to the list included with the printer) to replace the ink absorber. Ink error - An empty ink cartridge is installed.
  • Page 163 - Close the printer cover securely. Printer error - A malfunction has occurred that may require repairs. (Canon inkjet printers: the printer's green power lamp and orange error lamp flash alternately.) - Disconnect the USB cable and turn off the printer. Unplug the printer's power cord from the power outlet and contact the appropriate customer support center or service center.

  • Page 164: Handling Precautions

    121) and save them on a regular basis. This will protect your impor- tant recordings in case of damage and create more free space on the memory. Canon shall not be liable for any data loss. • Do not carry the camcorder by the LCD panel. Be careful when closing the LCD panel.
  • Page 165 • When recording movies, try to get a calm, stable picture. Excessive camcorder movement while shooting and extensive use of fast zooms and panning can result in jittery scenes. In extreme cases, the playback of such scenes may result in visually induced motion sickness. If you experience such a reaction, immediately stop the playback and take a rest break as necessary.
  • Page 166 Regarding the use of non-Canon battery packs • For your safety, battery packs that are not genuine Canon battery packs will not be charged even if you attach them to this camcorder or to the optional CG-800E Battery Charger.
  • Page 167 • SD/SDHC memory cards have a physical switch to prevent writing on the card so as to avoid the accidental erasure of the card's content. To write-protect the memory card set the switch to the LOCK position. LOCK switch Built-in Rechargeable Lithium Battery The camcorder has a built-in rechargeable lithium battery to keep the date/time and other settings.
  • Page 168 Disposal When you delete movies or initialize the memory, only the file allocation table is altered and stored data is not physically erased. Take the nec- essary precautions when you dispose of the camcorder or memory card, for example by physically damaging it to prevent the leakage of private data.

  • Page 169: Maintenance/Others

    Maintenance/Others Cleaning Camcorder Body • Use a soft, dry cloth to clean the camcorder body. Never use chemically treated cloths or volatile solvents such as paint thinner. Lens and Instant AF Sensor • If the lens surface or Instant AF sensor is dirty, autofocus may not work properly.

  • Page 170: Using The Camcorder Abroad

    You can use the compact power adapter to operate the camcorder and to charge battery packs in any country with power supply between 100 and 240 V AC, 50/60 Hz. Consult a Canon Service Center for information on plug adapters for overseas use.

  • Page 171: Accessories

    General Information Accessories (Availability differs from area to area) AVCHD discs/ Photo DVDs PictBridge- compatible printers Card reader/writer Computer TV/HDTV VCR/DVD recorder Optional accessories not listed below are described in more detail in the following pages. SS-600/SS-650 Shoulder Strap IFC-400PCU USB Cable WS-30 Wrist Strap* SD/SDHC memory card WL-D88 Wireless Controller...

  • Page 172: Optional Accessories

    Use of genuine Canon accessories is recommended. This product is designed to achieve excellent performance when used with genuine Canon accessories. Canon shall not be liable for any dam- age to this product and/or accidents such as fire, etc., caused by the malfunction of non-genuine Canon accessories (e.g., a leakage and/or...
  • Page 173 Charging Times The charging times given in the following table are approximate and vary according to charging conditions and initial charge of the battery pack. Battery pack Charging conditions BP-808/BP-809 BP-819 BP-827 Using the camcorder 155 min. 275 min. 395 min. Using the CG-800E Battery Charger 105 min.
  • Page 174 Using a memory card Recording mode Battery pack Usage time Recording (maximum) 100 min. 100 min. 100 min. 105 min. 105 min. BP-808/ Recording (typical)* 65 min. 65 min. 65 min. 65 min. 65 min. BP-809 Playback 160 min. 160 min. 165 min. 165 min. 165 min. Recording (maximum) 200 min.
  • Page 175 FS-H37U Filter Set Neutral density and MC protector filters help you to control difficult lighting condi- tions. SC-2000 Soft Carrying Case A handy camcorder bag with padded compartments and plenty of space for accessories. DM-100 Directional Stereo Microphone This highly sensitive, super-directional microphone attaches to the camcorder’s mini advanced shoe.
  • Page 176 This case allows you to record movies and take photos underwater without get- ting the camcorder wet. This mark identifies genuine Canon video accessories. When you use Canon video equipment, we recommend Canon-brand accessories or products bearing the same mark.

  • Page 177: Specifications

    Specifications LEGRIA HF21 System • Recording System Movies: AVCHD Video compression: MPEG-4 AVC/H.264; Audio compression: Dolby Digital 2ch Photos: DCF (Design rule for camera system), compatible with Exif* Ver. 2.2 and with DPOF Image compression: JPEG (Super Fine, Fine, Normal) * This camcorder supports Exif 2.2 (also called “Exif Print”).
  • Page 178 • Lens f=4.1-61.5 mm, F/1.8-3.2, 15x optical zoom 35 mm equivalent: 39.5 – 592.5 mm • Lens Configuration: 11 elements in 9 groups (1 double-sided aspheric element) • AF System Autofocus (TTL + external distance sensor when set to [Instant AF]) or Manual focus •...
  • Page 179 • Power consumption (SP mode, AF on) 3.4 W (normal brightness, recording in the built-in memory) 3.5 W (normal brightness, recording on a memory card) • Operating temperature: 0 – 40 °C • Dimensions [W x H x D] (excluding the grip belt): 70 x 62 x 124 mm •...
  • Page 180 Audio sampling: 48 kHz, 16 bits, 2 channels Minimum length: 1 second File extension: WAV The music data is saved in the memory under the following folder structure. In the built-in memory: CANON MY_MUSIC MUSIC_01.WAV to MUSIC_99.WAV On the memory card: CANON PRIVATE MY_MUSIC MUSIC_01.WAV to MUSIC_99.WAV...

  • Page 181: Index

    Index . . 22, 136 Copying 25F progressive frame rate ....88 Movies ... . . 62 25p Cinema Mode .
  • Page 182 ....78 ....91 Headphones Photo quality ....103 .
  • Page 183 ..100 Simultaneous recording ....101 Slideshow . . 58 Underwater (recording program) ..57 Snow (recording program) .
  • Page 184 Canon UK Ltd CCI Service Centre, Unit 130 Centennial Park, Borehamwood, Hertfordshire, WD6 3SE, United Kingdom Telephone 0870-241-2161 Canon Australia Pty Ltd Tel: 13-13-83 (within Australia only) (61) 02-9805-2555 www.canon.com.au Canon New Zealand Ltd Tel: 0800-222-666 (within New Zealand only) (64) 09-489-0300 www.canon.co.nz...

Table of Contents
