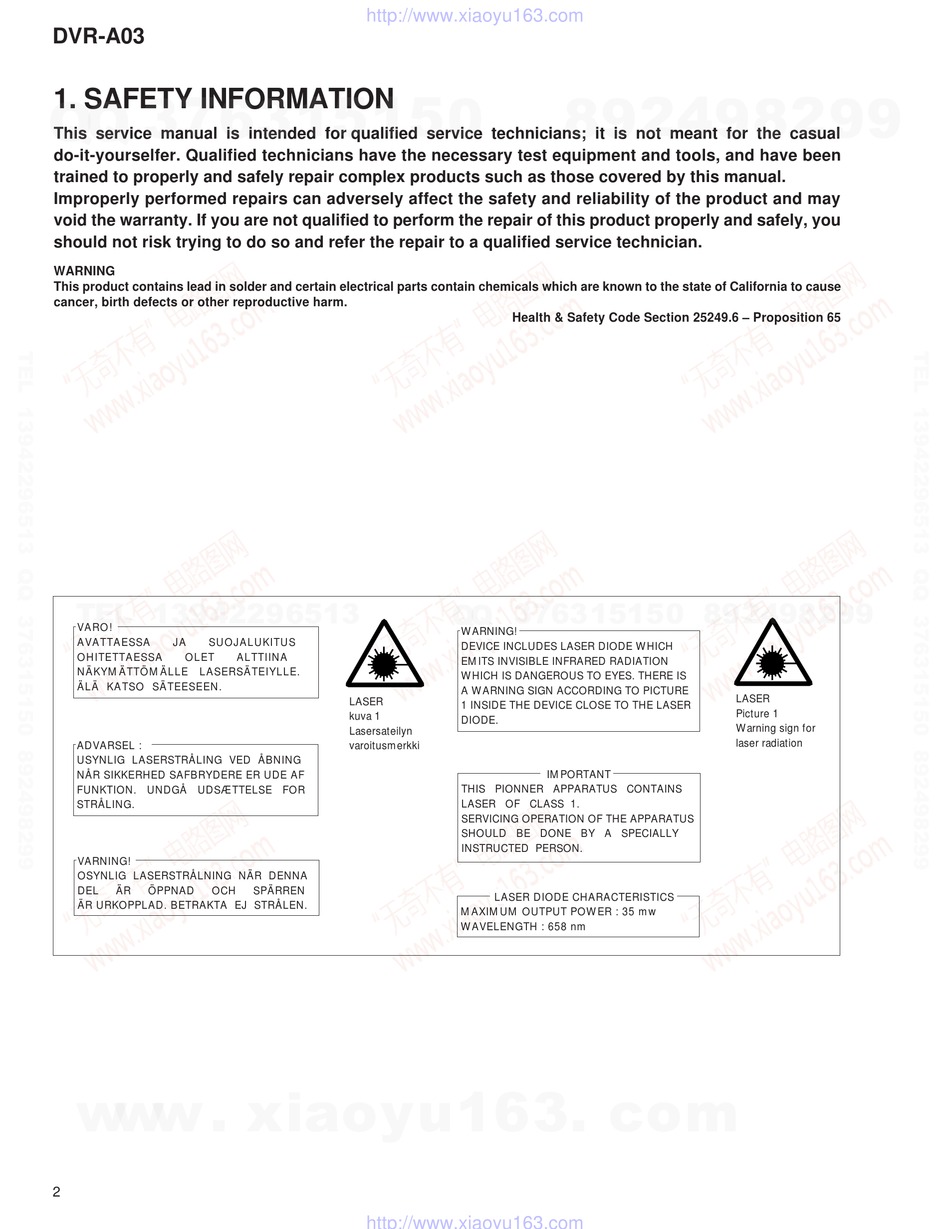

1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause
cancer, birth defects or other reproductive harm.
ÄLÄ KATSO SÄTEESEEN.
USYNLIG LASERSTRÅLING VED ÅBNING
NÅR SIKKERHED SAFBRYDERE ER UDE AF
FUNKTION. UNDGÅ UDSÆTTELSE FOR
OSYNLIG LASERSTRÅLNING NÄR DENNA
ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN.
Health & Safety Code Section 25249.6 – Proposition 65
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS TO EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
1 INSIDE THE DEVICE CLOSE TO THE LASER
THIS PIONNER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER : 35 mw
WAVELENGTH : 658 nm
Warning sign for
