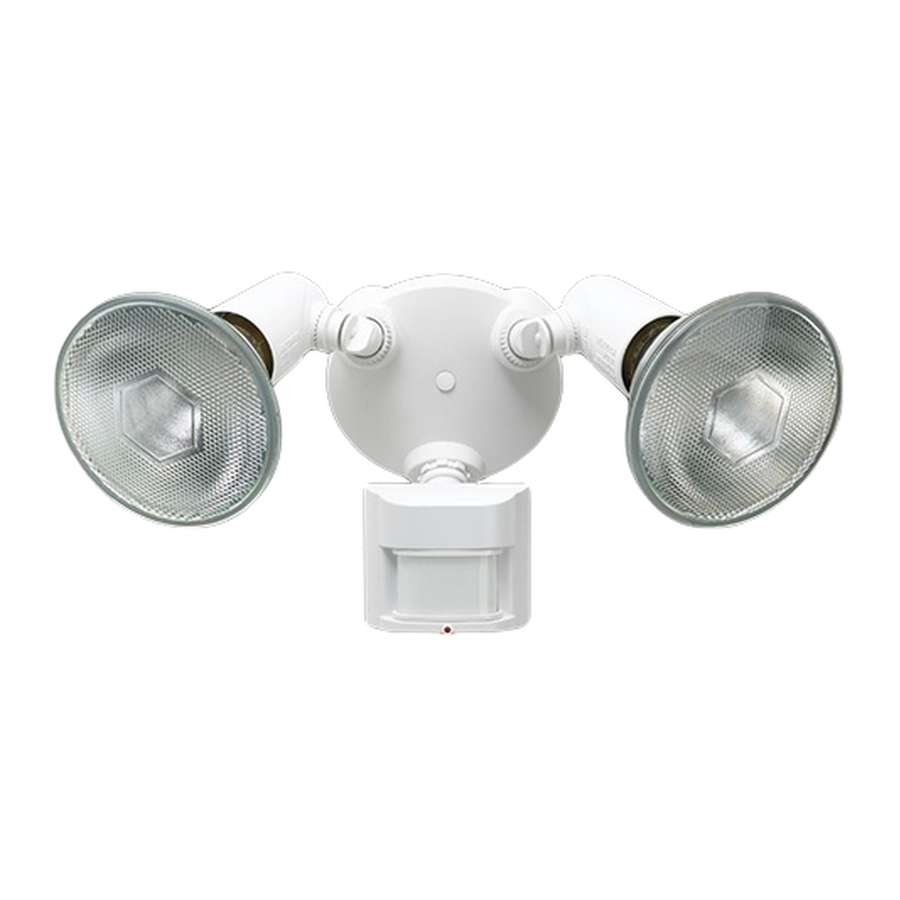

Atlas Lighting Products Guardian Pro MLGC240B User Manual

GUARDIAN
Models MLGC240B
MLGC240W
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Dual Light Level
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).

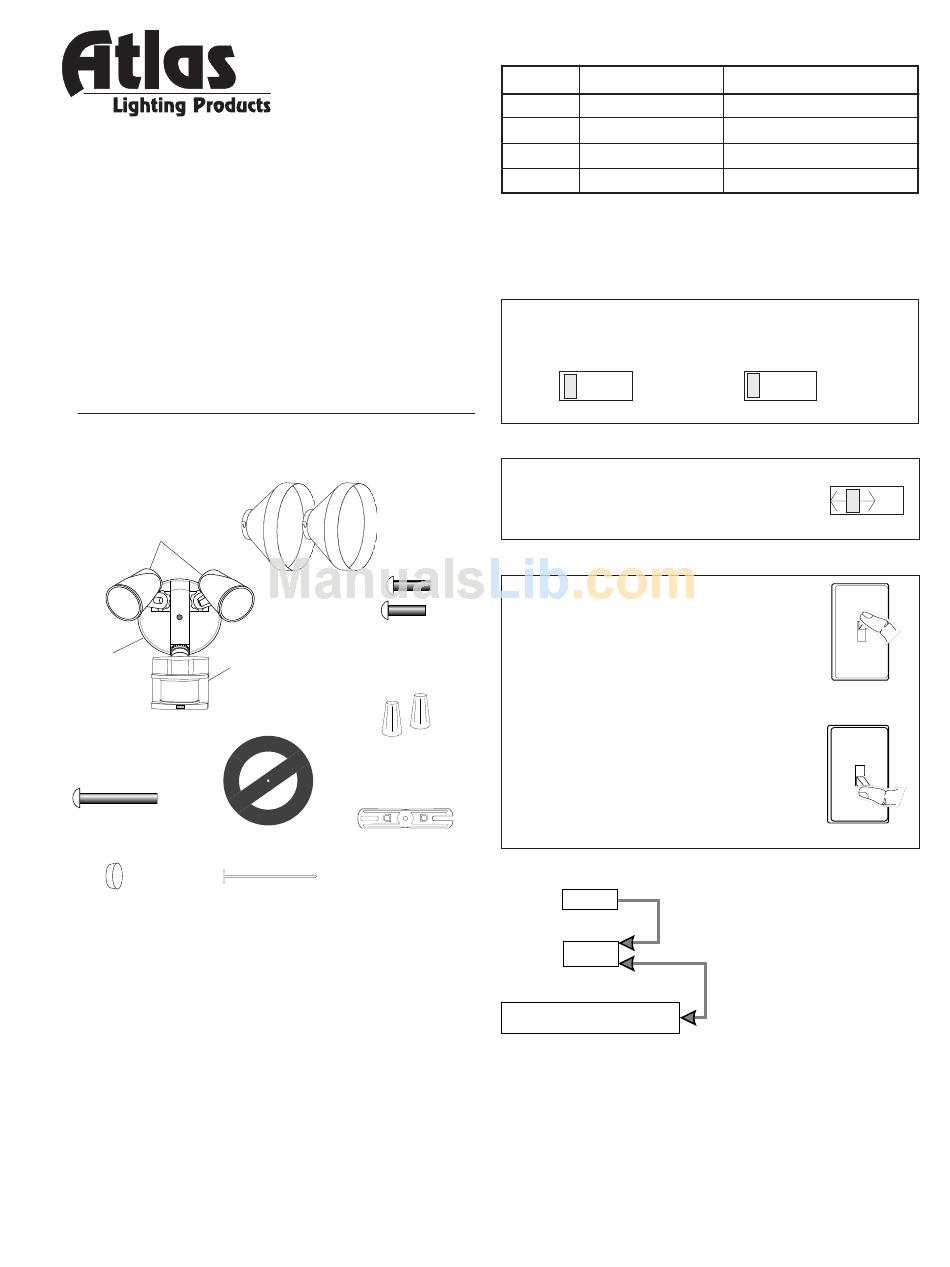

This package includes:
Lamp Holders
Cover
Sensor
Plate
Light Control
Mounting Bolt
Gasket
Plastic Hanger
Rubber Plug
Requirements
• The Light Control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
© 2003 Atlas Lighting Products, Inc.
PRO ™
240 S
ERIES
2 Shells
6 Screws
(3 sizes included)
2 Wire
Connectors
Mounting Strap

OPERATION

Mode: On-Time:
Test 5 Seconds
Auto 1, 5, 20 min.
Manual Until Dawn*
Accent 3, 6 Hr, to Dawn
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
Put ON-TIME switch on the sensor bottom to TEST
and the Dual Light Level switch OFF.
ON-TIME
TEST 1 5 20
Put the ON-TIME switch in the 1, 5, or
20 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one sec-
ond then back on to toggle between
AUTO and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.
Mode Switching Summary
TEST
Move ON-TIME Switch to 1,
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the
calibration time the control will be in the AUTO mode.
Dual Light Level Control
Light comes on half bright for selected time after dusk
(Off, 3 hr., 6 hr., until dawn). If motion is sensed, the
light turns on full bright for the ON-TIME (1, 5, or 20
minutes) then returns to dim mode.
Works: Day Night
x
1 / minutes for
2
TEST
DUAL LIGHT LEVEL
Off 3 6 Dusk to Dawn
AUTO
ON-TIME
20 5 1 TEST
1 Second OFF
then ...
... back on.
5, or 20 minutes
Flip light switch off
for one second then
back on*
240-028-A
598-1094-01
