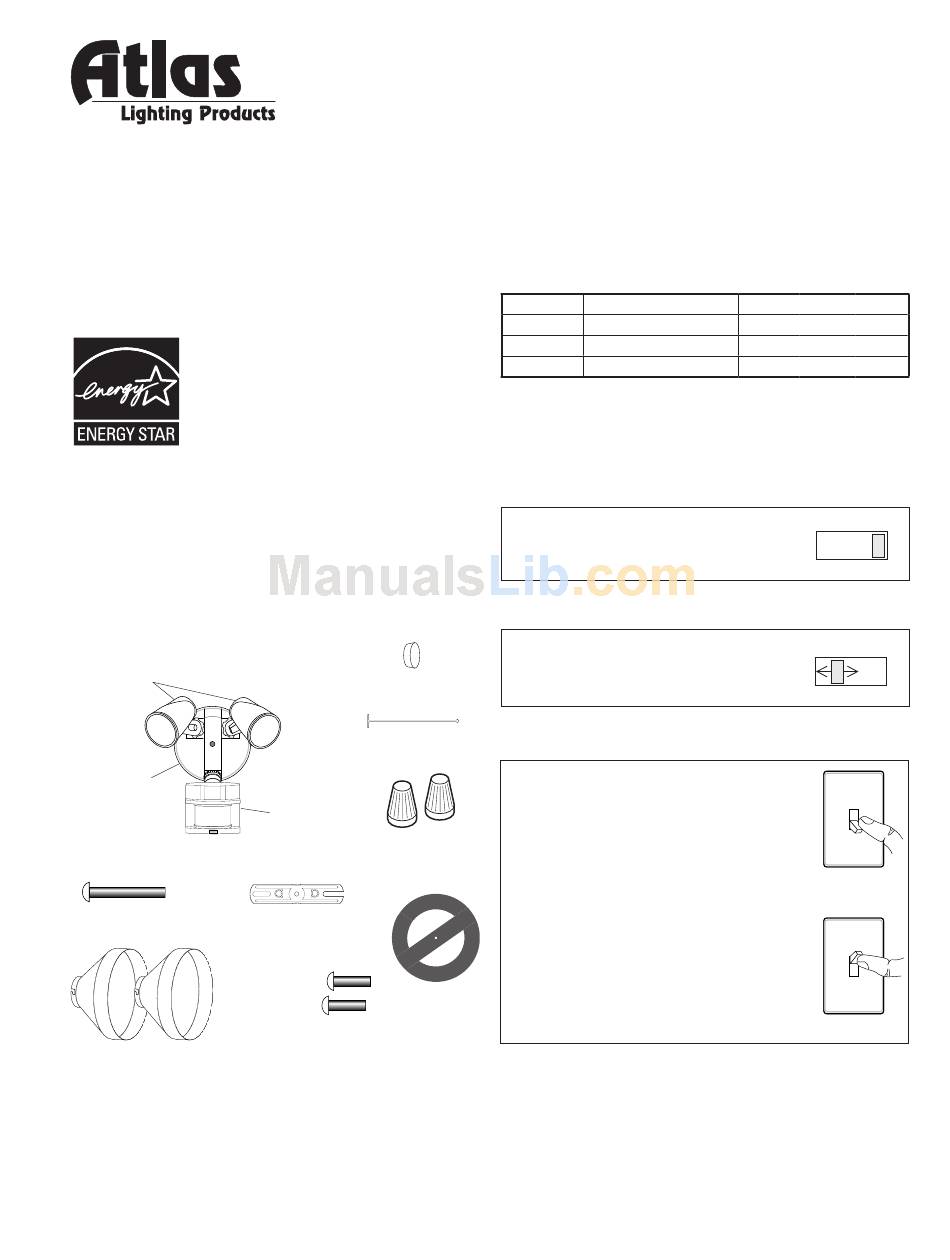

GUARDIAN
Models MLGC180B
MLGC180W
Meets the ENERGY STAR
when used with 120 W Max bulbs.
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
This package includes:
Bulb
Holders
Cover
Plate
Light Control
Mounting Bolt
Mounting Strap
2 Shells
© 2008 Atlas Lighting Products, Inc.
PRO
™
180 S
eRieS
guidelines
®
Rubber Plug
Plastic Hanger
Sensor
2 Wire
Connectors
Gasket
6 Screws
(3 sizes included)
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a
qualified electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
OPERATION
Mode:
On-Time
Test
5 Seconds
Auto
1, 5, or 10 Minutes
Manual
To Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
Put the ON-TIME switch on the bottom
of the sensor in the TEST position.
Put the ON-TIME switch in the 1, 5,
or 10 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sen-
sor to AUTO.
Flip the light switch off for one sec-
ond then back on to toggle between
AUTO and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 10
position.
Works:
Day
x
/
minutes for
1
2
TEST
ON-TIME
10 5 1 TEST
AUTO
ON-TIME
10 5 1 TEST
1 Second OFF
then...
... back on.
240-026-A
598-1098-02
Night
x
x
x

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Guardian Pro MLGC180B and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas Lighting Products Guardian Pro MLGC180B

Summary of Contents for Atlas Lighting Products Guardian Pro MLGC180B

  • Page 1 Mounting Strap 6 Screws (3 sizes included) 2 Shells © 2008 Atlas Lighting Products, Inc. • The light control requires 120-volts AC. • If you want to use Manual Mode, the control must be wired through a switch. • Some codes require installation by a qualified electrician.

  • Page 2: Installation

    Mode Switching Summary TEST Move ON-TIME Switch to 1, 5, or 10 minutes AUTO Flip light switch off for one second then MANUAL MODE * If you get confused while switching modes, turn the power off for one minute, then back on. After the cali- bration time the control will be in the AUTO mode.
  • Page 3 Wire the Light Control WARNING: Turn power off at circuit breaker or fuse. ❒ Remove the existing light fixture. ❒ Install the mounting strap as shown using two screws that fit your junction box. ❒ The plastic hanger can be used to hold the fixture while wiring.

  • Page 4: Test And Adjustment

    TEST AND ADJUSTMENT ❒ Turn on the circuit breaker and light switch. NOTE: Sensor has a 1 minute warm up period before it will detect motion. When first turned on, wait 1 minutes. NOTE: Meets the ENERGY STAR used with 120 W Max bulbs. ❒...

  • Page 5: Specifications

    CFL) Bulbs. TROUBLESHOOTING GUIDE If you experience a problem with your Light Control, first follow this guide. For additional assistance write to: Atlas Lighting Products, Inc. • Customer Service Department • P.O. Box 2348 • Burlington, NC 27216 SYMPTOM POSSIBLE CAUSE Lights will not come 1.
  • Page 6 FIVE YEAR LIMITED WARRANTY Atlas Lighting Products, Inc. warrants against defects in materials or workmanship for a period of five years from the date of purchase for use, and agrees to repair or, at our option, replace a defective unit without charge for either parts or labor.
  • Page 7 Notes / Notas _________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ 598-1098-02...
  • Page 8 Notes / Notas _________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ 598-1098-02...
