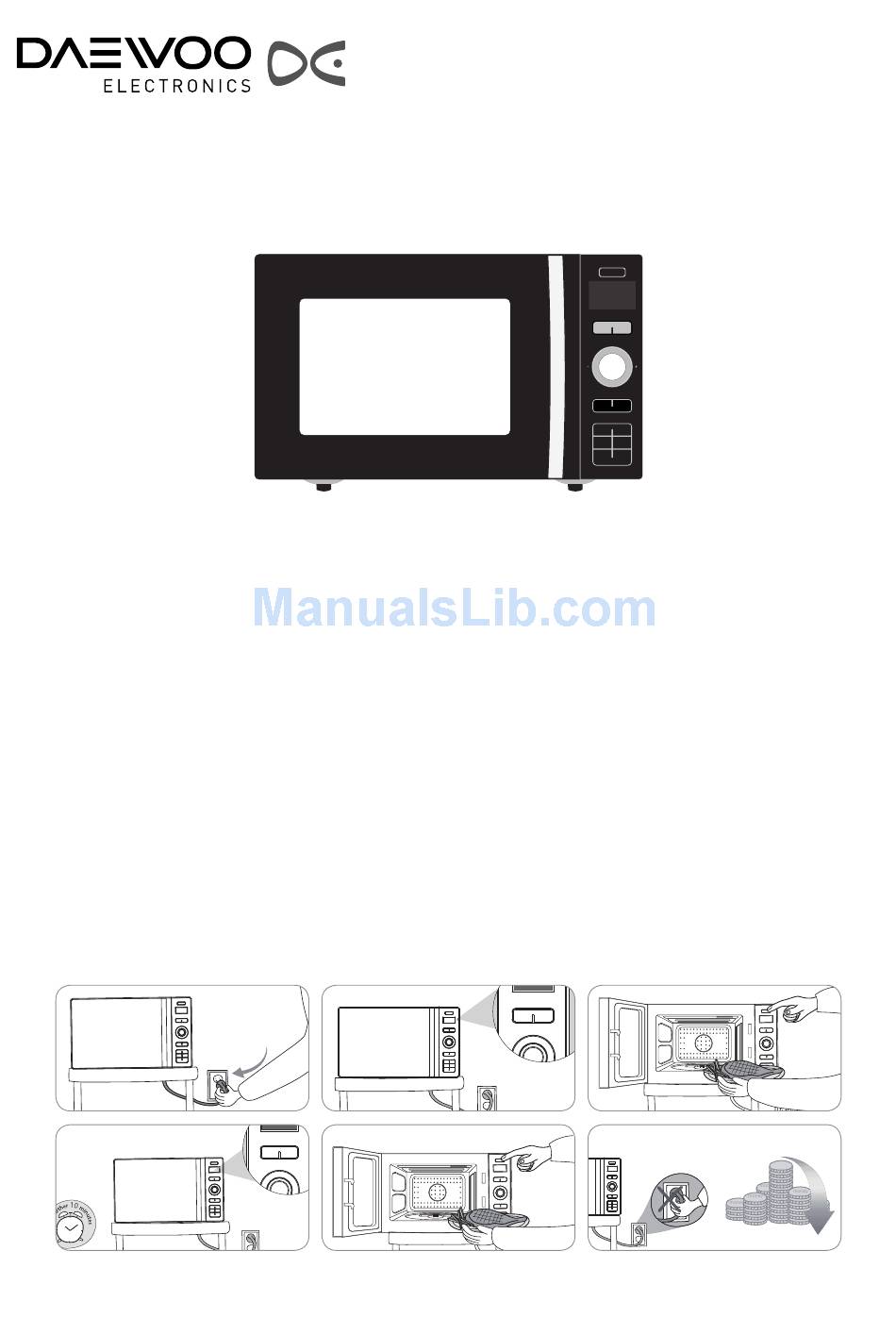

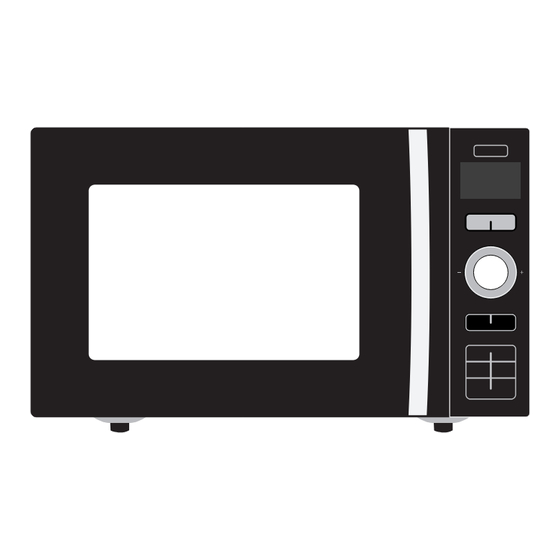

- Page 1 OWNER'S MANUAL MODEL NO. KOC-9HAFDB MICROWAVE CONVECTION/GRILL OVEN HOW TO TURN ON THE OVEN AT FIRST Before operating this oven, please read these manual completely.
-
Page 2: Precautions To Avoid Possible Exposure
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 3: Table Of Contents
Table of contents About Your Microwave Important safety instructions ...................... 04 Radio frequency interference statement ................... 05 Grounding instructions ........................ 05 What is a function, STAND POWER"0"? ..................06 First set up ........................... 06 Installation ............................ 07 Description ........................... 08 How to use the Home Fryer bowl .................... -
Page 4: About Your Microwave
About Your Microwave IMPORTANT SAFETY INSTRUCTIONS » When using electrical appliances, basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. -
Page 5: Radio Frequency Interference Statement
ADIO FREQUENCY INTERFERENCE STATEMENT »R FEDERAL COMMUNICATIONS COMMISSION (U.S.A ONLY) WARNING: This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. -
Page 6: What Is A Function, Stand Power"0
About Your Microwave »W HAT IS A FUNCTION, STANDBY POWER “0”? • Standby power is the electric power consumed by electronic appliances without operating on inserting the plug into a socket. • STANDBY POWER “0” is a function reducing standby power consumption. •... -
Page 7: Installation
NSTALLATION »I 1. Examine the oven after unpacking. Check for damage such as a misaligned door, broken door or dent in the cavity. If any damage is visible, DO NOT INSTALL, and notify your dealer immediately. 2. Level, flat location. Install the microwave oven on a level, flat surface. -
Page 8: Description
About Your Microwave »D ESCRIPTION ① ② ③ Display ① Control panel ② Door handle ③ Frame for turntable (only remove for cleaning) ④ Shaft ⑤ ④ ⑤ Glass turntable ⑥ ⑥ Metal rack: use this rack together with a Glass ⑦... - Page 9 ↘ HOW TO USE THE ACCESSORIES OF COOKING Glass Turntable Metal rack Home Fryer bowl • Microwave cooking • Grill cooking • Home fryer cooking. • Convection cooking • Auto cooking menu 1,2,3,4 • Combination cooking • Convection cooking (cake,pizza.pie) •...
-
Page 10: How To Use The Home Fryer Bowl
About Your Microwave »H OW TO USE THE HOME FRYER BOWL. ↘ Composition of Home Fryer bowl. Fryer fan Fryer support Glass Turntable CAUTION : • Please use the kitchen gloves while taking out the Home Fryer bowl because it is very hot. Roller Guide ↘... -
Page 11: Operation
Operation ① ↘ DISPLAY WINDOW Cooking time, power level and indicators are displayed. : When blinking, the oven is operating in MICROWAVE COOK. : When blinking, the oven is operating in GRILL. : When blinking, the oven is operating in COMBI. : When blinking, the oven is operating in CONVECTION. -
Page 12: General
Operation »G ENERAL • If you want to set something, it is important that the display shows the ':0' and not a selected function. If you always press the stop button first, you can be sure that this is the case. •... -
Page 13: Microwave Cooking
»M ICROWAVE COOKING This microwave cooking method allows you to cook food for a desired time. In addition to the maximum power level(100%), you can select different microwave power from 9 other levels, 10% to 90% for the foods that require slower cooking. If you have used the appliance for grilling, convection or combination cooking, let the oven cool down before using again. -
Page 14: Broil Cooking
Operation »B ROIL COOKING The grill enables you to heat and brown food quickly, without using microwaves. 1. Press Broil button once. Grill indicator lights. and ":0" is displayed. 2. Turn the dial knob to set the grilling time. For a grilling time of 11 minutes, turn the dial knob to the right to set 11:00.( up to 60 minutes ) “11:00”... -
Page 15: Convection Cooking (With Pre-Heat)
»C ONVECTION COOKING (with pre-heat) For convection cooking, it is recommended that you preheat the oven to the appropriate temperature before placing the food in the oven. (except for 100F~175F convection mode) The maximum preheating time is 30 minutes. If the cooking is not started immediately after preheating, the convection indicator will continue to flash and the preheated oven temperature will be displayed. -
Page 16: Convection Cooking (Traditional Cooking)
Operation »C ONVECTION COOKING (traditional cooking) The convection mode enables you to cook food in the same way as in a traditional oven. Microwaves are not used. Always use oven gloves when touching the recipients in the oven, as they will be very hot. 1. - Page 17 1. Making the dough: Using a food processor, mix flour, salt and sugar. Add diced butter and mix to create a fluffy texture. 2. Beat the dough into a lump by gradually adding ice water and let it rest in the refrigerator for over 1 hour.
-
Page 18: Combination Cooking ( Microwave + Convection + Upper Grill )
Operation »C OMBINATION COOKING ( Microwave + Convection + Upper Grill ) This function allows you to combine convection operation with microwave to produce traditional baked or roasted results in less time. Always use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. -
Page 19: Popcorn
»P OPCORN You can use popcorn function to cook popcorn. 1. Press Popcorn button once. The weight indicator blinks and "1.75" is displayed. 2. After 1.5 seconds, the display shows the cooking time and the oven starts cooking. The weight indicator lights off when oven starts cooking. Press Popcorn key Display (oz) Once... -
Page 20: Weight Defrost
Operation »W EIGHT DEFROST Weight Defrost automatically sets the defrosting times and power levels to give even defrosting results for frozen food. During the defrosting process the oven will beep to remind you to check the food. The oven will beep, open the door, turn the frozen food over and close the door, press the START/+30sec button. -
Page 21: Home Fryer
»H OME FRYER Convenient function to set the temperature and cooking time automatically and simply by pressing Home Fryer button. Always use oven gloves when touching the recipients in the oven. Please repeat the process from the top when you use the Home Fryer sequentially. User can easily set the cooking time by adjusting the dial when Home Fryer menu 8 is selected. - Page 22 Operation ↘ Manual Cooking Recipe Manual Cook Ingredients Method Menu FISH AND 0.4lb frozen potato crinkle cuts, 1. Evenly spread the potatoes and the fish fillets in fryer bowl and cook with CHIPS 0.4lb frozen fish fillets home fryer function for 20 minutes. 1.
- Page 23 1. Skin the shrimps and remove moisture. 2. Add salt and pepper to the starch. Whisk the egg whites. Mix bread 15 shrimps (approx. 7oz peeled crumbs, coconut, cooking oil and paprika. and deveined), 2 tbsp starch, salt, COCONUT pepper, 1 egg white, 1/2 cup bread 3.
-
Page 24: Auto Cook
Operation »A UTO COOK This function allows you to simply and automatically cook a range of popular foods. Always use oven gloves when touching the recipients in the oven. 1. Press Auto Cook button once. Auto Cook indicator light. "AC-1" will show in the display. 2. -
Page 25: 30Sec
»+30 The +30sec function allows the oven to being cooking immediately on full power. The +30sec button has been pre-programmed to increase in increments of 30 seconds up to a maximum time of 5 minutes. 1. Press START/+30sec button. The oven will be " : 30" is displayed. M/W indicator lights. And the oven will start immediately. -
Page 26: Oven Utensils And Accessories Guide
Oven Utensils And Accessories Guide »O VEN UTENSILS AND ACCESSORIES GUIDE A variety of utensils and materials may be used for cooking in your microwae oven, For your safety and to prevent damaging utensils and your oven choose appropriate utensils and materials for each cooking method. The table below indicates which materials you can and cannot use. -
Page 27: Cleaning
Cleaning • The oven must always be clean. Residue rub down with a damp cloth. of food from spillovers or spatters will • Check the door closure and the door attract microwave energy causing it to rubber regularly for damage. Do not use burn on. -
Page 28: Trouble Shooting
Trouble Shooting ▶If you are uncertain about whether your appliance is working properly, this does not automatically mean there is a defect. Try to deal with the problem yourself first by checking the points mentioned below: If the recommendations below do not solve your problem, call our service department. -
Page 29: Question And Answer
Question And Answer Q : I accidentally ran my microwave oven without Q : Why does my oven not always cook as fast as the any food in it. Is it damaged? microwave cooking guide says? A : Running the oven empty for a short time will not damage A : Check your cooking guide again, to make sure you’ve the oven. -
Page 30: Technical Data
Technical Data »S PECIFICATIONS Power supply 120V, 60Hz Power consumption 1400W Microwave Output power 900W (IEC 705) Frequency 2,450MHz Grill power consumption 1500W Convection power consumption 1300W Combination heating power consumption 1500W Home fryer power consumption 1500W Outside Dimension(W x D x H) 501 X 492 X 319 mm (19.7X19.3X12.6 inch) Cavity Dimensions(W x D x H) 310 X 328 X 232 mm (12.2X12.9X9.1 inch) -
Page 31: Limited Warranty
Limited Warranty DAEWOO ELECTRONICS AMERICA, INC. warrants the following microwave ovens to be free from defective material and workmanship and agrees to remedy any such defect or to furnish a new part (at the Company's option) in exchange for any part of any unit of its...
