Nextiva S5100/5200 Series
Quick Installation Guide for S5120 and S5250 - BX Models
All users should read the user manuals for complete details on installation, usage and functionality.
Hardware Overview
The S5120BX-DN features a 2-Megapixel sensor and S5250BX-DN features a 5-Megapixel sensor.
Lenses are not included with the camera, but Verint offers multiple lenses that are available for purchase. If
you choose to purchase a lens elsewhere, ensure it has the following characteristics:
2MP rated for the S5120BX-DN or 5MP rated for the S5250BX-DN
●
CS mount, 1/2.7 inch format for the S5120BX-DN or 1/2 inch format for the S5250BX-DN
●
Manual or automatic DC iris
●
Day/night support
●

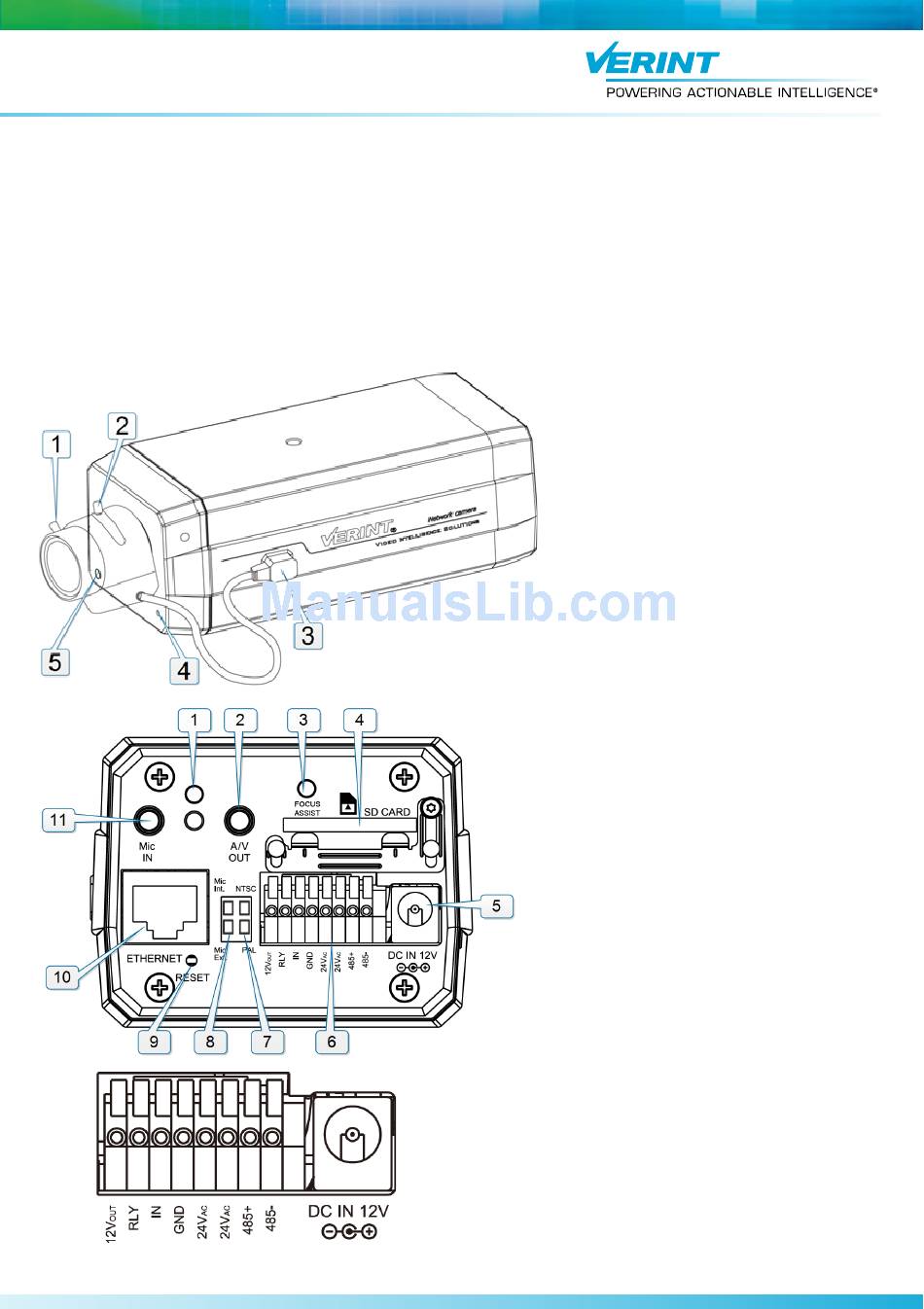

Front and Side View Description:
1. Zoom controller*
2. Focus controller*
3. DC-Iris Control connector
4. Built-in microphone
5. Light sensor
*The position of the zoom and focus
controllers vary depending on the lens
manufacturer.
Back View Description:
1. Status LED
2. Audio/video out, 1/8in (3.5mm) jack
3. Focus Assist button
4. SD/SDHC card slot
5. 12V DC power connector
6. Terminal block
7. NTSC/PAL switch
8. External/Internal microphone switch
9. Hardware reset button
10. RJ-45 Ethernet connector
11. External microphone in
Terminal Block Description:
1. 12V DC output
2. Relay output
3. Dry contact input
4. Ground
5. 24V AC input
6. RS 485+
7. RS 485-
1
Advertisement
Related Manuals for Nextiva S5250
Summary of Contents for Nextiva S5250
-
Page 1: Hardware Overview
Nextiva S5100/5200 Series Quick Installation Guide for S5120 and S5250 - BX Models All users should read the user manuals for complete details on installation, usage and functionality. Hardware Overview The S5120BX-DN features a 2-Megapixel sensor and S5250BX-DN features a 5-Megapixel sensor. -
Page 2: Setting The Video Standard
2. Connect the lens cable plug to the camera DC-Iris control connector. Connecting the Nextiva IP camera This section explains how to connect the power and network cables to the Nextiva IP camera. A power supply is not included with the Nextiva IP camera and must be purchased separately. - Page 3 To use a 12V DC power supply: ► 1. Connect the power supply cable to the camera. 2. Plug an Ethernet cable into the RJ-45 connector on the back of the IP camera. 3. Plug the power supply cable to the power outlet. To use a 24V AC power supply: ►...
- Page 4 Adjusting the Field of View and Focus Based on the live image retrieved from the IP camera, you can adjust the field of view and focus. The position of the zoom and focus controllers varies depending on the lens manufacturer. NOTE: To adjust the lens zoom factor and focus range: ►...
-
Page 5: Setting The Ip Address
Setting the IP Address Once the IP camera is installed, you need to set the IP address from a computer. By default, all Nextiva IP cameras are Dynamic Host Configuration Protocol (DHCP) enabled. If you have a DHCP server, the IP camera automatically obtains a valid IP configuration. - Page 6 169.254 and the text is red. 3. Select the Nextiva IP camera, and double-click the device. 4. Click Yes in the Reconfigure unit dialog box asking you if you want to set a new network configuration on the unit.
