Nextiva V3320RD

Quick Installation Guide

This product is intended for indoor use and to be supplied by a UL listed power supply marked "Class 2" or

IEEE 802.3af compliant.

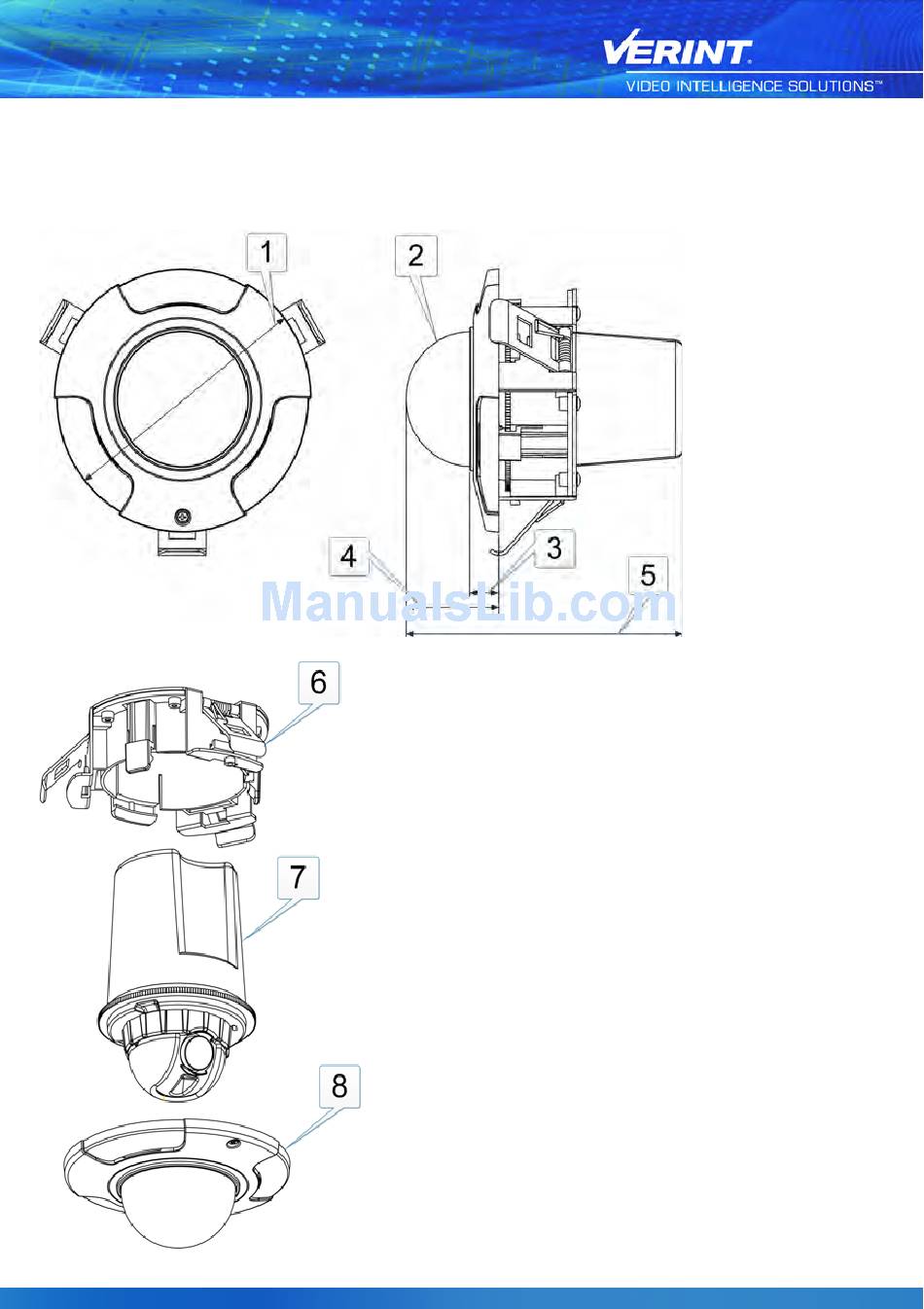

Product Dimensions:

1. Ø97mm (Ø3.82 in)

2. Ø49 mm (Ø1.93 in)

3. 11.2 mm (0.44 in)

4. 35.2 mm (1.39 in)

5. 106.5 mm (4.19 in)

Description:

6. Mounting Ring

7. Body

8. Lens Cover

Do you have a question about the V3320RD and is the answer not in the manual?

Page 1: Quick Installation Guide
Nextiva V3320RD Quick Installation Guide Hardware Overview This product is intended for indoor use and to be supplied by a UL listed power supply marked "Class 2" or IEEE 802.3af compliant. Product Dimensions: 1. Ø97mm (Ø3.82 in) 2. Ø49 mm (Ø1.93 in) 3.
Page 2 Verint will not be held liable for damages to persons or properties due to the improper installation CAUTION: of the Nextiva V3320RD IP camera. 1. Attach the supplied template sticker to the ceiling. 2. Cut a round hole with a diameter of Ø84mm in the ceiling.
Page 3 Username and Password: admin From a web browser From the rear of the device ● 1. Type the IP address of the Nextiva IP camera in the Address bar, and Press and hold DEFAULT for then press ENTER. five seconds to return to factory default.
Page 4 12. Click Exit to close SConfigurator. Matrix if you are adding it to a tour or salvo. 8. Add the camera to a Nextiva VMS Event Manager scenario in order to trigger an automatic response for an event recorded by the camera.
