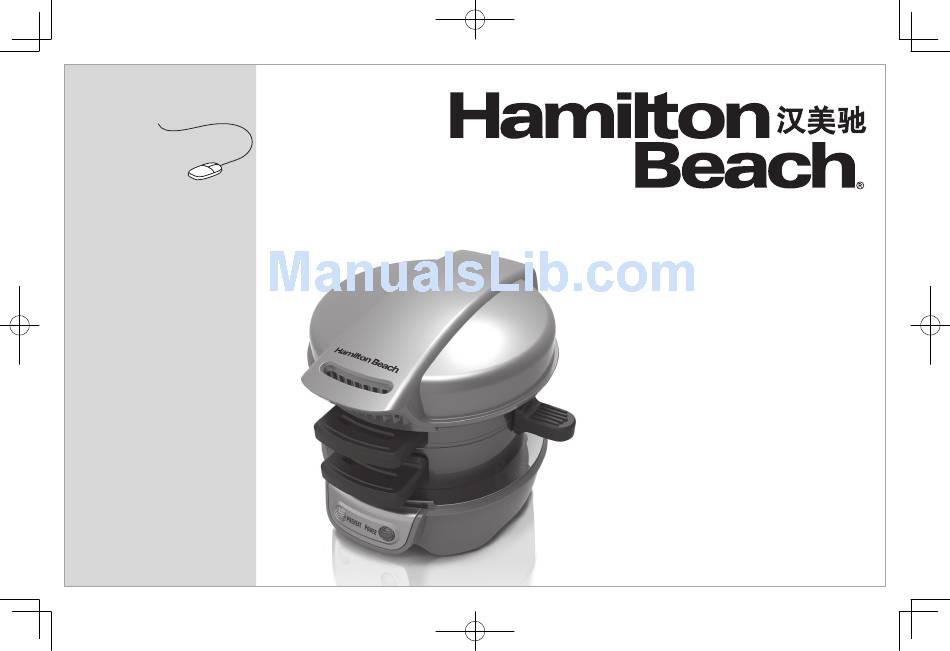

Hamilton Beach 25470-CN Instruction Manual
  1. Manuals
  2. Brands
  3. Hamilton Beach Manuals
  4. Kitchen Appliances
  5. 25470-CN
  6. Instruction manual
Hamilton Beach 25470-CN Instruction Manual

Hamilton Beach 25470-CN Instruction Manual

Breakfast sandwich maker
Hide thumbs Also See for 25470-CN:
Table of Contents

Advertisement

Quick Links

See also: User Manual
READ BEFORE USE
使用前阅读
Visit www.hamiltonbeach.cn for our
complete line of products and Use and
Care Guides – as well as
delicious recipes, tips, and
to register your product online!
有关我们所有系列产品的，使用与维护
指南 – 以及美味食谱、生活小贴士和
产品在线注册的更多信息，请访问
www.hamiltonbeach.cn 。
Questions?
Please call us – our friendly
associates are ready to help.
China: 400-852-2655
如有疑问？
请致电我们，我们的团队
随时准备为您提供帮助。
中国大陆免费客服热线：
400-852-2655
官方网站：www.hamiltonbeach.cn
型号：25470-CN
25475-CN
25476-CN
此说明书中图片仅供参考，
产品以实物为准。
使用本设备前，我们建议您仔细阅读这
些说明。
Breakfast
Sandwich Maker
早餐机
三明治机
汉堡机
English ...................... 2
简体中文 ................. 11

Advertisement

Table of Contents
loading

Related Manuals for Hamilton Beach 25470-CN

Summary of Contents for Hamilton Beach 25470-CN

  • Page 1 。 Sandwich Maker Questions? Please call us – our friendly associates are ready to help. 早餐机 China: 400-852-2655 如有疑问？ 三明治机 请致电我们，我们的团队 随时准备为您提供帮助。 中国大陆免费客服热线： 汉堡机 400-852-2655 官方网站：www.hamiltonbeach.cn 型号：25470-CN 25475-CN 25476-CN 此说明书中图片仅供参考， English ...... 2 产品以实物为准。 简体中文 ....11 使用本设备前，我们建议您仔细阅读这 些说明。...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: 1. Read all instructions. 10. Do not place on or near a hot gas or electric burner, or in a 2. D o not touch hot surfaces. Use handles or knobs. heated oven. 3. To protect against risk of electrical shock, do not immerse cord, 11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. plug, or cooking unit in water or other liquid. 12. D o not use appliance for other than intended use. 4. Close supervision is necessary when any appliance is used by 13. D o not use appliance unattended. or near children. 5. Unplug from outlet when not in use and before cleaning. Allow 14. During use, provide 4 to 6 inches air space above, behind, and to cool before putting on or taking off parts and before cleaning. on both sides for air circulation. 6. Do not operate any appliance with a damaged cord or plug, 15. Never remove the food with any kind of cutting device or other metallic kitchen utensil. or after the appliance malfunctions or has been dropped or 16. Always allow the appliance to cool before putting it away, and damaged in any manner. Call our toll-free customer service never wrap the cord around the appliance while it is still hot. number for information on examination, repair, or adjustment. 7. The use of accessory attachments not recommended by the 17. CAUTION: In order to avoid a hazard due to inadvertent resetting appliance manufacturer may cause injuries. of the thermal cut-out, this appliance must not be supplied 8. Do not use outdoors.

  • Page 3: Parts And Features

    Parts and Features BEFORE FIRST USE: Lift cover to remove ring assembly. Wash removable ring assembly in dishwasher or in hot, soapy water. Rinse and dry. Wipe top and bottom heating plates with a damp, soapy cloth. Remove soap with a damp cloth; dry thoroughly. Spray rings with nonstick cooking spray or wipe or brush with vegetable oil. Top Heating Plate Cover Indicator Lights Removable Ring Assembly Bottom Heating Plate Green PREHEAT Red POWER Light Light Cooking Plate Indicator Lights Cooking Plate Handle Base...

  • Page 4: How To Use

    How to Use WARNING Burn Hazard. Always use an oven mitt to protect hand when opening cover. Hot surfaces and escaping steam can burn. NOTE: Green PREHEAT light will come on when unit is heated to the correct temperature and will cycle on and off during cooking. It is NOT an indicator when sandwich is ready. Red POWER light stays on. Plug cord into wall outlet. The Let unit preheat with cover Use handles to lift cover, top ring, red POWER light will glow. Lightly closed and cooking plate rotated and cooking plate. spray rings with nonstick cooking in between rings. spray before each use. Top bread with ingredients such Crack an egg onto cooking plate. Place bottom half of bread (such as Move top ring and cooking plate as precooked meats, vegetables, an English muffin, small bagel, or down. Make sure cooking plate is Pierce yolk with a fork or toothpick. and cheese. Do not overfill (You can use a whole large egg, biscuit) onto bottom plate. rotated securely to back of ring as breakfast sandwich maker. Overfilling far as it will go to prevent leaking egg white, or a scrambled egg.) willl cause food to spill over rings of egg.
  • Page 5 How to Use IF YOU LIVE IN A HIGH-ALTITUDE AREA: (cont.) The Extension service will have detailed information about cooking for your area. To locate the Cooperative Extension service in your county, please visit: http://www.csrees.usda.gov/Extension/. Using an oven mitt, lift ring Top with the other half of bread. Close cover. Cook sandwich for When finished cooking, rotate assembly and cover by holding 4 to 5 minutes. NOTE: Do not cooking plate handle clockwise bottom handle to open. Some push lid all the way down when until it stops. sandwiches are easier to remove loaded with ingredients or when if rings are lifted individually. using a jumbo egg. Lid may rise as scrambled egg cooks. TIPS: • G et your ingredients together before cooking your sandwich. • A lways keep cover closed with rings and cooking plate in place Always wait 2 minutes between when preheating. cooking sandwiches to ensure • C heck to make sure the the breakfast sandwich maker...

  • Page 6: Care And Cleaning

    Care and Cleaning Electrical Shock Hazard. WARNING Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid. TOP-RACK Removable Ring Assembly DISHWASHER-SAFE Unplug unit when through To remove ring assembly for Do not use steel wool, scouring DO NOT use the “SANI” setting cooking. Let cool. cleaning, hold bottom handle to pads, or abrasive cleansers on any when washing in the dishwasher. open, and then lift straight up. part of the unit. Never use sharp “SANI” cycle temperatures could or pointed objects for cleaning. damage your product. Wipe top and bottom heating To replace ring assembly, align Wipe outside of unit with a damp, plates with a damp, soapy cloth. tabs on the ring assembly with soapy cloth. Remove soap with a damp cloth; the openings on the hinge of the dry thoroughly. base, and lower.

  • Page 7: Troubleshooting

    Troubleshooting PROBABLE CAUSE/SOLUTION PROBLEM • B reakfast sandwich maker wasn’t preheated until PREHEAT light was illuminated. Green PREHEAT light will come Low, poor, or slow on in about 5 to 7 minutes indicating unit is heated to the correct temperature. Light will cycle and does not heating. indicate sandwich is ready. • Allow 2 minutes between making sandwiches for breakfast sandwich maker to heat to the correct temperature. • Overfilled. Reduce amount of ingredients in your sandwich. • Unit needs to be preheated with the cover closed with rings and cooking plate in place. • M ake sure cooking plate is rotated securely to back of ring as far as it will go, to prevent leaking of egg, and cover Is closed when preheating. Egg undercooked, • Extra large eggs, frozen, or very cold ingredients may lengthen cooking time. Add additional cooking time. bread not done. Egg overcooked. • C ooking time is about 5 minutes. Cooking time may vary if you are using small eggs, scrambled or egg whites. Reduce cooking time for future recipes. Ingredients stick to • U se a plastic or wooden utensil to loosen any baked-on ingredients. Lightly spray with nonstick cooking spray before preheating for next use. rings or nonstick cooking plate. • U nit is overfilled. Only use large eggs and reduce amount or size of ingredients. Do not press down on the Eggs leak out of rings. cover. • C ooking plate may not have been in the correct position. Make sure cooking plate is rotated securely to back of ring as far as it will go to prevent leaking of egg.
  • Page 8 Recipes Egg, Ham, and Cheese Breakfast Sandwich Pancakes and Sausage Sandwich 1 English muffin, split 2 (4-inch) frozen pancakes 1 slice American cheese 1 precooked thin sausage patty 1 slice precooked Canadian bacon or ham 1 large egg 1 large egg Maple syrup Directions Directions 1. P reheat Breakfast Sandwich Maker until green PREHEAT light 1. P reheat Breakfast Sandwich Maker until green PREHEAT light comes on. Lift cover, top ring, and cooking plate. comes on. Lift cover, top ring, and cooking plate. 2. P lace half of muffin, split-side up, in bottom ring of Breakfast 2. P lace one frozen pancake in bottom ring of Breakfast Sandwich Sandwich Maker. Top with cheese and Canadian bacon. Maker. Top with sausage. 3. L ower cooking plate and top ring. Add egg to cooking plate. Pierce 3. L ower cooking plate and top ring. Add egg to cooking plate. Pierce yolk with a fork or toothpick.
  • Page 9 Recipes (cont.) Cheddar, Apple, Bacon, and Egg Croissant Sandwich Southwestern Breakfast Muffin 1 small croissant, halved 1 whole wheat English muffin, split 2 Tablespoons (30 ml) shredded Cheddar cheese 1 slice Monterey Jack cheese 4 thin slices Granny Smith apple 3 thin slices avocado 1 slice precooked bacon, cut in half 1 large egg white 1 large egg 1 Tablespoon (15 ml) salsa Directions Directions 1. P reheat Breakfast Sandwich Maker until green PREHEAT light 1. P reheat Breakfast Sandwich Maker until green PREHEAT light comes on. Lift cover, top ring, and cooking plate. comes on. Lift cover, top ring, and cooking plate. 2. P lace half of croissant, cut-side up, in bottom ring of Breakfast 2. P lace half of muffin, split-side up, in bottom ring of Breakfast Sandwich Maker. Top with cheese, apple slices, and bacon. Sandwich Maker. Top with cheese and avocado. 3. L ower cooking plate and top ring. Add egg to cooking plate. Pierce 3. Lower cooking plate and top ring. Add egg white to cooking plate.
  • Page 10 Recipes (cont.) Cheesy Egg and Sausage Bagel Herb Goat Cheese, Spinach, and Tomato Egg Muffin 1 small bagel, halved 1 whole wheat English muffin, split 1 slice Jarlsberg cheese 1 Tablespoon (15 ml) herb goat cheese 1 precooked thin sausage patty 1 thin slice tomato 1 thin slice red pepper ring 4 spinach leaves 1 large egg 1 thin slice red pepper ring 1 large egg white Directions Directions 1. P reheat Breakfast Sandwich Maker until green PREHEAT light comes on. Lift cover, top ring, and cooking plate. 1. P reheat Breakfast Sandwich Maker until green PREHEAT light comes on. Spread goat cheese over bottom half of muffin. Lift 2. P lace half of bagel, split-side up, in bottom ring of Breakfast cover, top ring, and cooking plate. Sandwich Maker. Top with cheese, sausage, and red pepper ring.
  • Page 11 重要安全说明 当使用电器时，应始终遵守基本的安全防范措施，以减少火灾、触电和/或人身伤害的风险，包括以下内容： 1. 阅读所有相关说明。 9. 请勿将电源线搭置在桌台边缘上或与发热表面接触，包括电炉。 2. 请 勿接触发热表面。应使用手柄或旋钮。 10. 请勿靠近或放置在燃气或电炉上，或放进加热烤箱内。 3. 为防止触电危险，请勿将电源线、插头或烹饪组件放入水或其他液体中。 11. 当移动含有热油或其他热液体的电器时，应特别小心。 4. 当电器由儿童使用或距离儿童较近时，需有成人看护。 12. 请 勿将电器用于非预期用途。 5. 当电器不使用或清洁前，请从插座拔下电源。安装、拆解部件和清洁 13. 请 勿在无人看护时使用电器。 14. 使用过程中，在上方、后面和两侧需保持4至6英寸（10-15厘米）的 前，请先将其冷却。 6. 在下列情况下，请勿使用电器：电源线或插头破损、电器出现故障、 空间，便于空气流通。 15. 切勿使用任何类型的切刀或其他金属厨房用具取出食物。 电器曾跌落或已经出现任何形式的损坏。请拨打我们的免费售后服务 16. 收藏本电器时，务必让其冷却，在电器仍较热时，切勿将电源线缠绕 电话，咨询有关电器检查、修理或调整的相关信息。如果电源软线损 坏，为了避免危险，必须由制造商、其维修部或类似部门的专业人员 在电器周围。 17. 小心：为了避免由于热熔断器的疏忽重置导致的危险，本电器不能在 更换。 7. 使用非本电器制造商推荐的配套附件可能会导致受伤。 外接定时器或独立的遥控控制系统的方式下运行。 8. 请勿户外使用。 请妥善保管这些说明！ 其他用户安全信息 本产品建议于家庭使用。 必须等于或大于此电器的额定功率。电源延长线使用时需特别注意，以 防将其搭设在工作台或桌台上，造成儿童扯拉或绊倒他人。 此电器电源线的长度设计考虑减少长电源线缠绕或绊倒的危险。倘若需...
  • Page 12 部件和功能 首次使用前：提起上盖，取出锅圈组件。在洗碗机或在带清洁剂的温水 中清洗可拆卸的锅圈组件。冲洗，然后晾干。用带清洁剂的湿布擦拭顶 部和底部加热板。用干净的湿布擦拭干净，彻底晾干。在锅圈上喷上食 用油，或刷上植物油。 顶部加热板 上盖 指示灯 可拆卸锅圈组件 底部加热板 绿色 红色 预热指示灯 电源指示灯 烹饪板 指示灯 烹饪板手柄 底座...
  • Page 13 如何使用 警告 烫伤危险。 操作上盖时务必戴上烤箱手套保护手。热表面和漏出的蒸汽可能会导致烫伤。 当本电器加热至一定的温 注意： 度时， 绿色预热指示灯将点亮， 并且在烹饪过程中，该指示灯将循 环点亮和熄灭。在此过程中，红色 电源指示灯始终保持点亮状态。 将电源线插入墙上的电源插座。红 旋转烹饪板，使其处在两个锅圈之 使用手套掀起上盖、顶部锅圈和烹 色 电 源 指 示 灯将 点 亮 。每 次 使 用 间，合上上盖,让机器预热。 饪板。 前，在锅圈上轻轻喷一层食用油。 在面包上添加预制的肉类、蔬菜和 将底部的半片面包（如英式松饼、小 将顶部锅圈和烹饪板放下。 将鸡蛋打在烹饪板上。用叉子或牙 奶酪。请勿在三明治早餐机中添加过 面包圈或饼）放至底板上。 注意：请确保烹饪板完全放置在两 签刺穿蛋黄。（您可以使用整个生 多食材。添加过多可能导致食物从锅 个锅圈之间，防止蛋液漏出。 鸡蛋、蛋清或打散的蛋液。) 圈中溢出，并会卡在铰链中。...
  • Page 14 如何使用 （续） 戴上手套，固定好底座，握住下锅 在上面添加另外半片面包。 合上上盖。烹饪4至5分钟即可。注 烹饪完成后，顺时针旋转烹饪板手 意：当食材过多或鸡蛋太大时，请 柄到可停止的位置。 圈的手柄，掀起锅圈组件和上盖。 如单个逐步提起上盖和上下锅圈， 勿用力将盖子按下.使用打散的蛋液 烹饪时，盖子可能会稍微升起。 汉堡更容易取出。 提示： • 烹 饪前，将所有食材准备好。 • 预 热时，确保上盖合上，锅圈和 烹饪板处于正确的位置。 • 添 加食物前，检查并确保烹饪板 处于正确的位置。 烹饪两份三明治之间，务必等待2 分钟，以确保早餐机加热至合适的 温度。 用塑料或木制器具取出汉堡。切勿 烹饪完成后拔掉插头，让电器冷 使用金属器具。 却。...
  • Page 15 保养与清洗 电击危险。 警告 清洁前断开电源。请勿将电源线、插头或底座浸在任何 液体中。 可拆卸锅圈组件 锅圈组件 可放入洗碗机中清洗 烹饪完成后拔掉插头，让电器冷 若要卸下锅圈组件进行清洁，确保 请勿使用钢丝球、百洁布或磨蚀性 在 洗 碗 机 中 清 洗 时 ， 请 勿 使 用 却。 上下锅圈在合并状态下，然后垂直 清洁剂擦拭装置的任何部分。切勿 “SANI”设置。“SANI”循环温 向上提起。 使用锋利或尖锐的物体进行清洁。 度会损坏本产品。 用带清洁剂的湿布擦拭顶部和底部 若要装回锅圈组件，请将锅圈组件 用带清洁剂的湿布擦拭装置的外部。 加热板。用干净的湿布擦拭干净， 上的凸耳与底部铰链的开口对齐， 彻底晾干。 垂直放下。...
  • Page 16 故障排除 可能的原因/解决方案 问题 • 早 餐机未预热。绿色预热指示灯点亮约需5至7分钟，表示电器已加热到一定的温度。指示灯循环点亮和熄灭，并不表 加热温度低、加热 示三明治已做好。 不好或加热慢。 • 制作两份三明治之间，等待2分钟，让机器加热至合适的温度。 • 加入过多食材。减少三明治中的食材量。 • 电器须在上盖合上和烹饪板处于原位的状态下预热。 • 确 保上盖合上，烹饪板处于锅圈正确的位置，防止蛋液漏出。 蛋未煮熟，面包未 • 超大鸡蛋、冷冻或极冷的食材可能会延长烹饪时间。增加额外的烹饪时间。 做好。 • 烹 饪时间约5分钟。如果您使用小鸡蛋、打散的蛋液或蛋清，烹饪时间可能会有所不同。减少烹饪时间。 蛋糊了。 • 用 塑料或木制器具弄开粘上的食材。下次使用时，预热前，在锅圈上喷一层食用油。 食材粘在锅圈上或 不粘烹饪板上。 • 加 入了过多食材。使用大鸡蛋时，减少食材的量或大小，请勿用力按下上盖。 蛋液从锅圈中漏出。 • 烹 饪板可能未处于正确的位置。确保烹饪板和上下锅圈保持合并状态，防止蛋液漏出。 • 购 买较稀薄蛋清。使用新鲜蛋清或尝试不同品牌的蛋清。 • 打 散的蛋液中有空气气泡，可能导致烹饪时上盖微微上升，请勿用力按下上盖。 烹饪汉堡时上盖升...
  • Page 17 食谱 火腿芝士蛋三明治 香肠烧饼三明治 1个汉堡面包，分成两半 2个（4英寸）冷冻烧饼 1片芝士 1个预煮薄香肠肉饼 1片培根或火腿 1个鸡蛋 1个鸡蛋 枫糖酱 制作方法： 制作方法： 1. 将 早餐机进行预热，直到绿色预热指示灯点亮。提起上盖、上锅圈和 1. 将 早餐机进行预热，直到绿色预热指示灯点亮。提起上盖、上锅圈和 烹饪板。 烹饪板。 2. 将 半片汉堡面包，分开面朝上，放入早餐机的下锅圈中，在上面添加 2. 将 一个冷冻煎饼放入早餐机的下锅圈中，在上面添加香肠。 芝士和火腿。 3. 放 下烹饪板和上锅圈，把蛋打在烹饪板上，用叉子或牙签刺穿蛋黄。 3. 放 下烹饪板和上锅圈，把蛋打在烹饪板上，用叉子或牙签刺穿蛋黄。 4.在上面添加另一块烧饼。 4.在上面添加剩余的半块汉堡面包，分开面朝下。 5. 合 上上盖，烹饪4至5分钟。顺时针旋转烹饪板手柄到停止的位置，提 5. 合 上上盖，烹饪4至5分钟。顺时针旋转烹饪板手柄到停止的位置，提 起上盖和锅圈，小心地用塑料铲取出三明治，涂上糖浆。...
  • Page 18 食谱（续） 切达干酪、苹果、培根、鸡蛋和羊角面包三明治 西南早餐三明治 1个小羊角面包，分成两半 1个全麦英式汉堡面包，分成两半 2汤匙（30毫升）切碎的切达奶酪 1片蒙特里杰克奶酪 4薄片苹果 3薄片鳄梨 1片预煮培根，切成两半 1份鸡蛋清 1个鸡蛋 1汤匙（15毫升）洋葱番茄辣酱 制作方法： 制作方法： 1. 将 早餐机进行预热，直到绿色预热指示灯点亮。提起上盖、 1. 将 早餐机进行预热，直到绿色预热指示灯点亮。提起上盖、 上锅圈和烹饪板。 上锅圈和烹饪板。 2. 将 一半羊角面包，切开面朝上，放入早餐机的下锅圈中，在上面添加 2. 将 一半松饼以分开面朝上的方式放在早餐机的下锅圈中， 奶酪、苹果片和培根。 在上面添加奶酪和鳄梨。 3. 放 下烹饪板和上锅圈，把蛋打在烹饪板上，用叉子或牙签刺穿蛋黄。 3.放下烹饪板和上锅圈，将蛋清加在烹饪板上。 4.在上面添加剩余的半块羊角面包，切开面朝下。 4. 在 上面添加剩余的半块松饼，分开面朝下。 5. 合 上上盖，烹饪4至5分钟。顺时针旋转烹饪板手柄到停止的位置，提 5. 合...
  • Page 19 食谱 （续） 干酪蛋和香肠面包圈 草山羊奶酪、菠菜、番茄鸡蛋松饼 1个小面包圈，分成两半 1个全麦英式汉堡面包，分成两半 1片亚尔斯堡奶酪 1汤匙（15毫升）草山羊奶酪 1个预煮薄香肠肉饼 1薄片番茄 1薄片红辣椒圈 4片菠菜叶 1个鸡蛋 1薄片红辣椒圈 1份鸡蛋清 制作方法： 制作方法： 1. 将 早餐机进行预热，直到绿色预热指示灯点亮。提起上盖、上锅圈和 1. 将 早餐机进行预热，直到绿色预热指示灯点亮。将山羊奶酪涂在松饼 烹饪板。 的下半部分。提起上盖、上锅圈和烹饪板。 2. 将 一半面包圈，分开面朝上，放入早餐机的下锅圈中，在上面添加奶 酪、香肠和红辣椒圈。 2. 将 半片松饼，涂有山羊奶酪的面朝上，放入早餐机的下锅圈中，在上 面添加西红柿、菠菜和红辣椒圈。 3. 放 下烹饪板和上锅圈，把蛋打在烹饪板上，用叉子或牙签刺穿蛋黄。 3.放下烹饪板和上锅圈，将蛋清加在烹饪板上。 4.在上面添加剩余的半块面包圈，分开面朝下。 4. 在 上面添加剩余的半块松饼，分开面朝下。 5. 合...
  • Page 20 Model/型号: Type/类别： Rating/规格： 25470-CN ST29 220V~ 50Hz 600W 25475-CN 25476-CN Dist.: Hamilton Beach Brands, Inc., Glen Allen, VA 23060 © 2014 Hamilton Beach Brands, Inc. 以上内容如有改动，恕不预先通知 840236601...

This manual is also suitable for:

25475-cn25476-cn
