AEG X66453MDO UK User Manual page 5

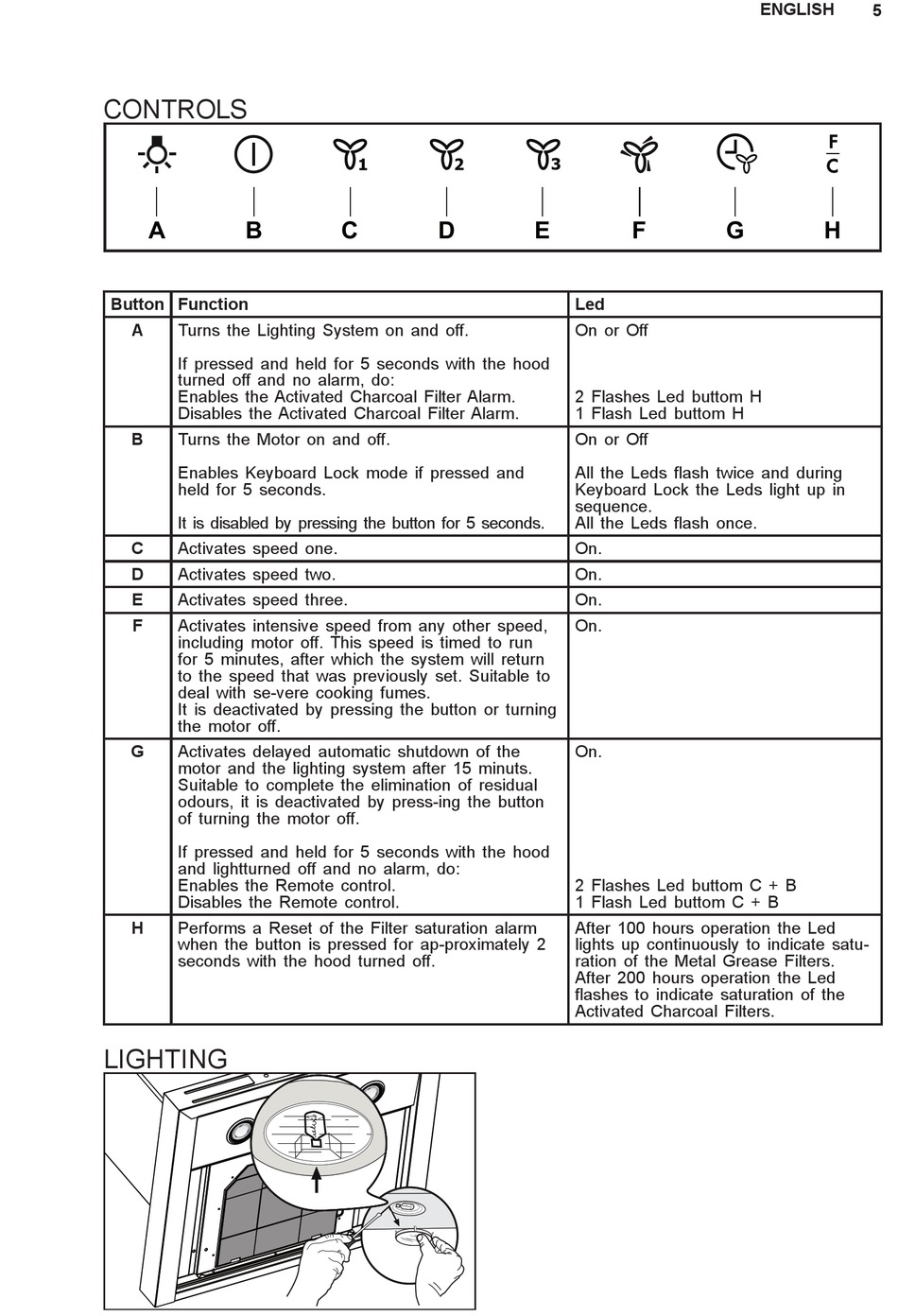

cOnTrOls
A B
Button Function
A Turns the lighting system on and off.
If pressed and held for 5 seconds with the hood
turned off and no alarm, do:
enables the activated charcoal Filter alarm.
Disables the activated charcoal Filter alarm.
B Turns the Motor on and off.
enables Keyboard lock mode if pressed and
held for 5 seconds.
It is disabled by pressing the button for 5 seconds.
C activates speed one.
D activates speed two.
E activates speed three.
F activates intensive speed from any other speed,
including motor off. This speed is timed to run
for 5 minutes, after which the system will return
to the speed that was previously set. suitable to
deal with se-vere cooking fumes.
It is deactivated by pressing the button or turning
the motor off.
G activates delayed automatic shutdown of the
motor and the lighting system after 15 minuts.
suitable to complete the elimination of residual
odours, it is deactivated by press-ing the button
of turning the motor off.
If pressed and held for 5 seconds with the hood
and lightturned off and no alarm, do:
enables the remote control.
Disables the remote control.
H Performs a reset of the Filter saturation alarm
when the button is pressed for ap-proximately 2
seconds with the hood turned off.
lIGhTInG
C D E F
Led
On or Off
2 Flashes led buttom h
1 Flash led buttom h
On or Off
All the Leds flash twice and during
Keyboard lock the leds light up in
sequence.
All the Leds flash once.
On.
On.
On.
On.
On.
2 Flashes led buttom c + B
1 Flash led buttom c + B
after 100 hours operation the led
lights up continuously to indicate satu-
ration of the Metal Grease Filters.
after 200 hours operation the led
flashes to indicate saturation of the
activated charcoal Filters.
english
5
G H
