Setup Procedure

Setup Flow
1. Mount the camera unit onto the projector.
• For UM330X/UM280X/UM330W/UM280W
• For M352WS/M302WS/M332XS
2. Connect the projector to the computer.
3. Turn on the projector power and adjust the position and focus of the projected
image.
4. Connect the computer and the camera unit with the included USB cable.
5. Download and install the driver and the calibration software on the computer
to perform the calibration.
1. Mount the camera unit onto the projector.
Two kinds of adapters are included. One is for UM330X/UM280X/UM330W/UM280W and the other for
M352WS/M302WS/M332XS.
• For UM330X/UM280X/UM330W/UM280W:
Use the camera unit, adapter (24F5012 ☐ ), adapter cover (24F5013 ☐ ), and two screws.
Preparation:
• Prepare a plus-headed screwdriver.
• If the cable cover is attached to the projector, remove it.
To attach and remove the cable cover, follow the procedure provided in the user's manual included
with the projector.
• The adapter and the adapter cover for UM330X/UM280X/UM330W/UM280W are attached together
before shipment.

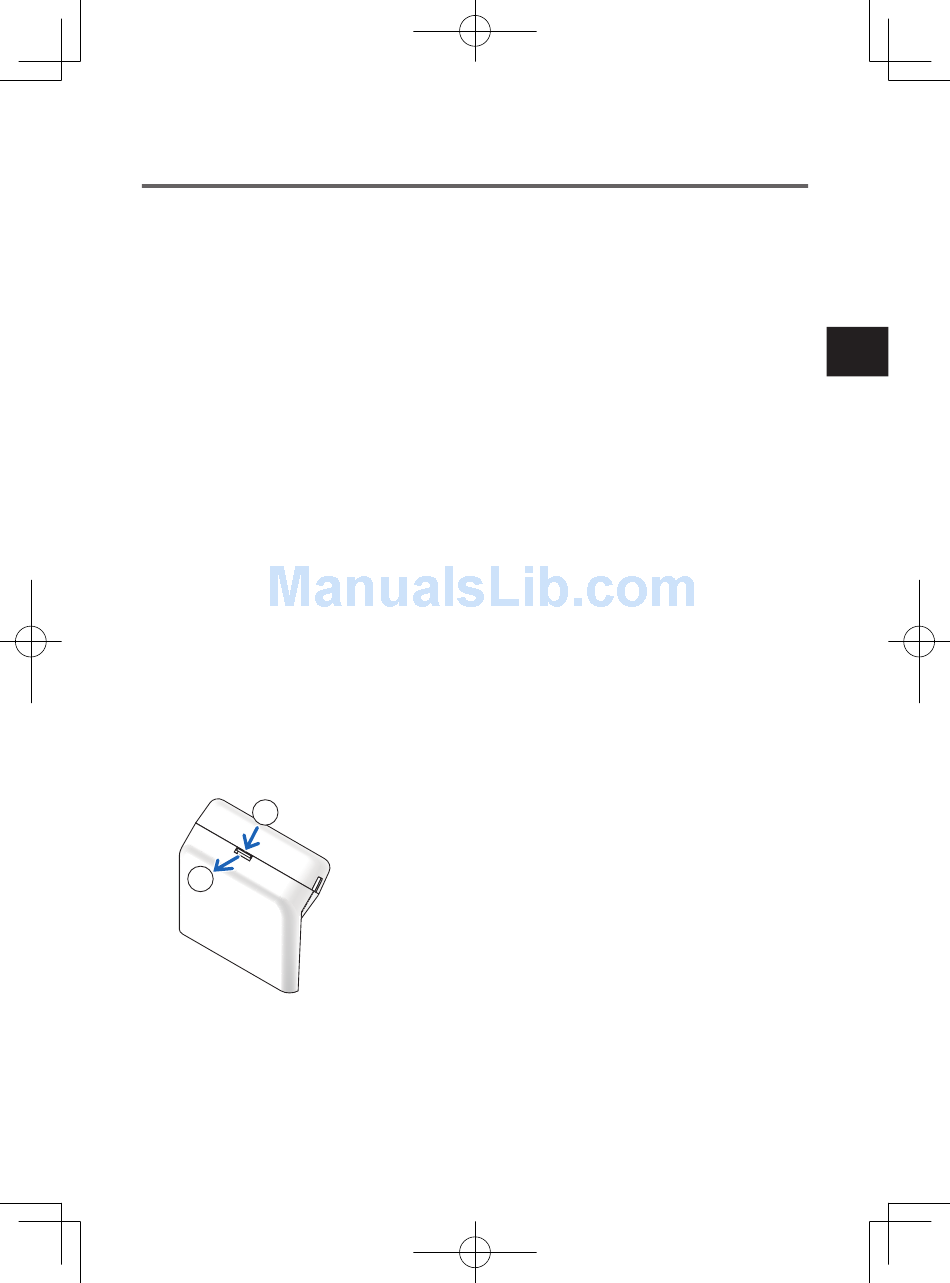

Before working, push and pull the top of the adapter cover to separate them each other.
1
2
ENG-9
