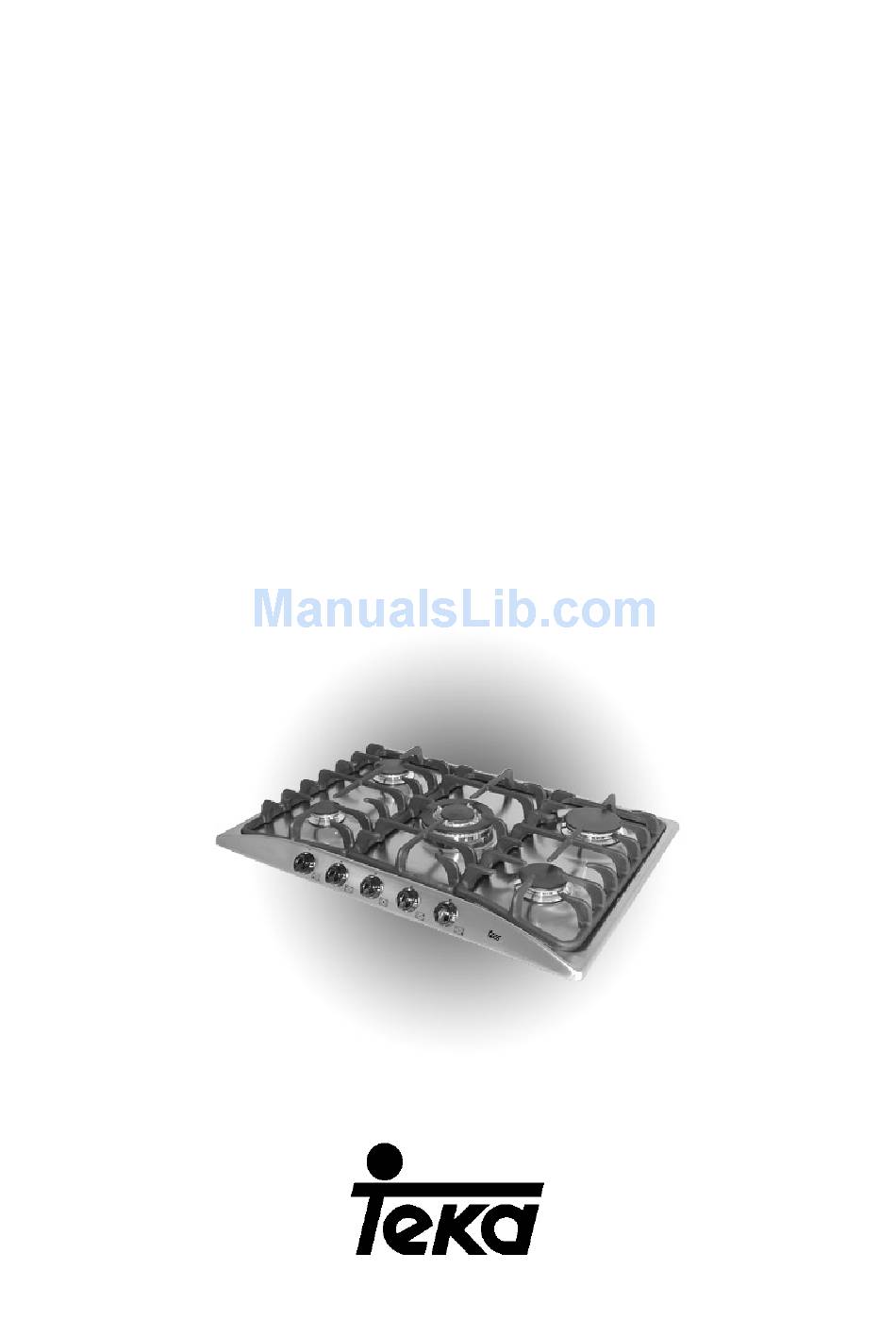

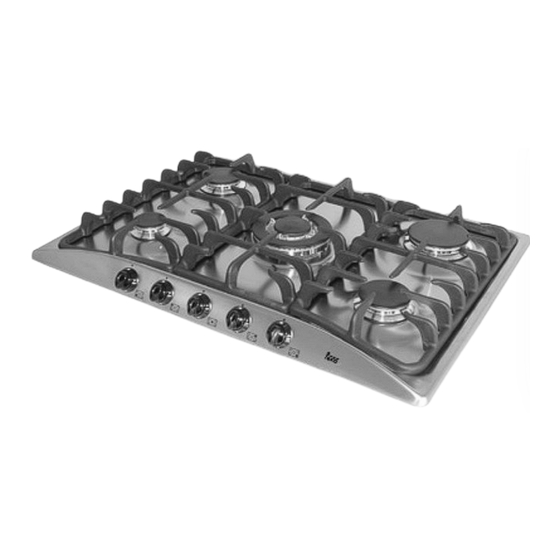

Instructions for the installation and advice for the maintenance E/70 2G AI TR - E/70 3G AI TR - E/70 5G AI TR E/70 2G AI TR AL - E/70 3G AI TR AL - E/70 5G AI TR AL...
Page 2
DESCRIPTION OF THE HOT PLATES TYPES: E/70 2G AI TR - E/70 3G AI TR - E/70 5G AI TR E/70 2G AI TR AL - E/70 3G AI TR AL - E/70 5G AI TR AL 1 Ultra rapid burner...
Page 3
1) BURNERS HOW TO USE THE BURNERS Bear in mind the following indications in order to A diagram is screen-printed above each knob on the achieve maximum efficiency with the least possible front panel. This diagram indicates to which burner gas consumption: the knob in question corresponds.
Page 4
Notes: Use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The room must therefore be well ventilated by keeping the natural air vents clear (fig. 3) and by activating the mechanical aeration device (suction hood or electric fan fig. 4 and fig. 5). Intensive and lengthy use of the appliance may require additional ventilation.
Page 5
2) HOW TO USE THE ELECTRIC which electric plates the knob in question corresponds (see fig. 6). A red warning light will PLATES come on to indicate that the plate is operating. Mixed hot plates may be equipped with a normal or A purely indicative regulation table for the normal rapid electric plates.
Page 6
WARNINGS: - The plates will remain hot for a long period of When the plate is switched on for the first time, time even use after use, never touch them with or if it has remained unused for a long period, it the hands or other objects in order to prevent should be dried for 30 minutes on switch position burns.
Page 7
CLEANING IMPORTANT: - Do not force the taps if they are difficult open or close. Contact the technical assistance Always disconnect the appliance from the gas service for repairs. and electricity mains before carrying out any - Correctly preserve the plate after use by cleaning operation.
INSTALLATION TECHNICAL INFORMATION FOR THE 4A) CYLINDER HOLDER COMPARTMENT INSTALLER The dimensions of the cylinder compartment have to permit the easy loading and unloading of the cylinder. Installation, adjustments of controls and For an efficient aeration is necessary to make some maintenance must only be carried out by a small openings in the furniture, as per fig.
INSTALLATION 5) FIXING THE HOT PLATE to the cabinet must be able to withstand a temperature of not less than 150° C otherwise The hot plate has a special seal which prevents the laminate could come unstuck. liquid from infiltrating into the cabinet. Strictly The appliance must be installed in compliance comply with the following instructions in order to with the provisions in force.
INSTALLATION 8) GAS CONNECTION WARNINGS: Remember that the gas inlet union on the Before connecting the appliance, check that the appliance is a 1/2" gas parallel male type in values on the data label affixed to the underside compliance with ISO 228-1 standards. of the hot plate correspond to those of the gas Installation of stainless steel pipe and rubber and electricity mains in the home.
INSTALLATION 9) ELECTRICAL CONNECTION When the appliance is connected straight to the electricity main: The electrical connections of the appliance must - Install an omnipolar circuit-breaker between the be carried out in compliance with the provisions appliance and the electricity main. This circuit- and standards in force.
Page 12
INSTALLATION 10) INSTALLING THE HOT PLATE 11) FIXING THE HOT PLATE The hot plate has a special seal which prevents WITH THE BATTERY liquid from infiltrating into the cabinet. Strictly Check that the appliance is in a good condition after comply with the following instructions in order to having removed the outer packaging and internal correctly apply this seal:...
Page 13
ADJUSTMENTS Always disconnect the appliance from the Check that the flame does not go out when the knob electricity main before making any adjustments. is sharply switched from the “Full on” to the All seals must be replaced by the technician at “Reduced rate”...
CONVERSIONS 13) REPLACING THE INJECTORS burners must be regulated as explained in paragraphs 11. The technician must reset any The burners can be adapted to different types of gas seals on the regulating or pre-regulating devices. by mounting injectors suited to the type of gas in The envelope with the injectors and the labels can question.
Page 15
CONVERSIONS BURNER ARRANGEMENT ON THE HOT PLATE HONG KONG MARKET NORMAL NORMAL INJECTOR NOMINAL HEAT BURNERS PRESSURE PASS RATE DIAMETER INPUT (W) mbar 1/100 mm MIN. MAX. 1/100 mm N° DESCRIPTION 1400 3700 ULTRA RAPID TOWN 350 6 1400 4000 3000 RAPID TOWN...
Page 16
CONVERSIONS BURNER ARRANGEMENT ON THE HOT PLATE TAIWAN MARKET NORMAL NORMAL NOMINAL HEAT INJECTOR BURNERS RATE PRESSURE PASS DIAMETER INPUT (W) mbar 1/100 mm MIN. MAX. 1/100 mm N° DESCRIPTION 1400 3700 ULTRA RAPID NATURAL 135 T 1400 3700 3000 RAPID NATURAL 115 Y...
Page 17
SERVICING Always disconnect the appliance from the Greasing the taps (see fig. 21 - 22) electricity and gas mains before proceeding with If a tap becomes stiff to operate, it must be any servicing operation. immediately greased in compliance with the following instructions: 14) REPLACING HOT PLATE PARTS - Remove the tap.
SERVICING 15) REPLACING THE BATTERY WARNING: The batteries contain a dangerous material for To change the battery (see fig. 23) comply with our ambient. Always put them in a separate and following instructions: - Unscrew cap “T” and remove exausty battery. safe container.
Page 19
SERVICING CABLE TYPES AND SECTIONS TYPE OF TYPE OF SINGLE - PHASE HOT PLATE CABLE POWER SUPPLY Gas hot plate H05 RR - F Section 3 X 0.75 mm ATTENTION!!! If the power supply cable is replaced, the installe should leave the ground wire longer than the phase conductors (fig.
Page 20
TECHNICAL DATA ON THE DATA LABEL OTHER MARKETS 2 UR BURNERS 3 BURNERS (LEFT UR) 5 BURNERS BUTANE = 28 - 30 mbar BUTANE = 28 - 30 mbar BUTANE = 28 - 30 mbar PROPANE = 37 mbar PROPANE = 37 mbar PROPANE = 37 mbar NATURAL = 20 mbar NATURAL = 20 mbar...
Page 21
TECHNICAL DATA ON THE DATA LABEL HONG KONG MARKET 2 UR BURNERS 3 BURNERS (LEFT UR) 5 BURNERS LPG = 30 mbar LPG = 30 mbar LPG = 30 mbar TOWN = 10 mbar TOWN = 10 mbar TOWN = 10 mbar Tot.
Page 22
TECHNICAL DATA ON THE DATA LABEL CHINA MARKET 2 UR BURNERS 3 BURNERS (LEFT UR) 5 BURNERS LPG = 30 mbar LPG = 30 mbar LPG = 30 mbar NATURAL = 20 mbar NATURAL = 20 mbar NATURAL = 20 mbar TOWN (SHANGHAI) = 10 mbar TOWN (SHANGHAI) = 10 mbar TOWN (SHANGHAI) = 10 mbar...
Page 23
TECHNICAL DATA ON THE DATA LABEL TAIWAN MARKET 3 BURNERS (LEFT UR) 2 UR BURNERS 5 BURNERS LPG = 30 mbar LPG = 30 mbar LPG = 30 mbar NATURAL = 20 mbar NATURAL = 20 mbar NATURAL = 20 mbar Tot.
Page 24
TECHNICAL DATA ON THE DATA LABEL SINGAPORE MARKET 3 BURNERS (LEFT UR) 2 UR BURNERS 5 BURNERS LPG = 30 mbar LPG = 30 mbar LPG = 30 mbar TOWN = 10 mbar TOWN = 10 mbar TOWN = 10 mbar Tot.
Page 25
TECHNICAL DATA ON THE DATA LABEL COREA MARKET 3 BURNERS (LEFT UR) 2 UR BURNERS 5 BURNERS LPG = 28 - 30 mbar LPG = 28 - 30 mbar LPG = 28 - 30 mbar NATURAL = 20 mbar NATURAL = 20 mbar NATURAL = 20 mbar Tot.
TECHNICAL DATA FOR THE APPLIANCE GAS REGULATION TECHNICAL ASSISTANCE AND SPARE PARTS Before leaving the factory, this appliance will have been tested and regulated by expert and specialized personnel in order to guarantee the best performances. Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.
Page 27
Malaysia Kuala Lumpur TEKA KÜCHENTECHNIK 3 – 762.01.600 3 – 762.01.626 (MALAYSIA) Mexico Mexico D.F. TEKA MEXICANA S.A. DE C.V. 5 - 762.04.90 5 – 762.05.17 Poland Warszawa TEKA POLSKA SP Z O.O. 22 - 652.18.94 22 - 850.12.48 Portugal Ilhavo TEKA PORTUGUESA LTDA.
