This service information is designed for experienced repair technicians only and is not intended for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt within this service information by anyone else could result in serious injury or death.
WARNING
© 2004 Panasonic Communications Co., Ltd.
All rights reserved. Unauthorized copying and distribution is
a violation of law.
Order Number: MGCS041006C0
Facsimile

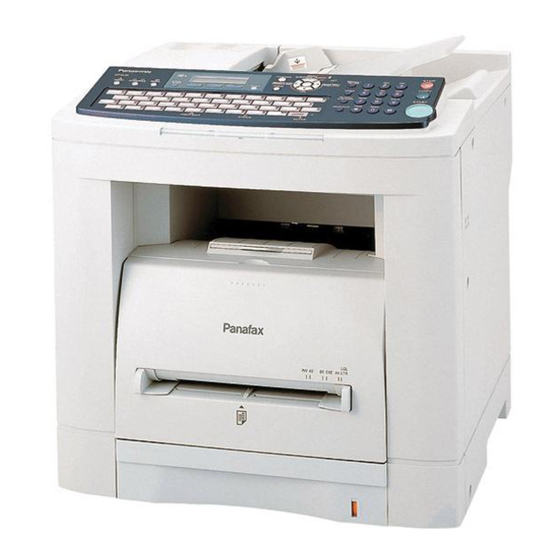

UF-7000/8000
UF-7100/8100
[ Version 2.0 ]
H13

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic UF-8000

  • Page 1 Order Number: MGCS041006C0 Facsimile UF-7000/8000 UF-7100/8100 [ Version 2.0 ] WARNING This service information is designed for experienced repair technicians only and is not intended for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service  or repair the product or products dealt within this service information by anyone else could result in serious injury or death. © 2004 Panasonic Communications Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
  • Page 2 URL: http://www.senju-m.co.jp) is recommended when repairing PbF PCBs. The contents of this Service Manual and the Specifications are subject to change without notice. Panasonic Communications Co., Ltd. reserves the right to make improvements in the product design without reservation and without notice. Published in Japan.
  • Page 3 Important Notice Please read this notice completely BEFORE installing any optional  accessories. As failure to properly install the additional board or  connector with the power ON could damage the machine's SDR or  SC board. Please follow the instructions below: 1. It is essential that you turn OFF the Main Power Switch located  on the Rear Side of the machine. 2. It is essential that you unplug the AC Power Cord from the wall  outlet. (During a Lightning Storm, to prevent electrocution  disconnect the Telephone Line Cable first before unplugging the  AC Power Cord) 3. Please read the installation instructions carefully and follow each  step. <Example: UF-8000> Note: O = Power OFF, l = Power ON * The specifications are subject to change without notice. Panasonic Communications Co., Ltd. reserves  the right to make improvements in the product design without reservation and without notice.
  • Page 4 Important Notice for Installation Caution: Depending on your machine's model, it may weight approximately 48.50 lb  (22.0 kg)  without any options.  To prevent injuries, use the appropriate number of personnel and lift or move  the machine as illustrated. Do not lift the machine by the Paper Tray as it may cause damage and/or bodily  injury. Note: Refer to the Quick Guide when installing the machine.
  • Page 5: For Your Safety

    Precautions For Your Safety To prevent severe injury and loss of life, read this section carefully before servicing the Panasonic machine to ensure proper and safe operation. Please ensure that the machine is installed near a wall outlet and is easily accessible.
  • Page 6: Operating Safeguards

    Never touch a power cord with wet hands. Danger of electric shock exists. If the power cord is broken or insulated wires are exposed, replace immediately with a specified cord only. Using a damaged cord can cause fire or electric shock. Stop operation immediately if your machine produces smoke, excessive heat, unusual noise, or smell, or if water is spilt onto the machine.
  • Page 7: Consumable Safeguards

    CAUTION Do not place a magnet near the safety switch of the machine. A magnet can activate the machine accidentally resulting in injuries. Do not use a highly flammable spray or solvent near the machine. It can cause a fire. When copying a thick document, do not use excessive force to press it against the document glass.
  • Page 8: Table Of Contents

    1.2. System Combination......23 5.21. G3 Communication Port Kit 1.3. Options List ..........24 (For UF-8000/8100)......166 5.22. Network Scan / Email / Maintenance, Adjustments and Internet Fax Kit ........168 Check Points .......... 25 5.23. Hardware Identification Template..170 2.1.
  • Page 9: Specifications Table

    1 Specifications Table 1.1. Fax, Printer, Network Scanner and Internet Fax Functions 1.1.1. Fax Function Description Items Remarks UF-7000/7100 UF-8000/8100 Main Specifications 1 Compatibility Super G3 / G3 ITU-T Std & Non-Std 2 Modem Speed 33.6 - 2.4kbps T.30/V.34/V.17/V.29/V.27ter 3 Coding Scheme JBIG/MMR/MR/MH Conforms to ITU-T Rec.
  • Page 10 UF-7000/8000 UF-7100/8100 Description Items Remarks UF-7000/7100 UF-8000/8100 Scanner Mechanism 1 Scanning Device CIS (ADF) Scanning Resolution / Speed Std: 203 x 98 (8 x 3.85) LTR : 1.4 sec LTR : 0.7 sec dpi x lpi (pels/mm x lines/ A4 : 1.5 sec A4 : 0.7 sec...
  • Page 11 UF-7000/8000 UF-7100/8100 Description Items Remarks UF-7000/7100 UF-8000/8100 Memory 1 Fax Memory Standard Memory 3 MB 12 MB ITU-T Image No.1 (A4, Std (Flash) (180 pages) (720 pages) Resolution) Optional Memory 32 MB to 512 MB (Refer to 1.1.5.) (SD Memory Card) (Max.
  • Page 12 UF-7100/8100 Description Items Remarks UF-7000/7100 UF-8000/8100 Consumables Yield: 5 K (5% coverage), 6 K Max Average yield is based on 5% coverage of the printable area with repetitive printing of 10 pages (Letter/A4 size, single side printing, default density). The yield of a Toner Cartridge varies depending on the 1 Toner Cartridge coverage, temperature, humidity, media, etc.
  • Page 13 UF-7000/8000 UF-7100/8100 Description Items Remarks UF-7000/7100 UF-8000/8100 Full Number Dialing Max. 50 stations (Buffered Dialing) Direct Dialing Voice mode (Monitor Dialing) Up to 15 times at 0 to 15 min. 13 Automatic Redialing intervals Pressing the REDIAL/PAUSE 14 Manual Redialing...
  • Page 14 UF-7000/8000 UF-7100/8100 Description Items Remarks UF-7000/7100 UF-8000/8100 Reception Features 1 Substitute Reception LTR/A4/LGL: 70 - 100% 2 Fixed Reduction (in 1% Steps), Top & Left Alignment LTR/A4/LGL: 70 - 100% 3 Auto Reduction (in 1% Steps), Top & Left Alignment Page End Approx.
  • Page 15 UF-7000/8000 UF-7100/8100 Description Items Remarks UF-7000/7100 UF-8000/8100 Copy Features 1 First Copy Time Letter 25 sec. 19 sec. 26 sec. 2 Copy Speed Letter Approx. 15 cpm Approx. 19 cpm Paper Feed: 1st Paper Tray; Paper Exit: to Exit Tray;...
  • Page 16 UF-7000/8000 UF-7100/8100 Description Items Remarks UF-7000/7100 UF-8000/8100 Special Communications 1 Password XMT / RCV 2 Selective Reception TSI Check 3 Relay XMT Request 4 Relay XMT Center 5 Confidential XMT / Polling 6 Confidential Center 7 Mailbox XMT / Polling...
  • Page 17: Printer Function

    UF-7000/8000 UF-7100/8100 1.1.2. Printer Function Description Items Remarks UF-7000/7100 UF-8000/8100 Interface 1 Centronics Parallel I/F Ethernet 10Base-T/100Base- 2 LAN (Network) 3 USB Port USB1.1 4 IEEE-1394 Firewire Printer Function 1 Printing Size LGL / LTR / A4 / A5 2 Bypass...
  • Page 18 UF-7000/8000 UF-7100/8100 Description Items Remarks UF-7000/7100 UF-8000/8100 Output to separate tray for Printing, Fax, Copy Requires Optional PCL6 19 Font Emulation Kit Requires Optional SD Memory 20 Secure Mailbox Card (256 MB or 512 MB). Max. 10 mailboxes. Ver. 2.0...
  • Page 19 UF-7000/8000 UF-7100/8100 1.1.3. Network Scanner Function Description Items Remarks UF-7000/7100 UF-8000/8100 Interface 1 Centronics Parallel I/F Ethernet 10Base-T/100Base- 2 LAN (Network) 3 USB Port 4 IEEE-1394 Firewire Network Scanning Function 1 Scanning Device 2 Scanning Speed (ADF) Excludes: Initializing Time,...
  • Page 20 UF-7000/8000 UF-7100/8100 1.1.4. Internet Fax Function Description Items Remarks UF-7000/7100/8000/8100 Main Specifications 1 Communication Protocols SMTP / POP3 / MIME 2 Max. Modem Speed 3 Coding Scheme JBIG/MMR/MR/MH Selectable (PDF formats are used for Scan-to- 4 File Format TIFF / PDF Email, current Internet Fax standards do not support these file formats) 5 Line Interface...
  • Page 21 UF-7000/8000 UF-7100/8100 Description Items Remarks UF-7000/7100/8000/8100 LAN Features 1 Internet Fax Communication 2 Internet Mail Reception 3 Internet Fax Server Features Internet Fax → Internet Fax → G3FAX Internet Fax Relay XMT PC → Internet Fax → G3FAX Email Relay XMT Received Fax / Email Local print available Forward...
  • Page 22 UF-7000/8000 UF-7100/8100 1.1.5. SD Memory Card SD Memory Card Format Structure and Allocation by Function SD Memory Card Format Structure SD Memory Size (n MB) 32 MB 64 MB 128 MB 256 MB 512 MB Max. Number of Pages 1,020 2,900 6,800 12,750...
  • Page 23: System Combination

    UF-7000/8000 UF-7100/8100 1.2. System Combination Automatic Document Feeder (ADF) (SDR PC Board) Panel Super G3 Fax Main PC Board (SC) (PNL PC Board) Communication (FXB PC Board) Automatic Duplex Unit GDI Printer Handset Kit USB Interface Option Electronic Sorting 10/100 Ethernet Memory Interface Program...
  • Page 24: Options List

    1. PCL6 is a Page Description Language of the Hewlett-Packard Company. 2. The Part Name(s) / Part Number(s) differ depending on the Models and the Destinations. 3. Genuine SD Memory Cards depict an SD Logo on their label. (Panasonic's 512 MB Sample is shown below). Ver. 2.0 NOV 2004...
  • Page 25: Maintenance, Adjustments And Check Points

    UF-7000/8000 UF-7100/8100 2 Maintenance, Adjustments and Check Points 2.1. Preventive Maintenance Preventive maintenance is performed at specific intervals and consists of machine cleaning and parts replacement. It is essential to perform these service activities properly and at the specified intervals for customer satisfaction.
  • Page 26 UF-7000/8000 UF-7100/8100 Laser Handling Precautions The optical laser system employed by this photocopier is completely sealed by a protective housing and an external cover. Therefore, the laser beam will not stray or leak during photocopying operation. However, when servicing the photocopier, take the following precautions: 1.
  • Page 27: Required Tools

    UF-7000/8000 UF-7100/8100 2.2. Required Tools Tools Tools Soft Cloth Pliers Isopropyl Alcohol Cotton Swab Phillips Screwdriver (#2) Brush KS-660 - Conductive Grease Stubby Phillips Screwdriver (#2) (Available from Shin-Etsu Silicones of America, Inc. URL: http://www.shinetsusilicones.com) Molykote EM-50L Grease Slotted Screwdriver (3/32 in) (Available from Dow Corning, URL: http://www.dowcorning.com) Tweezer...
  • Page 28: Preventive Maintenance Points

    UF-7000/8000 UF-7100/8100 2.3. Preventive Maintenance Points ADF & Scanner: Front View Separation Roller Feed Roller Pick Up Roller ADF Pad White Sheet CIS (Contact Image Sensor) Printer: Left Side View Fuser Unit OPC Drum Toner Cartridge Pick Up Roller Separation Pad Bias Transfer Roller (BTR) Pick Up Roller Separation Pad...
  • Page 29: Preventive Maintenance Check List

    To verify the counter information, print the Total Counter List using the Service Mode: F7 - Electronic Counter - 00 (List Print). 3. Cleaning, Replacement and Adjustment Cycle (Sheet) are based on using Panasonic's recommended standard paper and supplies. These cycles may vary with the kind of paper used, Paper size, orientation, print duty, continuous/interval print and/or ambient conditions.
  • Page 30: Updating The Firmware

    Tool (FUP) using Ethernet LAN Port and a Crossover Cable or to use a Master SD Memory Card. The Network FUP Tool version must be 3.XX or higher, and it can be found on the Panasonic Document Management System CD-ROM included with the main unit or on the CD-ROM included with the PCL option.
  • Page 31 UF-7000/8000 UF-7100/8100 SLOT 1. The Firmware (3) and (4) are assigned as ROM Code (C). When using SD Memory Card (32 MB to 512 MB), the 8 MB Program (C) can be written onto one card. C. 2nd G3 PC Board Firmware The 4 MB Program Memory (F-ROM) is integrated on the 2nd G3 PCB.
  • Page 32 4) Upgrading the Main Unit's Firmware Code Start the Network Firmware Update Tool and select the following Firmware Code Folders in the C:\Panasonic\Panasonic-FUP\Data folder, and then follow the display instructions to upgrade the Main Unit's Firmware Codes. Parent Firmware File Folder...
  • Page 33 Firmware Code File: UF-8000_AU_xxxxxx.exe or UF-7000_AU_xx_xxxxxx.exe Firmware Data Folder: C:\ Panasonic \ Panasonic-FUP \ Data 3) Preparing the Main Unit for the Firmware Upgrade Important: DO NOT connect the USB Cable yet. Enter into Test Mode F9-07-01 to enable the unit to accept the programming code from the USB Port.
  • Page 34 4) Upgrading the Main Unit's Firmware Code Start the Local Firmware Update Tool and select the following Firmware Code Parent File Folder in the C:\Panasonic\Panasonic-FUP\Data folder, and select the Firmware Code Type then follow the display instructions to upgrade the Main Unit's Firmware Codes.
  • Page 35 Archived file (.exe) is Double-clicked. Example: From: Destination Shortcut Batch File: D:(CD-ROM Drive) \ xFirmware \ USA.bat Firmware Code File: UF-8000_AU_xxxxxx.exe or UF-7000_AU_xx_xxxxxx.exe Firmware Data Folder: C:\ Panasonic \ Panasonic-FUP \ Data Ver. 2.0 NOV 2004...
  • Page 36 UF-7000/8000 UF-7100/8100 3) Preparing the Master Firmware SD Memory Card 1. Insert the SD Memory Card (32 MB to 512 MB) into the SD Memory Card Slot. 2. Perform the SD Memory Card Firmware Writing Tool. 3. After all firmware codes are copied, remove the SD Memory Card from the Slot. The SD Memory Card is now ready to use for firmware update.
  • Page 37: Firmware Version

    If there is additional 2nd G3 firmware code file to be updated, use the Master SD Memory Card to update the firmware using the “Auto Mode” again. 2.5.8. Firmware Version UF-8000 or 7000 A A Vxxxxx UF-8100 or 7100 Destination Code (Fax) AU : USA/Canada EB : UK etc.
  • Page 38 UF-7000/8000 UF-7100/8100 2nd G3 UF-8K G3B A A Vxxxxx YC YC: Fixed Firmware Version (V1xxxx) AA: Fixed 2nd G3 Model Number Ver. 2.0 NOV 2004...
  • Page 39: Adjusting The Printer Registration, Lsu Image Side To Side

    UF-7000/8000 UF-7100/8100 2.6. Adjusting the Printer Registration, LSU Image Side to Side When installing the Paper Tray option, the following LSU Image Side to Side adjustment may be required. The Printer registration is adjusted at the factory. If copy image is abnormal, especially in the Rotation Copy mode, adjust it by the following procedure. 2.6.1.
  • Page 40 UF-7000/8000 UF-7100/8100 2.6.3. LSU Image Side to Side Adjustment for the ADU 1. Insert Letter or A4 size paper into the 1st tray and change the tray setting to the appropriate paper size. Empty all the remaining trays (including the bypass tray) to disable them. 2.
  • Page 41: Troubleshooting

    UF-7000/8000 UF-7100/8100 3 Troubleshooting 3.1. Error Codes (For Copier) The self-diagnostic functions detect troubles in the important components of the copier. When trouble occurs, the machine stops. Note: Some Codes are not used in the UF-7000/7100/8000/8100 and are reserved for future use. 3.1.1.
  • Page 42 UF-7000/8000 UF-7100/8100 3.1.1.1. Low Toner Messages / Operation The Toner Cartridge Yield is approximately 5,000 pages using Letter or A4 size paper and 5% Black coverage, however, the maximum yield will not exceed 6,000 pages. The machine controls the printer to maintain good print quality by controlling the Bias Voltage with the Low Toner Sensor and the Print Counter.
  • Page 43 UF-7000/8000 UF-7100/8100 3.1.2. Jam Error Codes (J Code) Section Jam Location Paper Transport / Exit Area Paper Entry Area Jam Error Codes (J Codes) Table Code Contents Section The Registration Sensor did not detect paper within a predetermined time after paper started feeding.
  • Page 44 UF-7000/8000 UF-7100/8100 • Sensor and Switch Location Ver. 2.0 NOV 2004...
  • Page 45 UF-7000/8000 UF-7100/8100 3.1.3. Mechanical Error Codes (E Code) E1: Optical Unit Error Code Function Check Points E1- 22 Polygon Motor Synchronization 1. Engine PCB connector is disconnected. 2. Engine PCB is defective. 3. Laser Unit is defective. 4. LVPS connectors is disconnected. 5.
  • Page 46 UF-7000/8000 UF-7100/8100 E5: System Error Code Function Check Points E5- 40 Sort Memory Abnormal 1. Sort Memory defective. 2. SC PCB connector is disconnected. 3. SC PCB defective. E7: Optional Unit Error Code Function Check Points E7- 90 Hardware Key Abnormal 1.
  • Page 47: Information Code Table (For Facsimile)

    UF-7000/8000 UF-7100/8100 3.2. Information Code Table (For Facsimile) Fax Information Codes Code Mode Phase Description of Problem Cause C, D Leading edge of the recording Recording paper jam. COPY paper fails to reach the Timing Timing Sensor abnormal. Sensor. (1st Tray) C, D Leading edge of the recording Recording paper jam.
  • Page 48 UF-7000/8000 UF-7100/8100 Fax Information Codes Code Mode Phase Description of Problem Cause T1 timer (35 ± 5 sec.) elapsed Incorrect number was dialed and the without detecting 300 bps signal. START button was pushed. Telephone line was disconnected while dialing. SC PCB or FXB PCB are defective.
  • Page 49 UF-7000/8000 UF-7100/8100 Fax Information Codes Code Mode Phase Description of Problem Cause G3 RX B, D No response within 12 seconds in Transmitter is defective. NSS/DCS/MPS wait state. (After SC PCB is defective. transmitting FTT) No response received after Password does not match between (Polling) transmitting 3rd NSC.
  • Page 50 UF-7000/8000 UF-7100/8100 Fax Information Codes Code Mode Phase Description of Problem Cause Interval between two EOLs was Transmitter is defective. more than 10 sec. when receiver Line quality is poor. (EOL is damaged received message data. due to line noise) SC PCB or FXB PCB are defective.
  • Page 51 UF-7000/8000 UF-7100/8100 Fax Information Codes Code Mode Phase Description of Problem Cause Sub-address SEP (for Polling) Sub-address transmission to a unit that transmission to a unit that has their has no Sub-address function. DIS bit 47 (NSF bit 130) OFF. ADF Door was opened during ADF transmission.
  • Page 52 UF-7000/8000 UF-7100/8100 Fax Information Codes Code Mode Phase Description of Problem Cause Page Memory Overflow occurred Check the document size and while receiving printing data. The resolution. paper size selected within your Ask originator to re-send in a supported application to print is larger than size and resolution.
  • Page 53 UF-7000/8000 UF-7100/8100 Fax Information Codes Code Mode Phase Description of Problem Cause Conf. XMT PSTN The remote station does not have Conf. Polling Relay XMT nor Confidential Relay Communication capability. Comm. Conf. RCV PSTN Mailbox full. 816 Conf. Polled PSTN The received Polling Password did not match.
  • Page 54: Service Modes

    UF-7000/8000 UF-7100/8100 4 Service Modes 4.1. Service Modes (For Copier) These Service Modes are provided to assist the technician in checking for abnormalities in the copier and a means of making adjustments to the Input/Output of major components. Caution: The factory default parameters are preset (country dependent) for optimum performance and in compliance with the local telecommunication regulations/standards, and do not need to be changed.
  • Page 55 UF-7000/8000 UF-7100/8100 Service Modes (For Copier) Service Item Function Mode Unit Maintenance Fax Service Mode Service Alert Tel # Firmware Version Print Device Info. Ver. 2.0 NOV 2004...
  • Page 56 UF-7000/8000 UF-7100/8100 F5 / F6 Information List (Sample) **********-F5/F6 INFORMATION LIST-****** DATE MMM-dd-yyyy *** TIME12:01 *** P.01 F5-00 ..F5-50 Auto contrast adj. F5-01 Frequency desired 60Hz F5-51 Dept. Counter (COPY) F5-02 ..F5-52 Dept.
  • Page 57 NETWORK SCANNER : Yes EMAIL : Yes PCL PRINTER : Yes 2nd G3 Board : Yes (UF-8000/8100) 5.ERROR LOG TOTAL PRINT COUNT : 503 NO. DATE & TIME ERROR CODE ERROR COUNT NO. DATE & TIME ERROR CODE ERROR COUNT...
  • Page 58 UF-7000/8000 UF-7100/8100 F7 Total Counter List (Sample) **********-F7 TOTAL COUNTER LIST-****** DATE MMM-dd-yyyy *** TIME12:01 *** P.01 F7-01 Key Operator ID Code F7-02 Total Count F7-03 PM Count F7-04 Scanner PM Count F7-05 ..F7-06 OPC Drum Count F7-07 Process Unit Count F7-08 ADF PM Count F7-09 .
  • Page 59 UF-7000/8000 UF-7100/8100 4.1.3. F4 Mode: Input/Output Status Test Set the machine to service mode and press "4" key on the Keypad. ↓ Press the "START" key. ↓ Select “1:Check Input“ or “2:Check Output“ to activate the test then press "START" key. ↓...
  • Page 60 UF-7000/8000 UF-7100/8100 F4 Mode (Check Output) Item Function Remark 175 ADF Stamp Solenoid When the ADF PCB CN25-2 signal level changes to 0V from +24V, Solenoid operates for 1 second. Ver. 2.0 NOV 2004...
  • Page 61 UF-7000/8000 UF-7100/8100 4.1.4. F5 Mode: Function Parameters (For Copier) Set the machine to Service Mode and press "5" key on the Keypad. ↓ Press the "START" key. ↓ Enter the desired code number or press “V”, ”/\” arrow keys. ↓ If you wish to select another code number, scroll the menu with the arrow keys.
  • Page 62 UF-7000/8000 UF-7100/8100 F5 Mode Item Function Default Setting Paper Size (Tray 2) 4 : A4-R (UF-7000/8000) 12 : LEGAL 14 : LETTER-R 14 (for USA / Canada) Paper Size (Tray 2) 4 : A4-R 4 (for Europe / Others) (UF-7100/8100) 6 : B5-R 12 : LEGAL 14 : LETTER-R...
  • Page 63 UF-7000/8000 UF-7100/8100 F5 Mode Item Function Default Setting PM Cycle 1 : 1.5 K 2 : 2.5 K 4 : 10 K 5 : 15 K 6 : 20 K 0 (for USA / Canada) 7 : 30 K 8 : 40 K 10 (for Europe / 9 : 60 K Others)
  • Page 64 UF-7000/8000 UF-7100/8100 F5 Mode Item Function Default Setting LAN Speed/Duplex 0 : Auto 1 : 10 Half 2 : 10 Full 3 : 100 Half 4 : 100 Full Beep Sound 0 : Off 1 : Soft 2 : Loud 91-94 Not Used Paper Size (FA) 0 : Japan...
  • Page 65 UF-7000/8000 UF-7100/8100 4.1.5. F6 Mode: Adjust Parameters (For Copier) Set the machine to Service Mode and press "6" key on the Keypad. ↓ Press the "START" key. ↓ Enter the desired code number or press “V”, ”/\” arrow keys. ↓ If you wish to select another code number, scroll the menu with the arrow keys.
  • Page 66 UF-7000/8000 UF-7100/8100 F6 Mode Setting Item Remarks Range 41-43 Not Used FAX Laser Duty Adj. Printer Density Adjustment for FAX. -99 - +99 (-) : Darker. (+) : Lighter. Not Used PRT Laser Duty Adj. Printer Density Adjustment for Printer. -99 - +99 (-) : Darker.
  • Page 67 UF-7000/8000 UF-7100/8100 4.1.6. F7 Mode: Electronic Counter Set the machine to Service Mode and press "7" key on the Keypad. ↓ Press the "START" key. ↓ Enter the desired code number or press “V”, ”/\” arrow keys. ↓ If you wish to select another code number, scroll the menu with the arrow keys. ↓...
  • Page 68 UF-7000/8000 UF-7100/8100 F7 Mode Item Remarks Not Used FLS / LG Count Total count of FLS / Legal Print. All Counter Clear All counters are cleared. 4.1.7. F8 Mode: Service Adjustment Set the machine to Service Mode and press "8" key on the Keypad. ↓...
  • Page 69 UF-7000/8000 UF-7100/8100 4.1.8. F9 Mode: Unit Maintenance Set the machine to Service Mode and press "9" key on the Keypad. ↓ Press the "START" key. ↓ Enter the desired code number or press “V”, ”/\” arrow keys. ↓ If you wish to select another code number, scroll the menu with the arrow keys. ↓...
  • Page 70 UF-7000/8000 UF-7100/8100 F9 Mode Service Item Remarks Mode Unit 06 RAM 00 Parameter Initialize Resets the Fax and Function Maintenance Initialize parameters to default values. 01 All Job Clear Clears all Jobs stored in Flash Memory. 02 LBP Error Log Clear Clears LBP Error log 03 Shipment Set Clears All Jobs, All Preset Data, Parameter Initialize &...
  • Page 71: Service Modes (For Facsimile)

    UF-7000/8000 UF-7100/8100 4.2. Service Modes (For Facsimile) Caution: The factory default parameters are preset (country dependent) for optimum performance and in compliance with the local telecommunication regulations/standards, and do not need to be changed. Changing some of these parameters may cause the unit to be no longer compliant or become inoperable.
  • Page 72 UF-7000/8000 UF-7100/8100 4.2.3. Fax Service Mode 1 (Function Parameter Setting) Use the following procedure to change the function parameters. Enter the desired code number and press “START” key. ↓ If you wish to select another code number, scroll the menu with the “V”, ”/\” arrow keys. ↓...
  • Page 73 UF-7000/8000 UF-7100/8100 Function Parameter Table Parameter Selections Function 005 Destination Code 000 : Austria Specified destinations only. (UF-7100/8100 001 : U.K. only) 002 : Canada 003 : Denmark 004 : Taiwan 005 : Finland 006 : Germany 007 : Netherlands 008 : Italy 009 : Spanish 010 : Hong Kong...
  • Page 74 UF-7000/8000 UF-7100/8100 Function Parameter Table Parameter Selections Function 011 RX Level 1 = -43 dBm Selects the receiving sensitivity of -33/-38/-43/-48 2 = -38 dBm dBm. 3 = -33 dBm 4 = -48 dBm 012 DTMF Level 00 = 0 dBm Selects the DTMF output level, 0 to -15 dBm in 1 dBm steps.
  • Page 75 UF-7000/8000 UF-7100/8100 Function Parameter Table Parameter Selections Function 025 COMM. Start-Up 1 = First Selects the communication start-up condition (XMT 2 = Second and Polling). (Used when Echo Suppression is disabled.) 026 Non-Standard 1 = Off (Invalid) Selects own mode (Panafax mode). 2 = On (Valid) 027 Short Protocol B 1 = Off (Invalid)
  • Page 76 UF-7000/8000 UF-7100/8100 Function Parameter Table Parameter Selections Function 044 Redial Count 0 = no redial Selects the redial count from 0 to 15 times in 1 step intervals. 15 = 15 times Note: In order to comply with the TBR21 requirement for the EC destinations, do not select 15 times.
  • Page 77 UF-7000/8000 UF-7100/8100 Function Parameter Table Parameter Selections Function 068 NYSE Fax 1 = Off Selects whether the machine will forward the Forward 2 = On incoming and outgoing faxes to a specified station. (USA and Canada Note: Once this parameter is activated, Fax Only) Forwarding via Fax Parameter 054 is automatically disabled, an Access Code of...
  • Page 78 UF-7000/8000 UF-7100/8100 Function Parameter Table Parameter Selections Function 082 JAM Length 1 = 1 m Selects the maximum length of the original that can 2 = 2 m be scanned. 083 Not Used 084 Line As No Paper 1 = Ring (ring) Selects whether to ring or send a busy tone to the 2 = Busy (keep line busy) remote station when the recording paper runs out or...
  • Page 79 UF-7000/8000 UF-7100/8100 Function Parameter Table Parameter Selections Function 123 One Ring Sound 1 = Off When Function Parameter No. 45 "Ring Detect (USA and Canada 2 = On Count" is set to 1 Ring, and this parameter is Only) enabled (On), the machine will only ring once out loud, answering on the second ring count.
  • Page 80 UF-7000/8000 UF-7100/8100 Note 4: The default setting of parameters depends on the country’s specifications or regulations. Print the Function Parameter List to confirm the default settings. Note 5: 200 Series Function Parameters Only appear when the G3 Communications Port Kit is installed and follow the same numbering order.
  • Page 81 UF-7000/8000 UF-7100/8100 4.2.4. Fax Service Mode 3 (Printout of Lists, Reports and Test Results) From this Service Mode you can print the Function Parameter List, Page Memory Test, Printer Report, All Document File, Protocol Trace and the Toner Order Form. 4.2.4.1.
  • Page 82 008 Monitor:[Off] Off 058 Comm.JRNL +Image:[On] On 009 DC Loop:[Off] Off 059 ---------- 010 TX Level:[-11dBm] -11dBm 060 Version: UF-8000 BAT..011 RX Level:[-43dBm] -43dBm 061 TX/RX/PRT/CPY: 000080/000168/000003/000000 012 DTMF Level:[-5dBm] -5dBm 062 Print Counter:[Off] Off 013 G3 RX EQL:[0dB] 0dB...
  • Page 83 148 ---------- 198 ---------- 149 ---------- 199 ---------- Note: The power must be reset for the new parameter settings to take effect. -PANASONIC ***** ****************** - - ****** -12345678901234567890- *********** Note: 1. The contents of the Function Parameter List may vary depending on the country’s regulations.
  • Page 84 ************* TEST PATTERN PRINT **************** DATE MMM-dd-yyyy ***** TIME 12:07 ***P.01 TX/RX/PRT/CPY : 000123/000456/000789/000666 SC BOOT MEMORY SIZE : (12MB) MAC ADDRESS : 08002301D3E5 PRINTER SHIPMENT SET SCANNER(SDR) : FAX MODEM -PANASONIC ***** ****************** - - ****** -12345678901234567890- *********** Ver. 2.0 NOV 2004...
  • Page 85 : 000083 PRINT COUNTER : 000016 NO.DATE & TIME ERROR CODE RRROR COUNT NO.DATE & TIME ERROR CODE RRROR COUNT -------------------------------------------------------------------------------------------- 01.MMM-dd-yyyy 15:38 J00 00-00000016 02.MMM-dd-yyyy 10:48 J02 00-00000016 -------------------------------------------------------------------------------------------- -PANASONIC ***** ******************* - - *******-12345678901234567890-************** Ver. 2.0 NOV 2004...
  • Page 86 UF-7000/8000 UF-7100/8100 4.2.4.4. All Document Files Print the document files from the Flash Memory. Press the “V”, ”/\” arrow keys to select the "3: Print Report/List" on the display. ↓ Press the “SET” key to select the "1: Function Parameter List". ↓...
  • Page 87 : TSI 2B 20 20 20 38 37 2B 2B 2B 2B 39 38 36 36 35 34 37 38 38 30 DCS 00 C6 F8 44 COMMAND LOG. REMOTE : NSF LOCAL PPS-EOP ------------------------------------------------------------------ REMOTE : MCF LOCAL -PANASONIC ****************************-PANASONIC -*************-12345678901234567890-*************** Ver. 2.0 NOV 2004...
  • Page 88 UF-7000/8000 UF-7100/8100 4.2.4.6. Toner Order Form The Toner Order Form can be printed out manually by the following procedure. Press the “V”, ”/\” arrow keys to select the "3: Print Report/List" on the display. ↓ Press the “SET” key to select the "1: Function Parameter List". ↓...
  • Page 89 < ************************************* **** The toner supply in your machine is running low **** (1) To order a replacement Cartridge from your Authorized Dealer Panasonic Corp. (2) by Phone: 1 201 111 5555 (3) by Fax: 1 201 111 4444 (4) Thank you for your order.
  • Page 90 UF-7000/8000 UF-7100/8100 4.2.5. Fax Service Mode 4 (Modem Test) 4.2.5.1. Binary Signal This Service Mode is used to check the binary signal output. Signals can be output to the line using the following procedure. Press the “V”, ”/\” arrow keys to select the "4: MODEM Test" on the display. ↓...
  • Page 91 UF-7000/8000 UF-7100/8100 4.2.5.2. Tonal Signal This Service Mode is used to check the tonal signal output. Signals can be output to the line using the following procedure. Press the “V”, ”/\” arrow keys to select the "4: MODEM Test" on the display. ↓...
  • Page 92 UF-7000/8000 UF-7100/8100 4.2.5.3. DTMF Signal This Service Mode is used to check the DTMF (Dual Tone Multi Frequency) signal output. The DTMF signal can be generated using the following procedure. • DTMF Single Tone Press the “V”, ”/\” arrow keys to select the "4: MODEM Test" on the display. ↓...
  • Page 93 UF-7000/8000 UF-7100/8100 4.2.5.4. Binary Signal (V.34) This Service Mode is used to check the binary signal output. Signals can be output to the line using the following procedure. (V.34) Press the “V”, ”/\” arrow keys to select the "4: MODEM Test" on the display. ↓...
  • Page 94 UF-7000/8000 UF-7100/8100 4.2.6. Fax Service Mode 6 (RAM Initialization) Initializes RAM and restores the Function Parameters to their default values. Note: This operation should be performed when the unit is first installed. Press the “V”, ”/\” arrow keys to select the "6: RAM initialize" on the display. ↓...
  • Page 95 UF-7000/8000 UF-7100/8100 4.2.7. FAX Service Mode 8 (Check & Call) 4.2.7.1. Overview This feature enables the Authorized Servicing Dealers to manage and improve the machine maintenance to their customers by alerting them of equipment problems. It also can be used as a Supply Sales Tool by alerting the Dealer that the unit is running Low on Toner.
  • Page 96 UF-7000/8000 UF-7100/8100 Error Remarks Code Report Ex-xx Refer to the Mechanical Error Code (E Code) Table. (Sect. 3.1.3.) Out of Toner. Refer to the Jam Error Code (J Code) Table. (Sect. 3.1.2.) Refer to the User Error Code (U Code) Table. (Sect. 3.1.1.) Low Toner.
  • Page 97: Service Alert Report Format

    ERROR CODE ERROR COUNT | NO. DATE & TIME ERROR CODE ERROR COUNT ------------------------------------------------------------------------------------------- MMM-dd-yyyy 20:07 E04-01 00-00000013 | MMM-dd-yyyy 20:04 E04-01 00-00000013 | ------------------------------------------------------------------------------------------- -LOGO PANASONIC ***** *********************** -CHARACTER ID - ***** -31415926535897932384-********* Explanation of Contents (1) Customer ID (2) Firmware Version (3) Counter Information...
  • Page 98: Maintenance Alert Report Format

    ERROR CODE ERROR COUNT NO.DATE & TIME ERROR CODE ERROR COUNT --------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------- -LOGO PANASONIC ************************************ -CHARACTER ID - ***** -31415926535897932384-*********** Explanation of Contents (1) Low Toner Message (Fixed) “MACHINE IS RUNNING OUT OF TONER” (2) Customer ID Up to 16 characters (User Identification Code)
  • Page 99 00-00000013 | 00-00000013 | MMM-dd-yyyy 20:04 E04-01 MMM-dd-yyyy 20:04 E04-01 00-00000013 | 00-00000013 | ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- -LOGO PANASONIC ***** *********************** -CHARACTER ID - ***** -31415926535897932384-********* Explanation of Contents (1) Customer ID (2) Firmware Version (3) Counter Information (4) Call Counter Pre-Set Value Ver.
  • Page 100 UF-7000/8000 UF-7100/8100 4.2.8. Service Mode 9 (System Maintenance) 4.2.8.1. Overview This Service Mode is used to maintain the machine. Use the following procedure for System Maintenance. Press the “V”, ”/\” arrow keys to select the "9: System Maintenance" on the display. ↓...
  • Page 101: Exploded View & Parts List

    5 Exploded View & Parts List Note: 1. Panasonic Document Imaging Company and other Panasonic Sales Companies reserve the right to change any information enclosed herein without prior notification. (This includes, but is not limited to, parts pricing, availability, and text) 2.
  • Page 102: Control Panel Unit (For Usa And Canada)

    5.2. Control Panel Unit (For USA and Canada) Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark PJGPC0001Z For UF-8000 Cover, Panel PJGPC0008Z For UF-7000 PJKEC0007Z Base, Panel PJGAC0001Z Window, LCD DZNM000005 Logo, Panasonic PJBCC0006Z Key, Stop PJBCC0009Z...
  • Page 103 UF-7000/7100 UF-8000/8100 2 2 2 2104 2106 2105 2102 Fig. 1 Control Panel Unit (For USA and Canada) Ver. 2.0 NOV 2004...
  • Page 104: Control Panel Unit (For Other Destinations)

    UF-7000/7100 UF-8000/8100 5.3. Control Panel Unit (For Other Destinations) Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark PJGPC0010Z For UF-7100 AL, AM, EB PJGPC0002Z For UF-8100 PJGPC0033Z For UF-7100 PJGPC0031Z For UF-8100 PJGPC0027Z For UF-7100 Cover, Panel...
  • Page 105 UF-7000/7100 UF-8000/8100 2 2 2 2104 2106 2105 2102 Fig. 2 Control Panel Unit (For Other Destinations) Ver. 2.0 NOV 2004...
  • Page 106: Adf

    UF-7000/7100 UF-8000/8100 5.4. Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark PJKCC0001Z Cover, ADF PJUKC0008Z Guide, Upper Paper PJHGC0021Z Sponge PJBAC0004Z Lever, Paper Sensor PJHRC0007Z Guide, Paper Rear PJHRC0006Z Guide, Paper Front Label, Maximum Doc. FFPTE2625 Level Indicator...
  • Page 107 UF-7000/7100 UF-8000/8100 2 2 2 See Fig. 4 Fig. 3 ADF (1/3) Ver. 2.0 NOV 2004...
  • Page 108 UF-7000/7100 UF-8000/8100 Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark FFPFA01561 Screw, Shoulder PJSCC0007Z Brush, Antistatic PJBUC0067Z Plate, Spring Ground STW6X1 Poly Slider PJBVC0012Z Spring, Tension 2 UAMS-05-2 Clamp PJGFC0014Z PJGFC0100Z AG, AM PJGFC0123Z AM, EE PJGFC0099Z...
  • Page 109 UF-7000/7100 UF-8000/8100 2 2 2 See Fig. 4 Fig. 3 ADF (1/3) Ver. 2.0 NOV 2004...
  • Page 110 Roller 1 Shaft, Reverse Transfer PJDYC0003Z Roller 2 Lever, Registration PJDBC0004Z Sensor PJUEC0006Z Stay, Open Close 2 PJDGC0008Z Gear, Paper Feed 2 For UF-8000/ PJWUF2680AU 8100 For UF-7000/ PJWUF2681AU 7100 Assembly, Paper Feed PJZFF2680MQ Roller Shaft Assembly, Separation PJZFF2681MQ Roller Shaft...
  • Page 111 UF-7000/7100 UF-8000/8100 2 2 2 Fig. 4 ADF (2/3) Ver. 2.0 NOV 2004...
  • Page 112 UF-7000/7100 UF-8000/8100 Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark PJBUC0064Z Spring, Front Pressure PJBUC0065Z Spring, Rear Pressure PJUKC0076Z Guide, Paper DZHP000237 Unit, Stamp DZHP000240 Except AU TDS-SY5-25M Solenoid, Stamp PJNAC0012Z Screw, Shoulder PJDJC0031Z Bushing Spring, Registration...
  • Page 113 UF-7000/7100 UF-8000/8100 2 2 2 Fig. 4 ADF (2/3) Ver. 2.0 NOV 2004...
  • Page 114 UF-7000/7100 UF-8000/8100 Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark PJUEC0011Z Stay 2 PJUKC0013Z Guide, Paper Exit PJDRC0062Z Roller, Reverse Exit Shaft, Reverse Exit PJDYC0005Z Roller Spring, Paper Exit PJBVC0010Z Pressure PJUEC0010Z Stay 1 L6HBHHGB0002 Motor, Paper Feed...
  • Page 115 UF-7000/7100 UF-8000/8100 443 336 2 2 2 507 506 Fig. 5 ADF (3/3) Ver. 2.0 NOV 2004...
  • Page 116 UF-7000/7100 UF-8000/8100 Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark DZAL000072 Sensor, Photo STW6X1 Poly Slider UAMS-05-2 Clamp PJDGC0005Z Gear, Paper Feed PJDEC0005Z Roller, Pitch EDS0607M Clamp PJNW4111Z Spacer XTW3+6LFJ Screw XTW3+8SFJ Screw XYN3+F6FJ Screw Ver. 2.0...
  • Page 117 UF-7000/7100 UF-8000/8100 443 336 2 2 2 507 506 Fig. 5 ADF (3/3) Ver. 2.0 NOV 2004...
  • Page 118: Cover Assembly

    UF-7000/7100 UF-8000/8100 5.5. Cover Assembly Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark PJKMC0005Z Cover, Inner Top PJKMC0008Z Cover, Inner Left PJKMC0009Z Cover, Inner Rear PJKMC0007Z Cover, Inner Right PJKEB0114Z-1 Tray, Sub Paper PJKMC0002Z Cover, Rear 2...
  • Page 119 UF-7000/7100 UF-8000/8100 2 2 2 2027 Fig. 6 Cover Assembly Ver. 2.0 NOV 2004...
  • Page 120 Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark Label, Hot Surface PJQTB0006Z Caution PJUEC0130Z Stopper, Tray For UF-8000/ PJQHC0060Z Label, G3 Line 8100 PJKZC0034Z Assembly, Tray Cover DZNK002411 Label, Earth Warning EB, ER DZEC101941 DZEC102567 DZEC102525 DZEC102526 Refer to 5.1.1.
  • Page 121 UF-7000/7100 UF-8000/8100 2 2 2 2027 Fig. 6 Cover Assembly Ver. 2.0 NOV 2004...
  • Page 122: Right Side Parts

    Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark PJUAC0013Z Bracket, ADF Tray PJMCC0005Z Plate, Interface For UF-8000/ PJMCC0008Z Case, G3 Option 8100 For UF-8000/ PJMCC0004Z Cover, Fax 8100 PJMCC0003Z Cover, SC PJMCC0002Z Bracket, SC PJUAC0009Z Supporter, Side...
  • Page 123 UF-7000/7100 UF-8000/8100 2 2 2 2005 2003 2029 2002 2032 2001 2026 Fig. 7 Right Side Parts (1/2) Ver. 2.0 NOV 2004...
  • Page 124 UF-7000/7100 UF-8000/8100 Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark PJDGB0052Z Gear, ADU Drive OAPD PJDGB0070Z Gear, Registration Drive OAPD PJDGB0072Z Gear, Idle Z19 OAPD PJDGB0071Z Gear, Double Teeth OAPD PJDGB0073Z Gear, Idle Z14 OAPD PJDGB0028Z Gear, Ratchet...
  • Page 125 UF-7000/7100 UF-8000/8100 2 2 2 Fig. 9 2028 Fig. 8 Right Side Parts (2/2) Ver. 2.0 NOV 2004...
  • Page 126: Motor And Drive Gear Unit

    UF-7000/7100 UF-8000/8100 5.7. Motor and Drive Gear Unit Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark PJDGB0047Z Gear, OPC B OAPD PJDGB0048Z Gear, OPC A OAPD PJDGB0049Z Gear, Fuser OAPD PJDGB0056Z Gear, Registration A OAPD PJDGB0069Z Gear, Registration B...
  • Page 127 UF-7000/7100 UF-8000/8100 2 2 2 Fig. 9 Motor and Drive Gear Unit Ver. 2.0 NOV 2004...
  • Page 128: Left Side Parts

    UF-7000/7100 UF-8000/8100 5.8. Left Side Parts Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 1001 PJDSB0033Z Spring, Grid OAPD 1002 PJDSB0148Z Spring, Charge OAPD 1003 PJDSB0009Y Spring, OPC OAPD 1004 PJDSB0149Z Spring, Developer OAPD 1005 N0GG4E000002 HVPS...
  • Page 129 UF-7000/7100 UF-8000/8100 1011 1012 1013 1019 1031 1010 2 2 2 1028 1009 1013 1010 1028 1014 1022 1007 1018 1006 1029 1027 1028 1015 1030 1026 1021 1024 1028 1016 1025 2101 1023 1002 1003 1001 1004 1005 1017 1020 Fig.
  • Page 130 UF-7000/7100 UF-8000/8100 Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 1101 PJUAC0008Z Bracket, Left Side 1102 PJMEC0044Z Holder, Harness 1103 PJMCC0007Z Plate, Joint 1104 PJMCC0010Z Bracket, Ground (Earth) PJWS00GW0MQ AU, AE 1105 Assembly, Inlet For UF-7100/ Except AU...
  • Page 131 UF-7000/7100 UF-8000/8100 2 2 2 1101 1105 1102 1106 1107 1103 1105 2004 1104 Fig. 11 Left Side Parts (2/2) Ver. 2.0 NOV 2004...
  • Page 132: Rear And Upper Parts

    UF-7000/7100 UF-8000/8100 5.9. Rear and Upper Parts Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark Assembly, Upper Exit 1201 PJZBP7305M OAPD Roller Holder 1202 PJDGB0024Z Gear, Z21 Fuser OAPD Gear, Z36 Upper Exit 1203 PJDGB0026Z OAPD Roller Drive...
  • Page 133 UF-7000/7100 UF-8000/8100 1214 2 2 2 1216 1205 1203 2030 1204 1212 1213 1203 1204 1202 1209 1208 1211 1207 1210 1206 1201 Fig. 13 Fig. 12 Rear and Upper Parts Ver. 2.0 NOV 2004...
  • Page 134: Fuser Unit

    UF-7000/7100 UF-8000/8100 5.10. Fuser Unit Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 1301 PJDFB0122Z Shaft, Fuser Drive OAPD 1302 PJDGB0023Z Gear, Z24 Fuser OAPD 1303 PJMDB0018Z Plate, Lead Wire OAPD 1304 L2AA00000090 Thermostat 1305 PJDRB0091Z Roller, Heat...
  • Page 135 UF-7000/7100 UF-8000/8100 1304 1319 1304 1303 1310 2 2 2 (1310) 1329 1323 1322 1326 1325 1202 1301 1318 1302 1324 1206 1319 1321 1317 1303 1309 1305 1215 1308 1307 1208 1314 1315 1327 1316 1314 1306 1315 1317...
  • Page 136 UF-7000/7100 UF-8000/8100 Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark XTW3+8S Screw OAPD XYC3+FF8C Screw OAPD XTW3+12S Screw OAPD XTW3+12SFZ Screw OAPD XYC3+FF6 Screw OAPD Ver. 2.0 NOV 2004...
  • Page 137 UF-7000/7100 UF-8000/8100 1304 1319 1304 1303 1310 2 2 2 (1310) 1329 1323 1322 1326 1325 1202 1301 1318 1302 1324 1206 1319 1321 1317 1303 1309 1305 1215 1308 1307 1208 1314 1315 1327 1316 1314 1306 1315 1317...
  • Page 138: Pick Up Roller And Paper Feed Roller

    UF-7000/7100 UF-8000/8100 5.11. Pick Up Roller and Paper Feed Roller Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 1401 PJDGB0040Z Gear, Pick Up Internal OAPD 1402 PJDGB0041Z Gear, Pick Up Arm OAPD 1403 PJDRB0021Z Roller, Registration OAPD...
  • Page 139 UF-7000/7100 UF-8000/8100 1415 1412 1413 1417 1416 1414 1406 2 2 2 1409 1409 1406 1404 1406 1407 1408 1403 1411 1419 1405 1406 1205 1418 1402 1420 1401 1022 Fig. 14 Pickup Roller and Paper Feed Roller Ver. 2.0...
  • Page 140: Bottom Parts

    UF-7000/7100 UF-8000/8100 5.12. Bottom Parts Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 1501 PJUAB0024Y Plate, Lower Base OAPD 1502 PJMDB0020Z Plate, ADU Pinch Roller OAPD 1503 PJDRB0018Z Roller, ADU Pinch OAPD 1504 PJDFB0009Z Shaft, A/D Roller...
  • Page 141 UF-7000/7100 UF-8000/8100 1501 1506 1504 1505 1503 1505 2 2 2 1502 1513 1506 1512 1518 1512 1508 1406 1514 1511 1510 1509 2031 1517 1516 1515 Fig. 15 Bottom Parts Ver. 2.0 NOV 2004...
  • Page 142: Mechanical Base

    UF-7000/7100 UF-8000/8100 5.13. Mechanical Base Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 1601 PJHRB0324Z Holder, Transfer Roller OAPD 1602 PJDSB0040Z Spring, Transfer OAPD 1603 PJDRB0081Z Roller, Bias Transfer OAPD 1604 PJHRB0078Z Bushing OAPD 1605 PJDGB0057Z Gear, Transfer...
  • Page 143 UF-7000/7100 UF-8000/8100 1620 1619 1622 1617 1621 2 2 2 1604 1612 1601 1603 1602 1604 1601 1605 1606 1602 1614 1615 1608 1613 1609 1615 1618 1607 1611 1610 1616 Fig. 16 Mechanical Base Ver. 2.0 NOV 2004...
  • Page 144: Paper Tray

    UF-7000/7100 UF-8000/8100 5.14. Paper Tray Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 1701 PJMDB0026Y Lifter, Paper OAPD 1702 PJHSB0007Z Pad, Friction OAPD 1703 PJDSB0179Z Spring, Retard Pad OAPD 1704 PJHRB0031Z Guide, Right Paper Side OAPD 1705 PJHRB0032Z...
  • Page 145 UF-7000/7100 UF-8000/8100 1702 1701 1715 1706 2 2 2 1705 1716 1703 1706 1708 1707 1718 1722 1721 1720 1717 1709 1712 1719 1711 1704 1714 1710 1714 1713 Fig. 17 Paper Tray Ver. 2.0 NOV 2004...
  • Page 146: 2Nd Paper Feed Module

    UF-7000/7100 UF-8000/8100 5.15. 2nd Paper Feed Module Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 1801 PJKEB0019Z Cover, Front OAPD 1802 PJKEB0097Z Cover, Right 1803 PJKEB0098Z Cover, Left 1804 PJUSB0027Z Plate, Pinch Roller OAPD 1805 PJDRA0051Z Roller, Pinch...
  • Page 147 UF-7000/7100 UF-8000/8100 1830 2103 1839 1838 1837 1822 1841 1839 2 2 2 1802 1838 1831 1840 1828 1813 1826 1811 1835 1821 1829 1615 1819 1824 1834 1810 1842 1828 1811 1836 1818 1808 1820 1515 1814 1809 1817...
  • Page 148 UF-7000/7100 UF-8000/8100 Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 2103 PJWPPMF3M2 PC Board, 2nd Feeder OAPD RTL, PbF XTW3+8S Screw OAPD XTW3+6L Screw XTW3+6S Screw XWE4 Washer XTB3+8JFN Screw OAPD Ver. 2.0 NOV 2004...
  • Page 149 UF-7000/7100 UF-8000/8100 1830 2103 1839 1838 1837 1822 1841 1839 2 2 2 1802 1838 1831 1840 1828 1813 1826 1811 1835 1821 1829 1615 1819 1824 1834 1810 1842 1828 1811 1836 1818 1808 1820 1515 1814 1809 1817...
  • Page 150: Paper Tray (2Nd Paper Feed Module)

    UF-7000/7100 UF-8000/8100 5.16. Paper Tray (2nd Paper Feed Module) Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 1901 PJHRB0338Z Base, Paper Tray OAPD 1902 PJHRB0340Z Guide, Right Paper Side OAPD 1903 PJHRB0341Z Guide, Left Paper Side OAPD...
  • Page 151 UF-7000/7100 UF-8000/8100 1909 1910 1702 1917 1910 2 2 2 1903 1918 1907 1907 1919 1912 1708 1707 1906 1905 1911 1901 1908 1916 1915 1904 1902 1913 1911 1914 1714 1714 1713 Fig. 19 Paper Tray (2nd Paper Feed Module) Ver.
  • Page 152: Pc Boards

    5.17. PC Boards Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark PJWPF2688AU For UF-7000 PJWPF2687AU For UF-8000 PJWPF2688AE For UF-7100 PJWPF2687AE For UF-8100 PJWPF2688AG For UF-7100 PJWPF2687AG For UF-8100 PJWPF2688EB For UF-7100 AL, EB, ES PJWPF2687EB For UF-8100...
  • Page 153 UF-7000/7100 UF-8000/8100 SC (2001) 2007 2006 CN501 CN504 CN518 CN502 2032 2 2 2 CN516 2026 CN517 CN515 2032 CN505 CN509 CN510 2008 2009 2010 Engine Control (2002) G3 (2003) 2013 2014 2015 1213 2016 CN363 CN014 2009 CN005 2017...
  • Page 154 UF-7000/7100 UF-8000/8100 Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark Harness, HVPS (Flat 2021 PJJEC10003Y OAPD Harness) 2022 PJJRML0020Z Harness, Motor OAPD Harness, Exit Solenoid 2023 PJJRB1026Z Relay Harness, Thermistor 2024 PJJRB1028Z Relay Cable, ECB (Flat 2025 DZFP001555...
  • Page 155 UF-7000/7100 UF-8000/8100 SC (2001) 2007 2006 CN501 CN504 CN518 CN502 2032 2 2 2 CN516 2026 CN517 CN515 2032 CN505 CN509 CN510 2008 2009 2010 Engine Control (2002) G3 (2003) 2013 2014 2015 1213 2016 CN363 CN014 2009 CN005 2017...
  • Page 156 Harness, AC Sensor 2112 PJWLPMF3M Cable, I/F OAPD 2113 PJWWF2682AZ Harness, PNL1-PNL3 2114 PJWWF2681AZ Harness, PNL1-PNL2 A 2115 PJWWF2680AZ Harness, PNL1-PNL2 B PJWDF2680AZ LCD Module For UF-8000/ PJWUF2680AU 8100 For UF-7000/ PJWUF2681AU 7100 TDS-SY5-25M Solenoid, Stamp 1834 PJWMPMF3M Clutch OAPD 1835 PJWQPMF3M...
  • Page 157 UF-7000/7100 UF-8000/8100 SDR (2101) PNL1 (2102) 1907 2108 2006 123 CN705 CN707 2007 CN706 CN716 CN230 CN233 2111 2007 CN704 CN701 2113 CN235 2109 2 2 2 CN714 CN234 CN236 2107 CN710 CN709 2115 2114 CN713 CN712 2110 2012 PNL3 (2104)
  • Page 158: Packing And Accessories

    Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 2201 PJPEC0003Z Pad, Top PJPGC0032Z For UF-7000 PJPGC0002Z For UF-8000 PJPGC0132Z For UF-7100 PJPGC0131Z For UF-8100 2202 Box, Carton Except AU, PJPGC0062Z For UF-7100 Except AU, PJPGC0061Z For UF-8100 2203 DZRG000003...
  • Page 159 UF-7000/7100 UF-8000/8100 2201 2210 2220 2211 2202 2221 2213 2212 2 2 2 2203 2214 2203 2215 2216, 2218 2204 2223 2205 2217 2219 2208 2207 2209 2206 Fig. 22 Packing and Accessories Ver. 2.0 NOV 2004...
  • Page 160 UF-7000/7100 UF-8000/8100 Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark 2215 PJQTC0005Z Holder, Directory Sheet PJQQC0012Z 2216 Quick Guide AG, AL, AV, PJQQC0013Z 2217 PJPCC0001Z Box, Accessories PJQMC0081Z 2218 Operating Instructions PJQMC0083Z 2219 PJQRC0031Z Important Notice DZFN000120...
  • Page 161 UF-7000/7100 UF-8000/8100 2201 2210 2220 2211 2202 2221 2213 2212 2 2 2 2203 2214 2203 2215 2216, 2218 2204 2223 2205 2217 2219 2208 2207 2209 2206 Fig. 22 Packing and Accessories Ver. 2.0 NOV 2004...
  • Page 162: 2Nd Paper Feed Module Packing And Accessories

    UF-7000/7100 UF-8000/8100 5.19. 2nd Paper Feed Module Packing and Accessories Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark PJPGB0230Z AU, YV 2301 Carton Box Except AU, PJPGB0230Y 2302 PJPNB0154Z Cushion, Front 2303 PJPNB0155Z Cushion, Rear 2304 PJPNB0082Z...
  • Page 163 UF-7000/7100 UF-8000/8100 2305 1838, 1839 1836 1837 2 2 2 2306 2304 2303 2302 2301 Fig. 23 2nd Paper Feed Module Packing and Accessories Ver. 2.0 NOV 2004...
  • Page 164: Printer Controller Module For Pcl6

    UF-7000/7100 UF-8000/8100 5.20. Printer Controller Module for PCL6 Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark Installation 2401 PJQRC0027Z Instructions PJWACC00014Z 2402 Software CD PJWACC00015Z Except AU 2403 DZRB000101 Carton Box 2032 ----------- Hardware Key Ver. 2.0...
  • Page 165 UF-7000/7100 UF-8000/8100 2402 2 2 2 2401 2032 2403 Fig. 24 Printer Controller Module for PCL6 Ver. 2.0 NOV 2004...
  • Page 166: G3 Communication Port Kit (For Uf-8000/8100)

    UF-7000/7100 UF-8000/8100 5.21. G3 Communication Port Kit (For UF-8000/8100) Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark Installation 2501 PJQRC0029Z Instructions PJQHC0060Z Label, G3 Line PJMCC0008Z Case, G3 Option PJMCC0004Z Cover, Fax PJHSC0006Z Gasket, 85mm Except AU...
  • Page 167 UF-7000/7100 UF-8000/8100 2501 2220 2009 2 2 2 2003 2211 2403 Fig. 25 G3 Communication Port Kit Ver. 2.0 NOV 2004...
  • Page 168: Network Scan / Email / Internet Fax Kit

    UF-7000/7100 UF-8000/8100 5.22. Network Scan / Email / Internet Fax Kit Safety Ref. Parts Number Part Name Supplier Remarks Destination Parts Mark Installation 2601 PJQRC0028Z Instructions PJQQC0017Z Except AU, PJQQC0018Z AE, ER, YC, 2602 Quick Guide PJQQC0019Z PJQQC0020Z PJQMC0102Z 2603...
  • Page 169 UF-7000/7100 UF-8000/8100 2 2 2 2602 2032 2601 2603 2403 Fig. 26 Network Scan / Email / Internet Fax Kit Ver. 2.0 NOV 2004...
  • Page 170: Hardware Identification Template

    UF-7000/7100 UF-8000/8100 5.23. Hardware Identification Template Ref. No. Part No. Figure Remark XYN3+F5 Screw XWC3B Washer, Star FFPFJ0033B Snap Ring FFPFJ0041B Snap Ring XUC7VM E-Ring XTW3+8L Screw DZPA000086 Screw XTW3+8S Screw XTW3+6L Screw XYC3+FF8C Screw XTW3+12S Screw XTW3+12SFZ Screw XUC4VW-V...
  • Page 171 UF-7000/7100 UF-8000/8100 Ref. No. Part No. Figure Remark XWE4 Washer XTB2+12J Screw PJNAC0003Z Screw XTB3+8GFJ Screw XTW3+6LFJ Screw XYN4+F8FJ Screw XWG3FU Washer XTW3+8LFJ Screw XTW3+8SFJ Screw XTB4+8FFJ Screw XYN3+F6FJ Screw XTB26+6JFJ Screw Ver. 2.0 NOV 2004...
  • Page 172: Alphanumerical Parts List

    UF-7000/8000 UF-7100/8100 6 Alphanumerical Parts List Alphanumerical Parts List Part Number Part Name Ref. No. Supplier Destination 40S2M120 Belt, Paper Transfer Timing A4DP3L000003 AU, AE Lamp, Halogen 1309 A4DP7K000002 Except AU, AE CR2032 Battery DZAL000072 Sensor, Photo DZDU000025 Except AK Handset (Refer to 1.1.1.) DZDU000027 DZEC101941...
  • Page 173 Roller, Pinch Except AU, YR, DZMA000260 Cradle, Upper Except AU, YR, DZMA000269 Cradle, Lower DZNK002411 Label, Earth Warning EB, ER DZNK005395 Label, Laser Caution DZNM000005 Logo, Panasonic DZPA000086 Screw DZPA000098 Screw, Shoulder DZRB000101 Carton Box 2403 DZRG000003 Joint 2203 EDS0607M Clamp...
  • Page 174 UF-7000/8000 UF-7100/8100 Alphanumerical Parts List Part Number Part Name Ref. No. Supplier Destination PJBCC0006Z Key, Stop PJBCC0007Z Key, Start PJBCC0008Z Key, Serial PJBCC0009Z Key, Copy PJBCC0010Z Key, Set PJBCC0011Z Key, Clear PJBCC0012Z Key, Energy PJBCC0013Z Key, Function PJBCC0014Z Key, Stamp PJBLC0015Z Arm, Stopper PJBUC0016Z...
  • Page 175 UF-7000/8000 UF-7100/8100 Alphanumerical Parts List Part Number Part Name Ref. No. Supplier Destination PJDGB0038Z Gear, Registration Roller 1404 OAPD PJDGB0039Z Gear, Paper Feed Roller 1407 OAPD PJDGB0040Z Gear, Pick Up Internal 1401 OAPD PJDGB0041Z Gear, Pick Up Arm 1402 OAPD PJDGB0042Z Gear, Registration Internal OAPD...
  • Page 176 UF-7000/8000 UF-7100/8100 Alphanumerical Parts List Part Number Part Name Ref. No. Supplier Destination PJDRB0018Z Roller, ADU Pinch 1503 OAPD PJDRB0021Z Roller, Registration 1403 OAPD PJDRB0022Z Roller, Paper Feed 1405 OAPD PJDRB0025Z Roller, Paper Feed 1816 OAPD PJDRB0059Z Roller, Sub 1009 OAPD PJDRB0081Z Roller, Bias Transfer...
  • Page 177 AM, AV, EH PJGFC0128Z AG, AM Label, Minimum Length (For UF-7100/8100) PJGFC0253Z AM, EE PJGFC0254Z PJGFC0255Z PJGPC0001Z Cover, Panel (For UF-8000) PJGPC0002Z Cover, Panel (For UF-8100) EB, AL, AM PJGPC0008Z Cover, Panel (For UF-7000) PJGPC0010Z Cover, Panel (For UF-7100) EB, AL, AM...
  • Page 178 UF-7000/8000 UF-7100/8100 Alphanumerical Parts List Part Number Part Name Ref. No. Supplier Destination PJHEC0046Z Film, FXB PJHEC0047Z Sheet, FXB 2 PJHEC0051Z Film, SC PJHEC0055Z Film, SDR 1 1025 PJHEC0060Z Film, Drive Gear Bracket PJHG351Z Plate, Rubber 1827 OAPD PJHGC0004Z Rubber, Separation Pad 1919 PJHGC0021Z Sponge...
  • Page 179 UF-7000/8000 UF-7100/8100 Alphanumerical Parts List Part Number Part Name Ref. No. Supplier Destination PJHRC0026Z Holder, PCB PJHRC0035Z Sheet, White PJHRC0036Z Support, Right Paper PJHRC0037Z Support, Left Paper PJHRC0055Z Sheet, Paper Chute 1840 PJHRC0154Z Sheet, Clutch Guide 1842 PJHRC0176Z Plate, Spacer 1841 PJHRC0221Z Lever, Paper Jam Sensor...
  • Page 180 Plate, Ground 2 1617 OAPD PJMCB0070Z Plate, Ground 1 1616 OAPD PJMCC0002Z Bracket, SC PJMCC0003Z Cover, SC PJMCC0004Z Cover, Fax (For UF-8000/8100) PJMCC0005Z Plate, Interface PJMCC0006Z Cover, LVPS 1017 PJMCC0007Z Plate, Joint 1103 PJMCC0008Z Case, G3 Option (For UF-8000/8100) PJMCC0009Z...
  • Page 181 Cushion, Top Right 2204 PJPQC0003Z Cushion, Top Left 2205 PJPQC0004Z Cushion, Bottom Right 2206 PJPQC0005Z Cushion, Bottom Left 2207 PJQHC0060Z Label, G3 Line (For UF-8000/8100) PJQMB0132Z Installation Instructions 2306 PJQMC0081Z Operating Instructions 2218 PJQMC0083Z PJQMC0102Z Operating Instructions 2603 PJQMC0104Z PJQQC0012Z...
  • Page 182 UF-7000/8000 UF-7100/8100 Alphanumerical Parts List Part Number Part Name Ref. No. Supplier Destination PJUAC0008Z Bracket, Left Side 1101 PJUAC0009Z Supporter, Side PJUAC0010Z Supporter, Front Left Side 1014 PJUAC0011Z Bracket, Front ADF 1013 PJUAC0012Z Bracket, Rear ADF PJUAC0013Z Bracket, ADF Tray PJUAC0065Z Frame, Front Side PJUAC0066Z...
  • Page 183 PJWPF2685AU PJWPF2685EB AL, EB PC Board, FXB 2005 Exsept AU, AL, PJWPF2685YC 2003 PJWPF2686AU PC Board, G3 (For UF-8000) PJWPF2686YZ PC Board, G3 (For UF-8100) Except AU PJWPF2687AE PC Board, SC (For UF-8100) PJWPF2687AG PJWPF2687AU PC Board, SC (For UF-8000)
  • Page 184 PJWS00GW1MQ Except AU, AE PJWS2P7100M Switch, OPC Drum Unit Interlock 1213 OAPD PJWSP7105M Switch, Front Door Safety Interlock 1212 OAPD PJWUF2680AU (For UF-8000/8100) PJWUF2681AU (For UF-7000/7100) PJWWF2680AZ Harness, PNL1-PNL2 B 2115 PJWWF2681AZ Harness, PNL1-PNL2 A 2114 PJWWF2682AZ Harness, PNL1-PNL3 2113...
  • Page 185 UF-7000/8000 UF-7100/8100 Alphanumerical Parts List Part Number Part Name Ref. No. Supplier Destination XTW26+8S Screw OAPD XTW3+12S Screw OAPD XTW3+12SFZ Screw OAPD XTW3+6L Screw XTW3+6LFJ Screw XTW3+6S Screw XTW3+8L Screw XTW3+8LFJ Screw XTW3+8S Screw OAPD XTW3+8SFJ Screw XTW3+U8S Screw OAPD XUC4VW-V E-Ring OAPD...
  • Page 186 UF-7000/8000 UF-7100/8100 memo Ver. 2.0 NOV 2004...

This manual is also suitable for:

Uf-7000Uf-8100Uf-7100

Table of Contents
