Niles SPS-6 Technical Data Sheet

N I L E S
SPS-6
Speaker Selection System
SPECIFICATIONS
Audio Power Handling
100 watts/channel con-
tinuous music power
Mounting
Table-top component
Frequency Response
+0 dB, -0 dB (flat) from
20 Hz to 20 kHz
Wiring Requirements
Individual runs of
2-conductor speaker
wire. Connectors
accommodate wire
sizes 14-22 gauge. 16
gauge recommended
Overall Dimensions
11-1/4" wide x 2" high
x 6-3/4" deep
Weight
2-1/4 lb.
FEATURES & BENEFITS
FEATURES & BENEFITS
• Pre-printed Room Labels
are included for easy identi-
fication of speaker ON/OFF
buttons.
• Isolated left and right chan-
nel ground returns make
the SPS-6 compatible with
all types of amplifiers.
• May be used with 4, 6 or 8
ohm speaker systems.
T E C H N I C A L
Recessed areas for
custom room labels

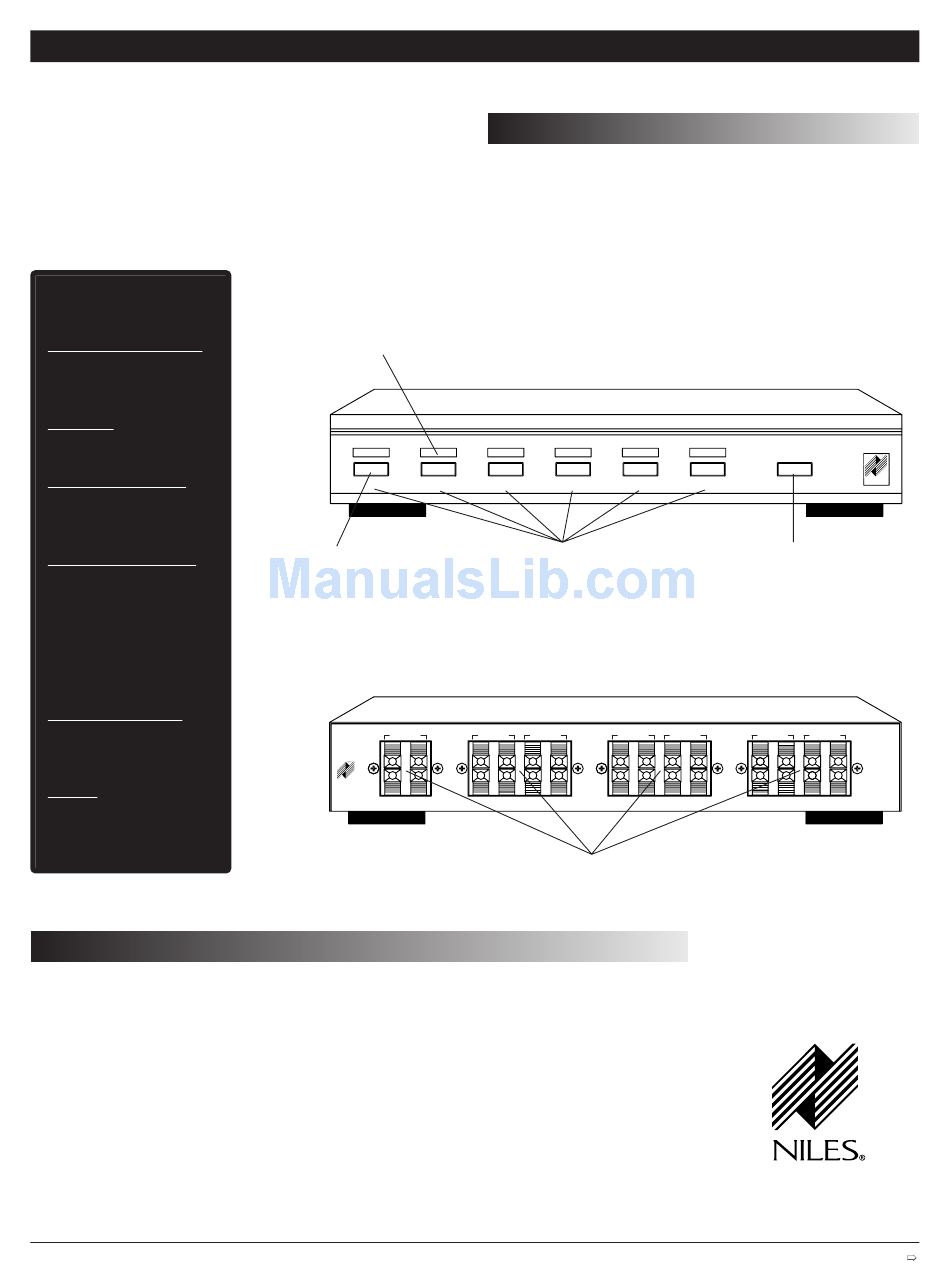

S S P P S S - - 6 6 SPEAKER SELECTION SYSTEM
1 2
Simple push-button
operation
AMPLIFIER
+ + + +
NILES
- - - -
Niles Audio
Corporation, Inc.
L R
Miami, Florida USA
• Self-cleaning, silver-plated
switch contacts assure
years of trouble free use.
• 100% tested, electronically
and acoustically, for fre-
quency response, distortion
and power handling.
• Protection circuit safeguards
your receiver or amplifier.
D A T A
INTRODUCTION
INTRODUCTION
The SPS-6 enables you to connect up to six pairs of speakers to
your stereo receiver or amplifier and play one pair, any combi-
nation of pairs or all pairs at once.
Attractive low-profile design
3 4 5
Connect up to six
pairs of speakers
SPEAKER 6 SPEAKER 5 SPEAKER 4
+ + + + + +
- - - - - -
L R L R L
Spring-loaded push
connectors
• Spring-loaded push termi-
nal connectors accommo-
date up to 14 gauge wire or
"pins", making the SPS-6
compatible with most high
definition speaker cables.
• Ten year parts and labor
warranty.
S H E E T
PROTECTION
6
Protection switch safeguards your
receiver or amplifier even with all
6 pairs of speakers playing
SPEAKER 3 SPEAKER 2 SPEAKER 1
+ + + +
- - - -
R L R L R L
B H
L E N D I N G I G H
A
A N D R C H I T E C T U R E
CONTINUED OTHER SIDE
