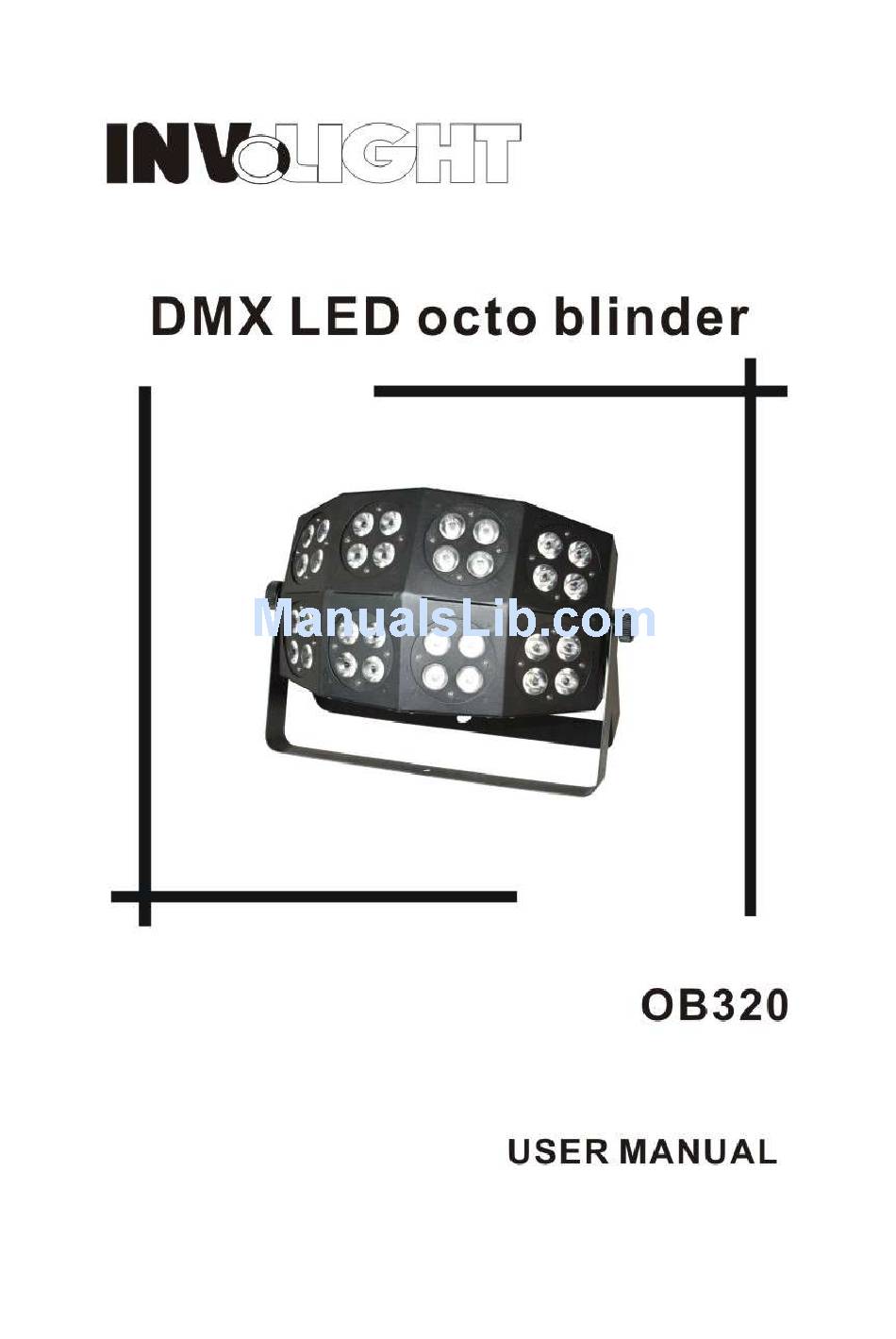

Summary of Contents for involight OB320
- Page 2 DMX LED octo blinder, 32*tri-3W Manual Size:50*17*34cm Weight: 5.5kg Voltage: 100~240VAC, 50-60HZ Power consumption:110W LEDs: 32*Tri-3W Beam angle: 15 degree Built-in programs,auto running, DMX mode, sound-active mode,M/S, static color DMX channel: 7CH & 26CH Press "mode"button to choose the working mode.press SETUP button to set the parameters under each mode.press the "up"...
- Page 3 8—15 16—23 Yellow 24—31 Green 10-255 32—39 Cyan Strobe 40—47 Blue 48—55 Purple 56—63 White 64—71 PROGRAM01 72—79 PROGRAM02 80--87 PROGRAM03 88—95 PROGRAM04 96—103 PROGRAM05 104—111 PROGRAM06 112—119 PROGRAM07 120—127 PROGRAM08 No use No use No use No use 128—135 PROGRAM09 136—143 PROGRAM10...
- Page 4 Master dimmer 0—255 0—255 0—255 0—255 0—255 0—25 0—255 0—255 0—255 dimming dimming dimming dimming dimming dimming dimming dimming dimming CH10 CH11 CH12 CH13 CH14 CH15 CH16 CH17 CH18 0—255 0—255 0—255 0—255 0—255 0—255 0—255 0—255 0—255 dimming dimming dimming dimming dimming...
