- Page 1 AIR CONDITIONER SPLIT WALL MOUNTED AUTO XLM9 TO 14 RCA(STA) / GCXLM9 TO 14RCA (STA) PROGRAMMING AND OPERATION MANUAL INSTALLATION INSTRUCTIONS...
-
Page 2: Table Of Contents
CONTENTS Introduction If your air conditioner is for cooling only,please System Description disregard the heating Modes of Operation, Functions and Features instructions Use of Wireless Remote Control Please read these instructions On-unit indicators and controls before operating the air Remote Control conditioner Operation procedure Turning on the Air Conditioner... -
Page 3: Introduction
INTRODUCTION The air conditioner is designed for various uses: Cooling in summer. OPERATING TEMPERATURE RANGE: Dehumidifying at high humidity conditions. (According to T temperature condition) Cooling: 43 C Heating. Heating: 21 C Ventilation IMPORTANT NOTICE: Tis air conditioner must be grounded to protect against electrical shock. -
Page 4: System Description
SYSTEM DESCRIPTION 1.Air intake grillr 2.Air filter COOL HEAT RESET MODE 3.Supply air flap 4.Air outlet AUTO 5.Unit's indicators 6.Horizontal Air flow Deflecting lovers 7.On unit's controls 8.Power cord MO DE 9.Outdoor unet air intake 10.Power cable 11.control wire 12.Air-fresg controls wire (optional) 13.Liquid line 14.Suction line... -
Page 5: Modes Of Operation, Functions And Features
MODES OF OPERATION, FUNCTIONS AND FEATURES COOL Cools, dehumidifies and filters the room air. Maintains desired room temperature. HEATING Heats and filters the room air. Maintains the desired room temperature. AUTO Automatically switches from COOLING to HEATING or from HEATING to COOLING, maintaining the desired temperature according to the room conditions. - Page 6 AUTO FLAP The air flap (louvers) is automatically positioned for the most suitable blow-out angle, when COOL, HEAT, DRY or FAN modes are selected. When the air conditioner is turned off, the flap will close automatically for an aesthetic appearance. VERTICAL AIR Automatic swing of supply air in vertical direction.
-
Page 7: Use Of Wireless Remote Control

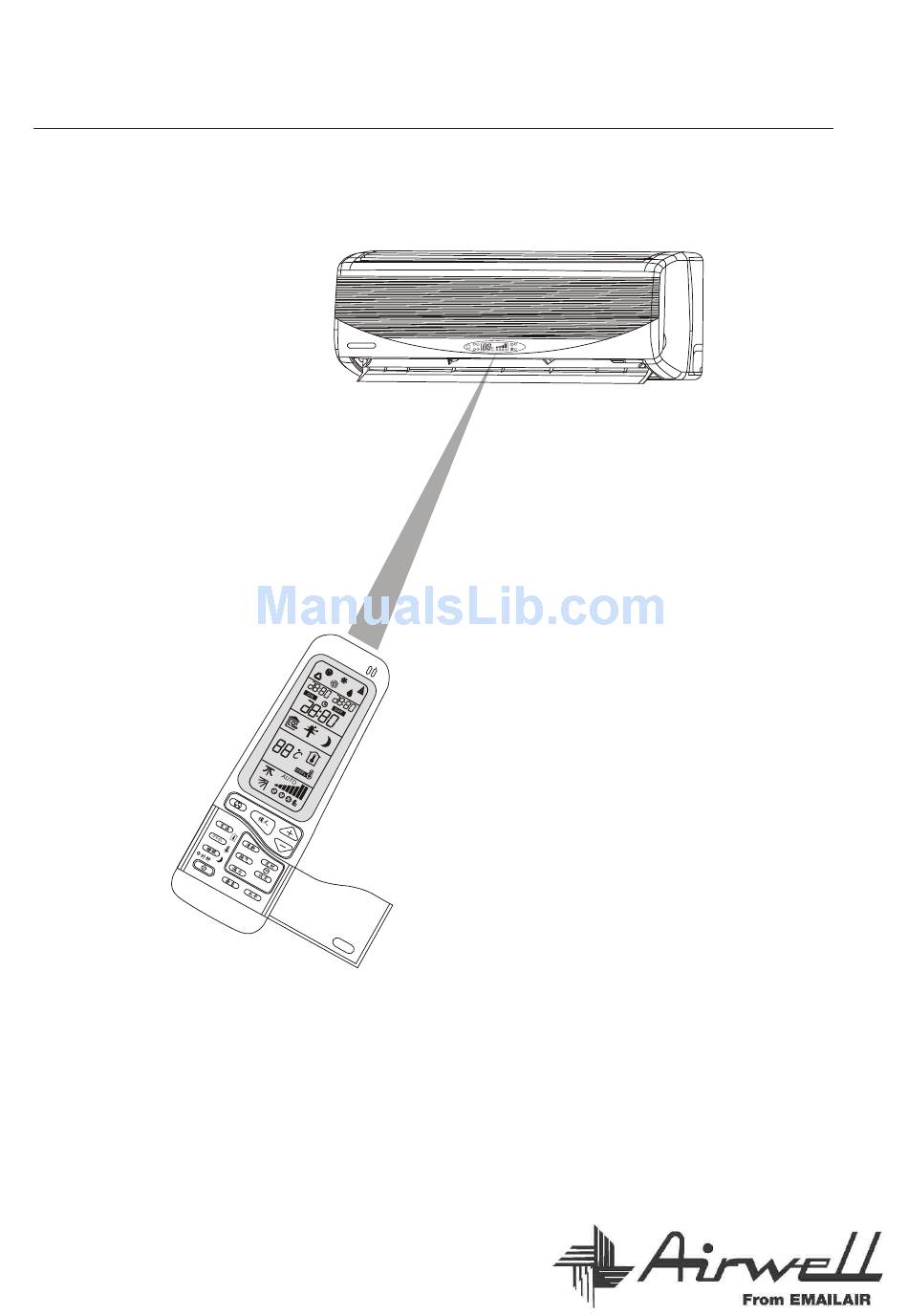

USE OF WIRELESS REMOTE CONTROL PRIOR TO OPERATION Prior to operating your air conditioner,make sure of the following procedures: Insert the plug of indoor AUTO unit to power supply properly. Indicator (C) on air conditioner lights on,indicating air conditioner is ready to receive signals from remote control. -
Page 8: On-Unit Indicators And Controls
ON-UNIT INDICATORS AND CONTROLS A. Signal receiver Receiver signals from the remote control. B. Timer indicator Lights up during timer and sleep operation. AUTO C. Stand-by indicator Lights up when the unit is connected to power. D. LCD operation display E. -
Page 9: Remote Control
REMOTE CONTROL START/STOP button Operation mode selection button COOLING HEATING AUTO COOL/HEAT I FEEL temperature sensing mode button FAN SPEED and AUTO FAN button IFEEL Room temperature Up button AUTO Room temperature DOWN button SLEEP button Airflow direction AUTO-CONTROL MODE button HORIZONTAL Airflow direction F/AIR... -
Page 10: Operation Procedure
OPERATION PROCEDURE TURNING ON THE AIR CONDITIONER Press START/STOP button (1) to turn on the air condi t ioner on. Indicator (A) on the air conditioner will light up,indicating that the unit is in operation.Note that the LCDoperation display (13) will always show the last mode of operation and previous function used. -
Page 11: Auto Cooling/Heating Operation
AUTO COOLING/HEATING OPERATION Select the AUTO mode by pressing MODE button (2). Switch to the desired FAN SPEED or to AUTO FAN by pressing button (4). Select suitable temperature setting. The air flap will automatically move to either horizontal air delivery for cooling or to vertical air delivery for heating. At start, the air conditioner will select its mode of operation according to the room temperature and the temperature setting. -
Page 12: Timer Operation
TIMER OPERATION Press TIMER select button (11) to activate the timed operation mode. Each time you press TIMER button (11), one of the following four operation modes will appear on the LCD disp lay. The operation modes are sequenced in turn in the direction of arrow. During Timer operation, the indicator on the air conditioner will light up. -
Page 13: Air Direction Operation
AIR DIRECTION OPERATION 1.Air Direction Positioning Press button (8) to position the air flap to any desired angle. 2.Automatic Vertial Air Swing Press button (9) to activate the auto air swing.Press button (8) to deactivate this function. TURNING OFF THE AIR CONDITIONER Pree START/STOP button (1) to turn off the air conditioner.Indicator (A) on the air cinditioner will be turned off.Indicator (G) will stay lit,indicating that the air cinditioner is in STAND-BY mode and ready to accept any new... -
Page 14: Fresh Air Function
FRESH AIR FNCTION (optional) PRESS THE FRESH AIR button (17) to activate the Fresh air function and press the button again to cancel this function. IONIZER AND ELECTROSTATIC FILTER Press the IONIZER button (10) to activate the lonizer and Electrostatic Filter function , if the lonizer switch at ON position, the blue indicator on the lonizer lights up. -
Page 15: Protection Modes
PROTECTION MODES Your air-conditioner includes several auto protection modes which enables you to use it virtually at any time and in any season regardless of the outdoor temperature. Some of the protec-tion modes are listed below: Mode Operation Protection Controlled remedy conditions from... -
Page 16: Care And Maintenance
CARE AND MAINTENANCE Before performing any maintenance procedure, make sure to disconnect the air conditioner from the power. CLEANING THE AIR FILTER Your air conditioner is provided with a filter cleaning indicator. When the indicator (E)lights up, the filters should be removed for cleaning To remove the air filters, lift up the panel. -
Page 17: Operating Tips
OPERATING TIPS Set a suitable room temperature; excessively low room temperature is not good for your health and wastes electricity. Avoid frequent setting of the temperature. During cooling, avoid direct sun. Keep curtains and blinds closed. Close doors and windows to keep the cool air in the room. Avoid generating heat or using of heating appliances while the air conditioner in cooling mode. -
Page 18: Precautions
PRECAUTIONS Use the proper electrical fuse.. Do not pull out the power cord unless the unit is turned off. Do not turn on or off air conditioner by inserting the power cord. Do not obstruct or block the air inlet or air outlet of the air conditioner. -
Page 19: Before Calling For Service
BEFORE CALLING FOR SERVICE Before calling for service, please check the following common malfunctions and correct it as needed. Problem Cause Remedy ¡ö Plug in the power Unit does not ¡õ Unit not connected cord. operate. Stand- to power by indicator does ¡ö... - Page 20 INSTALLATION INSTRUCTIONS ENGLISH 1. ACCESSORIES SUPPLIED WITH AIR CONDITIONER 2. LOCATION OF INDOOR AND OUTDOOR UNITS 3. ELECTRICAL REQUIREMENTS 4. INSTALLATION OF THE INDOOR UNIT 5. CONDENSATE HOSE CONNECTION 6. ELECTRICAL CONNECTIONS BETWEEN INDOOR AND OUTDOOR UNITS 7. REFRIGERANT TUBING 8.
- Page 21 I N S T A L L A T I O N I N S T R U C T I O N S FOR SPLIT WALL MOUNTED AIR CONDITIONER LOCATION OF INDOOR AND ACCESSORIES SUPPLIED WITH OUTDOOR UNITS THE AIR CONDITIONER Select the location considering the following: Shape Name...
- Page 22 Fig.3 Length of electric cable to mains 950mm 1800mm AUTO 80 mm Fig 3 50 mm 50 mm AUTO 2300 mm Fig 4 Fig.5 1. To attach 2. To remove 100 mm 100 mm ¢Ú OF F 500 mm IFEE L 400 mm AU TO ¢Ù...
- Page 23 ELECTRICAL REFRIGERATION TUBE ROUTING REQUIREMENTS 1. There are five possible routes for installing the refrigeration tube as shown. Electrical wiring and connections should be made by qualified 2. For route (6), cut the bottom notch in the rear. electricians and in accordance with local electrical codes and 3.
- Page 24 PENETRATION OF WALL FOR TUBING 1. Mark the location of the hole on either side of the mounting plate as shown. and drill it at a 5 downward angle, as shown. CONDENSATE HOSE CONNECTION 2. The hole is drilled at an angle, to prevent condensed or rain water 1.
- Page 25 ELECTRICAL CONNECTIONS BETWEEN INDOOR AND OUTDOOR UNITS MULTIPLE WIRE POWER CABLE 1. To connect the indoor unit with the outdoor unit use the following electrical cables, protected for outdoor use: Cooling and heating model: Multiple wire cable (220 - 240V, 50Hz) 5 wires x 1.5 mm Fig.
-
Page 26: Refrigerant Tubing
Tightening TUBE SIZE TORQUE torques of unions Liquid line 3/8" 30-35 N.M. and valve caps: Suction line 1/2" 50-54 N.M. REFRIGERANT TUBING Suction line 5/8" 75-78 N.M. Suction line 3/4” 80-100 N.M. CONNECT THE INDOOR TO THE OUTDOOR UNIT Fig 22 Fig 23 Fig 24 The indoor unit contains a small quantity of Helium. - Page 27 INSTALL THE AIR FRESH HOSE (Optional) A 5 m of air refreshing hose is supplied with this equipment. You can length the hose with another hose supplied by the professional installer in the installation if it is needed. Use the hose elbow and clamps to joint the smaller end (O30) of the added hose with the original one, and then fix the other end with the interface of the propeller...
- Page 28 FINAL TASKS 1. Replace all valve caps and ensure that they are tightened properly. 2. Fill gaps on the wall between hole sides and tubing with sealer. 3. Attach wiring and tubing to the wall with clamps where necessary. 4. Operate the air conditioner together with the customer and explain all functions.
- Page 29 TEL: (09) 820 0333 FAX: (09) 820 0332 517A Rosebank Road Avondale, Auckland NZ NZ Tech Support Freecall TEL: 0800 180 094 www.airwell.com.au WITH A CONCERN FOR A CONSTANT IMPROVEMENT, OUR PRODUCTS CAN BE MODIFIED WITHOUT NOTICE. PHOTOS NON CONTRACTUAL. © Copyright 2003...
