NOTE:
This edition is missing the FAQ's content (pages 14 and 15) .................................................................7/28/2015
This edition is missing the link to the IR Codes.....................................................................................7/28/2015
MODEL:
Model Information

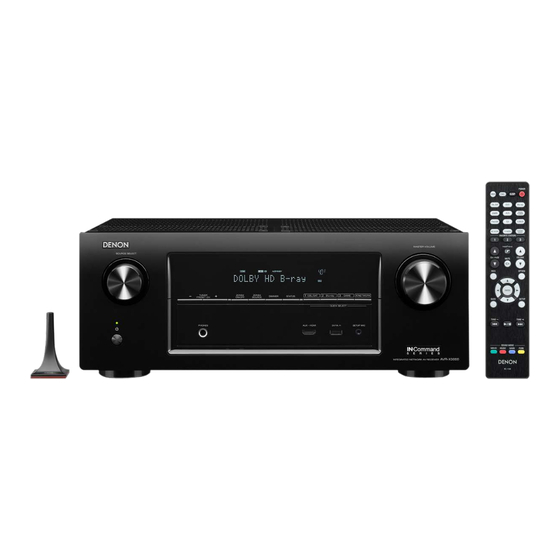

INTEGRATED NETWORK AV RECEIVER
AVR-X3000W
1
MI072815E3-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Denon AVR-X3000W
Summary of Contents for Denon AVR-X3000W
- Page 1 MODEL: AVR-X3000W Model Information Index Model Information Front Panel INTEGRATED NETWORK AV RECEIVER Rear Panel Remote Control Warranty Reset Procedure Accessories FAQ’s Upgrades/Updates Product Specifications I/R Codes NOTE: This edition is missing the FAQ’s content (pages 14 and 15) ………………………………………………………..7/28/2015 This edition is missing the link to the IR Codes………………………………………………………………………..7/28/2015...
-
Page 2: Front Panel (1 Of 2)
Front Panel (1 of 2) Power operation button (O) USB port This turns the power of MAIN ZONE on/off (standby). Used to connect USB storages (such as USB memory devices) and the Power indicator USB cable supplied with iPod. This is lit as follows according to the power status: ... -
Page 3: Front Panel (2 Of 2)
Front Panel (2 of 2) ZONE2 ON/OFF button This turns the power of ZONE2 on/off. ZONE2 SOURCE button This selects the input source for ZONE2. DIMMER button Each press of this switches the brightness of the display. ... - Page 4 Display (1 of 2) Input mode indicators Tuner reception mode indicators These light according to the audio input mode settings of each input These light up according to the reception conditions when the input source. source is set to “Tuner”. TUNED: Lights up when the broadcast is properly tuned in.
- Page 5 Display (2 of 2) Volume indicator MUTE indicator This blinks while the sound is muted. Information display The input source name, sound mode, setting values and other information are displayed here. Input signal indicators The respective indicator will light corresponding to the input signal. ...
- Page 6 Rear Panel (1 of 2) FM/AM antenna terminals (ANTENNA) REMOTE CONTROL jacks Used to connect FM and AM antennas. Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. Speaker terminals (SPEAKERS) Used to connect speakers.
-
Page 7: Rear Panel (2 Of 2)
Rear Panel (2 of 2) TRIGGER OUT jack Used to connect devices equipped with the trigger function. Analog audio connectors (AUDIO) Used to connect devices equipped with analog audio connectors. NOTE • Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit. -
Page 8: Remote Control (1 Of 2)
Remote Control (1 of 2) ZONE SELECT buttons These switch the zone (MAIN ZONE, ZONE2) that is operated through the remote control unit. Input source select buttons These selects the input source. FAVORITE STATION buttons (1 – 3) With a single press of these, you can call up registered radio stations and contents. -
Page 9: Remote Control (2 Of 2)
Remote Control (2 of 2) SOUND MODE buttons These select the sound mode. • MOVIE button • MUSIC button • GAME button • PURE button Remote control signal transmitter This transmits signals from the remote control unit. SLEEP button This sets the sleep timer. -
Page 10: Denon Limited Warranty (1 Of 2)
Length of Non-Transferable Warranty This warranty on your DENON product which is distributed and warranted by DENON ELECTRONICS (USA), LLC remains in effect for the following periods from the date of the original consumer purchase from an AUTHORIZED DENON ELECTRONICS (USA), LLC DEALER. - Page 11 Except as specified below, this Warranty covers all defects in material and workmanship in this product occurring during the above warranty periods. The following are not covered by the Warranty: (1) Any product which is not distributed in the U.S.A. by DENON ELECTRONICS (USA), LLC. (2) Any product which is not purchased in the U.S.A.
- Page 12 Reset Important: Back up the settings before resetting the microprocessor. Most settings are reset to the factory default values after performing this procedure. This means that all the settings data will be completely lost if it’s not previously saved. Power/Standby button Reset procedure: With the power off, press and hold the “TUNER...
- Page 13 Accessories Sound Remote Control Sound Calibration (RC1184) Calibration Microphone Microphone Stand (ACM1HB) 30701013700AD $54.99 32401000800AD $31.99 963549101000D $16.82 AM Loop FM Indoor Power Cord) Antenna Antenna 963116100070S $8.99 943116100170D $5.44 943611500750D $9.99 Safety CD ROM Instructions Owner’s Manual Warranty Notes on Radio Quick Start (For North Guide...
- Page 14 FAQ’s ( 1 of ?) HOME ACCESSORIES FAQ’s 2...
- Page 15 FAQ’s (2 of ?) HOME FAQ’s 1 UPGRADE...
- Page 16 Server is busy Login failed To Check for Firmware Update from the Denon server when the unit is connected to the internet via the Ethernet port (When Firmware Notification is turned off). Press “SETUP” and select “GENERAL” and then select “FIRMWARE” followed by “UPDATE” and finally, select “CHECK FOR UPDATE”.
-
Page 17: Specifications - Audio Section
Specifications – Audio Section Audio section 105 W + 105 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) Front 135 W + 135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) 105 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) Center 135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) Rated output... -
Page 18: Specifications - Tuner Section, General Section
Specifications - Tuner Section, General Section Tuner section Note: µV at 75 Ω/ohms, 0 dBf = 1x10 Reception frequency range 87.5 MHz - 107.9 MHz 520 KHz ~ 1710 KHz Effective sensitivity 1.2 µV (12.8 dBf) 18µV 50 dB sensitivity MONO ―... -
Page 19: Specifications - Dimensions, Weight
Specifications – Dimensions, Weight Dimensions section (Unit : inch/mm) Weight: 24 lbs 15 oz (11.3 kg) HOME SPECIFICATIONS TUNER SPECIFICATIONS - - GENERAL AUDIO... - Page 20 The End NOTE: This edition is missing the FAQ’s content (pages 14 and 15) ………………………………………………………..7/28/2015 This edition is missing the link to the IR Codes………………………………………………………………………..7/28/2015 HOME...
