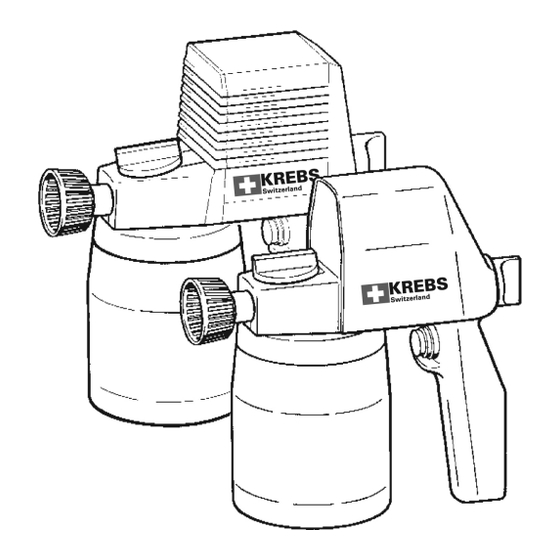

- Page 1 KREBS LM25 (25T-L) Operating Instructions KREBS LM45 (45-L)
- Page 2 Spraying Dismantling the pump...
-
Page 3: For Your Safety
Always keep the extension cable well away from the workplace. Keep the spray gun and accessories out of the reach of children. Only use original accessories and spare parts. Technical data LM25 (K25T-L) LM45 (K45-L) Nominal output 60 W 120 W... -
Page 4: Care And Maintenance
Instructions for use Before switching on the spray gun, ensure that the container is at least 50% full of material in order that it creates a vaccum. Do not use without material - this will create unnecessary noise and vibration. Spray material Note: for the perfect functioning of the spray gun, clean spray material is of importance. -
Page 5: Product Liability
Dismantling the Spray Gun 1. Remove screw. (spare part 1, page 15-16) (picture 3, page 2) 2. Separate the motor housing (spare part 6) from the pump section. (picture 4) 3. Unscrew nozzle (spare part 3). Take suction pressure valve (spare part 4) and pump plunger (spare part 8) with spring (spare part 7) out of the pump section. - Page 6 Spare parts LM45 (K45-L) Pos. Part No. 09-004-004 Wing set screw 09-501-025 Casing 09-490-008 Nozzle R8 09-005-000 Swirl piece 09-004-022 Valve ball 09-504-038 Pump housing 09-004-013 Piston spring 09-004-026 Piston 06-001-027 Sucion tube 09-501-016 Container Accessories 09-490-007 Fan Nozzle 09-490-004 Round jet nozzle R4 09-490-006 Round jet nozzle R6...
- Page 7 Spare parts LM25 (K25T-L) Pos. Part No. Wing set screw 09-004-004 Casing 11-501-045 Round jet nozzle R6 09-490-006 Swirl piece 09-005-000 Valve ball 09-004-014 Pump housing 11-504-023 Piston spring 11-004-013 Piston 11-004-014 Suction tube 06-001-027 Container 09-501-016 Accessories Fan Nozzle...
