Summary of Contents for Copystar CS-3060

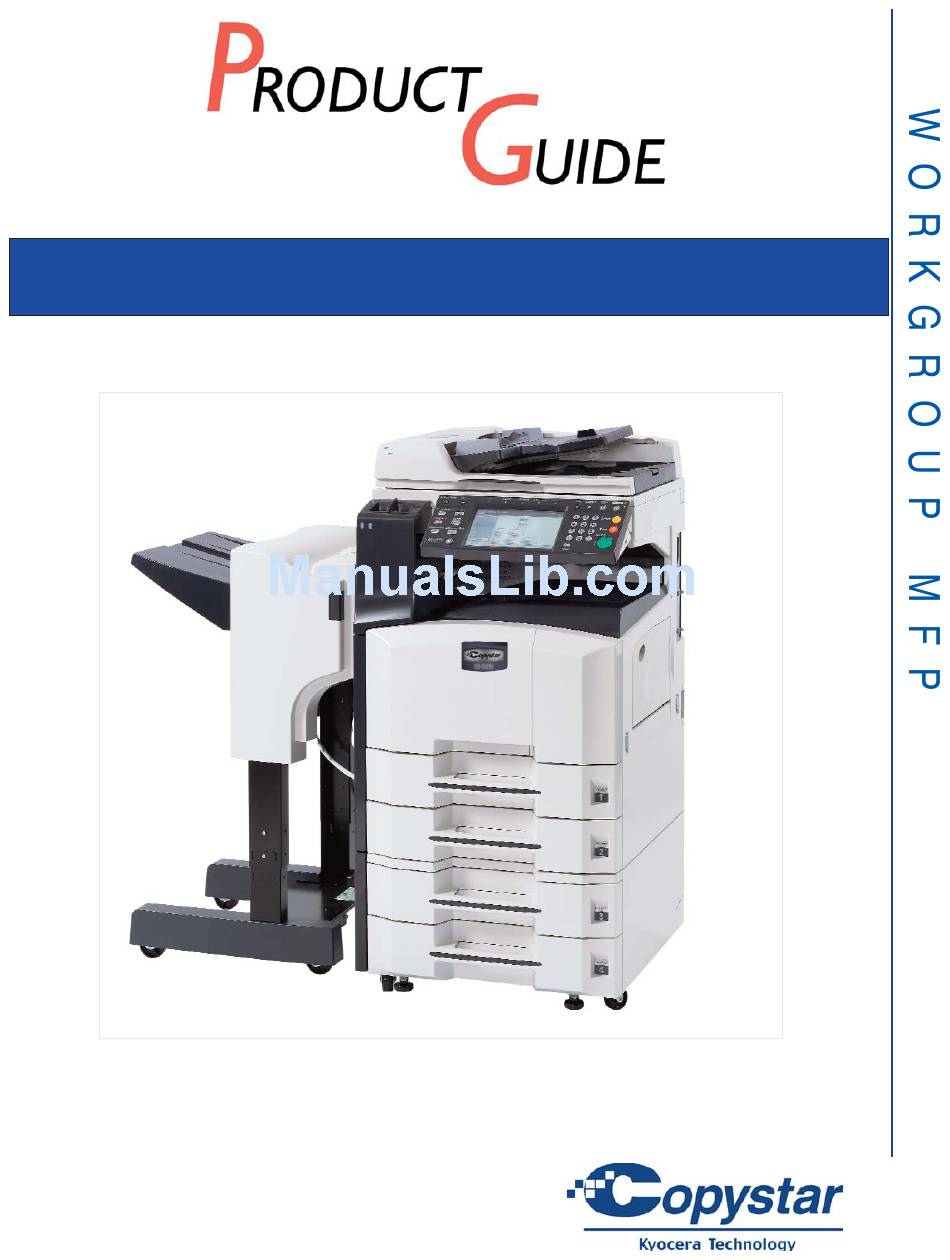

  • Page 1 CS-3060 / CS-2560...
  • Page 2 T A B Introduction Product Positioning III. Product Overview Yields Product Configuration Technology VII. Features VIII. Connectivity Print Scan / Send Copy XII. Fax / Send XIII. Product Options XIV. Solutions Reliability XVI. Summary XVII. Trademarks 3 0 6 0 2 5 6 0 D U C T G U I D E...
  • Page 3 Co p y s ta r is ple a se d t o i n tr o d u c e th e Ne w CS- 3060 / CS - 2560 The New CS-3060 / CS-2560 are the latest addition to Copystar’s line of Monochrome Multifunctional Devices.
  • Page 4 MFPs. Copystar also designed the CS-3060 and the CS-2560 around Kyocera’s Long Life components, making the CS-3060 and CS-2560 cost effective to operate and the ideal choice for the any workgroup.
  • Page 5 D U C T V E R V I E W The CS-3060 and the CS-2560 are Workgroup Multifunctionals with standard Network Print, Network Color Scan, Optional Fax/Network Fax/Internet Fax, Stackless Duplex, 500x2 Paper Drawers and 200 Sheet MPT. Standard/Maximum 512MB/1GB shared memory, Standard 80GB HDD Optional 75 Sheet Reversing Automatic Document Processor (RADF), Optional Paper Handling and Finishing.
  • Page 6 D U C T V E R V I E W Image Quality & Versatility Standard Network Print • PowerPC750/ 400MHz Processor • Auto, Text, Photo, Mixed, ECO and Manual • 5R/5E Fixed Ratios • Shared Memory Resources • 25%-400% Zoom •...
  • Page 7 D U C T V E R V I E W Standard Network Scan Optional Data Security Kit (C) • Provides Security Overwrite and Encryption • Scanning Features • Scan to e-Mail • Automatic and Manual Deletion processes • Copy, Print and Send Data •...
  • Page 8 Y i e Item Description Yield TK-677 Toner 1,160g 20,000 @ 6% MK-670 Maintenance Kit 300,000 A c c e s s p a t a b i i t y Item Description CS-2560/3060 CS-3050/4050/5050 Fax System (M) Network Fax System √...
  • Page 9 D U C T F I G U R A T I Option Description Item Code DP-670 Document Processor 1203K56KL0 PF-670 500x2 Paper Feeder 1203K62US0 DF-730 1,000 Sheet Finisher 1205H10U10 DF-670 Internal Finisher 1203LB0UN0 JS-670 Job Separator 1203LC0UN0 Fax System (M) Fax Unit 1503KH2US0 BU-10...
  • Page 10 D U C T F I G U R A T I Base Unit with Optional DP-670 Document Processor and PF-670 Dual Paper Drawers Base Unit with Optional DP-670 Document Processor, PF-670 Dual Paper Drawers and DF-730 Simple Finisher 3 0 6 0 2 5 6 0 D U C T G U I D E...
  • Page 11 With the ability to scan in color, individual service agreements. With the CS-3060 and the CS-2560 have a distinct development of the MFP, all of these functions competitive advantage over some the other are consolidated into a single product, reducing competitors’ product in today’s market. The...
  • Page 12 Each of these areas are detailed in or from the desktop. The Color TSI of the this Product Guide. From Paper Handling and CS-3060 and the CS-2560 offers an image of Finishing, to connectivity and document the first page for proof checking to ensure that sending, the new CS-3060 and CS-2560 push the right document is being accessed.
  • Page 13 With the introduction of Multi Send provides users with the ability to the new CS-3060 and the new CS-2560, which simultaneously send documents to: come standard with Network Print, Network • FTP Sites...
  • Page 14 CS-3060 and CS-2560 have to offer, but are user counter productive when using the MFP. sure how to use them...
  • Page 15 Improved Paper Cassettes workgroups and departments to adhere to the strict guidelines in place today such as The CS-3060 and the CS-2560 are the first MFPs Sarbanes-Oxley (SOX), HIPPA or other in Copystar’s product line to in corporate the new federal government mandates.
  • Page 16 • NetWare® 3.x, 4.x, 5.x, 6.x architecture. With the ability to Network Print and AppleTalk Support Color Send, the CS-3060 and the CS-2560 will • ELAP, AARP, DDP, AEP, NBP, RTMP, ZIP, have a major impact on the workflow process of...
  • Page 17 What’s most important to the small to mid-size business and IT contacts is that full network For the IT administrator, the advanced software control of the CS-3060 and CS-2560 is monitoring tools will allow administrators to available at the desktop, so Administrators can...
  • Page 18 KM-NET Viewer is a stand alone utility, and will further enhance the management process of gives Administrators the ability to filter devices the CS-3060 and CS-2560 by providing by Model Number, Speed, Group, Status and administrator with the necessary tools for Protocol.The ability to arrange by filter and...
  • Page 19 KM-NET for Accounting Since CS-3060 CS-2560 For the customer who has a need for tracking Multifunctionals may be targeted within large usage of Copystar’s new Workgroup MFPs, companies workgroups, many these KM-NET for Accounting (KMNA) is software customers may have already invested in for departmental access and accountability.
  • Page 20 400 MHz processor and 512MB • Windows® 64-bit Drivers RAM (upgradeable to 1GB) and a standard 80GB HDD, the CS-3060 or the CS-2560 can Operating System Support accommodate most of the printing demands of • Windows® 95/98/Me/NT4/2000/XP/2003/Vista any small to mid-size company’s workgroup...
  • Page 21 Windows® model. Companies with Macs, Linux systems or running UNIX will find The CS-3060 and CS-2560 utilize Copystar’s that Copystar is a critical choice to solve their Single Board Architecture and a single Network printing issues. Interface (NIC). This single board controller features an embedded PowerPC®...

  • Page 22: Font Support

    Copystar’s KX Driver for Windows® supports all Copystar Products (Printers and MFPs), PDLs (PCL XL/5x; KPDL3) and Windows® OS in a single unified GUI. This is a major advantage when discussing Copystar Products with Network Administrators, Department Heads and end-users...
  • Page 23 Figure 1 The advantage of the Copystar KX Driver is that all of the features are available from the desktop, providing a strong choice for the busy Workgroup and Department environment. Figure 1 displays the Publishing Tab within the KX Driver.
  • Page 24 Imaging product choices inside a company. Mac users will be especially eager to hear that the CS-3060 and CS-2560 offer the latest PPDs for Mac OS’ up to and including OS 10.4 (Tiger). Combined with a strong message about these...
  • Page 25 MFPs. • PRESCRIBE Utilities PDF Direct Print allows users the flexibility to The CS-3060 and CS-2560 can be installed in print PDF documents without the need to open any of the following networks: the file in Acrobat Reader and follow the typical •...
  • Page 26 The ability to share resources efficiently and File Format securely enables businesses to be more • Monochrome productive and profitable. The CS-3060 and the • PDF, TIFF CS-2560 with its Multi Send feature, allow users • Color to scan documents to e-Mail addresses, FTP •...
  • Page 27 CS-3060 and the downloading files, user can scan large files or CS-2560. The ability to send a document to...
  • Page 28 Fax numbers. Combined with the standard LDAP for In Send Mode, the Touch Screen Interface Scan to e-Mail function, the CS-3060 and uses a tabbed architecture like Copy Mode. CS-2560, provide strong...
  • Page 29 With this feature, an e-Mail Subject line can be set up to 60 characters, and Body text can be added up to 500 characters. Copystar does not make any claims or guarantees that the e-Mail Subject/Body feature will allow users to bypass corporate e-Mails filters and protocols.
  • Page 30 CS-3060 and the CS-2560 allows the only three Shortcuts could be registered. With workgroup user to navigate from every screen the new CS-3060 and CS-2560 models, up to easily and efficiently. Copystar also designed the six Shortcuts can be registered in Copy Mode.
  • Page 31 Printing. From the Status key, pending job information, as well as job logs can be accessed. The Program key provides access to Copystar’s unique 50 Job Programs that are stored. These Job Programs can be set for both Copy and Send modes, raising the bar on office performance and ease of use.
  • Page 32 Color TSI, and display when print data is dealers target will undoubtedly be looking for being received, an incoming fax or scanned the robust functionality that the CS-3060 and image is being transmitted, a fax is being the CS-2560 can provide.

  • Page 33: Custom Box

    PDF documents directly from a manage point. With the standard 80GB HDD USB flash drive to the CS-3060 or the CS-2560, workgroups can store jobs temporarily for up to providing companies with the portability and...
  • Page 34 • MMR to send a fax directly from the PC eliminates the • MR need to print the document first. The CS-3060 • MH and the CS-2560 can also receive incoming faxes and route the fax to the appropriate Memory network shared folder.
  • Page 35 Internet Fax Destination Addresses Another advantage of the CS-3060 and the destinations once CS-2560 is the ability to fax via the internet. The Transmission Control TX Settings appear. Fax System (M) will allow business to utilize These addresses can be set manually as their network for sending and receiving faxes needed.
  • Page 36 500 x 2 Universal Paper Drawer The JS-670 Job Separator can also be installed below (PF-670) the control panel of the CS-3060 and CS-2560. This For companies that require the flexibility, the PF-670 option provides users with the ability to direct specific Dual Paper Drawers can be added.
  • Page 37 Copystar Solutions are an integral part of your marketing strategy when presenting the Copystar CS-3060 and CS-2560 to your clients. Explaining these solutions to the customers is one of the ways that Copystar Dealers will be able to target customer applications and provide a beneficial solution.
  • Page 38 / or workgroup. KYOcapture Express dozen filters (Option) can instantly and securely capture documents from any Copystar’s MFP device and processes • Read barcodes to use as can be performed on these documents such as document index metadata (Option)
  • Page 39 Enterprise level solutions that • System Kiosk may be cost-prohibitive and difficult to implement. iTag is designed to be easy to Connected to a Copystar MFP as the front understand, simple install end for scanning documents, iTag provides...
  • Page 40 Content integration of Copystar MFPs with the management systems can integrate products framework of the NSi product, AutoStore. like the CS-3060 and CS-2560 into the environment, deployed as a printer and copier, Capture/Process/Route realizing a huge savings over installing multiple...
  • Page 41 MFP, namely the need changed integrate KYOcapture. new CS-3060 and CS-2560 MFPs. Directly from the Color Touch Screen, users can select the Route desired workflow or database, and from the QWERTY keypad on the TSI, enter any The ability to Route has always been the pertinent information for indexing.
  • Page 42 CS-2560. With Copystar’s 80GB Hard Drive of the new CS-3060 and Compression, the text and photo (or image) CS-2560. areas of a scanned document are divided, and a suitable image compression is applied. File...
  • Page 43 Long Life Technology The Toner Container for the CS-3060 and the The CS-3060 and the CS-2560 like all of the CS-2560 is exclusive for the MFPs and cannot Copystar’s products incorporates the long life be interchanged with printer toner. The rated...
  • Page 44 The new CS-3060 and the CS-2560 will provided the small to mid-size business with all of the tools necessary to improve the paperwork flow process at an affordable price.
  • Page 45 T R A D E Macintosh is a trademark of Apple Computer, Inc. Microsoft is a registered trademark of Microsoft Corporation. Windows, Windows NT and Windows XP and Vista are registered trademarks of Microsoft Corporation. Novell and NetWare are registered trademarks of Novell, Inc. PostScript is a registered trademark of Adobe Systems, Inc.

This manual is also suitable for:

Cs-2560
