SERVICE MANUAL
Ver 1.0 2004.01

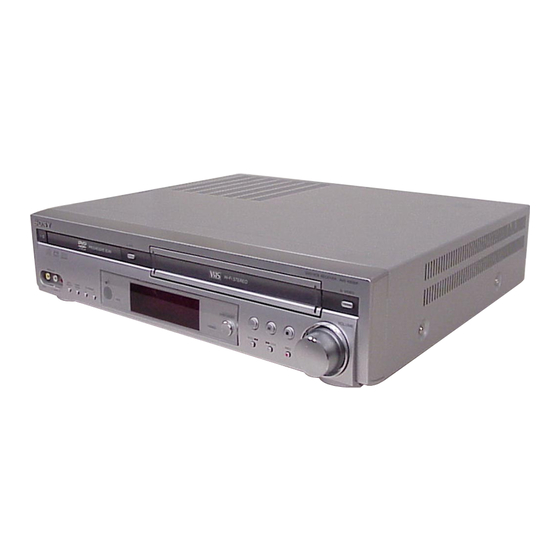

AVD-K600P is the amplifier, DVD/VIDEO
player and tuner section in HT-V600DP.
• Manufactured under license from Dolby Laboratories. "Dolby", "Pro
Logic", and the double-D symbol are trademarks of Dolby Laboratories.
Confidential unpublished works. Copyright 1992 -1997 Dolby
Laboratories. All rights reserved.
• DTS and DTS Digital Surround are registered trademarks of Digital
Theater Systems, Inc.
General
Power requirements
Power consumption
Dimensions (approx.)
Mass (approx.)
Operating temperature
Operating humidity
Signal system
DVD Section
Laser system
Frequency response
Signal-to-noise ratio
Harmonic distortion
Dynamic range
Inputs
ANTENNA IN
VIDEO IN
AUDIO IN
FM ANTENNA IN
AM ANTENNA IN
OPTICAL IN
Sony Corporation
9-877-542-01
2004A1678-1
Home Audio Company
© 2004.01
Published by Sony Engineering Corporation
SPECIFICATIONS
AC 120V, 60 Hz
74W
430 x 97 x 386 mm (17
x 3
7
/
x
8
15
1
/
inches)
(W x H x D)
4
6.3 kg (13.15 lbs)
5˚C to 35˚C (41˚F to 95˚F)
5 % to 90 %
NTSC
Semiconductor laser,
wavelength 650 nm
DVD (PCM 48 kHz): 8 Hz
to 22 kHz, CD: 8 Hz to 20 kHz
More than 80 dB (AUDIO OUT
jacks)
Less than 0.3%
More than 85 dB (AUDIO OUT
jacks)
Antenna or CATV input, 75 ohms
1 Vp-p 75 ohms, sync negative,
RCA jack x 1
-6.0 dBm more than 47 kohms,
RCA jack (L, R) x 1
FM antenna input, 300 ohms
AM antenna input, 300 ohms
Optical connector x 1
DVD/VCR RECEIVER HOME THEATER SYSTEM
AVD-K600P
Model Name Using Similar Mechanism
DVD
Mechanism Type
Optical Pick-up Name
VCR
Mechanism Type
Outputs
VIDEO OUT
S VIDEO OUT
COMPONENT VIDEO OUT
Audio output (analog audio)
ANTENNA OUT
VIDEO Section
Head system
Timer
Tape speed
Tape width
Maximum recording time
Rewind time
Antenna
Channel coverage
Frequency range
Signal-to-noise ratio
Dynamic range
Channel separation
US Model
Canadian Model
NEW
DP-7C
PVR-502W
D35 (N)
1 Vp-p 75 ohms, sync negative
(Y) 1.0 V (p-p), 75 ohms, negative
sync, Mini DIN 4-pin x 1
(C) 0.286 V (p-p) 75 ohms
(Y) 1.0 V (p-p), 75 ohms, negative
sync, RCA jack x 1
(P
/C
)/(P
/C
) 0.7 V (p-p), 75
B
B
R
R
ohms, RCA jack x 2
2.0 Vrms (1 KHz, 0 dB), 330 ohms,
RCA jack (L, R) x 1
Channel 3 or 4 (Switchable)
4 heads helical scan azimuth system
12-hour display type with AM, PM
SP: 33.35 mm/sec, EP: 11.12 mm/sec
12.7 mm
SP: 2 HOURS (T-120), EP: 6 HOURS
(T-120)/8 HOURS (T-160)
About 150 seconds (T-120)
75 ohms (VHF/UHF)
VHF: 2-13, UHF: 14-69, CATV: 1-125
(4A, A-W, W+1 - W+84, A-5 - A-1)
20Hz to 20kHz
More than 43dB
More than 85 dB (AUDIO OUT jacks)
More than 55 dB (AUDIO OUT jacks)
— Continued on next page —
