  • Page 1: Cooking Tables 1

    REALISTISK TJÄNLIG...
  • Page 3 ENGLISH...

  • Page 4: Table Of Contents

    Product description Installation Control panel Electrical connection Daily use Electrical connection for Australia Cooking tables Environmental concerns Cleaning and maintenance IKEA GUARANTEE What to do if ... Safety Information Your safety and that of others - The appliance must be are very important. disconnected from the power This manual and the appliance supply before carrying out itself provide important safety any installation work.
  • Page 5 ENGLISH overvoltage category III and appliance in a safe way and must be incorporated in the understand hazards involved. fixed wiring in accordance Children shall not play with with the national wiring rules. the appliance. Cleaning and - Do not use multiple plug user maintenance shall not adapters or extension leads.
  • Page 6 ENGLISH vent apertures. during the pyrolysis cycle. - Use oven gloves to remove (only for ovens with Pyrolisis pans and accessories, taking function). care not to touch the heating - During and after the elements. Pyrolytic cleaning, every pets - Do not place flammable (especially birds) have to be materials in or near the kept away from the area of...

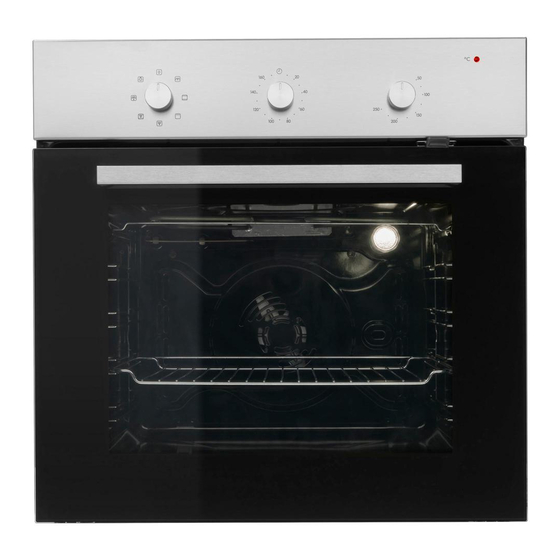

  • Page 7: Product Description

    ENGLISH Product description Control panel Rear oven lamp Cooling fan (not visible) Oven fan Upper heating element Lower heating element (hidden) Grill element Oven door Accessories Baking tray Grill Pan Set / Drip tray Wire Shelf If you want to buy an accessory, call the Authorized Service Centre.
  • Page 8 ENGLISH Inserting wire shelves and other accessories in the oven 1. Insert the wire shelf horizontally, with the raised part “A” upwards (Fig. 1). Fig. 1 2. Other accessories, such as the drip tray and baking tray, are inserted in the same way as the wire shelf (Fig. 2). Fig.

  • Page 9: Control Panel

    ENGLISH Control panel Function selector knob Thermostat knob Cooking time selector Thermostat indicator light (red) Daily use Switching on the oven Turn the selector knob to the required function. The oven light switches on. Turn the thermostat knob clockwise to the required temperature. The red thermostat led lights up, switching off again when the oven reaches the selected temperature.
  • Page 10 ENGLISH Oven functions table The oven has 4 cooking levels. Count up from the lower level. Function Description of function OVEN OFF FORCED AIR To cook a variety of food requiring the same cooking temperature on a maximum of two shelves at the same time (e.g.: fish, vegetables, cakes). This function can be used to cook different foods without odours being transferred from one food to another.
  • Page 11 ENGLISH Cooking tables Type of food Function Preheating Level (from the Temperature Cooking time bottom) (°C) (min) SWEETS, PASTRY, ETC Leavened cakes 160-180 30-90 160-180 30-90 Filled pies 160-200 30-85 (cheesecake, 160-200 35-90 strudel, fruit pie) Biscuits/tartlets 170-180 15-45 160-170 20-45 Choux buns 180-200 30-40 180-190 35-45 Meringues 1 10-150...
  • Page 12 ENGLISH Type of food Function Preheating Level (from the Temperature Cooking time bottom) (°C) (min) MEAT Lamb/Veal/Beef/ 190-200 70-100 Pork 1Kg Chicken/Rabbit/ 200-230 50-100 Duck 1Kg Turkey/Goose 190-200 80-130 FISH Baked fish/en 180-200 40-60 papillote (fillet, whole) VEGETABLES Stuffed vegetables 180-200 50-60 (tomatoes, courgettes, aubergines) Cooking table with GRILL function Type of food Function Preheating...

  • Page 13: Cleaning And Maintenance

    ENGLISH Cleaning and maintenance CLEANING Accessories • Soak the accessories in water with WARNING! washing up detergent immediately after Never use steam cleaning equipment. use, handling them with oven gloves if Only clean the oven when it is cool to still hot. the touch.
  • Page 14 ENGLISH 3. Close the door as far as it will go (A), lift To refit the door it up (B) and turn it (C) until it is released 1. Insert the hinges in their seats. (D) (Fig. 2, 3, 4). 2. Open the door fully. 3.

  • Page 15: What To Do If

    The lamp used in the appliance is specifically designed for electrical appliances and it is not suitable for household room illumination (Commission Regulation (EC) No 244/2009). Lamps are available from IKEA Authorized Service Centre. What to do if ... Problem Possible cause Solution The oven does not work.

  • Page 16: Technical Data

    ENGLISH Technical data According to EU 66/2014. Type of product: Built-in Electrical Oven Model identification: REALISTISK 40322046, TJÄNLIG 70322059, TJÄNLIG 50322060 Number of cavities Heat source Electrical Number of functions Usable volume. Measured with any side grids and catalytic panels removed l 65 Area of the largest baking sheet cm 1200 Energy Efficiency Class (Lowest Consumption)

  • Page 17: Installation

    ENGLISH Technical data The technical informations are situated in the rating plate inside the appliance. Installation After unpacking the oven, make sure that Do not remove the rating plate situated it has not been damaged during transport on the right side of the door frame. and that the oven door closes properly.
  • Page 18 ENGLISH Door lock device To open the door with the door lock device see Fig 1. Fig. 1 The door safety device can be removed by following the sequence of images (see Fig. 2). Fig. 2...

  • Page 19: Electrical Connection

    1,5 mm ) must be carried out by a qualified the mains voltage. The rating plate is on electrician. Contact IKEA Authorized Service the front edge of the oven (visible when the Centre. door is open).

  • Page 20: Environmental Concerns

    ENGLISH Environmental concerns Disposal of packing material Energy saving tips The packing material is 100% recyclable Only pre-heat the oven if specified in and is marked with the recycle the cooking table or your recipe. symbol ( ). The various parts of the Use dark lacquered or enamelled packing must therefore be disposed of baking moulds as they absorb heat far responsibly and in full compliance with...

  • Page 21: Ikea Guarantee

    The range of appliances named LAGAN . faulty construction or material faults from Who will execute the service? the date of purchase from IKEA. IKEA has appointed Whirlpool (Australia) This guarantee applies to domestic use only. Pty Ltd as the authorised service network...
  • Page 22 Transportation damages. If a customer supply voltage via connection to Supply transports the product to his home or Authority mains or alternative supply another address, IKEA is not liable for systems. any damage that may occur during • Consumable parts including batteries transport.
  • Page 23 To make a claim under the guarantee article number (8 digit code) and 12 digit contact IKEA Authorized Service Centre service number placed on the rating plate at the above address, the IKEA catalogue of your appliance. or refer to www.ikea.com.au for your local store customer service phone number, online email and opening times. Please describe...
  • Page 24 400010808443 © Inter IKEA Systems B.V. 2015 19069 AA-1755528-1...
