Express Ethernet Switch
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
CUSTOMER
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
SUPPORT
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
INFORMATION
Web site: www.blackbox.com • E-mail: info@blackbox.com
LB9007A-SC-R3
October, 2003
Advertisement
Table of Contents
Related Manuals for Black Box LB9007A-SC-R3
Summary of Contents for Black Box LB9007A-SC-R3
- Page 1 Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX CUSTOMER FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 SUPPORT Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 INFORMATION Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 Express Ethernet Switch LB9007A-SC-R3 FEDERAL COMMUNICATIONS COMMISSION AND CANADIAN DEPARTMENT OF COMMUNICATIONS RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
- Page 3 Express Ethernet Switch LB9007A-SC-R3 11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se indique en el aparato. 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.
-
Page 4: About This Manual
Express Ethernet Switch LB9007A-SC-R3 About This Manual This manual describes the Black Box Express Ethernet Switch LB9007A-SC-R3 in these basic sections: • Product Features • Installation Product Features This section examines the key features, the physical features, and the product specifications of each model. -
Page 5: Table Of Contents
Express Ethernet Switch LB9007A-SC-R3 Table of Contents About This Manual ..................4 Packing List ....................6 Introduction....................6 Product Features .........................6 Front Panel .........................7 LEDs...........................7 Installation .....................8 Selecting a Site for the Switch....................8 Connecting to Your Network .....................8 Specifications ....................9... -
Page 6: Packing List
One AC power cord Introduction Designed in reliable metal case, LB9007A-SC-R3 is a compact size Fast Ethernet switch that has 7 ports 10/100Base-TX plus 1 port FX with multi-mode SC connector. It is the internal power supply version of LB8418A. -
Page 7: Front Panel

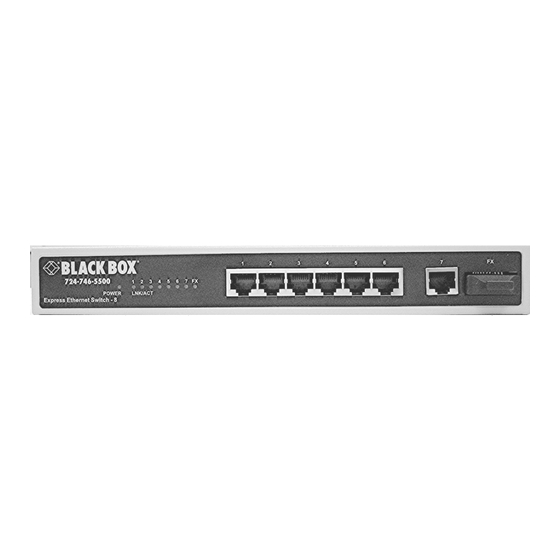

Express Ethernet Switch LB9007A-SC-R3 Front Panel The front panel of LB9007A-SC-R3 has eight ports and an array of LED indicators to provide you with instant feedback on the status of the switch. LEDs The array of LED indicators on the front panel conveys status and configuration information to help you monitor and troubleshoot the switch. -
Page 8: Installation
Express Ethernet Switch LB9007A-SC-R3 Installation Selecting a Site for the Switch As with any electronic device, you should place the switch where it will not be subject to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: •... -
Page 9: Specifications
Express Ethernet Switch LB9007A-SC-R3 Specifications Applicable Standards IEEE 802.3, 10BaseT, IEEE 802.3u, 100BaseTX/FX LED Indicators Per unit – Power Status Per Port – LNK/ACT Cable 10BaseT 2-pair UTP/STP Cat. 3,4,5, up to 100m 100BaseTX 2-pair UTP/STP Cat.5, up to 100m 100BaseFX 50 or 62.5/125µm Multi-mode fiber optic cable, up to 2km...
