Summary of Contents for Lionel NW2

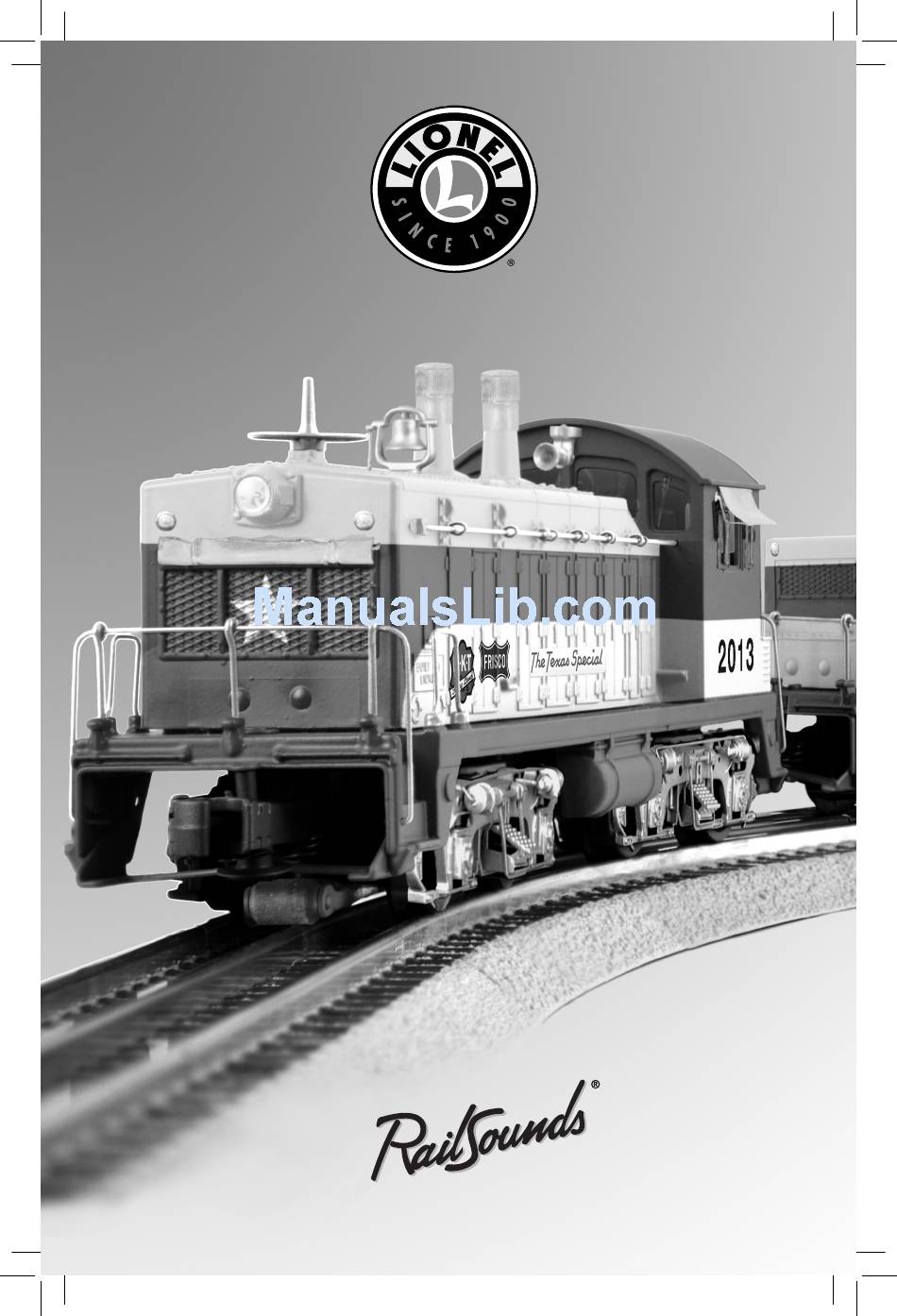

- Page 1 75-8526-250 7/13 Lionel Lionel NW2 Diesel Locomotive Set NW2 Diesel Locomotive Set Owner’s Manual Owner’s Manual FEATURING: Conventional...
- Page 2 Congratulations! ongratulations on your purchase of the NW2 Diesel Switcher locomotive set. On the outside, this locomotive set features numerous details and expert decoration. On the inside, this locomotive is equipped with some of the most advanced sounds and controls in model railroading.
-
Page 3: Table Of Contents
Table of contents Locomotive set operations Running your locomotive set with a Lionel transformer Locking your powered locomotive into forward direction only operation Using your locomotive set's magnetic couplers Sounding your powered locomotive's horn and bell Adding fluid to your powered locomotive's smoke generator... -
Page 4: Locomotive Set Operations
Do not power your locomotive with direct current (DC). Damage to Caution! sensitive electronic components may occur. PLACE YOUR TRAIN SET ON LIONEL OR LIONEL-COMPATIBLE O GAUGE TRACK. THROTTLE UP YOUR LOCOMOTIVE WITH YOUR TRANSFORMER. Your locomotive is designed to operate on 8-18 volts alternating current. -
Page 5: Locking Your Powered Locomotive Into Forward Direction Only Operation
Locomotive set operations Locking your locomotive into forward direction only operation hen the electronic E-unit Direction Lock switch is in the RUN position, your locomotive sequences through a repeating pattern of operations: forward, neutral, reverse, neutral, and so on. To lock your locomotive into forward-only operation, you can deactivate the electronic E-unit’s sequencing function. -
Page 6: Using Your Locomotive Set's Magnetic Couplers
Locomotive set operations Using your locomotive set’s magnetic couplers oth NW2 switcher locomotives are equipped with operating magnetic knuckle couplers, a revolutionary design first introduced by Lionel in 1945. Lionel magnetic couplers react to the magnetic field generated by a Lionel Remote-Control Track section (available separately, 6-65149 or 6-12746 for O-27 gauge;... -
Page 7: Sounding Your Powered Locomotive's Horn And Bell
To adjust the volume of the horn and bell sounds, use the powered NW2 Switcher's volume control knob. See Figure 1 on page 5 for the location of the Volume Control Knob. To deactivate the electronic horn and bell sounds, slide the HORN/BELL switch to the NO... -
Page 8: Adding Fluid To Your Powered Locomotive's Smoke Generator
NO SMK position. Refer to Figure 1 on page 5 for the location of the switch. Note! For best performance, we recommend using Lionel smoke fluid only. Add smoke fluid here (no more than 10 to 20 drops) -
Page 9: Railsounds Operations
RailSounds operations Experiencing the conventional RailSounds sound system hen you first power up your powered locomotive, you will hear the sounds of the locomotive at rest. As the locomotive moves, the RPM sounds automatically increase with the locomo- tive’s speed. The horn and bell sounds are activated by your transformer controls, if so equipped. To adjust the volume, use the volume control knob. -
Page 10: Maintaining And Servicing Your Locomotive Set
Maintaining and servicing your locomotive set Lubricating your locomotive set elp your Lionel locomotive set lead a long and productive life on your railroad by maintaining it properly. To keep your locomotive set lubricated, we recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your authorized Lionel dealer or service station. -
Page 11: Servicing The Leds In Your Locomotive Set
LEDs that are expected to last for the life of the locomotives. The LEDs are not user serviceable. If service is required, we recommend that you have your locomotive serviced at a Lionel Factory Trained Authorized Service Station. Replacing the traction tires on the powered unit our powered locomotive is equipped with traction tires (Lionel part no. -
Page 12: Lionel Limited Warranty Policy & Service
(or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
