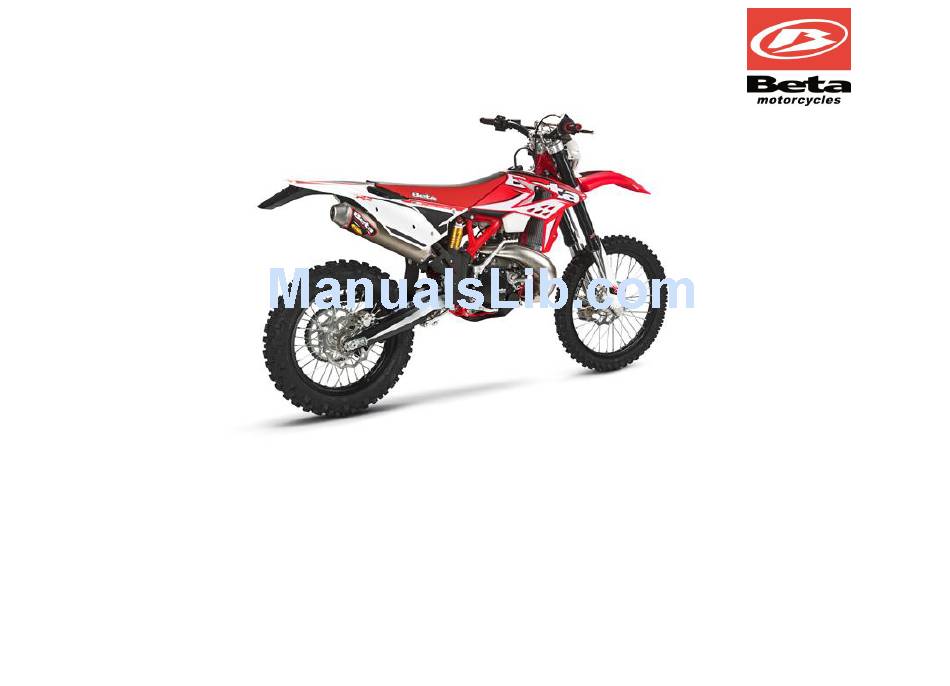

- Page 1 2013-2014 250-300 RR Set Up Instructions 8/2013...
- Page 2 4) Remove additional items 1) Remove card board from the box supplied. Item from crate. Remove bag list is as follows: with bolts and upper -Headlight assembly handle bar clamp taped -Skid plate to the protective -Frame guards covering over the seat. -Tool kit Remove all items from -Battery Strap...
- Page 3 7) Attach the computer using 10) Install the headlight mask the bolts located on the top bottom by inserting the lower triple clamp. Torque to 10nm. tab into slot located in the front fender brace. 8) Insert all the electrical 11) Finish by securing the connectors into the matching rubber straps located on the...
- Page 4 13) Enlarge the front and rear 16) Install the rubber buffers skid plate holes using a by peeling off the backing and 23/64 drill bit. sticking the 50mm section to the left side edge and the remaining piece to the right edge as shown.
- Page 5 20) Holding the Battery, 23) Congratulations! peel the adhesive You have just set up a sticker from the top. new Beta! Follow the checklist on the customer’s warranty registration card for a complete pre-delivery inspection before delivery.
