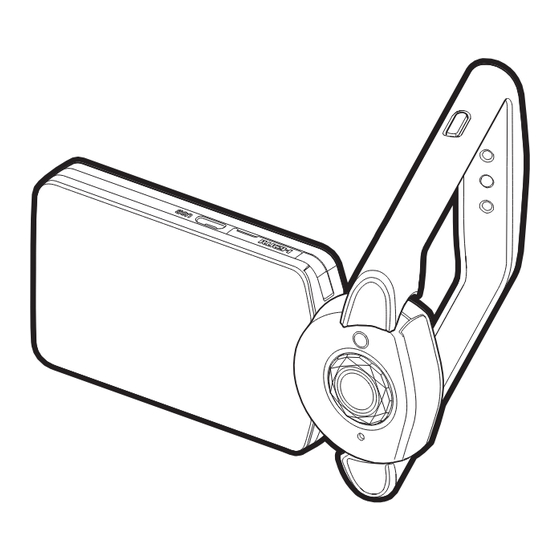

Digital Camera User’s Guide Thank you for purchasing this CASIO product. • Before using it, be sure to read the precautions contained in this User’s Guide. • Keep the User’s Guide in a safe place for future reference. • For the most up-to-date information about this product, visit the official EXILIM...
Accessories As you unpack your camera, check to make sure that all accessories shown below are included. If anything is missing, contact your original retailer. Rechargeable lithium ion USB-AC adaptor Power cord battery (NP-150) (AD-C53U) Micro USB cable Basic Reference The shape of the power cord plug varies according to the country or geographic area where the camera is sold.
CASIO COMPUTER CO., LTD. is forbidden under copyright laws. • CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost profits suffered by you or any third party due to the use or malfunction of this product.
Quick Start Basics What you can do with your CASIO camera ......12 Changing the Camera Style to Suit Shooting Conditions ....14 Opening and Closing the Frame .
Page 5
Using BEST SHOT Shooting with Triple Shot ......... 54 Using Motion Shutter to Trigger a Self-timer Operation .
Page 6
Connecting the Camera with a Smartphone (Wireless Connection) Controlling Your Camera with a Smartphone ......84 Using a Wireless Mode .
Page 7
Other Settings (Set Up) 107 Adjusting Monitor Screen Brightness ..... .(Screen) . 107 Selecting Display Information ......(Info) . 107 Locking the Screen .
Monitor Screen Contents and How to Change Them The monitor screen uses various indicators, icons, and values to keep you informed of the camera’s status. • The sample screens in this section are intended to show you the locations of all the indicators and figures that can appear on the monitor screen in various modes.
. Movie Recording Movie quality (pages 49, 63) Recording time switch icon (page 50) Movie remaining time icon (page 50) Remaining movie memory capacity/ Movie recording time (pages 50, 145) “ ” Movie stop icon (pages 34, 50) NOTE • If you do not perform any operation for about three seconds during snapshot recording or movie recording, icons will become transparent.
Quick Start Basics What you can do with your CASIO camera Your CASIO camera is packed with a powerful selection of features and functions to make recording of digital images easier, including the following main functions. Shooting better looking portraits...
Page 13
Art Shot A variety of artistic effects help to make even common, ordinary subjects become more novel and exciting. *See page for more information. Paint Draw figures, write text, or stamp information into a recorded snapshot. *See page for more information. Wireless Connection Turns your smartphone into a camera remote controller and allows you to send images recorded with...
Changing the Camera Style to Suit Shooting Conditions You can change the configuration of the camera by opening or closing the frame and rotating the monitor screen panel to suit shooting conditions. IMPORTANT! • Do not apply strong pressure to the surface of the monitor screen. Doing so can damage it.
Rotating the Monitor Screen Use the steps below to rotate the monitor screen. NOTE • While holding the monitor screen panel as shown in the illustration, you can rotate it 180 degrees clockwise and 90 degrees counterclockwise. • The monitor screen panel can also be rotated when the frame is closed. Hold the camera as shown in the illustration.
Camera Configurations You can open the frame and rotate the monitor screen for a variety of different styles. Normal Shooting Movie Recording Shoot with the monitor screen facing the Open the frame 90 degrees and hold the opposite direction of the lens. frame.
NOTE • When shooting hold the camera still. Carefully press the shutter button and take care to avoid all movement as the shutter releases and for a few moments after it releases. • Take care that your fingers and the strap do not cover LED light any of the areas indicated in the illustration.
Page 18
Drag Holding your finger against the screen as you drag it up, down, left, or right. Use drag to move a screen image to a different location, and to scroll between images. Spread Holding your thumb and forefinger against the screen as you spread them out.
Note that the battery of a newly purchased camera is not charged. Perform the steps below to load the battery into the camera and charge it. • Your camera requires a special CASIO rechargeable lithium ion battery (NP-150) for power. Never try to use any other type of battery.
Page 20
Load the battery. Battery With the CASIO logo on the battery upwards, load the battery into the camera as shown in the illustration. CASIO logo Close the cover. • Positioning the cover about two millimeters from the lens unit, keep it parallel with the camera as...
Charge the Battery You can use either of the two following methods to charge the battery. Before charging the battery, use the procedure under “Opening and Closing the Frame” (page 14) to open the frame. • USB-AC adaptor • USB connection to a computer .
Page 22
IMPORTANT! • A battery that has not been used for a long time, or ambient temperature extremes can cause charging to take longer than normal. If charging takes longer than about five hours, a timer will terminate it automatically, even if the battery is not fully charged.
Page 23
USB Cable Connection Precautions • When connecting the USB cable to the camera, make sure that the cable connector and monitor screen panel are oriented correctly as shown in the illustration below. Make sure that the u mark side of the USB cable connector and the front of the monitor screen panel (the side opposite that Front of monitor screen...
Page 24
. To charge using a USB connection to a computer USB connection lets you charge the battery while it is loaded in the camera. While the camera is turned off, connect in the sequence shown below ( Computer [USB] port (power turned on) USB port Micro USB cable...
Page 25
Back Lamp Operation Back lamp Lamp Status Description Lit Red, Charging (Lit/Flashing Amber) Abnormal ambient temperature, Flashing Red charging taking abnormally long, or battery problem (page 135) Off, (Lit Green) Charging complete • The information in parentheses in the above table shows the lamp status while the camera is turned on during charging.
Checking the Current Battery Level As battery power is consumed, a battery indicator on the monitor screen indicates its current level as shown below. Remaining Power High Battery Indicator Indicator Color White * White indicates battery power is low. Charge the battery as soon as possible. Recording is not possible when is indicated.
Page 27
Press [p] (Power) to turn on the camera. Drag (page 18) upwards and downwards until you find the language you want, and then touch to select it. Touch the date display format you want. Example: July 10, 2016 [p] (Power) YY/MM/DD 16/7/10 DD/MM/YY...
Preparing a Memory Card Though the camera has built-in memory that can be used to store images and movies, you probably will want to purchase a commercially available memory card for greater capacity. The camera does not come with a memory card. Images recorded while a memory card is loaded are saved to the memory card.
• Never insert anything besides a supported memory card (page 28) into the memory card slot. • Should water or any foreign object ever get into the card slot, immediately turn off the camera, and contact your retailer or nearest CASIO authorized service center. Quick Start Basics...
. To replace the memory card Press the memory card and then release it. This will cause it to pop out of the memory card slot slightly. Pull the card out the rest of the way and then insert another one. •...
Turning Power On and Off . To turn on the camera Back lamp Press [p] (Power). This will turn on the camera, which is indicated when the back lamp lights green, and enter the REC mode. Entering the REC Mode and PLAY Mode In the REC mode, touch “...
To Shoot a Snapshot Your camera has a variety of different recording modes to suit various shooting conditions and objectives (page 40). This section explains general shooting procedures using the auto recording mode. Selecting an Auto Recording Mode You can select one of two auto recording modes (Auto or Premium Auto Pro) according to your digital imaging needs.
To shoot a snapshot Point the camera at the subject. If you are using Premium Auto Pro, text will appear on the monitor screen describing the type of shot the camera has detected. • Spread your fingers apart on the screen to change the zoom factor (page 47).
Page 34
Continuing to keep the camera still, Full-press press the shutter button the rest of the way down. This records the snapshot. Snap (Image is recorded.) Recording a Movie Touch “ ” (Movie) to start movie recording. Touch “ ” (Movie Stop) to stop recording. See page 49 for details.
. Shooting with Premium Auto Pro • Some menu items are not available while Premium Auto Pro is in use (page 58). Only the menu items whose settings can be configured will be displayed on the menus while Premium Auto Pro is in use. •...
Drag left or right across the screen image to scroll through the snapshots. NOTE • Pressing the shutter button while in the PLAY mode or while a menu screen is displayed will switch directly to the REC mode. • A question mark (?) will be displayed for images that cannot be displayed for some reason.
. To delete specific files Enter the PLAY mode. Touch “ ” (Show Icons). Touch “ ”. Touch “Delete Files”. This displays a file selection screen. Touch a file you want to delete. This will select the check box of the selected file’s image. After you are finished selecting files, touch “Delete”.
Snapshot Shooting Precautions Operation • If unwanted light is shining onto the lens, shade the lens with your hand when shooting an image. Monitor Screen when Shooting Snapshots • Subject brightness conditions can cause monitor screen response to slow and can cause digital noise in the monitor screen image.
Recording Images Touching the monitor screen in the REC mode will display a screen for configuring REC mode settings. . To configure REC mode settings Press [p] (Power) to turn on the camera and enter the REC mode. • If the camera is in the PLAY mode, touch “ ”...
Selecting a Recording Mode The camera has a variety of different recording modes. In the REC mode, touch the “ ” (Show Recording mode icon Icons). Touch the recording mode icon. Touch the icon of the recording mode you want to use.
Shooting with Posing Shot (Posing Shot) Posing Shot lets you shoot five successive snapshots, as the camera provides voice guidance. The result is a series of shots with different poses and expressions. In the REC mode, touch the “ ” (Show Icons). Touch the recording mode icon.
Shooting with Artistic Effects (Art Shot) A variety of artistic effects help to make even common, ordinary subjects become more novel and exciting. Scene Description Uses HDR (High Dynamic Range, page 56) to turn normal HDR Art images into works of art. Creates a mysterious effect by placing the image in a bubble Crystal Ball floating in midair.
Page 43
Touch the “ART” icon. The intensity of the selected effect can be adjusted as described below. Note, however, that the “Miniature” effect cannot be adjusted. Scene Adjustment HDR Art Effect level Crystal Ball Effect type Sparkling Shot Effect type Toy Camera Soft Focus Effect level Light Tone...
Shooting Three Versions of an Image with Different Skin Tone Settings (Make-up BKT) Make-up Bracketing (Make-up BKT) lets you shoot three versions of the same image with the press of the shutter button, each with a different Skin Tone setting. This helps you get the skin tone effect you want, even if you do not know exactly what settings to use.
Recording Beautiful Portraits (Make-up) Make-up enables adjustment of human skin tone hues and texture, and softening of facial shadows caused by harsh sunlight for better looking portraits. • Make-up can be used with the recording modes listed below. – Premium Auto Pro –...
Using the Camera as a Mirror You can use the procedure below to configure the camera so its monitor screen acts as a mirror. • Images cannot be recorded while in the Mirror Mode. Mirror Mode image data is not saved in camera memory. •...
Shooting with Zoom Your camera is equipped with various types of zoom: HD Zoom, SR Zoom, and digital zoom. The maximum zoom factor depends on the image size setting. Allows greater zoom capabilities by cutting out a portion of the HD Zoom original image and enlarging it, without deterioration of image quality.
. Zoom Factor • The image deterioration point depends on the image size (page 62). The smaller the image size, the higher the zoom factor you can use before reaching the image deterioration point. Undeteriorated Maximum Image Size Zoom Limit Zoom Factor 1.5X 4.0X...
To record a movie The following procedure explains how to record a movie. • You can record a movie while one of the following recording modes is selected. – Auto – Premium Auto Pro – Following BEST SHOT scene HS Night Scene, HS Night Scene Portrait, Food, Nails In the REC mode, touch “...
Page 50
Touch “ ” (Movie). Recording time/ Remaining recording time This will start recording. • Monaural audio is also recorded during movie recording while “Full HD” or “HD” is selected for the movie quality setting. • Touching “o” while recording is in progress will cause the remaining recording time and “R”...
Page 51
IMPORTANT! • Spending a long time using movie recording will cause the camera to become slightly warm to the touch. This is normal and does not indicate malfunction. The camera may automatically adjust its monitor screen brightness in order to reduce heat generation.
Using the LED Light (LED) Use the LED light when shooting where lighting is dim. The effectiveness of the LED light is reduced the further you are from the subject. In the REC mode, touch “ ” (Show Icons). Touch “ ”...
Using BEST SHOT BEST SHOT provides you with a collection of sample “scenes” that show a variety of different types of shooting conditions. When you need to change the setup of the camera, simply find the scene that matches what you are trying to achieve, and the camera sets up for it automatically.
Shooting with Triple Shot Triple Shot shoots a burst of three images and stores them in memory. This feature is great for making sure you don’t miss those special moments when kids are around. Select “Triple Shot” scene (page 53). Point the camera at the subject and then half-press the shutter button.
Using Motion Shutter to Trigger a Self-timer Operation (Motion Shutter) With Motion Shutter the camera automatically triggers a self- timer countdown whenever it detects subject movement within an icon you specify on the monitor screen. This means you can control operation of the self-timer from a distance by waving your hand, so you can include yourself in the image being shot.
Digitally Correcting for Overexposure and Underexposure (HDR) With HDR (High Dynamic Range), the camera shoots a series of CS images using different exposure settings and combines them into a final image to correct for overexposure or underexposure of subjects of different brightness levels. Select “HDR”...
Shooting with High Speed Night Scene and Portraits (HS Night Scene Portrait) Select “HS Night Scene Portrait” scene (page 53). When you are ready to shoot, press the shutter button. NOTE • With this BEST SHOT scene, the LED light setting automatically becomes “Auto”. •...
Advanced Recording Settings The following are menu operations you can use to configure various camera settings. Using the REC Menu . Example Menu Screen Operation In the REC mode, touch “ ” (Show Icons). Touch “MENU”. This will display the menu screen. •...
Using the Selfie Pad (Selfie Pad) Procedure Enter the REC Mode * MENU * Selfie Pad You can assign the REC Mode operations below to the Selfie Pad selfie pad on the outside edge of the frame. You can use the steps below to select the type of image you want to shoot.
Using Touch Shutter (Touch Shutter) Procedure Enter the REC Mode * MENU * Touch Shutter You can use the procedure below to shoot a snapshot. Touch “On”. Point the camera at the subject. When you want to shoot, touch the monitor screen. The camera automatically comes into focus and then shoots.
Using the Self-timer (Self-timer) Procedure Enter the REC Mode * MENU * Self-timer With the Self-timer, pressing the shutter button starts a timer. The shutter is released and the image is shot after a fixed amount of time. REC Screen Setting Description Icon Display...
Changing the Image Size (Image Size) Procedure Enter the REC Mode * MENU * Image Size This setting can be used to configure snapshot image size. Suggested Print Image Size REC Screen Size and Description (Pixels) Icon Display Application Good detail for better clarity even Poster Print for images cropped from the (4000...
Movie Image Quality Settings (Movie Quality) Procedure Enter the REC Mode * MENU * Movie Quality This setting can be used to configure movie image quality settings and to select either normal movie recording or High Speed Movie recording. For information about movie image quality settings, see page 49.
Adjusting White Balance (White Balance) Procedure Enter the REC Mode * MENU * White Balance You can adjust white balance to match the source of light available where you are shooting and avoid the blue cast that results when shooting outdoors when it is cloudy, and the green cast that results when shooting under fluorescent lighting.
Specifying ISO Sensitivity (ISO) Procedure Enter the REC Mode * MENU * ISO ISO sensitivity is a measure of sensitivity to light. Setting Description Auto Adjusts sensitivity automatically according to conditions Lower Slow shutter speed Less noise ISO 80 sensitivity ISO 100 ISO 200 ISO 400...
Selecting a Focus Mode (Focus) Procedure Enter the REC Mode * MENU * Focus Changing to a different focus mode can help to achieve better focus. Focus Mode Approximate Focus Range REC Screen Settings Type of Shot Icon Display Snapshot Movies Snapshot Movies...
Using Focus Lock Subject to be focused on “Focus lock” is a technique you can use when you want to compose an image in which the subject you want to focus on is not within the focus frame in the center of the screen.
Viewing Snapshots and Movies Viewing Snapshots See page 35 for the procedure for viewing snapshots. Viewing a Movie Touch “ ” (PLAY) to enter the PLAY mode. Image quality Drag left or right across the screen image to scroll through the movies until the one you want is displayed.
Page 69
Movie Playback Controls Pause/Play Touch “|” (pause) or “6” (play). During playback, touch “ ” (fast reverse) or “ ” (fast forward). Fast forward/ • Each touch of either button increases the speed of the Fast reverse fast forward or fast reverse operation. •...
Editing a Movie on the Camera (Movie Editing) The Movie Editing feature lets you cut out a specific part of a movie. Enter the PLAY mode and then start playback of the movie you want to edit. When playback reaches the location where you want to cut, touch “ ”...
Viewing the Image Menu The image menu shows multiple images on a single screen. In the PLAY mode, touch “ ” or squeeze your fingers on the screen. This displays the image menu. • Drag upwards or downwards to scroll to the next page of images.
Viewing Snapshots and Movies on a TV Screen Use a commercially available HDMI cable to connect the camera to the TV. • Use a commercially available HDMI cable that is marked with the logo shown to the right. Open the frame (page 14). [HDMI] cover Hook your nail into the groove of the [HDMI] cover and pull the cover in the...
Page 73
Turn on the camera. The camera monitor screen will shows a remote controller image. The TV screen will show a recorded image. • The contents of the remote controller image will depend on the type of image that is displayed on the TV screen. Touch the camera monitor screen to perform operations.
Other Playback Functions (PLAY) The following are menu operations you can use to configure various camera settings. Using the PLAY Menu . Example Menu Screen Operation In the PLAY mode, touch “ ” (Show Icons). Touch “MENU”. This will display the menu screen. •...
Using the Selfie Pad (Selfie Pad) Procedure Enter the PLAY Mode * MENU * Selfie Pad You can assign the PLAY Mode operations below to the Selfie Pad selfie pad on the outside edge of the frame. When viewing images, sliding the Scroll selfie pad scrolls forward or back.
Page 76
Repeat steps 1 and 2 to select a total of five snapshots. • The snapshots will appear in the Promotion Movie in the same sequence that you select them. • Touch a selected snapshot will de-select it. Touch “OK”. Touch “Length”, “Transition”, and “Music”, and configure settings for each item as required.
Performing Paint Operations on an Image (Paint) Procedure Enter the PLAY Mode * Display snapshot * MENU * Paint You can use this function to draw on, write on, or stamp information into a recorded snapshot. If the original image size is 3M or larger, the post-paint image is saved as a 3M size image.
Playing a Slideshow on the Camera (Slideshow) Procedure Enter the PLAY Mode * MENU * Slideshow You can use the slideshow mode to automatically scroll through all of the images in camera memory. NOTE • All operations are disabled while the slideshow is transitioning from one image to another.
Page 79
Touch “OK”. This will cause the background of the subject you outlined to become gray. Touch “ ” to select the area to be extracted and then touch “OK”. This will display the cut out subject. • To scroll back one screen, touch the “ ”...
Inserting a Subject into another Snapshot or Adding a Built-in Frame to a Snapshot (Paste subject) Procedure Enter the PLAY Mode * MENU * Paste subject You can add the camera’s built-in characters or frames to snapshots, or you can insert characters you create with “Cut out subject”...
Protecting a File Against Deletion (Protect) Procedure Enter the PLAY Mode * MENU * Protect You can protect images to prevent them from being deleted. • A protected image will be indicated by “›”. All Files On Protects all files. All Files Off Unprotects all files.
Rotating an Image (Rotation) Procedure Enter the PLAY Mode * MENU * Rotation Drag upwards or downwards to display the image you want to rotate. Touch “ ”. This will rotate the image 90 degrees to the left. When the image is in the orientation you want, touch “ ”.
Cropping a Snapshot (Trimming) Procedure Enter the PLAY Mode * MENU * Trimming You can crop a snapshot to trim parts you do not need, and save the result in a separate file. The original snapshot is also retained. Drag left or right to display the image you want to crop. Touch “OK”.
Connecting the Camera with a Smartphone (Wireless Connection) Controlling Your Camera with a Smartphone Your camera has both Bluetooth wireless technology and wireless LAN capabilities built in. After establishing a wireless connection with a smartphone, you can perform the operations described in the table below. Requires installation of the EXILIM Connect app on your smartphone.
Page 85
With this function: You can do this: View on phone View snapshots stored in camera memory on a smartphone, and copy snapshots and movies to a smartphone for viewing. You can also view snapshots and movies in camera memory on a computer, and copy them to a computer (page 92).
• Note that to view the EXILIM Connect User’s Guide, you will have to install Adobe Reader. Consult CASIO authorized service center if you are unable to open to display the PDF format User’s Guide. • Note that EXILIM Connect User’s Guides may not be available in all languages. If you cannot find a EXILIM Connect User’s Guide in your native language, please...
. Wireless Connection Icons After you configure camera and smartphone connection settings, the icons below will appear on the camera screen to indicate the current communication status. Semi- Pairing is complete, but there is no Bluetooth wireless transparent technology connection. Pairing is complete, and there is a Bluetooth wireless Opaque technology connection.
Installing the EXILIM Connect App on Your Smartphone . Android terminal Open “Google Play”. In the search field, type “EXILIM Connect”. Install EXILIM Connect. . iPhone (iOS) Open “App Store”. In the search field, type “EXILIM Connect”. Install EXILIM Connect. Connecting the Camera with a Smartphone (Wireless Connection)
Establishing a Wireless Connection for the First Time The first time you establish a wireless connection between the camera and a smartphone, you need to use the procedure below to configure wireless connection settings. This operation is required for the first connection only. .
Page 90
NOTE • After the camera is paired, Bluetooth wireless technology operation will consume battery power even when the camera it turned off. Because of this, it is recommended that you charge the camera’s battery before you plan to use it. •...
Using a Smartphone as a Camera Remote Controller (Shoot with phone) This function lets you remotely shoot a snapshot or movie with the camera using a smartphone. You also can perform remote zoom, self-timer, and other operations as well. Touch the “ ”...
Viewing Snapshots and Movies in Camera Memory on a Smartphone (View on phone) You can connect the camera to a smartphone over wireless LAN to view and download snapshots and movies in camera memory on up to eight connected smartphones. You can also view snapshots and movies in camera memory on a computer, and copy them to a computer.
Configuring Wireless Connection Settings This section explains wireless mode operations and setting items. Touch the “ ” (Wireless) icon. This will display the wireless mode screen. • Pressing the shutter button will return to the screen that was displayed before the wireless mode screen.
Sending Images from the Camera to a Smartphone as They are Recorded (Auto Send) Procedure “ ” (Wireless) * Wireless settings * Auto Send While “On” is selected for this setting, images are automatically sent to the paired smartphone as they are shot. If there is no wireless connection between the camera and smartphone when the images are shot, they will be sent as soon as a connection is established.
Specifying Images to be Sent by Auto Send (Auto Send File Settings) Procedure “ ” (Wireless) * Wireless settings * Auto Send File Settings Specifies the files to be sent to a smartphone by Auto Send. Snapshots and movies are sent. T »...
When the password is the way you want, touch “OK”. NOTE • Changing the wireless LAN password will terminate the connection with the smartphone. To reconnect with the smartphone, configure wireless connection settings (page 89). If your smartphone does not support Bluetooth low energy, perform the operations below to change your smartphone’s Wi-Fi settings.
Printing Professional Print Service You can take a memory card that contains the images you want to print to a professional print service and have them printed. Printing on a Home Printer You can use a printer equipped with a memory card slot to print images directly from a memory card.
Using the Camera with a Computer Things you can do using a computer... You can perform the operations described below while the camera is connected to a computer. Save images to a • Save images and view them manually computer and (USB connection) (pages 99, 102).
Viewing and Storing Images on a Computer You can connect the camera to your computer in order to view and store images (snapshot and movie files). Never use your computer to modify, delete, move, or rename any image files that are in the camera’s built-in memory or on its memory card. Doing so can cause problems with the camera’s image management data, which will make it impossible to play back images on the camera and can drastically alter remaining memory capacity.
Page 100
Double-click “Removable Disk”. • Your computer recognizes the memory card loaded in the camera (or built-in memory if there is no card) as a removable disk. Right-click the “DCIM” folder. On the shortcut menu that appears, click “Copy”. Windows 8.1, Windows 8 users: Click “Documents”. Windows 7, Windows Vista users: Click “Start”...
Playing Movies To play back a movie, first copy it to your computer and then double-click the movie file. Some operating systems may not be able to play back movies. If this happens, you need to install separately available software. •...
Using the Camera with a Macintosh When you want to do Operating System Required Software: this: Version page: Save images to your Macintosh and view OS X Installation not required. them there manually Save images to your iPhoto, which comes Macintosh OS X bundled with some...
Page 103
. To connect the camera to your computer and save files Turn off the camera and then [USB] port use the micro USB cable that comes with the camera to connect it to your Macintosh. • For details about connecting to the camera and precautions when connecting, see page 24.
. To view copied images Double-click the camera’s drive icon. Double-click the “DCIM” folder to open it. Double-click the folder that contains the images you want to view. Double-click the image file you want to view. • For information about file names, see “Memory Folder Structure” on page 106. •...
Files and Folders The camera creates a file each time you shoot a snapshot, record a movie, or perform any other operation that stores data. Files are grouped by storing them in folders. Each file and folder has its own unique name. •...
File System (DCF). . About DCF The following operations are supported for DCF-compliant images. Note, however, that CASIO makes no performance guarantees concerning these operations. • Transferring this camera’s DCF-compliant images to another manufacturer’s camera and view them. • Printing this camera’s DCF-compliant images on another manufacturer’s printer.
Other Settings (Set Up) This section explains menu items that you can use to configure settings and perform other operations in both the REC mode and PLAY mode. For information about menu operations, see page 58. Adjusting Monitor Screen Brightness (Screen) Procedure MENU * Setup * Screen You can use the following procedure to change the brightness of the monitor screen.
Locking the Screen (Screen Lock) Procedure MENU * Setup * Screen Lock Normally, the arrangement of icons and the images displayed on the camera monitor screen change automatically in accordance with the camera’s orientation. Selecting “On” for the “Screen Lock” setting will lock the screen so its contents do not readjust to match the camera orientation.
Time Stamping Snapshots (Timestamp) Procedure MENU * Setup * Timestamp You can configure the camera to stamp the recording date only, or date and time in the lower right corner of each snapshot. • Once date and time information is stamped into a snapshot, it cannot be edited or deleted.
Configuring World Time Settings (World Time) Procedure MENU * Setup * World Time Setting a Travel Destination You can use the World Time screen to view the current time in a zone that is different from your Home City when you go on a trip, etc. World Time displays the current time in 162 cities in 32 time zones around the globe.
Setting the Camera’s Clock (Adjust) Procedure MENU * Setup * Adjust Touch the value you want to change (year, month, day, hour, minute). Touch “ ” or “ ” to change the currently selected value. • You can specify a date from 2001 to 2049. •...
Specifying the Display Language (Language) Procedure MENU * Setup * Language . Specify the display language you want. On the menu screen, touch “Setup”. Touch “Language”. Drag upwards and downwards until you find the language you want, and then touch to select it. •...
Displaying a Startup Screen at Power On (Startup) Procedure MENU * Setup * Startup Selecting “On” for Startup causes a built-in startup screen to appear on the monitor screen whenever the camera is turned on. Formatting Built-in Memory or a Memory Card (Format) Procedure MENU * Setup * Format If a memory card is loaded in the camera, this operation will format the memory card.
Checking the Current Camera Firmware Version (Version) Procedure MENU * Setup * Version Selecting this menu item displays the camera model name, the version of firmware installed on the camera, and the camera’s MAC address. • Note that the MAC address is fixed number that functions as the camera’s network device identifier.
• The battery is intended for use with a CASIO Digital Camera only. Use with any other device creates the risk of the battery damage, or deterioration of battery performance and service life.
Page 116
DANGER • Failure to observe any of the following precautions creates the risk of battery overheating, fire, and explosion. – Never use or leave the battery near open flame. – Do not expose the battery to heat or fire. – Make sure the battery is oriented correctly when charging it. –...
Page 117
Also, remove the battery from the camera, taking care to protect yourself against burn injury. 3. Contact your retailer or nearest CASIO authorized service center. . Keep Away From Fire • Never expose the camera to fire, which can cause it to explode and creates the risk of fire and personal injury.
Page 118
Also, remove the battery from the camera, taking care to protect yourself against burn injury. 3. Contact your retailer or nearest CASIO authorized service center. . Disassembly and Modification • Never try to take it apart or modify it in any way. Doing so creates the risk of electric shock, burn injury, and other personal injury.
Also, remove the battery from the camera, taking care to protect yourself against burn injury. 3. Contact your retailer or nearest CASIO authorized service center. . Memory Cards • Memory cards are small and present a risk of accidentally being swallowed by infants and young children.
Page 120
Grasp the power plug and pull. . Rechargeable Battery • If battery charging does not end normally within the specified charging time, stop charging anyway and contact your local CASIO authorized service center. Continued charging creates the risk of battery overheating, fire, and explosion.
CAUTION . Locations To Be Avoided • Never leave the camera in any of the following types of locations. Doing so creates the risk of fire and electric shock. – Areas subject to large amounts of humidity or dust – Food preparation areas or other locations where oil smoke is present –...
Precautions During Use . Data Error Precautions Your digital camera is manufactured using precision digital components. Any of the following creates the risk of corruption of data in camera memory. – Removing the battery or memory card while the camera is performing some operation –...
. Lens • Never apply too much force when cleaning the surface of the lens. Doing so can scratch the lens surface and cause malfunction. • You may sometimes notice some distortion in certain types of images, such as a slight bend in lines that should be straight.
Page 124
Use of this camera in a country or area other than where it was originally purchased runs the risk of being in violation of local radio laws and other laws. Note that CASIO COMPUTER CO., LTD. shall not be held in any way liable for any such violations.
Page 125
Note that CASIO COMPUTER CO., LTD. shall not be held liable for use of this product in any way that infringes on the copyrights of others or that violates copyright laws.
Page 126
. Open Source Software This product includes software that is licensed under the license conditions below. OpenVG 1.1 Reference Implementation Copyright (c) 2007 The Khronos Group Inc. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and /or associated documentation files (the "Materials "), to deal in the Materials without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Materials,...
Page 127
and distribution as defined by Sections 1 through 9 of this document. "Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License. "Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity.
Page 128
"Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work. 2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the...
Page 129
within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License.
Page 130
9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability...
Page 131
See the License for the specific language governing permissions and limitations under the License. Apache License Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION 1. Definitions. "License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document.
Page 132
to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems,...
Page 133
attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and (d) If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one...
Page 134
8. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the...
If problems persist after you perform the above steps or if the battery fails to charge after 5 hours, it could mean that the battery is faulty. Contact your nearest CASIO authorized service center. Appendix...
Battery Precautions . Precautions during Use • Operation provided by a battery under cold conditions is always less than operation under normal temperatures. This is due to the characteristics of the battery, not the camera. • Charge the battery in an area where the temperature is within the range of 15°C to 35°C (59°F to 95°F).
Using a Memory Card See page 28 for information about supported memory cards and how to load a memory card. . Using a Memory Card • If a memory card starts to behave abnormally during image playback, you can restore normal operation by reformatting it (page 113). However, it is recommended that you always take along multiple memory cards whenever using the camera far away from the home or office.
Reset Initial Default Settings The tables in this section show the initial default settings on menus that appear in the REC mode and PLAY mode when you reset the camera (page 113). • A dash (–) indicates an item whose setting is not reset or an item for which there is no reset setting.
. Setup Menu Screen Auto World Time – Info Adjust – Screen Lock Date Style – Startup: On / Language – Half Shutter: On / HDMI Auto Shutter: On / Startup Sounds Operation: On / Operation Vol: 3 / Format –...
2)The camera battery may be dead. Charge the battery (page 19). If the battery goes dead soon after being charged, it means the battery has reached the end of its life and needs to be replaced. Purchase a separately available CASIO NP-150 rechargeable lithium ion battery. The camera...
Page 141
Problem Possible Cause and Recommended Action The subject is out of The image may not be focused properly. When composing the focus in the image, make sure the subject is located inside the focus frame. recorded image. The LED light does 1)If the battery is dead, charge it (page 19).
Page 142
Problem Possible Cause and Recommended Action The image is out of 1)Focusing may not be possible because the subject is outside focus during movie the focus range. Shoot within the allowable range. recording. 2)The lens may be dirty. Clean the lens (page 123). 3)During High Speed Movie recording, focus is fixed at the position where it was when recording started.
Page 143
If the same message appears after you turn power back on, contact your retailer or a CASIO authorized service center. There are various The monitor screen shows indicators and other information indicators and about shooting conditions and the image you are recording.
24 hours, it could mean that the camera’s setting memory is defective. Contact your retailer or a CASIO authorized service center. Buttons are not With large capacity memory cards there is a delay after the...
Memory is full with images you recorded and/or files saved Memory Full by editing operations. Delete files you no longer need (page 36). Image compression could not be performed for some reason Record Error during image data storage. Shoot the image again. There are no files.
Page 146
Built-in memory capacity after formatting (Approx. 49.9MB) When using a 16GB microSDHC memory card (SanDisk Corporation). Number of image and recording time values depend on the memory card you are using. Values when shooting a square image size. The allowable recording time will be shorter if the capacity of the microSD memory card you are using is smaller than the maximum size of one file.
Specifications File Format Snapshots: JPEG (Exif Version 2.3; DCF 2.0 standard) Movies: MOV format, H.264/AVC standard, IMA-ADPCM (monaural) Recording Media Built-in Memory (Image Storage Area: 49.9MB*) microSD/microSDHC/microSDXC * Built-in memory capacity after formatting Recorded Image Sizes Snapshots: 12M (4000 3000), 3M (2048 1536) 8M (2976 2976)*, 2M (1536...
Page 148
White Balance Auto, Daylight, Overcast, Shade, Daywhite Fluorescent, Daylight Fluorescent, Tungsten, Manual WB Sensitivity Snapshots: (Standard Output Auto, ISO 80, ISO 100, ISO 200, ISO 400, ISO 800, Sensitivity) ISO 1600, ISO 3200 equivalent Movies: Auto LED Light Auto, On, Off Communication Bluetooth: function...
Page 149
• Recording Medium: 16GB microSDHC memory card (SanDisk Corporation UHS-I series) In accordance with CIPA (Camera and Imaging Products Association) standards In accordance with CASIO standards One-image scroll approximately every 10 seconds • The above values are based a new battery, starting from a full charge. Repeated charging shortens battery life.
Page 150
. Rechargeable lithium ion battery (NP-150) Rated Voltage 3.7 V Rated Capacitance 950 mAh Operating Temperature 0 to 40°C (32 to 104°F) Requirements Dimensions 34.2 (W) 39.8 (H) 6.9 (D) mm (1.35" (W) 1.57" (H) 0.27" (D)) (excluding projections) Weight Approximately 20 g (0.7 oz) .
Page 151
EX-TR60 Trade Name: CASIO Responsible party: Industrial Handheld Division Casio America, Inc. Address: 570 Mt. Pleasant Avenue, Dover, New Jersey 07801, USA Telephone number: 973-361-5400 This device complies with Part 15 of the FCC Rules. Operation is subject to the...
Page 152
CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan MA1512-B 2015...
