You should fi nd following items while unpacking:
Subwoofer: 1 pc.; Satellites: 2 pcs.; Audio cable: 3,5 mm stereo jack – 3,5 mm stereo jack: 1 pc.; Wired remote con-
trol: 1 pc.; User's manual: 1 pc.

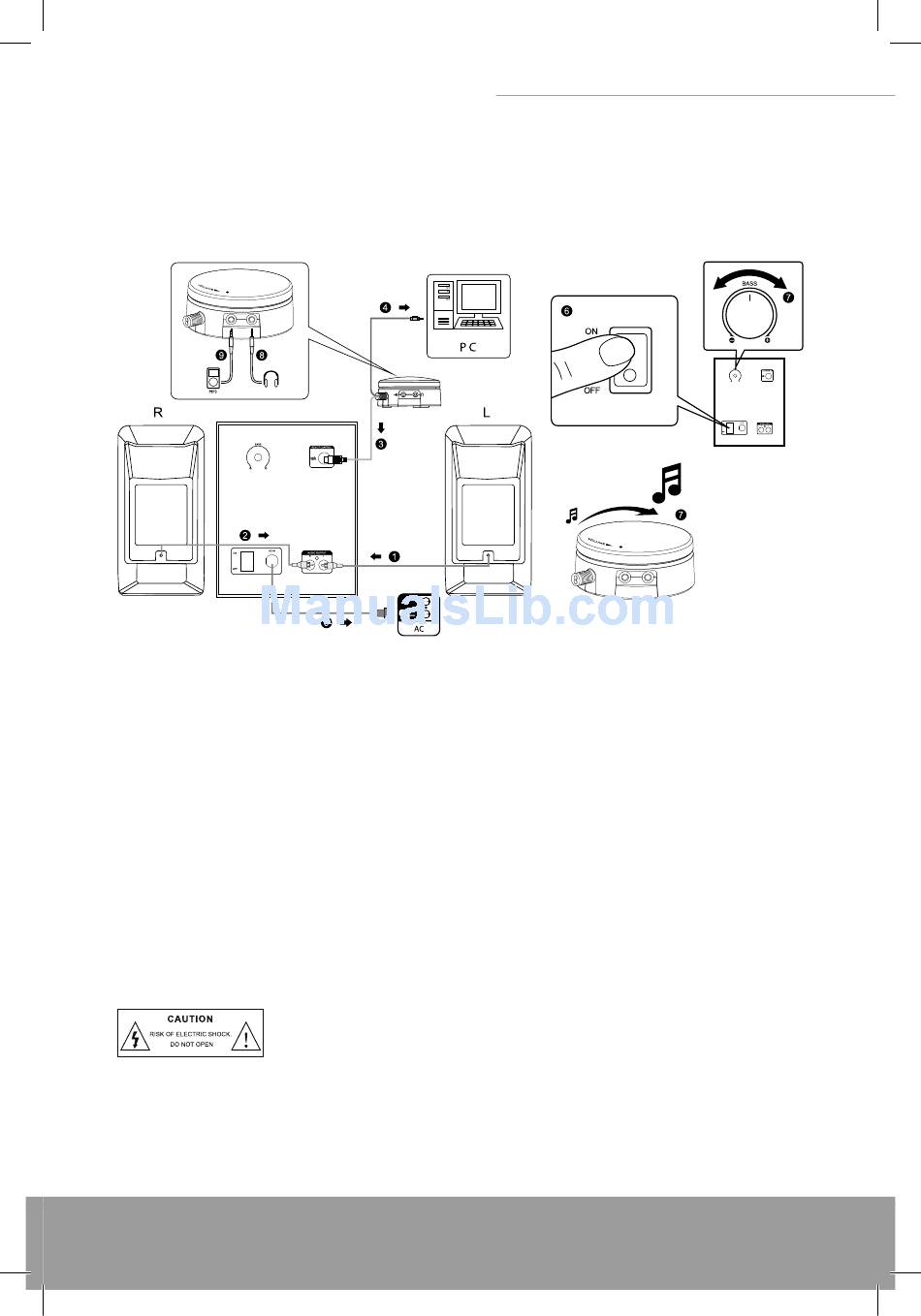

System connection

1. Connect the left speaker to AUDIO OUTPUT white port of the subwoofer.
2. Connect the right speaker to AUDIO OUTPUT red port of the subwoofer.
3. Connect the black plug of the wired remote control to the AUDIO INPUT port of the subwoofer.
4. Connect the green plug of the wired remote control to the applicable sound source.
5. Connect the power cord plug to the AC outlet.
6. Push the power button on the rear of the subwoofer unit to turn on the speaker set.
7. Turn on the sound source an adjust the volume and subwoofer unit loudness to your desired level.
Optionally:
8. Connect the headphone cable to the headphone port on the remote control
9. Connect alternative sound source (such as MP3 player) to sound input port on the wired remote control (to use
main sound source such alternative sound source must be disconnected from the remote control)
Important Safety
Instructions
Caution:
To reduce the risk of electric shock, do not dismantle the apparatus and do not expose the
apparatus to rain or moisture.
No user-serviceable parts inside. Refer servicing to qualifi ed personnel.
Explanation of Graphical Symbols:
The lightning fl ash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage
within the product's enclosure that may be of suffi cient magnitude to constitute an electric shock to persons.
