Function and Feature:

• MC-2050 full range speaker unit sets the industrial standard by its excellent fIat response curve: 130Hz-8kHz ±
1.5dB and 100Hz-20kHz ±3dB.
• External power amplifi er HiFi 2.1 system is easy-to-use and user-friendly. It can eliminate audio distortion caused by vi-
bration, overheat and electromagnetic interference. It is the best choice for those who persist in Hi-Fi sound quality.
• 5,25" unit made of dual Sr Magnet system blazes the trail in the use of costly low-Q value, long-stroke program de-
sign, having the low-frequency quality of quick and high resolution.
• MODECOM robust bass replay technology, based on the design of woofer unit and geometric structure of sub-
woofer cabinet refers to physics theory to reproduce unimaginable extraordinary high-quality low-frequency re-
sponse.
• The ultimate aim of MODECOM system is to inherit and carry forward musical culture style. To do this, all designs
must be music-oriented and sourced from music and art.

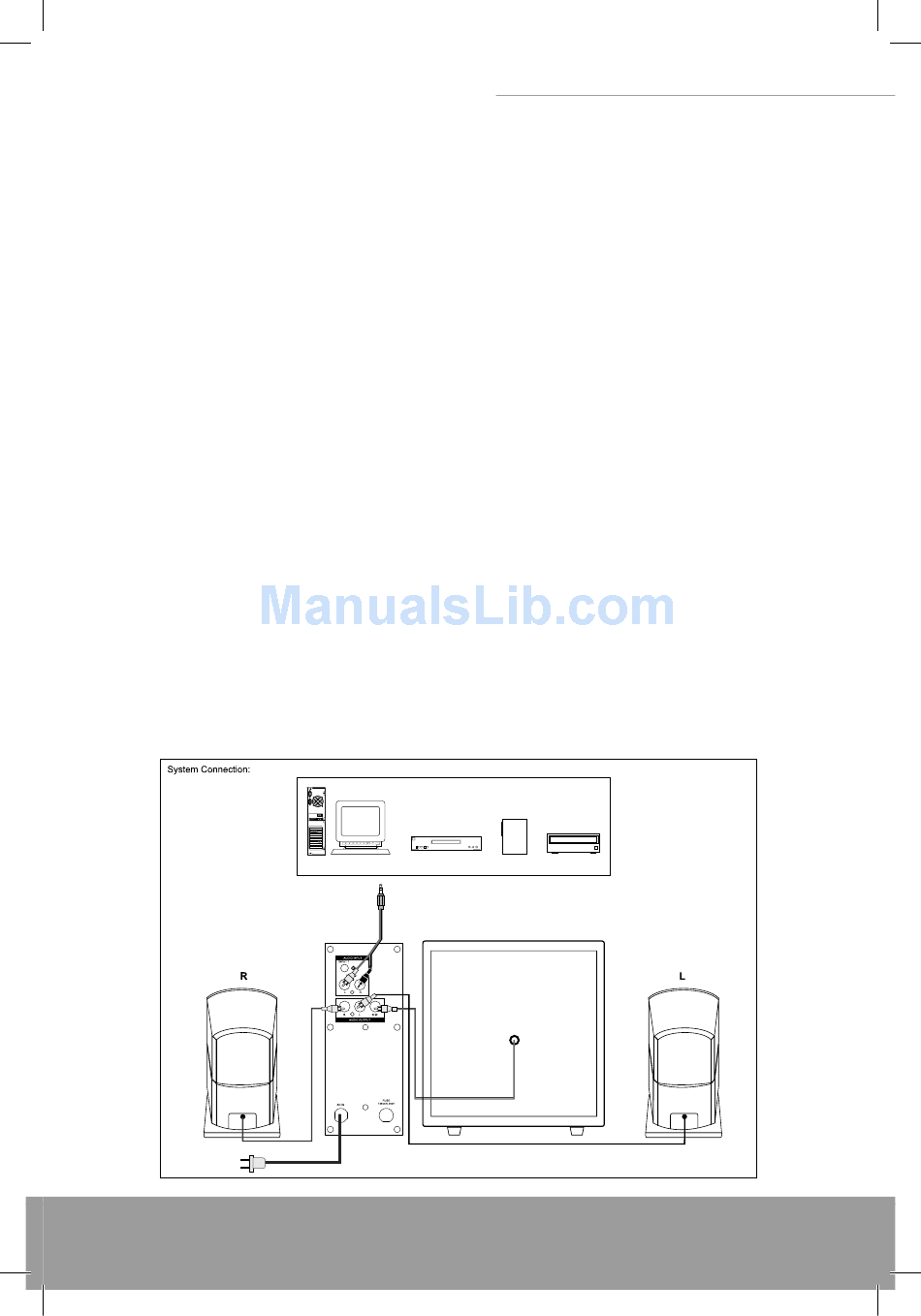

System Connection:

Warning:
Before Connecting the speakers, make sure that the power plug lead is discounted from the mains.
1. Connect the satellite speaker cables to the L & R Audio Output sockets on the back of the amplifi er, then put the
left channel satellite speaker on the left and the right satellite on the right.
2. Connect the cable of the woofer speaker to the back of the Amplifi er AUDlO OUTPUT SAW. socket.
3. While connecting to VCD/DVD, please use the double RCA ends Audio Cable. Connect one end of the audio cable
to the Output Socket on the VCD/DVD the other end to the "L" & „R" of input 2 on the back of the Amplifi er
4. While connecting to PC, please use the audio cable with double 3.5mm stereo plugs. Connect one end of the au-
dio cable to the Audio Output Sockets on the PC, then other end to the lnput 1 socket on the back of Amplifi er.
5. Check the connection and make sure every cable is correctly connected, then connect power plug to the right
AC Power.
