Page 1: Supplied With

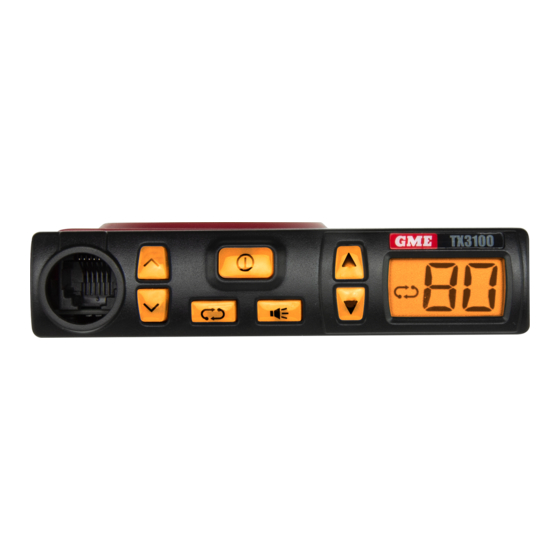

TX3100 Plug N Play Supplied with: TX3100 Super compact UHF CB radio High performance 2.5” earth magnet antenna 360° degree adjustable mounting bracket Cigarette lighter DC lead 2.4mtrs RG174A/U coaxial cable terminated with FME plug ... - Page 2 TX3100 Plug N Play The new TX3100 Plug ‘n’ Play – the latest product from the design team at Australia’s only UHF CB radio manufacturer, is a starter kit aimed at attracting the more urban UHF customer segment, but is equally attractive for the seasoned 4WD, heavy vehicle or recreational vehicle owner.
- Page 3 GENERAL Compliant Specification AS/NZS 4365 Frequency Range 476.425-477.4125 MHz Number of Channels 80 UHF CB Channel Spacing 12.5 kHz Operation Mode Simplex channels 1-80 Semi Duplex channels 1-8 Scanning Speed 20 channels per second Antenna Impedance 50 Ohms nominal Operating Voltage Range 10-15 Volts DC Nominal Battery Voltage 13.8 Volts DC...
- Page 4 Freq uency Stability ±2.5 PPM TRANSMITTER RF Output 5.0 watts max. Modulation Maximum Deviation < ± 2.5 kHz at + 20 dB limiting Spurious Emissions < - 70 dBc Transmit Frequency Response + 6 dB per octave 300 Hz to 3 kHz + 1-3 dB. Audio Signal to Noise >...
- Page 5 Sensitivity - 123 dBm for 12 dB SINAD unweighted Selectivity - 6 dB at + 3.5 kHz - 60 dB at ± 12.5 kHz Intermodulation Immunity 73 dB Blocking Immunity 100 dB Spurious Response Immunity 70 dB Audio Power 3 Watts average into 4 Ohms Audio Signal to Noise >...
- Page 6 ENVIRONMENTAL Temperature Range -10°C to +60°C Standard Communications Pty Ltd Copyright © 2013 ...
