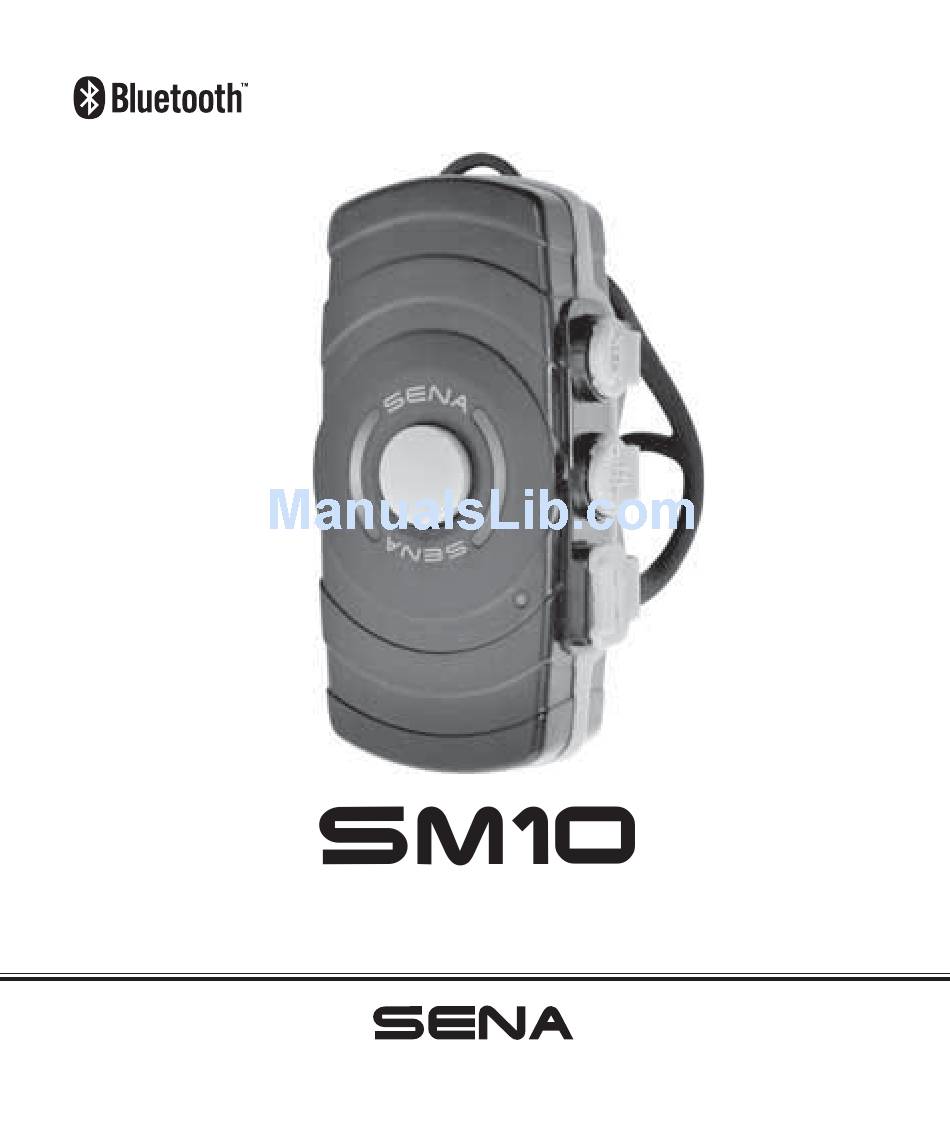

- Page 1 User's Guide Dual Stream Bluetooth ® Stereo Transmitter www.senabluetooth.com...
- Page 3 Sena Technologies, Inc reserves the right to make any changes and improvements to its product without providing prior notice. Sena™ is a trademark of Sena Technologies, Inc. or its subsidiaries in the USA and other countries. SMH10™, SMH5™, SPH10™, SPH10S™, SPH10H™, SR10™, SM10™...
-
Page 4: Table Of Contents
5.2 Bluetooth pairing with the second headset · · · · · · · · · · · · · · · · · · · · 14 6. USING THE SM10· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 15 6.1 Connections·... - Page 5 7. QUICK REFERENCE · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 19 BATTERY INFORMATION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 20 MAINTENANCE AND CARE ·...
-
Page 6: Introduction
Bluetooth dual stream stereo transmitter based on Bluetooth 2.1+EDR technology. You can connect various audio devices such as mobile phone or MP3 player by using the SM10. It also optional audio cables. Along with the dual streaming feature of the SM10, both you and your passenger may listen to the same music or radio at the same time by using most any Bluetooth headsets in the market. - Page 7 SM10 features: Dual audio streams for two Bluetooth headsets Auxiliary stereo input for GPS or radar/laser detector Water resistant for use in inclement weather Optional interface cable for onboard motorcycle audio systems of Harley-Davidson and Honda Gold Wing Firmware upgradeable Two-year limited warranty Bluetooth 2.1+EDR...
-
Page 8: Package Contents
2. PACKAGE CONTENTS Main Unit Blue LED Red LED AUX Port for auxiliary audio input AUDIO IN Port for main stereo audio input DC Power Charging & Firmware Upgrade Port Charging LED Pairing Button Power Switch... - Page 9 USB Power & Data Cable Cigarette Charger Audio Cable 3.5mm 4 pole Audio Cable 3.5mm 3 pole Handlebar Mounting Kit Mounting Cradle...
-
Page 10: Installing The Sm10
3. INSTALLING THE SM10 3.1 Installing on the Handle Bar 1. Attach the mounting kit on the back of the SM10 along the guide rail. 2. Place the main unit on the handle bar, wind the rubber band around the handle bar, and hang it on the hook. -
Page 11: Powering On/Off And Charging
4. POWERING ON/OFF AND CHARGING 4.1 Power ON & OFF To power on the SM10, slide the Power Switch to on. The Blue and Red LEDs will turn on. To power off, slide the Power Switch to off. 4.2 Battery Check You can check the battery level when the SM10 is powering on. -
Page 12: Low Battery Warning
4.4 Low Battery Warning When the battery is running low, the Red and Blue LED will... -
Page 13: Pairing The Sm10 With Other
5. PAIRING THE SM10 WITH OTHER BLUETOOTH DEVICES The SM10 must be paired with a Bluetooth headset to stream audio from the non-Bluetooth audio source. If you want to stream audio to two separate headsets, you need to perform a pairing for both headsets. Please take the following steps to pair with your Bluetooth headsets. -
Page 14: Bluetooth Pairing With The Second Headset
3. Press the Pairing Button for 9 seconds until the Red LED is 4. The SM10 will detect the Bluetooth headset nearby and connection will be made accordingly. 5. If the second headset is connected, the Red LED will slowly... -
Page 15: Using The Sm10
6. USING THE SM10 6.1 Connections The SM10 has one AUDIO IN Port and one AUX Port for wired connection with other devices. Two types of stereo audio cables are included in the package, 3.5mm 4-pole stereo audio cable and 3-pole stereo cable. If for the stereo audio device with playback control such as iPhone, you may use the 3.5mm 4-pole stereo audio cable. -
Page 16: Using With A Headset
SM10. The SM10 tries to connect the paired Bluetooth headset again. Note: 1. The SM10 does not allow all control functions of your audio device over from the audio device itself with the forward/backward tracking functions supported by the SM10. -
Page 17: Mute Or Un-Mute Aux
You may disable it by double tapping the pairing button again. 6.5 Reset to Factory Default Settings 1. Power on the SM10, press the Pairing Button on the SM10 for 2. Wit The SM10 will be restored to factory settings and returns to standby mode. -
Page 18: Fault Reset
6.6 Fault Reset If the SM10 is not working properly or is in a faulty status for any reason, you may reset by pushing the small reset button at the back of the SM10 Main Unit. By using a paper clip or a pencil tip, lightly press and hold the reset button for 1 second. -
Page 19: Quick Reference
7. QUICK REFERENCE Buttons Button Description Duration Power Switch ON Power-on 1 sec Solid blue and solid red Power Switch OFF Power-off 1 sec LEDs off 5 sec The second headset pairing 9 sec Double Audio boosting-on tapping 3 seconds Pairing Button Double Audio boosting-off... -
Page 20: Battery Information
The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge the battery only with Sena approved chargers designated for this device. Use of an unapproved charger may Always try to keep the battery between 15°C and 25°C (59°F... -
Page 21: Maintenance And Care
MAINTENANCE AND CARE The product should be treated with care and the following suggestions will help you protect your warranty coverage. 1. Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged. 2. -
Page 22: Disposal
DISPOSAL The crossed-out wheel bin symbol on the product, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies to the European Union and other locations where separate collection systems are available. -
Page 23: Certification And Safety Approvals
CERTIFICATION AND SAFETY APPROVALS FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: - This device may not cause harmful interference, and - This device must accept any interference received, including interference that may cause undesired operation. -
Page 24: Fcc Rf Exposure Statement
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -
Page 25: Ce Declaration Of Conformity
This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC). Hereby, Sena declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult http://www.senabluetooth.com. -
Page 26: Bluetooth License
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. Other trademarks and trade names are those of their respective owners The product is compliant with and adopts ®... -
Page 27: Safety Information
SAFETY INFORMATION Please ensure that the product is properly used by observing the warnings and cautions below to prevent any risk and/or damage to property. Product Storage and Management Keep the product free of dust. It may damage mechanical and electronic parts of the product. Do not store the product in high temperatures as this may reduce the life span of electronic devices, damage the battery, and/or melt plastic parts of the product. -
Page 28: Product Use
To prevent condensation from forming, put your product inside a plastic bag and tightly seal it. Remove your product from the plastic bag after the temperature inside the bag is similar to the external temperature. Do not clean the product with cleaning solvents, toxic chemicals, or strong detergents as this may damage the product. -
Page 29: Battery
Keep product away from pets or small children. They may damage the product. In any place where wireless communication is prohibited, such as hospitals or airplanes, turn off the power and refrain from using the product. In a place where wireless communication is prohibited, electromagnetic waves may cause hazards or accidents. - Page 30 Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC or other locally approved agencies that Sena accepts.
- Page 31 explode. Do not use the product with a damaged battery. It may explode and/or cause accidents. Never use a damaged charger. It may explode and/or cause accidents. Battery life may vary depending on conditions, environmental factors, functions of the product in use, and devices used with it.
-
Page 32: Waiver And General Release
WAIVER AND GENERAL RELEASE By using the Product, you waive any legal rights including the right to sue. Please read the following carefully before using the device. If you do not accept all terms of this agreement, you should immediately return the product for a full refund. By using the Product, you agree to be bound to this agreement and forfeit the right to sue. - Page 33 (see below), you are irrevocably releasing, indemnifying from any liability, loss, claim and expense (including attorneys fees) and holding Sena harmless for any bodily injuries, harm or death as well as losses or damages in goods, to any belong to you or to third parties, any of which may result from using the Device under any circumstances or conditions and irrespective of jurisdiction.
- Page 34 1. You, your heirs, legal representatives, successors or assigns, hereby voluntarily and forever release, discharge, indemnify and hold harmless Sena from any and all litigation, claims, debts, demands, actions and liability which may arise, directly or indirectly, from using the Device for any...
- Page 35 that you have been advised of the risks associated with consume any alcohol that may affect your alertness or any mind-altering substance, and will not carry, use or consume these substances before or during the use of the Device. 4. You fully acknowledge our warnings and understand that: (a) including but not limited to injury or illness, strains, fractures, partial and/or total paralysis, death or other ailments that could cause serious disability;...
-
Page 36: Two-Year Limited Warranty
This warranty is limited to the repair and/or replacement, at Sena’s discretion, of defective or non-conforming Product, and Sena shall not be responsible for the failure of the Product caused by or attributable to: (a) any misapplication or misuse of the Product; (b) failure of Customer to adhere to any of... -
Page 37: Limitation Of Liability
Sena. Limited warranty service may be obtained by delivering the Product to Sena or to the international distributor it was purchased through and providing proof of purchase or receipt date. Customer agrees to insure the Product or assume the risk of loss or damage in transit, to prepay shipping charges to Sena, and to use the original shipping container or equivalent. -
Page 38: Return For Full Refund
OF ANTICIPATED PROFITS OR BENEFITS RESULTING FROM, OR ARISING OUT OF, OR IN CONNECTION WITH THE USE HEREUNDER OR THE PERFORMANCE, USE OR INABILITY EXCEED THE PRICE PAID FOR THE PRODUCT. Return for Full Refund IF YOU ARE UNWILLING TO ACCEPT AND AGREE TO THE DO SO NO LATER THAN 14 BUSINESS DAYS FOLLOWING WRAPPING BEING INTACT. -
Page 39: Warning
WARNING authorized by the law. Please check your local law and use this closed circuits. Sena denies any liability should you choose not to respect this warning. - Page 40 1.1.1 User's Guide for Firmware v1.1 www.senabluetooth.com...
