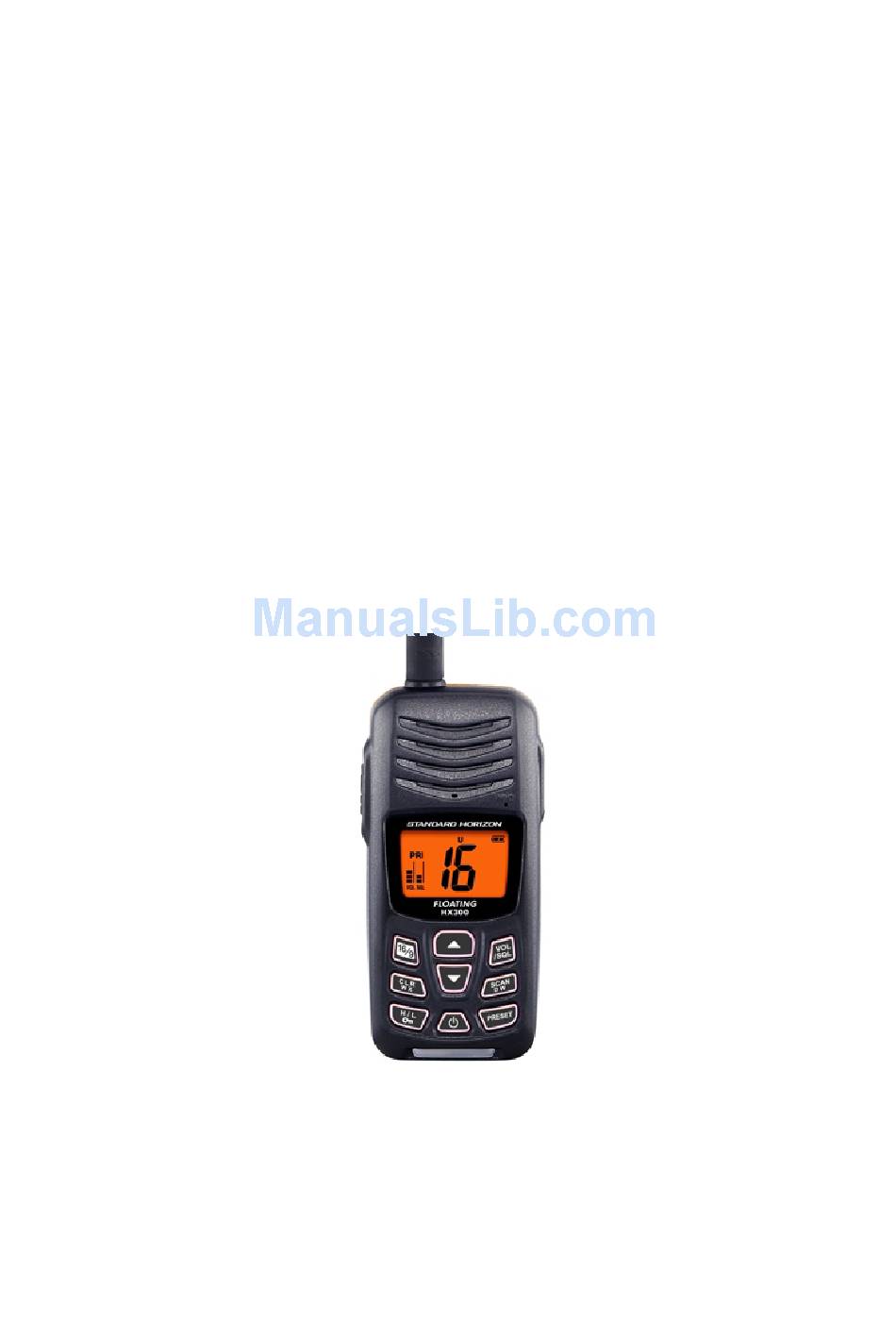

The Standard Horizon HX300
programming interface
This document describes the electrical characteristics of the programming in-
terface utilized by the Standard Horizon HX300 floating handheld VHF radio. Two
examples of programming interfaces are provided.
The CE134 programming software will still be required for programming the
radio.
© Torkel M. Jodalen
annoyingdesigns.com
November 12, 2015
Abstract
The Standard Horizon HX300.
