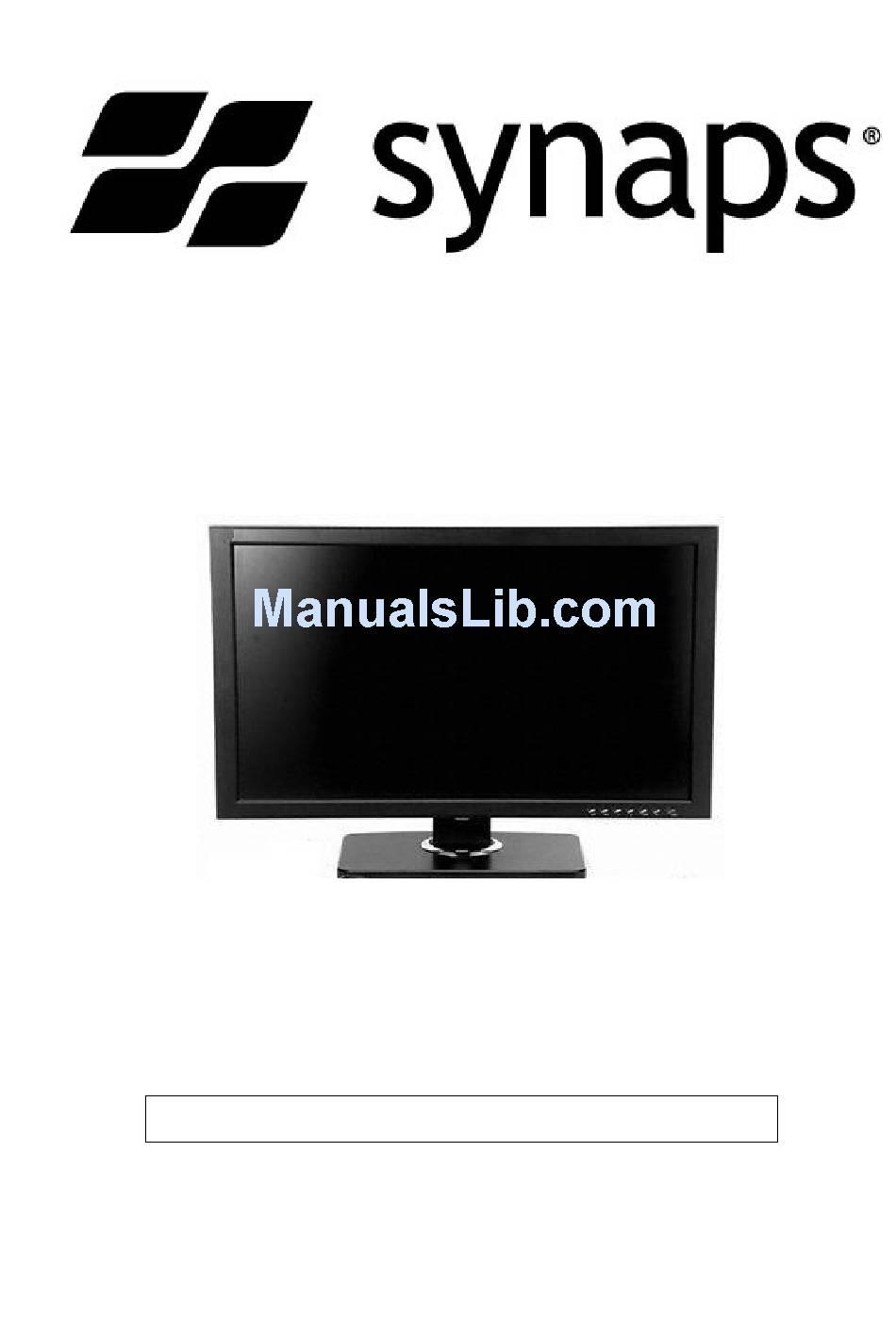

- Page 1 21.6 in. widescreen LCD Monitor Item Number: 11010223Y3 Installation & User’s Manual * Important Notice: Please read this manual carefully All brand names and trademarks are the property of their respective owners...
-
Page 2: Table Of Contents
Contents Attaching the Base to the Monitor ....................3 Package Contents ........................... 4 Hardware Setup ..........................4 Hardware Installation ........................5 Menu Control Buttons........................6 On Screen Display (OSD) Menu Mode ..................7-8 Troubleshooting your DVI monitor connection ................9 Display Modes ..........................10 Specifications .......................... -
Page 3: Attaching The Base To The Monitor
Attaching the Base to the Monitor 1. Clear a flat clean area and place a large soft cloth to set your monitor down upon in order to attach the pedestal to the monitor. Make sure there are no sharp objects in the area that can make contact with the LCD monitor screen that may cause damage to the screen. -
Page 4: Package Contents
Package Contents 21.6” TFT LCD Monitor External Univ15 pin D-sub Audio connector cable (RGB Analog) input signal cable Power cord & External Universal AC Adaptor User’s Manual STD-1203 (100-240V, 50/60Hz) Pedestal Screws with Pedestal Screwdriver Hardware Setup Handle the LCD monitor with care. Turn off the monitor’s and computer’s power before beginning setup. Follow the installation instructions step by step. -
Page 5: Hardware Installation
Hardware Installation ® Please note for Windows User’s Before attaching your new LCD monitor to your computer, please make sure that your resolution and refresh rates are set correctly for your monitor to work properly. This is especially important if you are changing monitors (for example, from a CRT to a LCD). -
Page 6: Menu Control Buttons
Menu Control Buttons Button Function 1. Automatically Adjusts the screen, when not in the OSD menu. AUTO (Note: This feature will not work when in DVI mode). 2. To exit a submenu. 1. Show the main OSD menu. MENU 2. To enter a submenu. 1. -
Page 7: On Screen Display (Osd) Menu Mode
On Screen Display (OSD) Menu Mode Submenus Current mode Screen Resolution Current mode Frequency OSD Sub-menu NO SIGNAL INPUT If this warning appears, 1. Check the signal cable connection between the computer and LCD monitor. 2. Check the cable connectors. If it is bent or damaged, the signal cable may be affected. 3. - Page 8 OSD (On-Screen Display) Menu Mode 1. Press the MENU button to access the OSD menu. 2. Press the DOWN or UP buttons to navigate through the submenus. 3. Select the desired option, by pressing the MENU button. 4. Use the DOWN or UP buttons to adjust the selected option value(s). Automatically adjusts to the factory default settings.
-
Page 9: Troubleshooting Your Dvi Monitor Connection
Troubleshooting your DVI monitor connection Caution! Turn off your computer before connecting this monitor. If your monitor is connected to your computer with the DVI cable, but no image appears on the screen: • The cable plugs may be damaged or connected incorrectly. Check both ends of the power cable and DVI cable, and make sure that there are not bent pins and that the cables are securely connected to the monitor, power outlet, and computer. -
Page 10: Display Modes
Display Modes Display Mode Horizontal Frequency Resolution Vertical Frequency (Hz) (KHz) 640x480 59.94 31.47 640x480 72.81 37.86 640x480 75.00 37.50 720x400 70.09 31.47 800x600 60.32 37.88 800x600 72.19 48.08 800x600 75.00 46.80 1024x768 60.00 48.36 1024x768 70.07 56.48 1024x768 71.92 58.04 1024x768 75.03... -
Page 11: Specifications
Specifications LCD Panel Type 21.6” TFT Active Matrix LCD Display Viewing Angle H:170° , V:160° Contrast Ratio 1000 : 1 (Typical) Brightness 300 cd/m (Typical) Response Time 5 ms Display Colors 16.7M colors Max Resolution 1680X 1050(WSXGA+) Pixel Pitch 0.276mm(H)x0.276mm(V) Aspect Ratio 16 : 10 Input Signals... -
Page 12: Troubleshooting
Troubleshooting LCD Pixel Criteria Normally, a 21.6 WSXGA+ (1680 x 1050) display has nearly 5.3 million sub-pixels. There may be up to 8 non-performing pixels on the LCD screen, which is only 0.000002% of the total sub-pixels. This percentage is acceptable for any inspection specifications. 1. -
Page 13: Maintenance
Maintenance To clean your monitor, please refer to the instructions below: NOTE: To prevent electrical shock, do not open the LCD monitor casing. Leave repair of the monitor to qualified personnel, please see the tech support information in the warranty. 1. -
Page 14: Precautions
Precautions 1. Read all of these instructions and save this manual for later use. 2. Follow all warnings and instructions on the product. 3. Do not cover or block the ventilation holes in the case. 4. Do not insert sharp objects or spill liquid into the LCD monitor through the cabinet slots; this may cause accidental fire, electric shock or failure. -
Page 15: Fcc Radiation Norm
FCC Radiation Norm This equipment has been tested and complies with limits for Class B digital devices pursuant to Part 15 of Federal Communications Commission (FCC) rules. FCC Compliance Statement These limits are designed to provide reasonable protection against frequency interference in residential installations. -
Page 16: Service Procedure
Service Procedure After 30 days of purchase, please call the toll free number below to obtain service. A customer representative will give you a return authorization number (RA number) allowing you to ship your product to the service center. DO NOT RETURN THIS PRODUCT TO THE STORE. PLEASE CONTACT THE TOLL FREE NUMBER LISTED BELOW Please have the following information available when you call the service center: Your Name and Address... -
Page 17: Warranty
Warranty 3 Years Limited Warranty This product is warranted to be free from defects in material and workmanship for a period of 3 years. Warranty obligations are limited to replacement or repair of defective parts and components, at the option of the manufacturer. The warranty of this product is null and void if the product is subjected to negligence, abuse, modification, misuse, accident or if the customer uses the product for a function it was not intended for.
