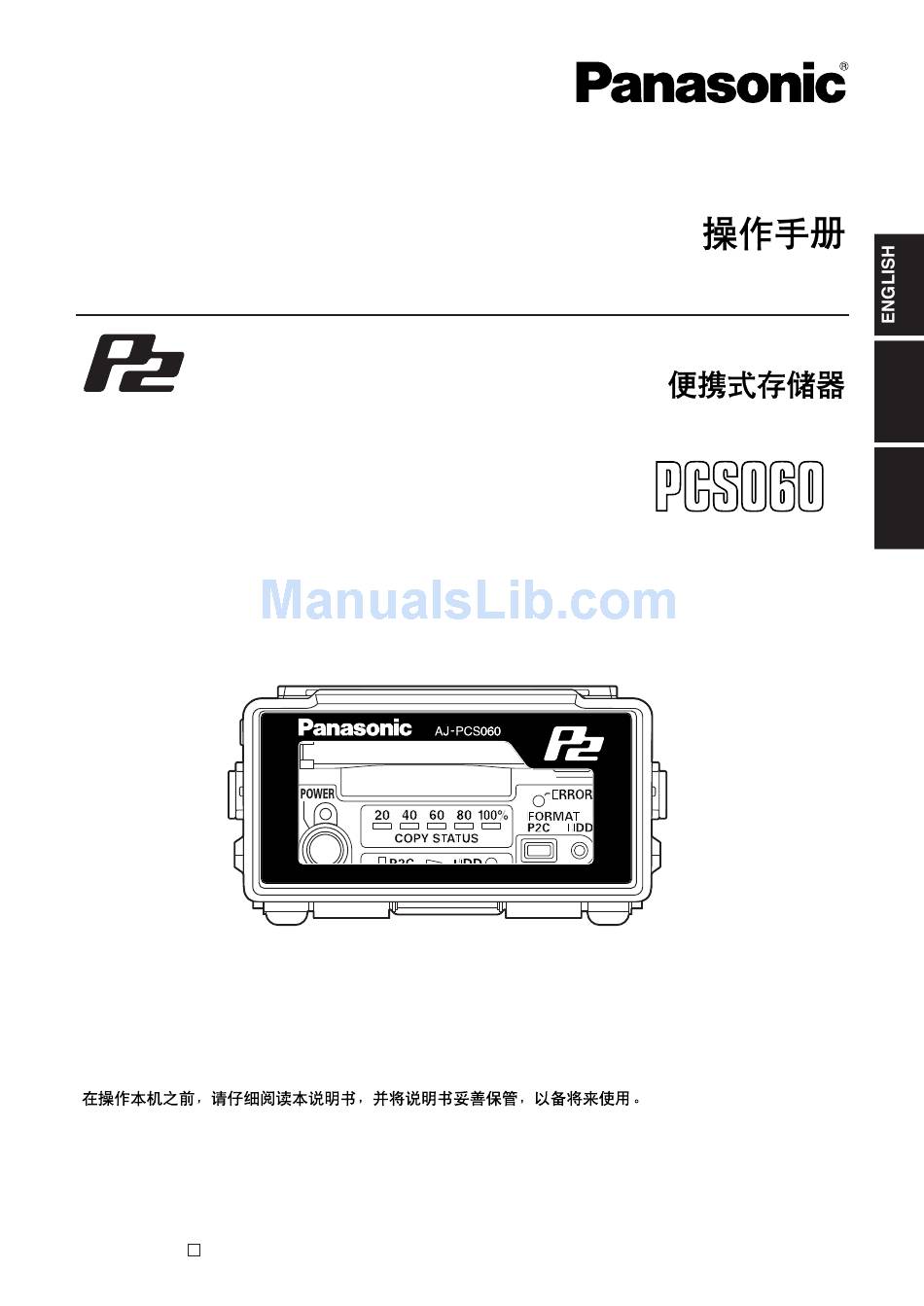

Operating Instructions 取扱説明書 Portable Hard Disk Unit 中 文 ポータブルハードディスクユニット 日 本 Model No. 語 Before operating this product, please read the instructions carefully and save this manual for future use. お買い上げいただき、まことにありがとうございました。 この取扱説明書をよくお読みのうえ、正しくお使いください。 特に「安全上のご注意」は、ご使用前に必ずお読みいただき、安全にお使いください。お読みになったあ とは、保証書と一緒に大切に保管し、必要なときにお読みください。 S0705K2125 -M Printed in Japan VQT0T80-1...
Page 2
For U.S.A. and Canada Operating precaution IMPORTANT Operation near any appliance which generates strong “Unauthorized recording of copyrighted television magnetic fields may give rise to noise in the video and programmes, video tapes and other materials may audio signals. If this should be the case, deal with the infringe the rights of copyright holders and situation by, for instance, moving the source of the contravene copyright laws.”...
Declaration of Conformity Model Number: AJ-PCS060G Trade Name: PANASONIC Responsible Party: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 Support contact: Panasonic Broadcast & Television Systems Company 1-800-524-1448 This device complies with Part 15 of FCC Rules.
Page 4
For U.S.A. and Canada Important Safeguards (continued) 11. Grounding or Polarization — This video unit may be 15. Power Lines — An outside antenna system should not equipped with either a polarized 2- wire AC be located in the vicinity of overhead power lines or (Alternating Current) line plug (a plug having one other electric light or power circuits, or where it can fall blade wider than the other) or 3-wire grounding type...
Page 5
For Europe Operating precaution IMPORTANT Operation near any appliance which generates strong “Unauthorized recording of copyrighted television magnetic fields may give rise to noise in the video and programmes, video tapes and other materials may audio signals. If this should be the case, deal with the infringe the rights of copyright holders and situation by, for instance, moving the source of the contravene copyright laws.”...
Page 6
For Europe Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
Overview The AJ-PCS060G is a dedicated portable hard disk unit for AJ-P2C series P2 memory cards. It features a USB 2.0 (Type B) interface for data transfer with a computer. Data from P2 camera-recorders can easily be copied to the 60 GB internal hard disk.
If the HDD is damaged, data recorded on it will be lost. Always keep an extra copy of important data on separate storage media. See page E-19 for instructions on backing up data. Note that Panasonic cannot be liable for data lost from HDD failure or other problems, or for other direct or indirect loss.
For better performance (continued) Cleaning Never clean the unit with solvents such as benzene, thinner, or alcohol • Before cleaning, remove the battery pack or unplug the AC adapter. • Cleaning the unit with solvents may damage the outer case or cause the paint to peel. •...
Control reference guide Front POWER button P2C LED Use this button to turn the unit ON and OFF. Lights or flashes when the unit is accessing a When the unit is OFF, simply press the P2 card. [POWER] button to turn it ON. When ON, hold (See pages E-16 and E-17) the [POWER] button for at least two seconds HDD LED...
Control reference guide (continued) Right side The [USB] indicator remains lit (green) as long START button as a USB 2.0 cable is connected. Press to start copying or formatting. Hold the [START] button for at least 2 seconds Battery/HDD indicator and error LEDs to start either process.
Control reference guide (continued) Left side Rear panel Front panel side side Back Sliding switch cover VERIFY switch Use this switch to verify data after it has been Sliding switch copied from P2 cards onto the internal HDD. Slide toward the front to enable software (See page E-16) updates.
Copying Turning the unit ON and OFF Use an optional battery pack or AC adapter as the power source. (See page E-7) In either case, make sure the power source is firmly connected to the unit. For connection instructions, refer to the user's manual of the accessory. Turn the unit ON before all operations.
Page 15
Copying (continued) Write-protection on P2 cards When P2 cards are inserted, the following operations will be prevented to protect the data, even if you adjust the write-protect switch. Thus, check the write-protect switch before inserting P2 cards. Write-protect switch settings :...
Page 16
Copying (continued) Battery level indicator When using an optional battery pack, you can check the remaining level. You can see how much power is left by pressing the [ ] button and checking the [REMAIN] indicator. See【Battery level】 , below. Copy operations are not allowed when a low-voltage error occurs (when the [ERROR] LED lights in red and [E2] in [REMAIN] flashes in red).
Page 17
Copying (continued) 3. Hold the [START] button for at least 2 seconds Copying begins, and the verification is conducted (when the [VERIFY] switch is set to ON). ※ The copying progress is indicated by the LEDs, as follows. LED lit LED flashing green orange...
Page 18
Copying (continued) Canceling copy operations You can cancel copying in progress as follows. 1. Hold the [CANCEL] button for at least 2 seconds The [COPY STATUS], [P2C], and [HDD] LEDs change as follows. : LED lit OR : orange COPY STATUS −...
Page 19
Formatting (continued) Formatting the HDD You can delete all data copied onto the internal HDD. Put the unit on a solid surface before formatting the HDD. Vibration or impact may damage the unit during formatting. Data cannot be recovered after formatting. Before formatting the HDD, make sure all the data may safely be deleted.
• For Windows XP Professional: Double-click on the “Safely Remove Hardware” icon in the task tray. Follow the instructions on screen to stop the “Panasonic P2 series USB Devices.” • For Windows 2000: Double-click on the “Unplug or Eject Hardware” icon in the task tray. Follow the instructions on screen to stop the “Panasonic P2 series USB Devices.”...
P2 Store Manager Using the P2 Store Manager application, you can display the status of the AJ-PCS060G and manage the unit in several ways. Features HDD status display You can check the unit’s HDD partition information, self-diagnostic information, and more.
Page 22
P2 Store Manager screens Overview of screens Page tabs Click the tabs to access different pages. Page display area Displays sections with various information about the unit and buttons for operations. State display area Displays “State: Connecting” when the unit is connected to the computer, otherwise, “State: Disconnected.”...
P2 Store Manager screens (continued) Note: All erase button ※1: Before using [Quick format] and [All For writing zeros to all sectors of the internal erase], put the unit on a stable surface. HDD. Vibration or impact may damage the unit If you are using a battery to power the unit, during formatting.
Page 24
P2 Store Manager screens (continued) Setup page For checking and changing the unit's operating parameters. Shock detection in USB mode section Use [ON] and [OFF] to enable or disable impact detection when the unit is connected to a computer via the USB 2.0 cable. [ON] (default): Data transfer with the computer is suspended if the unit is hit.
Page 25
P2 Store Manager screens (continued) Upgrade page For keeping the unit's software updated. Upgrade section You can keep the unit up to date by downloading and installing the latest software for it. Browse button Click the [Browse] button to select the downloaded software for the unit.
Page 26
The latest software will be installed, which takes several minutes. For Japanese During this process, never unplug the USB 2.0 http://panasonic.biz/sav/ cable or turn the unit or computer OFF. For English 10. After checking the update message, https://eww.pavc.panasonic.co.jp/pro-av/ click the [OK] button.
Page 27
ERROR LED display Errors that may affect the unit are indicated as follows. Investigate the status and take these corrective actions. : LED lit : LED flashing : red : orange REMAIN Status Corrective Action Turn the unit OFF and allow it to cool down before use.
Page 28
ERROR LED display (continued) REMAIN Status Corrective Action A [Quick format] error has There may be a problem with the occurred on the internal HDD. internal HDD. Contact the place An [All Erase] error has of purchase. occurred on the internal HDD. There may be a problem with the internal HDD.
ERROR LED display (continued) COPY STATUS Status Corrective Action During card access, the P2 card Turn the unit OFF and ON. was pulled out and an error occurred. Troubleshooting If the unit seems to be malfunctioning, try checking the following points. If the problem persists, contact the place of purchase.
Specifications Power supply : DC 7.9 V Current consumption : Max. 1.3 A Normal operation, 0.8 A indicates safety information. Supply voltage: System requirements: Battery pack DC 7.2 V Verified operating systems (Option: CGR-D16, CGA-D54) Windows XP Professional SP2 or later, or AC adapter DC 7.9 V Windows 2000 SP4 or later...
文 通过按下 键,打开本机电源 [POWER] 在本机上,电源指示灯绿色亮起。连接被自动检测。 n 移除 按照下面的步骤断开 连接 Windows XP 对于 专业版: • Panasonic P2 series USB 双击任务栏中 “安全删除硬件”图标。按照屏幕上的指示操作来停止 “ Devices ” 。 对于 Windows 2000 : • Panasonic P2 series USB 双击任务栏中 “拔下或弹出硬件”图标。按照屏幕上的指示操作来停止 “ Devices ” 。 通过按住...
规格 DC 7.9 V 电源 : 1.3 A 0.8 A 耗电量 :最大 ,正常操作时 显示安全信息。 电源电压: 系统要求: DC 7.2 V 电池组 经验证的操作系统 CGR-D16S CGP-D28S Windows XP (选购件: , , 专业版 或更新,或者 CGA-D54S Windows 2000 SP4 ) 或更新 DC 7.9 V 交流电源适配器 主内存...
各部の名称と機能 前面 日 POWERボタン P2C LED 本 電源をON/OFFするボタンです。 P2カードアクセス時に点灯・点滅します。 語 OFF時、 [POWER]ボタンを押すと、電源が ( J-14、J-15ページ参照) ONします。ON時、2秒以上 [POWER]ボタ HDD LED ン を押すと、電源がOFFします。 内蔵HDDアクセス時に点灯・点滅します。 POWER LED ( J-14、J-16ページ参照) 電源ON時に点灯します。 ERROR LED ただし、電源ON後の起動処理中や電源OFF時 エラー発生時に点灯・点滅します。 の終了処理中は、点滅します。 前 面 の [ C O P Y S T A T U S ] L E D と 上 面 の P2Cボタン...
定格 電源 :DC7.9 V 消費電流:最大時 1.3 A 通常動作 0.8 A は安全項目です。 動作電源電圧: PC動作条件: バッテリーパック DC7.2 V 動作保証OS (別売品 VW-VBD33、VW-VBD35、 Windows XP Professional SP2以降, VW-VBD55) Windows 2000 SP4以降 ACアダプター DC7.9 V メインメモリ (別売品 AG-B15) 256 MB以上(推奨512 MB以上) 環境条件: USBインターフェース 使用時 温度 0 ℃∼+40 ℃ USB Ver2.0準拠...
