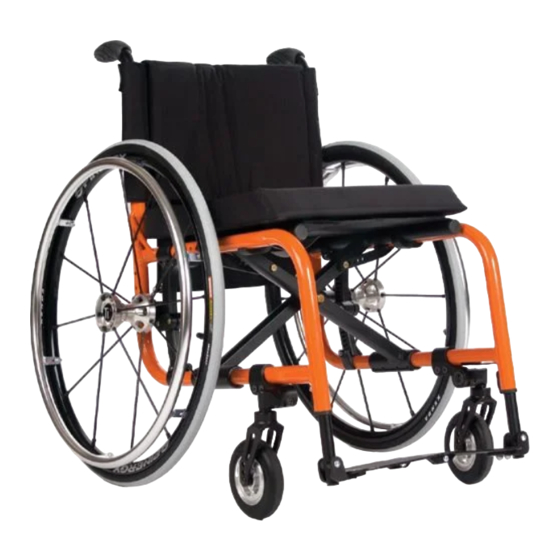

  • Page 1 OWNER’S MANUAL SERIAL NUMBER ______________________...
  • Page 2 __________________________________________________________________________________________________ Note: The information contained in this document is subject to change without notice. An updated version of this Owner’s Manual may be available at www.tilite.com __________________________________________________________________________________________________ SAVE THIS MANUAL FOR FUTURE REFERENCE 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...
  • Page 3 Please take a moment to register this chair at tilite.com. This will allow us to better serve you should you have any questions regarding your TiLite. On behalf of the TiLite Team, thank you for choosing TiLite. David Lippes Founder, Chairman & CEO 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...
  • Page 4 TiLite to further improve product designs. All information you provide to TiLite when you register will be protected by TiLite as required by applicable laws and regulations and will be used solely by TiLite. 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 5: Product Registration Form

    4. Were your expectations met in the following areas? If not, please specify. FOLD HERE Quality of Service: Timeliness of Delivery: Quality of Product: 5. What additional features, if any, would you like to see on this or future TiLite products? 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...
  • Page 6 FOLD HERE FOLD HERE TiLite Product Registration Form Please Seal with Tape Before Mailing 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 7: Table Of Contents

    E. POSITIONING OR SEAT BELTS 1-13 F. ARMRESTS 1-13 G. FOOTRESTS/HANGERS 1-14 H. REAR WHEELS 1-14 I. AXLES 1-14 J. PNEUMATIC TIRES 1-15 K. REAR WHEEL LOCKS 1-15 L. CASTER PIN LOCKS 1-15 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...
  • Page 8 Adjusting the Height/Replacing Adjusting the Angle ELEVATING LEGREST (ELR) Installing Adjusting the ELR Length 3-10 Adjusting the Footrest 3-10 CHAPTER 4: BACKRESTS, PUSH HANDLES AND STROLLER HANDLES ADJUSTABLE HEIGHT BACKREST Adjusting the Backrest Height 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...
  • Page 9 TENSION ADJUSTABLE BY STRAP BACK UPHOLSTERY Adjusting the Tension Replacing VELCRO -STYLE ADJUSTABLE BACK UPHOLSTERY ® Adjusting the Tension Replacing CORBAC ADJUSTABLE CONTOUR BACK SUPPORT ® TENSION ADJUSTABLE SLIDE-IN SEAT SLING Adjusting the Tension Replacing viii 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...
  • Page 10 Replacing 10-6 CHAPTER 11: CASTERS, FORKS AND CASTER PIN LOCKS 11-1 CASTERS AND BEARING FORKS 11-1 Replacing Casters 11-1 Replacing Bearing Forks 11-1 CASTERS AND BEARING FORKS (Hemi Height) 11-2 Replacing Casters 11-2 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...
  • Page 11 14-6 SECURING THE WHEELCHAIR TO THE VEHICLE 14-7 SECURING THE OCCUPANT; POSITIONING THE PELVIC AND UPPER TORSO BELTS 14-8 RATING OF ACCOMODATION OF VEHICLE-ANCHORED BELT RESTRAINTS 14-11 SEATING OPTIONS 14-11 WARRANTY MODIFICATION 14-11 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 13: Chapter 1: Warnings

    6. Together with your health care advisor, you MUST analyze your medical condition to determine whether you are capable of using this chair safely and/or what options or accessories you will require in order to use this chair safely (e.g., pressure-relief cushions, seat belts). OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 14: E. Changing/Adjusting Your Wheelchair

    Do NOT operate your chair in such terrain. You may damage the wheels or axles or loosen fasteners of your chair. If you ignore these Warnings, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 15: I. Motor Vehicle Safety

    6. If you are going to tilt the chair backward, ALWAYS remind the user to lean back. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 16: L. Standing On Your Chair

    6. Use SMALL movements of the handrims to maintain your balance on the two rear wheels. If you ignore these Warnings, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 17: B. Climbing A Curb Or Single Step

    If you ignore these Warnings, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 18: E. Descending A Flight Of Stairs

    1. The position of the rear wheels is the most significant factor affecting your center of gravity. The more you move the rear wheels forward, the more likely your chair will tip over backward. 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 19: B. Transferring In And Out Of Your Wheelchair

    4. ALWAYS move your chair as close as you can to the seat (bed, etc.) to which you are transferring. If possible, use a transfer board. 5. ALWAYS lock the rear wheels using wheel locks before you transfer. This keeps the rear wheels from rolling. If your OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 20: C. Dressing/Undressing In Your Chair

    5. NEVER reach with both hands. By keeping one hand free, you may be able to catch yourself to prevent a fall if the chair starts to tip. 6. NEVER reach or lean over the top of the seat back. If you do so you may damage the seat back tubes, which could cause you to fall. 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 21: E. Moving Backward

    5. ALWAYS make sure the floors where you live and work are level. 6. KEEP all floors where you live and work free of obstacles and hazards. 7. When riding UP and over an obstacle, lean your upper body slightly FORWARD. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 22: H. Curbs/Steps

    10. ALWAYS ask for assistance if you have any concerns at all about your ability to maintain safe control of your chair on a hill, slope or ramp. 2GX/AERO X Owner’s Manual 1-10 OM0002_Rev A_2GX/AERO X...

  • Page 23: J. Stairs

    4. even if you are an experienced rider in your TiLite chair but your physical condition has changed. 1-11 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 24: B. Seat Slings/Cushions

    TiLite does not sell any seating systems specifically designed for use with TiLite wheelchairs, nor does TiLite recommend any particular seating system. If your doctor or therapist recommends that you use a seating system with your TiLite chair, 2GX/AERO X Owner’s Manual 1-12...

  • Page 25: E. Positioning Or Seat Belts

    (not including the swing away hangers or backrests). If you ignore these Warnings, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. 1-13 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 26: G. Footrests/Hangers

    If you ignore these Warnings, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. 2GX/AERO X Owner’s Manual 1-14 OM0002_Rev A_2GX/AERO X...

  • Page 27: J. Pneumatic Tires

    If you ignore these Warnings, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. 1-15 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 28: M. Push Handles

    TiLite dealer or contact TiLite Customer Service. If you ignore these Warnings, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. 2GX/AERO X Owner’s Manual 1-16 OM0002_Rev A_2GX/AERO X...

  • Page 29: Troubleshooting

    • Inspect for cracks, wear and flat spots √ √ You MUST make sure that axle locks properly in the axle sleeve every time you remove and reinstall a rear wheel, and you should verify this at least weekly. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...
  • Page 30 • Inspect to ensure that all hardware is securely attached √ √ Anti-tips √ √ • Inspect anti-tip wheel for cracks and wear • Inspect to ensure that anti-tip receiver is securely attached √ √ Frame • Inspect for cracks √ √ 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 31: Cleaning

    2. Always fully inspect your chair after it has been stored for any period of time before riding in it. See the chart under “Safety Inspections and Maintenance” on pages 2-1 to 2-2. 3. If you store your chair for more than three (3) months, have your chair inspected by an authorized TiLite supplier. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 32: Troubleshooting

    Adjust the toe-in/toe-out of the √ √ rear wheels Make sure that both sides of √ the footrest are set at an equal distance from the floor 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 33: Chapter 3: Footrests

    3. Place the end of a ruler on the floor and hold it vertically against the corner of the footrest. See Figure 3-3. Adjust the footrest to the desired height (not less than 2” of ground clearance) and tighten the Allen screws in the clamp so the footrest height cannot change. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...
  • Page 34 5. When both sides are set at an equal distance from the floor, fully tighten the two Allen screws into the two T-Nuts securing the footrest to the frame, making sure the clamp covers remain securely butted up against the end of the frame tube. Figure 3-4 Footrest Height Adjustment Frame Extension Tube 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 35: Adjusting The Angle

    See Figure 3-6. 2. Move the footplate forward or backward to the desired depth setting. 3. Reinstall and securely tighten the Allen screws and locknuts. Flip-Up Footplate Footrest Pivot Locknuts OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 36: Depth Adjustable High Mount Flip-Up Footrest; And Depth & Angle Adjustable High Mount Flip-Up Footrest

    4. When both of the footrests on both sides of the chair are adjusted to the desired height, securely tighten the two Allen screws through the binder clamp that secures the extension tube to the frame. Figure 3-8 Height Adjustments on High Mount Flip-Up Footrest Frame Binder Clamp Allen Screws Extension Tube 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 37: Adjusting The Angle Or Depth

    See Figure 3-9 or 3-10. 2. Reposition the footplate to the desired depth. Footplate 3. Reinsert and securely tighten the two Allen screws and Washer Bracket locknuts. Washer Allen Screw Locknuts OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 38: º Hanger Depth And Angle Adjustable Flip-Up Footrests

    4. Securely tighten the two Allen screws and locknuts. Figure 3-11 90º Hanger Depth and Angle Adjustable Flip-Up Footrest Allen Hanger Screws Locknut Washer Coved Footplate Washers Washer Allen Footplate Screws Angle Clamp Adjustable Bracket Locknuts 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 39: Swing Away Hangers

    Receiver 1-Piece, Over-Center Folding Footrest Note: The 1-Piece, Over-Center Folding Footrest is not available on 2GX or Aero X chairs with swing away hangers. Adjusting the Height/Replacing You can adjust the height of, or replace, the footrest by using the tools and following the procedures for adjusting the height of, or replacing, a flip up footrest as set forth under “Flip-Up Footrest;...

  • Page 40: Piece Flip-Up Footrest

    Note: In following those procedures, it will be necessary to adjust both sides of the footrest extensions simultaneously because there is only a single, 1-piece footrest. Figure 3-14 Figure 3-15 1-Piece Flip-Up Footrest 1-Piece Flip-Up Footrest in Up Position Latch Latch Spacer 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 41: Adjusting The Angle

    6. If a lower ELR position is desired, push the ELR lever gradually, holding on to the main tube while lowering the ELR into position. Figure 3-17 Elevating Legrest Main Tube Top Pivot Frame Hole Calf Pad ELR Lever Release Lever Footplate OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 42: Adjusting The Elr Length

    Pad Stop Calf Pad Washer Clamp Allen Slot Screw Footrest Extension Adjusting the Footrest To adjust the position of the Depth Adjustable footrest on the ELR, see “Adjusting the Depth” on page 3-3. 2GX/AERO X Owner’s Manual 3-10 OM0002_Rev A_2GX/AERO X...

  • Page 43: Chapter 4: Backrests, Push Handles And Stroller Handles

    1. Lift up and pull the back canes toward the rear of the chair. See Figure 4-3. 2. Make sure that the backrest latch on each side of the chair engages in the locked upright position. See Figure 4-2. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 44: Changing The Backrest Angle

    7. Repeat Steps 1 through 6 with the backrest cane on the opposite side of the chair. Figure 4-5 Figure 4-4 Changing the Backrest Angle Changing the Backrest Angle Upper Allen Screw Locknut Locking Locking Block Block Backrest Pivot Bracket Locking Lower Allen Grooves Screw 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 45: Adjusting The Backrest Height

    1. LIft up and pull the back canes toward the rear of the chair. See Figure 4-3. 2. Make sure that the backrest latch on each side of the chair engages in the locked upright position. See Figure 4-2. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 46: Changing The Backrest Angle

    3. Securely tighten the adjustable handle by turning it right to it’s original position. Adjustable Handle Fold Down Push Handles To adjust the height of the Fold Down Push Handle please follow the procedures under “Adjusting the Backrest Height” on page 4-1. 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 47: Chapter 5: Armrests

    Reassemble the Allen screw and washer in the desired Washer location on the armrest (in 3/4” increments). 4. Securely tighten the Allen screw in the new location. Allen 5. Reinstall the armrest in the armrest receiver. Screw Armrest Armrest Saddle Receiver OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 48: Adjusting The Height Of The Receiver

    5/32” Allen Wrench • 7/16” Open End Wrench Note: Unless you ordered anti-tips for your 2GX or Aero X chair, the receiver may be raised or lowered to achieve a higher or lower height for the swing away armrest. 1. Remove the armrest from the receiver.

  • Page 49: Swing Away- Flip Back Armrest

    5-7. To replace the armrest, swing it back towards the chair and gently push it back down into place. Note: The Swing Away Armrests pivot on nylon sleeves located inside the armrest receiver. If the armrest does not rotate properly, check the sleeves for wear. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 50: Adjusting The Armrest Height

    Make sure that the stop clamp is securely tightened before applying weight to the armrest. If you ignore this Warning, you could fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 51: Locking The Armrest In Place (Adjustable Depth)

    Note: Depending on the configuration of your chair (including rear wheel height and armrest height) it may not be possible to lock the armrest in place. Figure 5-10 Locking the Armrest in Place Allen Locknut Screw Receiver OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 53: Chapter 6: Side Guards

    See Figure 6-2. To replace, place the bracket into the slot between the side guard mount and the clamp and push down. Figure 6-2 Rigid Side Guards Quad Bracket Removable Side Guard Rigid Removable Side Guard Side Guard Mount Allen Clamp Screws OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 54: Adjusting

    3. Insert the bracket into the side guard mount and adjust the two Allen screws as described under “Adjusting” on page 6-2. Aluminum Fendered Side Guards Mounting Tools Needed: • 5/32” Allen Wrench 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...
  • Page 55 See Chapter 10 “Wheel Locks”. Figure 6-5 Aluminum Fendered Side Guard Back Cane Band Clamp Band Clamp (non-threaded) (threaded) Washer Allen Screw #1 Seat Side Frame Guard Band Clamp (non-threaded) Allen Screw #2 Washer OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 57: Seat Cushions

    Adjusting the Tension Lift the back flap to expose the backrest ears. See Figure 7-2. 2. Completely detach the padded back from the backrest ears. Do not remove the backrest ears from the back canes. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 58: Replacing

    4. Align the top of the padded back with the two backrest ears to ensure that the top of the back upholstery is even with the top of the backrest. 5. If desired, adjust the tension of the strap(s). 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 59: Replacing

    If you ignore this Warning, you may develop pressure sores, which can be a life-threatening medical complication. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 60: Adjusting The Tension

    6. Adjust the seat upholstery to the desired tension using the Velcro®-style adjustment flap. 7. Re-insert the Slide-In Seat Sling and rods into the seat tubes. 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 61: Slide-In Seat Tube Extension (Adjustable Depth)

    Tools Needed: • 7/16” Box End Wrench • 5/32” Allen Wrench 1. Flip up the footplates and lift up the seat sling, folding the chair approximately halfway closed. This will give you access OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 62: Seat Cushions

    2. Unzip the seat cushion cover and remove the foam insert. 3. Insert the new foam insert into the seat cushion cover. 4. Close the seat cushion cover and replace on the chair. 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 63: Velcro ® -Style Adjustable Seat Belt

    Safety Check When properly positioned in the wheelchair, the wheelchair user should lean forward and side to side to check the fit. Check for: 1. Normal operation of adjustment straps. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 64: Maintenance

    Check periodically for signs of wear in the stitching and webbing. If significant wear is found, contact your supplier for qualified repair or replacement by TiLite. Quick-Release Solid Seat Pan ( Aluminum TiLite requires that your Quick-Release Solid Seat Pan be installed only by an authorized TiLite dealer. 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...
  • Page 65 Figure 8-1. Figure 8-1 Adjusting the Center of Gravity OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 66: Chapter 8: Axle Plates & Camber Plugs (Center Of Gravity; Rear Seat Height)

    9/16” Torque Wrench 1. Remove the rear wheels. 2. Remove the two hex bolts (two on each side of the chair) that secure the camber clamp to the axle plate. See Figure 8-3. 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 67: Adjusting The Rear Wheel Spacing/Replacing The Camber Plugs

    Hex Bolts Axle Camber Plate Clamp Camber Clamp (non-threaded) Locating Pin Axle Plate Camber Clamp Notches (threaded) Adjusting the Rear Wheel Spacing/Replacing the Camber Plugs Tools Needed: • 3/16” Allen Wrench • Ruler OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...
  • Page 68 9. Check the toe-in/toe-out and adjust as needed and square the casters as needed. 10. Adjust the wheel locks as needed. Figure 8-6 Figure 8-5 Measuring the Rear Wheel Spacing Adjusting the Rear Wheel Spacing Camber Clamp Camber Plug Flats Allen Screws 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 69: Adjusting Toe-In/Toe-Out

    17. After adjusting the camber plugs in Step 15, it will be necessary to recheck the toe-in/toe-out. See Steps 6 through 10 above. 18. Securely tighten the Allen screws in the camber clamps. See Figure 8-5. 19. Adjust wheel locks as needed. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...
  • Page 70 CHAPTER 8: AXLE PLATES & CAMBER PLUGS (CENTER OF GRAVITY; REAR SEAT HEIGHT) Figure 8-7 Adjusting Toe-In/Toe-Out Measurement A Figure 8-9 Figure 8-8 Adjusting Toe-In/Toe-Out Adjusting Toe-In/Toe-Out Toe-In/Toe-Out Measurement 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 71: Chapter 9: Axles And Amputee Adapters

    If the release handle does not flip back and forth from locked to unlocked properly, or if you cannot fully engage it in the locked position or the unlocked position, the procedure below will permit you to adjust the operation of the handle. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...
  • Page 72 Quick-Release Handle Quick-Release Handle Collars Quick-Release Nut (locked position) (locked position) Quick-Release Nut Set Screw 2 Set Screw 2 Quick-Release Handle Quick-Release Handle (unlocked position) (unlocked position) Set Screw 3 Set Screw 3 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 73: Adjusting The "Play

    If you ignore this Warning, your rear wheel could become loose or fall off and you could fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 74: Amputee Adapters

    You can adjust the rear seat height and center of gravity, and you can replace the camber plugs by following the procedures and using the tools in Chapter 8: Axle Plates and Camber Plugs (Center of Gravity; Rear Seat Height). Figure 9-5 Amputee Adapter 2GX/AERO X Owner’s Manual OM0002_Rev A_2GX/AERO X...

  • Page 75: Chapter 10: Wheel Locks

    3. Slide the new wheel lock into the wheel lock clamp, but do not tighten the Allen screws. 4. Follow the procedures under “Compact Push to Lock - Adjusting” on page 10-1 to position and secure the new wheel lock. 10-1 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 76: Compact Pull To Lock

    2. Adjust the position of the wheel lock clamp on the frame so the wheel stop embeds at least 3/16” into the tire when engaged in the locked position. 3. Securely tighten the two Allen screws that secure the wheel lock clamp to the frame. 2GX/AERO X Owner’s Manual 10-2 OM0002_Rev A_2GX/AERO X...

  • Page 77: Adjusting Replacing

    1. Remove the Socket Head Cap screw and reposition it to either the “Pull to Lock” or ”Push to Lock” position, as desired. See Figure 10-6. 2. Securely tighten the Socket Head Cap screw. 10-3 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 78: Repositioning The Handle Of The Uni-Lock Wheel Lock

    The Uni-Lock ships with the handle in Standard Position 3. If you desire to switch to Standard Positions 1 or 2, follow the procedures below. Tools Needed: • 1/8” Allen Wrench • 3/8” Open End Wrench 2GX/AERO X Owner’s Manual 10-4 OM0002_Rev A_2GX/AERO X...

  • Page 79: Uni-Lock With Extension Handles

    2. Adjust the position of the wheel lock clamp on the frame so the wheel stop embeds at least 3/16” into the tire when engaged in the locked position. 3. Securely tighten the two Allen screws that secure the wheel lock clamp to the frame. 10-5 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 80: Adjusting Replacing

    3. Slide the new wheel lock into the wheel lock clamp, but do not tighten the two Allen screws. 4. Follow the procedures under “Compact Scissor Lock - Adjusting” on page 10-5 to position and secure the new wheel lock. 2GX/AERO X Owner’s Manual 10-6 OM0002_Rev A_2GX/AERO X...

  • Page 81: Chapter 11: Casters, Forks And Caster Pin Locks

    “Bullet” Caster Housing Fork Stem Fork Phillips Washer Head Screw Nylock C Spring Washer Axle C Spring Washer Phillips Spacer Head Screw Caster Spacer Replacing Bearing Forks Tools Needed: • 9/16” Socket Wrench 11-1 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 82: Casters And Bearing Forks (Hemi Height)

    The fork stem is permanently installed in the “Bullet” Caster Housing. Do not attempt to unscrew the fork stem. If you have a 2GX or Aero X and it becomes necessary to replace the fork stem, you will need to order the “Bullet” Caster Housing/fork stem assembly.

  • Page 83: Adjusting The Front Seat Height

    5. Using the Allen wrench to prevent the Allen screw from turning (and the angle of the fork from changing), use the open end wrench to securely tighten the locknut. 6. After tightening the locknut, recheck the fork to be certain it is still perpendicular to the ground before riding. 11-3 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 84: Adjustable Angle Fork (Heavy Duty)

    Note: If your chair is equipped with Frog Legs®, you must square the barrel to the level surface because the flat edge of the Frog Legs® fork is not parallel to the barrel. See Figure 11-10 on pages 11-7 and 11-8. 2GX/AERO X Owner’s Manual 11-4...

  • Page 85: Adjustable Caster Position

    Note: In order to achieve a greater range of adjustment, it is possible to reverse the caster clamps and caster mounts (i.e. installing the left side assembly on the right side of the chair and vice versa). 11-5 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 86: Fork Extensions

    8. Reinstall the caster. See “Casters and Bearing Forks - Replacing Casters” on pages 11-1 to 11-2. 9. Follow the procedures under “Adjustable Angle Fork” on page 11-4 to square the caster. 2GX/AERO X Owner’s Manual 11-6 OM0002_Rev A_2GX/AERO X...

  • Page 87: Floating Casters

    3. Install the new elastomer shock (making sure the metal disk is facing upward). 4. Push firmly on the two halves of the Frog Legs® to facilitate reinstalling the Allen screw and threaded spacer. 11-7 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 88: Replacing Frog Legs®

    9. Follow the procedures under “Adjustable Angle Fork” on page 11-4 to square the caster. Figure 11-11 Replacing Frog Legs® “Bullet” Caster Housing Dowel Locknut Fork Washer Caster Mount Washer Allen Caster Screw 2GX/AERO X Owner’s Manual 11-8 OM0002_Rev A_2GX/AERO X...

  • Page 89: Chapter 12: Rear Wheels

    3. Insert the axle all the way into axle sleeve. 4. Lock the lever on the quad quick-release axle. 5. Pull firmly on the wheel (without unlocking the lever) to make sure the wheel is locked securely in place. 12-1 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 90: Handrims

    3/4” of the axle sleeve is outside of the camber plug, the axle sleeve could disengage from the camber plug while you are using the chair. If you ignore this Warning, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. 2GX/AERO X Owner’s Manual 12-2 OM0002_Rev A_2GX/AERO X...
  • Page 91 4. Using a torque wrench, tighten the axle sleeve to 230 inch-pounds. Figure 12-5 Adjusting the Rear Wheel Spacing Camber Plug Washer Lock Washer Camber Axle Tube Sleeve 1/2” Spacer 1/8” Spacer 12-3 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 93: Chapter 13: Anti-Tips

    4. Insert the replacement Allen screws through the axle plate, the various washers, the frame, the anti-tip receiver and into the locknuts. Securely tighten. BOTH Allen screws must pass Receiver through ALL of these parts. 5. Reinstall the rear wheels. Allen Screws 13-1 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 94: User-Friendly Anti-Tips

    To disengage the User-Friendly Anti-Tip, grip the anti-tip receiver firmly and pull it downward, away from the anti-tip mounting plate, and raise it until it re-engages in the mounting plate in the position shown in Figure 13-5. 2GX/AERO X Owner’s Manual 13-2...

  • Page 95: Adjusting

    Do NOT disassemble the anti-tip mounting assembly (see Figure 13-7). If you ignore this Warning, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. 13-3 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...
  • Page 96 CHAPTER 13: ANTI-TIPS Note: Unless you ordered User-Friendly Anti-Tips when you originally ordered your TiLite 2GX or Aero X, you will need to order replacement Allen screws when ordering User-Friendly Anti-Tips. Tools Needed: • 5/32” Allen Wrench • 7/16” Open End Wrench 1.

  • Page 97: Chapter 14: Transportation Options

    TRANSPORTATION OPTIONS The TiLite 2GX is available with the Wheelchair Transport Option. The TiLite Aero X is available with a Transit Tie-Down Option or a Wheelchair Transport Option. The Transit Tie-Down Option, which is only available as a factory-installed option, has been crash-tested in accordance with ISO 7176-19 as described in this Owner’s...

  • Page 98: General Warnings

    TiLite expressly disclaims that use of its Transit Tie-Down Option or Transport Bracket Option on a TiLite wheelchair will prevent the wheelchair user from injury or death in the event of a motor vehicle accident. 2GX/AERO X Owner’s Manual 14-2 OM0002_Rev A_2GX/AERO X...

  • Page 99: Use Oem Seating And Restraint Systems

    (shoulder) belts should be used to reduce the possibility of head and chest impacts with components of the motor vehicle. TILITE REQUIRES THAT BOTH PELVIC AND UPPER TORSO BELTS BE USED FOR MAXIMUM PROTECTION IN A FRONTAL IMPACT COLLISION. 14-3 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 100: Avoid Using Improper Equipment/ Secure Other Equipment

    This Chapter of the Owner’s Manual provides detailed instructions on the proper use of TiLite’s Transit Tie-Down Option (Aero X) and the Transit Bracket Option (2GX and Aero X) for your wheelchair. In 2001, the International Organization for Standardization (ISO) developed and adopted ISO 7176-19 entitled “Wheeled Mobility Devices for Use in Motor Vehicles”...

  • Page 101: Statement Of Compliance/ Specifications

    19 “Wheeled Mobility Devices for Use in Motor Vehicles” or pursuant to ANSI/RESNA WC19. Therefore, the Wheelchair Transport Bracket Option is provided solely for the purpose of securing an UNOCCUPIED wheelchair in a motor vehicle. 14-5 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 102: Positioning The Wheelchair In The Vehicle

    Clear zones are required whether the wheelchair occupant is restrained by both pelvic and upper torso belts or only by a pelvic belt. The use of only 2GX/AERO X Owner’s Manual 14-6...

  • Page 103: Securing The Wheelchair To The Vehicle

    Note: To obtain a copy of SAE J2249 Wheelchair Tie-Down and Occupant Restraint Systems (WTORS) for use in Motor Vehicles, please contact SAE International, 400 Commonwealth Drive, Warrendale, PA 15096- 0001, USA. Telephone: 724-776-4970. Web: www.sae.org 14-7 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...

  • Page 104: Securing The Occupant; Positioning The Pelvic And Upper Torso Belts

    TiLite Aero X wheelchair in a motor vehicle. IWARNING A side-view pelvic-belt angle of 30° to 75° to the horizontal (see Figure 15-7) is preferred to lower pelvic belt angles. 2GX/AERO X Owner’s Manual 14-8 OM0002_Rev A_2GX/AERO X...
  • Page 105 5. Belt restraints should not be held away from the body by wheelchair components or parts, including, for example, the wheelchair armrests or wheels. See Figure 14-7 for the correct position of the belt restraints. See Figure 14-8 for the incorrect position of the belt restraints. 14-9 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...
  • Page 106 7. Always carefully inspect the belt webbing to ensure that it is not twisted. If it is twisted, it will reduce the surface area of the belt that is in contact with the user, which could adversely affect the performance of the belt and injure the user in the event of an impact. 2GX/AERO X Owner’s Manual 14-10 OM0002_Rev A_2GX/AERO X...

  • Page 107: Seating Options

    Our warranty is also available on our website, www.tilite.com. That Limited Warranty applies to your TiLite wheelchair with the Transit Tie-Down Option, with the following modification: The warranty is void if the wheelchair is damaged as a result of transit use. 14-11 OM0002_Rev A_2GX/AERO X 2GX/AERO X Owner’s Manual...
