Summary of Contents for Omnicall ONE
-

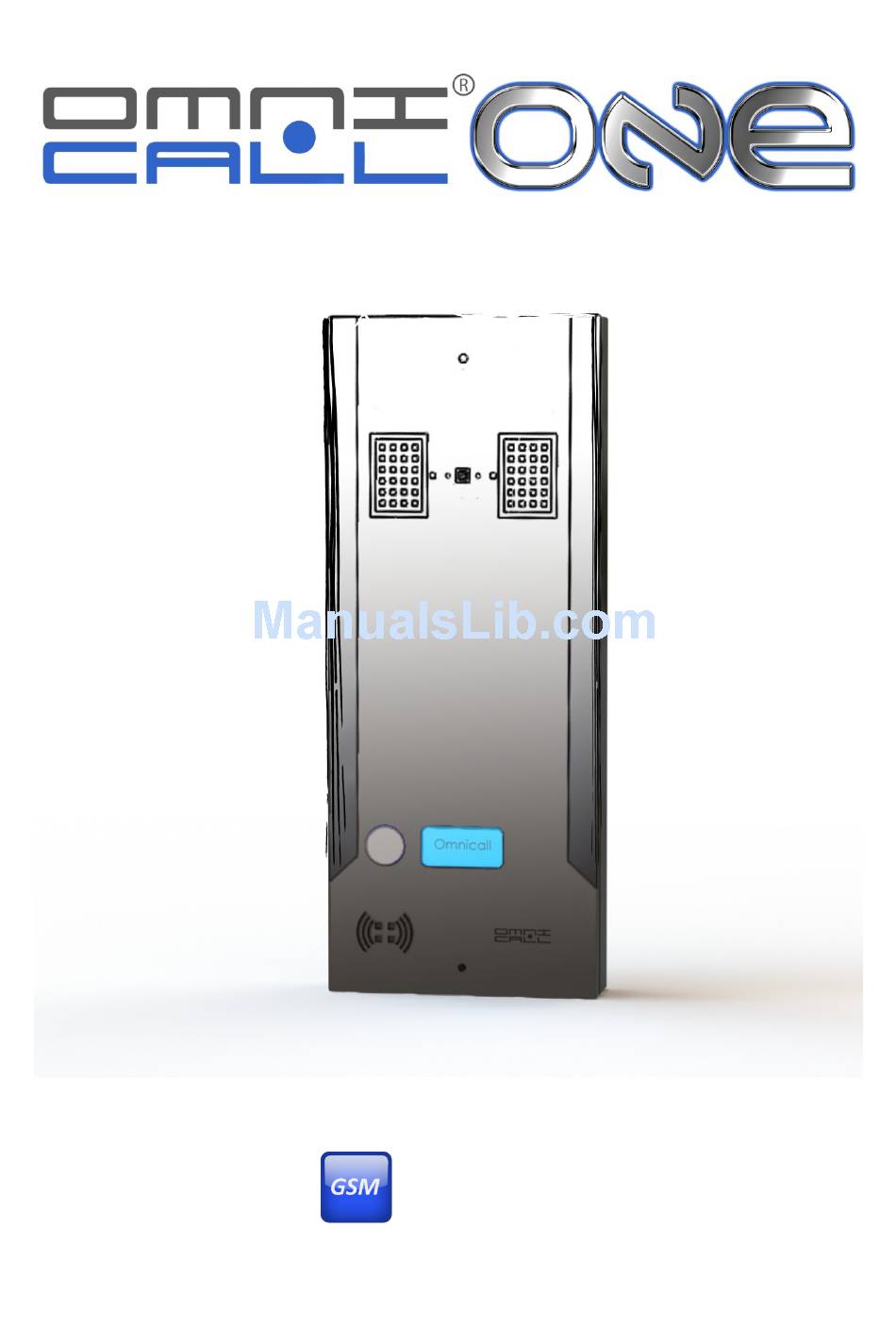

Page 1: User Manual
One GSM User Manual Release 4.0... -
Page 2: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS Balance due’s receiving number SECURITY INFORMATIONS Leanguage Audio profile CE CONFORMITY DECLARATION ASSISTANCE & CONTACTS Speaker volume 1. INTRODUCTION Microphone gain 1.1 Description Signal quality 1.2 Specifications Relay 1 activation 1.3 Connections Relay 2 activation 1.4 Models Relay 1 closing time 2. -
Page 3: Precautions
The contents of this manual may be changed without notice. Every care has been taken in the collec- tion and verification of the documents contained in this manual, however the OMNICALL Srl. can not assume liability resulting from its use. All other brands, products and trademarks are the property of their respective owners. - Page 4 DECLARATION CONFORMITY Omnicall s.r.l. Via Pietro Bembo, 41123 Modena - Italy- declares under its sole responsibility that the product name Omnicall ® ONE GSM to which this declaration relates, meets the essential require- ments of the Directive indicated below: 1999/5/EC of 9th March 1999, R & TTE, (on radio equipment and telecommunications terminal equi- pment and the mutual recognition of their conformity) of Legislative Decree dated May 9th, 2001, 269 (OJ 156 of 07 / 07/2001).
-
Page 5: Introduction

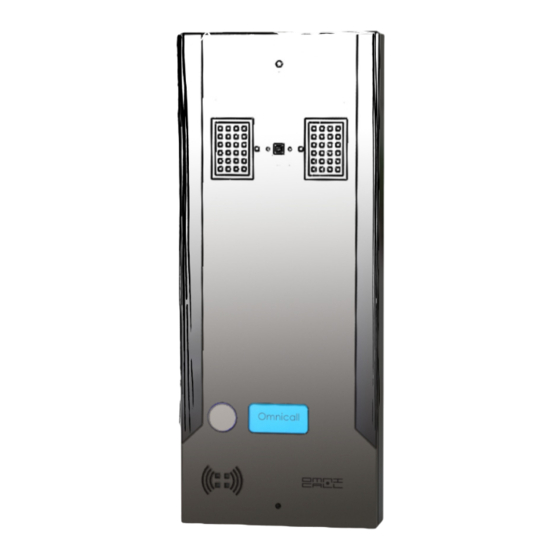

In this manual you can find information to install your intercom system quickly and easily. 1.1 Description Omnicall ONE is a GSM intercom system, able to make audio calls in handsfree mode, with phone numbers of mobile and fixed network with the push of the buttons. -
Page 6: Ce Conformity Declaration
1.3 Connections FRONT VIEW... - Page 7 BACK VIEW...
- Page 8 BUTTONS CONFIGURATION...
-
Page 9: Models
1.4 Models and accessories... -
Page 11: Installation
Before installing the product, simply insert your SIM card into the slot inside the intercom. OMNICALL ONE GSM supports any SIM of type PLUG-IN (3V / 1.8V). In order to prevent damage to the SIM or loss of information, don’t touch the SIM’s golden parts (where there are contacts). -
Page 12: Power Supply
After the hardware installation, you will need to program the product. During the first turn, check the LED lighting keys in addition to the NETWORK STATUS LED. After 45 seconds OMNICALL ONE GSM will be registered to the GSM network, and then the LED will flash slowly; in case the LED remains permanently lightened, turn off and check: ... -
Page 13: Configuration
SIM card inserted into the product. In this way, you can configure the pro- duct to suit your needs. The configuration commands are accepted and stored by OMNICALL ONE only if the SMS message is preceded by the system PIN correctly, otherwise the message will be ignored. OMNICALL ONE GSM, the correct reception of SMS text message, in cases where it is expected, will report via an SMS message, sender, thus confirming the configuration of the command. -
Page 14: Switches A
Switches A Command Function Configure and / or change phone numbers associated with switches from AA to DA Functions group Contacts SMS format <pin><command><position><telephone number> E.g. SMS text sended 0000AA13331234567 E.g. SMS text received Numbers associated to AA: 3331234567, , , , . <pin>... -
Page 15: Switches B
Switches B Command functions Configure and / or change phone numbers associated with switches from AB to DB Functions group Contacts SMS format <pin><command><position><telephone number> E.g. SMS text sended 0000AB13331234567 E.g. SMS text received Numbers associated to AB: 3331234567, , , , . <pin>... -
Page 16: Switches C
Switches C Command Function Functions group SMS format E.g. SMS text sended E.g. SMS text received <pin> <command> <position> <telephone number> Re-SMS automatic SMS configuration Default Note Examples of SMS text... -
Page 17: Switches D
Switches D Command Function Functions group SMS format E.g. SMS text sended E.g. SMS text received <pin> <command> <position> <telephone number> Re-SMS automatic SMS configuration Default Note Examples of SMS text... -
Page 18: Switches E
Switches E Command Function Functions group SMS format E.g. SMS text sended E.g. SMS text received <pin> <command> <value> Re-SMS automatic SMS configuration Default Note Examples of SMS... -
Page 19: Switches F
Switches F Command Function Functions group SMS format E.g. SMS text sended E.g. SMS text received <pin> <command> <value> Re-SMS automatic SMS configuration Default Note Examples of SMS... -
Page 20: Calling Cycles
Calling Cycles Command Function Configure and/or change the telephone numbers’ cycles calling of the buttons Functions group Call <pin><command><value> SMS format E.g. SMS text sended 0000G1 E.g. SMS text received Number of cycles: 1 <pin> 0000 (Default) <command> G or g <value>... -
Page 21: Call Timoeout
Call Timeout Command Function Configure and/or change the automatic closing of the call. Functions group Call <pin><command><value> SMS format E.g. SMS text sended 0000H1 E.g. SMS text received Call timeout: 3 <pin> 0000 (Default) <command> H or h <value> 1,2,3,4,5,6,7,8,9 Re-SMS automatic SMS configuration Default... -
Page 22: External Ringtone
External Ringtone Command Function Enables and / or disables external call ringtone Functions group Call <pin><command><value> SMS format E.g. SMS text sended 0000I1 E.g. SMS text received Ringtone: ON <pin> 0000 (Default) <command> I or i <value> 0 (OFF), 1 (ON) Re-SMS automatic SMS configuration Default... -
Page 23: Switch Advanced Functions
Switch advanced functions Command Function Enables and / or disables the closing of the call, when the same button is pressed. Functions group Call SMS format <pin><command><value> E.g. SMS text sended 0000J0 E.g. SMS text received Closing call switch: OFF <pin>... -
Page 24: Timeout Between Calls
Timeout between calls Command Function Configure the time between the called number and the subsequent Functions group Call <pin><command><value> SMS format E.g. SMS text sended 0000K9 E.g. SMS text received Call Timeout: 9 <pin> 0000 (Default) <command> K or k <value>... -
Page 25: Switch Lock
Switch Lock Command Function Enables and / or disables the desired switch Functions group Test <pin><command><switch><value> SMS format E.g. SMS text sended 0000 E.g. SMS text received Enabling switch AA: OFF <pin> 0000 (Default) <command> L or l <switch> AA, BA, AB, BB or aa, ba, ab, bb <value>... -
Page 26: Switch Test
Switch Test Command Function Simulates pressing of the switch and sends a call. Functions group Test <pin><command><switch> SMS format E.g. SMS text sended 0000MAA E.g. SMS text received Test switch <pin> 0000 (Default) <command> M or m <switch> AA, BA, AB, BB or aa, ba, ab, bb Re-SMS automatic SMS configuration Default... -
Page 27: Single Number Erase
Cancellazione singolo numero Command Function Erase single phone number from the associated switch Functions group Contacts <pin><command><switch><position> SMS format E.g. SMS text sended 0000NAA1 E.g. SMS text received Numbers associated to AA:…………………………... <pin> 0000 (Default) <command> N or n <switch> AA, BA, AB, BB or aa, ba, ab, bb <position>... -
Page 28: Reset Numbers
Reset numbers Command Function Deletes every phone numbers associated with switches Functions group Contacts <pin><command><value> SMS format E.g. SMS text sended 0000O*# E.g. SMS text received All contacts deleted <pin> 0000 <command> O or o <value> Re-SMS automatic SMS configuration Default Note... -
Page 29: Password
Password Command Function Edit system password Functions group Password <pin><command><value> SMS format E.g. SMS text sended 0000P5555 E.g. SMS text received PIN modified. New PIN is: 5555 <pin> 0000 (Default) <command> P or p <value> 4 digit Re-SMS automatic SMS configuration Default 0000 Note... -
Page 30: Gate Opener
Gate opener Command Function Enables the gate opener by a telephone ring Functions group Test SMS format <pin><command><value> E.g. SMS text sended 0000Q1 E.g. SMS text received Gate opener: Relay 1 <pin> 0000 <command> Q or q <value> 0, 1, 2 Re-SMS automatic SMS configuration Default... -
Page 31: Manual Balance Due Request
Balance manual request Command Function Send the remaining balance via SMS to the selected number Functions group Info <pin><command><number> SMS format E.g. SMS text sended 0000R3388619861 E.g. SMS text received (It depends by the operator) <pin> 0000 <command> R or r <number>... -
Page 32: Balance Due Operator Selection
Balance operator selection Command Function Configure the telephone operator for receive remaining balance Functions group Info <pin><command><value> SMS format E.g. SMS text sended 0000S0 E.g. SMS text received Telephone Operator: TIM <pin> 0000 <command> S or s <value> 0 (TIM), 1 (VODAFONE), 2 (WIND), 3 (TRE) Re-SMS automatic SMS configuration Default... -
Page 33: Balance Due Auto Sms
Balance due automatic SMS Command Function Configure the automatic sending of balance to the number set “U”. Functions group Info SMS format <pin><command><value> E.g. SMS text sended 0000T30 E.g. SMS text received Automatic broadcast every (days): 30 <pin> 0000 (Default) <command>... -
Page 34: Balance Due's Receiving Number
Balance due’s receiving number Command Function Set the telephone number that receive automatic SMS with balance Functions group Info <pin><command><number> SMS format E.g. SMS text sended 0000U3388619861 E.g. SMS text received Number receiving automatic SMS: 3388619861 <pin> 0000 (Default) <command> U or u <number>... -
Page 35: Leanguage
Leanguage Command Function Configure the leanguage Functions group <pin><command><value> SMS format E.g. SMS text sended 0000V0 E.g. SMS text received Leanguage : Italian <pin> 0000 (Default) <command> V or v <value> 0 (ITALIAN), 1 (ENGLISH) Re-SMS automatic SMS configuration Default 0 (ITALIAN) Notes... -
Page 36: Audio Profile
Audio profile (NOT IMPLEMENTED) Command Function Configure and/ or change the audio profile associated to automatic gain control Functions group Audio SMS format <pin><command><value> E.g. SMS text sended 0000W1 E.g. SMS text received Audio Profile: 1 <pin> 0000 (Default) <command> W or w <value>... -
Page 37: Speaker Volume
Speaker Volume Command Function Configure and / or change the speaker volume Functions group Audio <pin><command><value> SMS format E.g. SMS text sended 0000X4 E.g. SMS text received Speaker Volume: <pin> 0000 (Default) <command> X or x <value> 1, 2, 3, 4, 5, 6, 7, 8, 9 Re-SMS automatic SMS configuration Default... -
Page 38: Microphone Gain
Microphone Gain Command Function Configure and / or change microphone gain Functions group Audio <pin><command><value> SMS format E.g. SMS text sended 0000Y1 E.g. SMS text received Microphone Gain: 1 <pin> 0000 (Default) <command> Y or y <value> 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 Re-SMS automatic SMS configuration Default... -
Page 39: Signal Quality
Signal Quality Command Function Show GSM signal quality. Functions group Info <pin><command> SMS format E.g. SMS text sended 0000Z E.g. SMS text received Signal Level: 12 <pin> 0000 (Default) <command> Z or z Re-SMS automatic SMS configuration Default Notes The command "Z" may also be used together with the SMS information request individual. -
Page 40: Relay 1 Activation
Relay 1 activation Command Function Enables Relay 1 Functions group Test <pin><command> SMS format E.g. SMS text sended 0000* E.g. SMS text received Relay 1 enabled <pin> 0000 (Default) <command> Re-SMS automatic SMS configuration Default Notes... -
Page 41: Relay 2 Activation
Relay 2 activation Command Function Enables Relay 2 Functions group Test <pin><command> SMS format E.g. SMS text sended 0000# E.g. SMS text received Relay 2 enabled <pin> 0000 (Default) <command> Re-SMS automatic SMS configuration Default Notes... -
Page 42: Relay 1 Closing Time
Relay 1 closing time Command Function Configure and / or change relay 1 closing time Functions group Test <pin><command><value> SMS format E.g. SMS text sended 0000**5 E.g. SMS text received Relay closing time: 5 <pin> 0000 (Default) <command> <value> 0 (disabled), 1, 2, 3, 4, 5, 6, 7, 8, 9 Re-SMS automatic SMS configuration Default... -
Page 43: Relay 2 Closing Time
Relay 2 closing time Command Function Configure and / or change relay 2 closing time Functions group Test <pin><command><value> SMS format E.g. SMS text sended 0000##5 E.g. SMS text received Relay closing time: 5 <pin> 0000 (Default) <command> <value> 0 (disabled), 1, 2, 3, 4, 5, 6, 7, 8, 9 Re-SMS automatic SMS configuration Default... -
Page 44: Command's Single Information
Command’s single information (NOT IMPLEMENTED) Command Function Functions group SMS format E.g. SMS text sended E.g. SMS text received <pin> <command> <sub> Re-SMS automatic SMS configuration Default Notes... -
Page 45: Command's Total Informations
Command’s total informations (NOT IMPLEMENTED) Command Function Functions group SMS format E.g. SMS text sended E.g. SMS text received <pin> <command> Re-SMS automatic SMS configuration Default Notes... - Page 46 Command Function Functions group SMS format E.g. SMS text sended E.g. SMS text received <pin> <command> <value> Re-SMS automatic SMS configuration Default Notes...
- Page 47 Command Function Functions group SMS format E.g. SMS text sended E.g. SMS text received <pin> <command> <number> Re-SMS automatic SMS configuration Default Notes...
- Page 48 Command Function Functions group SMS format E.g. SMS text sended E.g. SMS text received <pin> <command> <value> Re-SMS automatic SMS configuration Default Notes...
-
Page 49: Log Firmware Versions
4. LOG FIRMWARE VERSION Revision Date FW Release Change ISSUE#0 01/09/2010 Initial release... -
Page 50: Troubleshooting
5. TROUBLESHOOTING... -
Page 51: Warranty Certificate
Civil Code. In both cases, OMNICALL Srl., due to the quality of its products, applies a warranty period of 24 months. - Page 52 Manual of the product you purchased and offer you a better service, we recommend to visit the "SUPPORT" section of our website at http//:www.omnicall.it where you will find a lot of information and tips on setting up, updating and new configurations (always changing) products and to solve common problems.
-
Page 53: Assistance Request
- Purposes connected with the service and the management of the repair and return of products sent for repair. In any case, your data will not be disclosed (if not a company for the repair and return) or sold to third parties. Within OMNICALL Srl, data may be acquired only by those specifically charged with operating departments Information Systems, Administration and Accounting, Customer Service. - Page 54 FUTURE STARTS HERE www.omnicall.it Prodotto e distribuito da: OMNICALL srl Tel. +39 059.8676186 Via Pietro Bembo, 22 Fax +39 059.8672084 41123 Modena - ITALY info@omnicall.it...
