"MEETS PHASE II EPA STANDARDS"

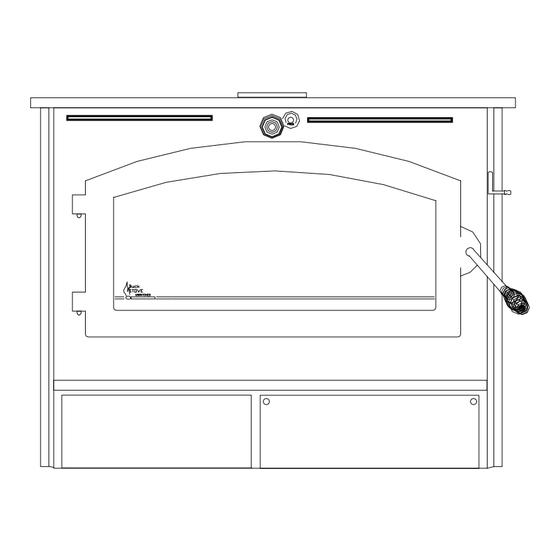

MODEL 20 Room Heater
FEATURES
PREPARATION
INSTALLATION
OPERATION MAINTENANCE
SAFETY
Contact your insurance company for coverage and installation inspection
SAFETY NOTICE
If this heater is not properly installed, a house fire may result. For your safety, follow the installation
directions. Contact local building or fire officials about restrictions and installation inspection requirements
in your area.
This product is listed by Warnock-Hersey International, Inc. to the UL Standard No. 1482 and 127.
Manufactured by New Buck Corporation, Spruce Pine, NC 28777
Revised
May/2001
PN-PI-200660
Tested by ITS
