Installation Instructions

Water Service/Drains

WATER SUPPLY
Local water conditions may require treatment of the water to
inhibit scale formation, filter sediment, remove chlorine, and
improve taste and clarity.

WATER INLET LINES

Follow these guidelines to install water inlet lines:
•
Do not connect the ice machine to a hot water supply. Be
sure all hot water restrictors installed for other equipment are
working. (Check valves on sink faucets, dishwashers, etc.)
•
Water pressure to the machine should be between 1.4 to 5.5
bar (20 to 80 psi).
•
If water pressure exceeds the maximum 5 bar recommended
pressure, obtain a water pressure regulator from your
Manitowoc distributor. Adjust pressure to 2.5 bar (37 psi).
•
Install a water shut-off valve.
•
Connect to a potable water supply only.

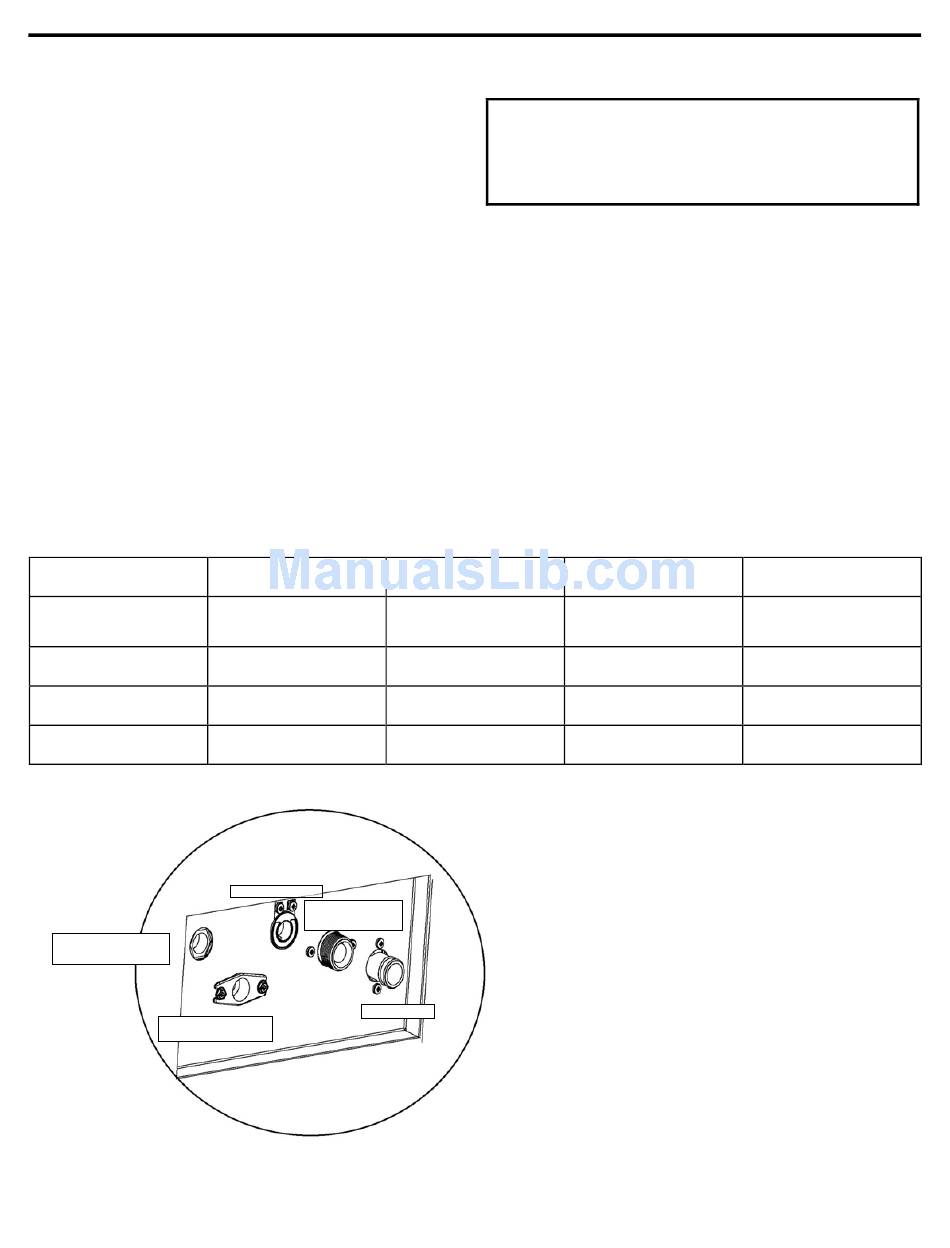

WATER SUPPLY AND DRAIN LINE SIZING/CONNECTIONS

*Ice Making
Water Inlet
**Drain Connection
Outlet
Condenser Water Inlet
Condenser Water Outlet
WATER COOLED
CONDENSER INLET
WATER COOLED
CONDENSER OUTLET
1-4
Water Temperature
10ºC (50ºF) Min. 1.4 Bar (20 Psi) Min.
40ºC (104ºF) Max. 5.5 Bar (80 Psi) Max
-----
0.6ºC (33ºF) Min. 1.4 Bar (20 Psi) Min.
32.2ºC (90ºF) Max. 10.3 Bar (150 Psi) Max
-----
ELECTRICAL
POTABLE WATER
INLET
DRAIN
If you are installing a water filter system, make sure that
you use a separate line for water-cooled condenser.
Filter life will be greatly reduced if filtered water is used
for water-cooled condenser.
DRAIN CONNECTIONS
Follow these guidelines when installing drain lines to prevent
drain water from flowing back into the ice machine and storage
bin:
•
Drain lines must have a 3.8 cm (1.5 inch) drop of run for
each meter (3 feet), and must not create traps.
•
The floor drain must be large enough to accommodate
drainage from all drains.
•
Run separate bin and water-cooled condenser drain lines.
Insulate them to prevent condensation
Water Ice Machine
Pressure
3/4" Male Pipe
----- 7/8" Barb connection
3/8" Female pipe
1/2" Female pipe
-----
Section 1
Important
.
Tubing Size Up to Ice
Fitting Machine Fitting
15mm (1/2") Inside
Thread Diameter Minimum
18mm (3/4") Minimum
Inside Diameter
15mm (1/2") Inside
Thread Diameter Minimum
15mm (1/2") Minimum
Thread Inside Diameter
* Water inlet hose supplied with machine.
3/4" Female Pipe Thread/ 2 meters long.
** Drain hose supplied with machine.
7/8" (22.2mm) hose/ 2 meters long.
