21.5" LCD Color Monitor

4. Input/Output Specification

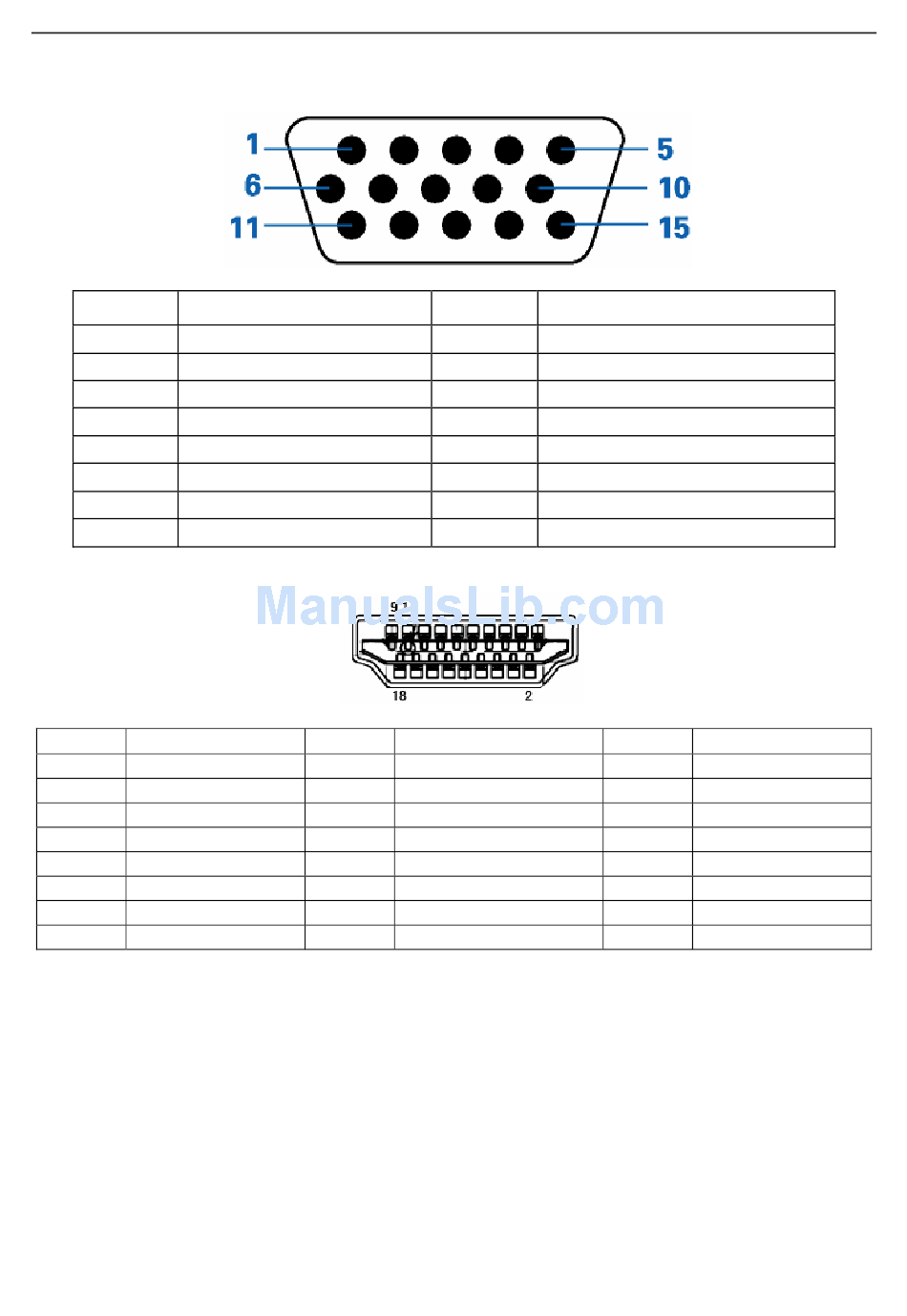

4.1 Input Signal Connector

4.1.1 D-SUB connector
PIN NO.
1 Video-Red
2 Video-Green
3 Video-Blue
4 N.C.
5 Detect Cable
6 GND-R
7 GND-G
8 GND-B
4.1.2 HDMI connector
Pin No. Signal Name
1 TMDS Data 2+
2 TMDS Data 2 Shield
3 TMDS Data 2
4 TMDS Data 1+
5 TMDS Data 1Shield
6 TMDS Data 1
7 TMDS Data 0+
8 TMDS Data 0 Shield
DESCRIPTION
Pin No.
9 TMDS Data 0
10 TMDS Clock +
11 TMDS Clock Shield
12 TMDS Clock
13 CEC
14 Reserved (N.C. on device
15 SCL
16 SDA
PI N NO.
9 +5V
10 Ground
11 N.C.
12 DDC-Serial data
13 H-sync
14 V-sync
15 DDC-Serial clock
Signal Name Pin No.
8
AOC 2236Vwh
DESCRIPTION
Signal Name
17 DDC/CEC Ground
18 +5V Power
19 Hot Plug Detect
