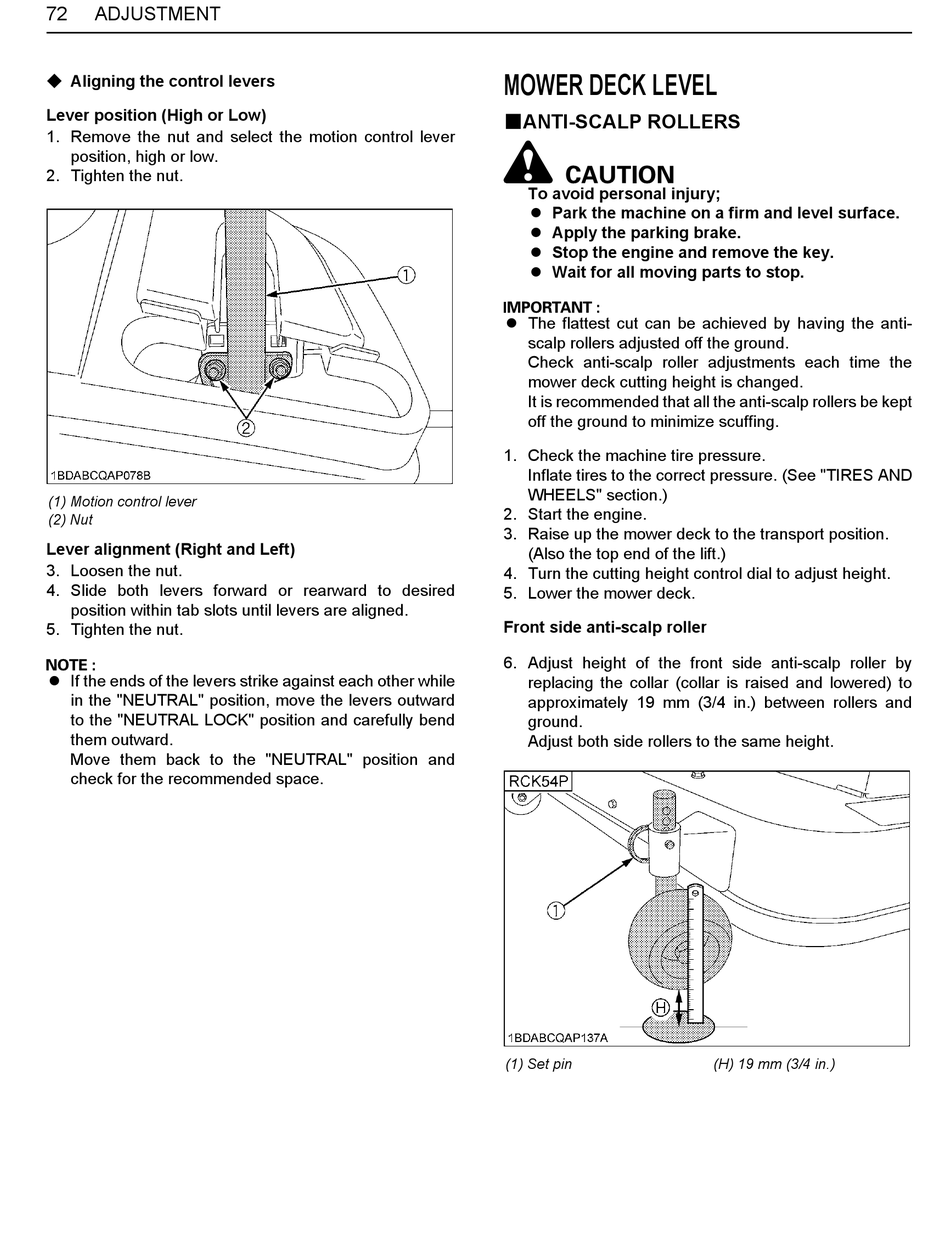

72 ADJUSTMENT
C Aligning the control levers
Lever position (High or Low)
1. Remove the nut and select the motion control lever
position, high or low.
2. Tighten the nut.
(1) Motion control lever
(2) Nut
Lever alignment (Right and Left)
3. Loosen the nut.
4. Slide both levers forward or rearward to desired
position within tab slots until levers are aligned.
5. Tighten the nut.
A If the ends of the levers strike against each other while
in the "NEUTRAL" position, move the levers outward
to the "NEUTRAL LOCK" position and carefully bend
them outward.
Move them back to the "NEUTRAL" position and
check for the recommended space.

MOWER DECK LEVEL

BANTI-SCALP ROLLERS
To avoid personal injury;
A Park the machine on a firm and level surface.
A Apply the parking brake.
A Stop the engine and remove the key.
A Wait for all moving parts to stop.
A The flattest cut can be achieved by having the anti-
scalp rollers adjusted off the ground.
Check anti-scalp roller adjustments each time the
mower deck cutting height is changed.
It is recommended that all the anti-scalp rollers be kept
off the ground to minimize scuffing.
1. Check the machine tire pressure.
Inflate tires to the correct pressure. (See "TIRES AND
WHEELS" section.)
2. Start the engine.
3. Raise up the mower deck to the transport position.
(Also the top end of the lift.)
4. Turn the cutting height control dial to adjust height.
5. Lower the mower deck.
Front side anti-scalp roller
6. Adjust height of the front side anti-scalp roller by
replacing the collar (collar is raised and lowered) to
approximately 19 mm (3/4 in.) between rollers and
ground.
Adjust both side rollers to the same height.
(1) Set pin (H) 19 mm (3/4 in.)
