TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
High Pass:
Mid High Pass:
Mid Low Pass:
Low Pass:
Subsonic Filter:
Bass Boost:
Max Output Voltage:
Max Input Voltage:
Signal to Noise:
Input Impedance:
Total Harmonic Distortion:
Channel Separation:
Frequency Response:
Work Voltage:
Consumption:
Output Impedance:
Dimension:
Weight:
HOW TO PROCEED IN CASE OF PROBLEMS
HOW TO PROCEED IN CASE OF PROBLEMS
NO POWER / GREEN LED NO LIGHTS:
- Power cables are not properly connected (terminals +BATT, GND and REM).
- Power cables with bad contact. Check connections.
- REM without signal. Check if REM connection is receiving power near +12V.
- Bad contact ground connection.
- The internal fuse is burned. Attention to the correct value of the fuse (0,5A).
NO SOUND:
- Gain controls at minimum level. Increase the level.
- Power switch the channel off. Turn it on.
UNWANTED NOISE:
- All RCA and power cables must first be checked, to rectify any irregularities of them.
- Use suppressive cables at ignition candles.
- Route RCA cables input and output away from any other cable, because they are more sensitive to
interference.
- Make the connection of power (+12V) separate of the sound system. Use one fuse of 1A away 30 cm
from the battery to protection.
- Make a good grounding of CROSSOVER. Remove the paint from the chassis of the vehicle at the
desired point. Screw the wire using a ground terminal. To protect from oxidation, insulate with paint.
- Let`s CROSSOVER grounding point as close as possible to other audio equipment used together.
- Do not loop with the ground wire. Avoid using several ground wires. Prefer the star connection, with all
wires from a single point.
Phone
: (786) 2651960 - www.stetsom.com - export@stetsom.com
400Hz to 10KHz (12 dB/8ª)
150Hz to 12,5KHz (12 dB/8ª)
70Hz to 10KHz (12 dB/8ª)
50Hz to 250Hz (12 dB/8ª)
20 / 30 / 50 / 80Hz (24 dB/8ª)
(25Hz to 110Hz) (0 to +12dB; 60Hz)
9V RMS
4V RMS
>90dB
10K OHMS
< 0,02% THD
> 80dB
20Hz to 200 KHz
10V to 16V DC
250mA
50 OHMS
33 x 264 x 160 mm
780g
5 WAYS

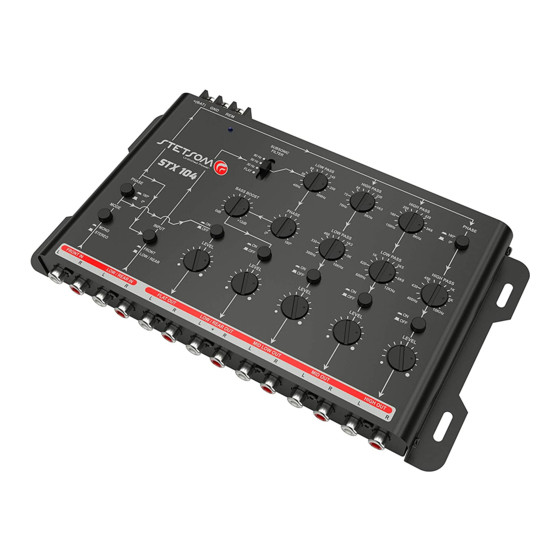

STX 104
USER'S GUIDE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StetSom STX 104
Summary of Contents for StetSom STX 104
- Page 1 - Let`s CROSSOVER grounding point as close as possible to other audio equipment used together. - Do not loop with the ground wire. Avoid using several ground wires. Prefer the star connection, with all wires from a single point. USER’S GUIDE Phone : (786) 2651960 - www.stetsom.com - export@stetsom.com...
- Page 2 INTRODUCTION INTRODUCTION POWER CONNECTIONS (BATTERY) POWER CONNECTIONS (BATTERY) The electronic crossover STX104 was developed with the purpose of providing high performance with a sound fidelity. Its reliability is extremely high with low levels of noise and harmonic distortion, good for (GND) profissional sound work.
- Page 3 AUDIO CONNECTIONS INPUT AND OUTPUT AUDIO CONNECTIONS INPUT AND OUTPUT FILTERS FILTERS The STX104 has filters with variable frequencies, which allows use with various types The Crossover STX104 has the purpose of driving frequency ranges of audio spectrum to amplifiers, which Will direct and amplify the signals to acoustic transducers of speakers.
- Page 4 4 - MID LOW WAY: 4 - MID HIGH WAY: HI PASS: High pass filter of 12dB / 8ª, variable: 70Hz OVERVIEW OVERVIEW to 3KHz. 4.1.1 HI PASS: High pass filter of 12dB / 8ª, variable: 1 - INPUT: 150Hz to 5KHz. 1.1 PHASE: Chave inversora de Fase: 4.1.1 0º...
