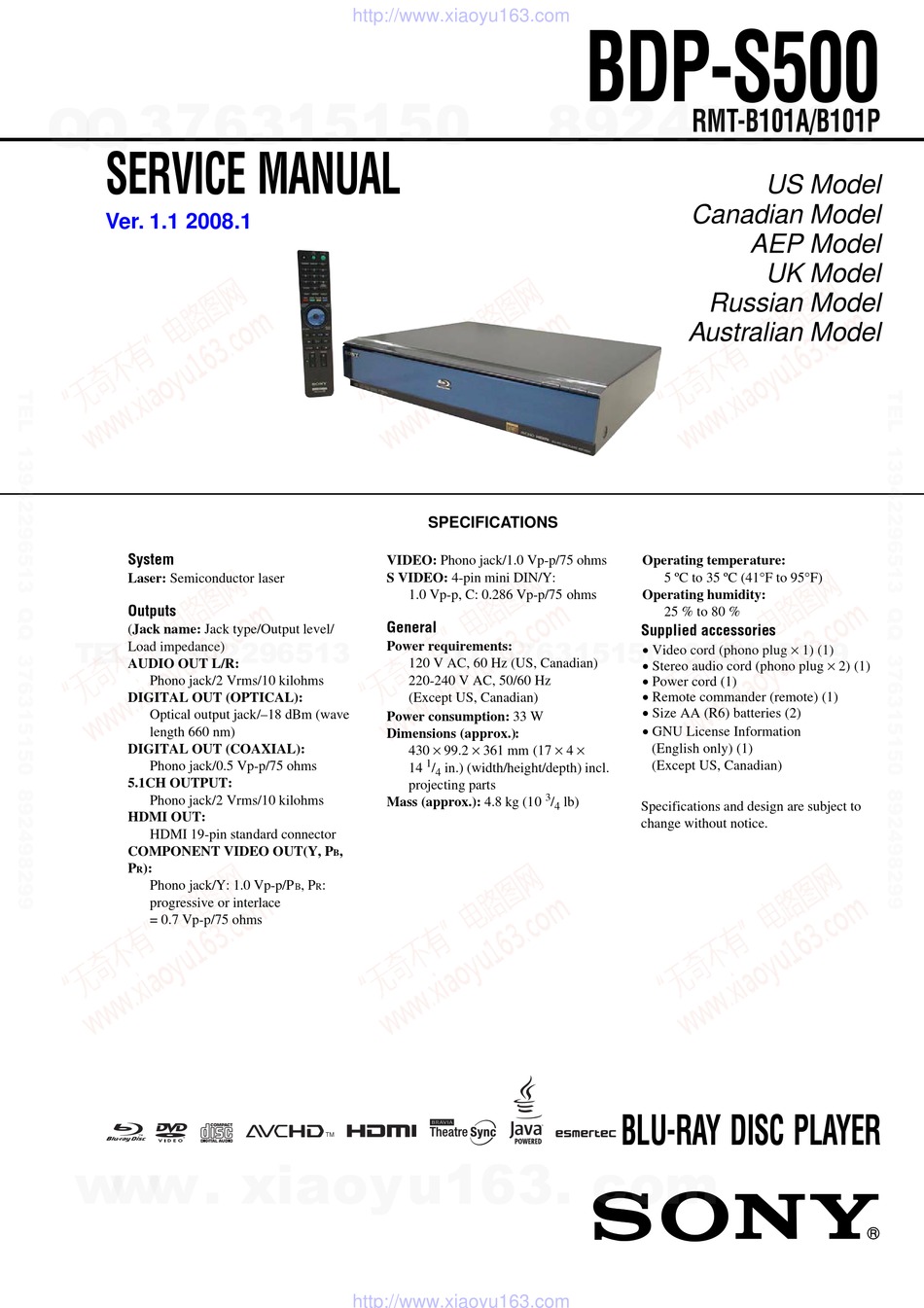

SERVICE MANUAL
Ver. 1.1 2008.1
System
Laser: Semiconductor laser
Outputs
(Jack name: Jack type/Output level/
TE
L 13942296513
Load impedance)
AUDIO OUT L/R:
Phono jack/2 Vrms/10 kilohms
DIGITAL OUT (OPTICAL):
Optical output jack/–18 dBm (wave
length 660 nm)
DIGITAL OUT (COAXIAL):
Phono jack/0.5 Vp-p/75 ohms
5.1CH OUTPUT:
Phono jack/2 Vrms/10 kilohms
HDMI OUT:
HDMI 19-pin standard connector
COMPONENT VIDEO OUT(Y, P
P
):
R
Phono jack/Y: 1.0 Vp-p/P
progressive or interlace
= 0.7 Vp-p/75 ohms
www
.
http://www.xiaoyu163.com
VIDEO: Phono jack/1.0 Vp-p/75 ohms
S VIDEO: 4-pin mini DIN/Y:
1.0 Vp-p, C: 0.286 Vp-p/75 ohms
General
Power requirements:
120 V AC, 60 Hz (US, Canadian)
220-240 V AC, 50/60 Hz
(Except US, Canadian)
Power consumption: 33 W
Dimensions (approx.):
430 × 99.2 × 361 mm (17 × 4 ×
14
projecting parts
Mass (approx.): 4.8 kg (10
,
B
, P
:
B
R
TM
x
ao
u163
y
i
http://www.xiaoyu163.com
BDP-S500
2 9
8
SPECIFICATIONS
Q Q
3
6 7
1 3
1 5
1
/
in.) (width/height/depth) incl.
4
3
/
lb)
4
co
.
9 4
2 8
RMT-B101A/B101P
US Model
Canadian Model
AEP Model
UK Model
Russian Model
Australian Model
Operating temperature:
5 ºC to 35 ºC (41°F to 95°F)
Operating humidity:
25 % to 80 %
Supplied accessories
0 5
8
2 9
9 4
2 8
• Video cord (phono plug × 1) (1)
• Stereo audio cord (phono plug × 2) (1)
• Power cord (1)
• Remote commander (remote) (1)
• Size AA (R6) batteries (2)
• GNU License Information
(English only) (1)
(Except US, Canadian)
Specifications and design are subject to
change without notice.
m
BLU-RAY DISC PLAYER
9 9
9 9
