SUNSYS H50
Installations- und bedienungsanleitung
DE
Manuel d'installation et d'utilisation
FR
Installation and operating manual
GB
Manuale di installazione e uso
IT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNSYS H50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for socomec SUNSYS H50

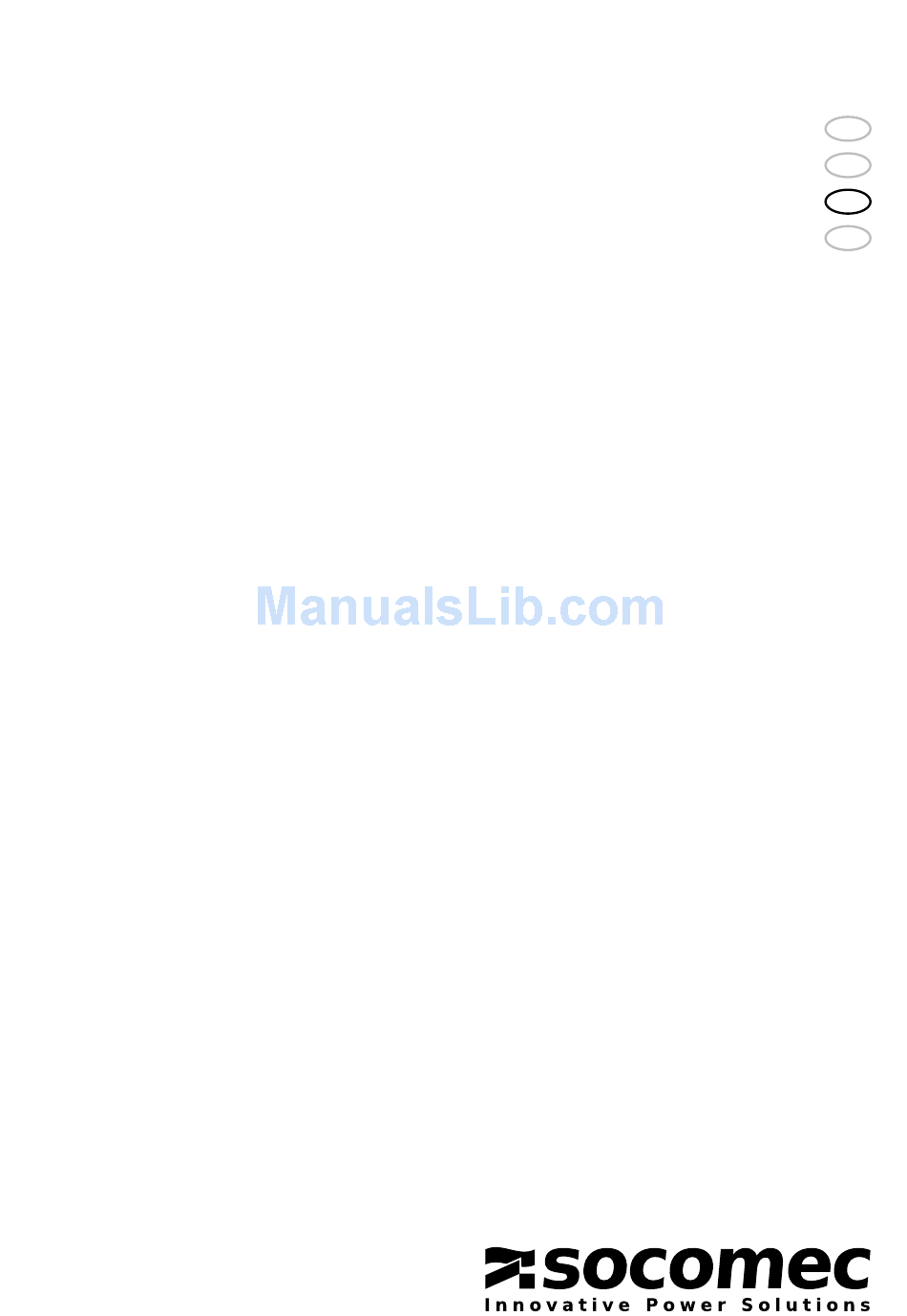

  • Page 1 SUNSYS H50 Installations- und bedienungsanleitung Manuel d’installation et d’utilisation Installation and operating manual Manuale di installazione e uso...
  • Page 3: Table Of Contents

    11. TECHNICAL SPECIFICATIONS ..........26 SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 4: General Information

    1. GENERAL INFORMATION This user manual specifies installation and maintenance procedures, technical data and safety instructions for SOCOMEC solar inverters. For further information visit the Socomec website: www.socomec.com. Any work carried out on the equipment must be performed by skilled, qualified technicians.
  • Page 5: Unpacking

    Bracket AC connector Documentation Nut and washer for inverter mounting A N D IO N N U A L A T T A L IN S IN G R A T O P E SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 6: Identification Data Plate

    2 GENERAL INFORMATION 2.3. IDENTIFICATION DATA PLATE 2.3-1 Model Technical data Serial number SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 7: Description

    3. DESCRIPTION 3.1. DIMENSIONS 3.1-1 3.2. GENERAL DESCRIPTION OF COMPONENTS 3.2-1 LCD display and control panel Input connection Output connection Communication port SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 8: Installation

    • of a suitable size; • clean; • free from inflammable items; • not exposed directly to sunlight; • maintained at a temperature between -20 °C and 40 °C. 4.2. CONDITIONS FOR INSTALLATION 4.2-1 SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 9: Wall Fixing

    INSTALLATION 4.2-2 Suitable installation clearances 50 cm 50 cm 30 cm 30 cm 30 cm 50 cm 50 cm 4.3. WALL FIXING 4.3-1 5 viti M6 3 viti M6 4 viti M6 SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 10: Connections

    Check that the input and output cables of the photovoltaic system are clearly identified. 5.1. DESCRIPTION 5.1-1 PV module inputs AC output, with External PE Ground DC = 2 strings in parallel connections communication connection L1, N, and PE interface SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 11 1 Ph +N 1 Ph +N 230 Vac 230 Vac Note With DC input connected to earth (one pole connected to earth) isolating transformer is required. Refer to par 6.3 for ground option setting SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 12: Ac Connection

    • Check that the connection cable used matches the specifications in the table. Sizing of DC cables Model Max current Cross-section SUNSYS-H50 17.5 ADC 4 mm DC connections are divided into positive and negative poles. 5.3-1 BLACK SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 13: Communication Module Connections

    Terminal Resistor 120 Ω (1/2 W) DATA + to DATA – PIN Layout Data Format PIN FUNCTION Baud Rate: 9600 DATA - Data bits: 8 RS485/USB DATA + Stop bit: 1 RS485/RS232 Parity: N/A SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 14: Commissioning

    6.3. FIRST START-UP Check that the AC, DC and communication connections are made and secured correctly. WARNING! If the country setting is wrong SOCOMEC must be contacted for assistance. 1. Power up the inverter (AC or DC) 2. Set the country.
  • Page 15 Normal Normal Ground option Next Enter Normal Negative Next Enter Exit AC connect AC connect Next Enter L1-L2 Next Enter Exit Language English English Language Next Enter English Italian Next Enter Exit Exit Inverter SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 16: Control Panel

    ALARM LCD display SELECT ENTER Confirm Move to next menu LED indicator Condition Green LED Red LED Countdown FLASHING On grid Error or Fault Standby or night-time (no DC supply) FW update FLASHING FLASHING SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 17: Menu

    1894W PV array voltage, current and power Today DC 7500Wh Today input energy AC life energy 1450kWh Output AC energy production from installation DC life energy 1540kWh PV array DC energy production from installation SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 18 Event log Event List Enter 01 : Grid freq under rating 02 : Grid volt under rating 03 : empty 16 : empty Clear Event Logs Push ENT button to cancel Exit the event log SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 19: Settings

    The following settings are enabled and managed by the grid operator, installer or specialist technician. Wrong settings are liable to damage the photovoltaic system. For any modification requested by the grid operator, or special configuration, please contact Socomec for assistance •...
  • Page 20 Local command only for Italy as country Country Language Insulated mode Comando locale After 10 second or PW faill Password Push: SEL, ENT, ENT, SEL, SEL, ENT Next Enter Are you sure ? Next Enter Exit Comando locale Attivo SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 21: Self-Test

    UL:195.5/195.5 V Pass 415/400 ms 3 sec FH:51.50/51.50 V Pass 1004/1000ms 3 sec FL:47.50/47.50 V Pass 4009/4000ms Startup procedure 3 sec UH:253.0/253.0 V Pass 3015/3000ms 3 sec UH:192.0/192.0 V Pass 215/200 ms 3 sec SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 22: Messages

    1. AC voltage lower than nominal 1. Check the grid frequency value E28: Slow Under 2. Country configuration or grid setting incorrect 2. Check the country/frequency limits setting Voltage Range 3. Measuring circuit failure 3. Contact the technician SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 23: Fault Messages

    2. Contact the technician 1. Output relays faulty 1. Contact the technician A29: Relay Open 2. Internal control circuits not working 2. Contact the technician 3. Grid voltage measurements abnormal 3. Compare machine and grid measurement values SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 24 1. Check all switching device in boost A70: DC Curr 2. Driver for boost is defective 2. Check the driver curcuit for boost inside the inverter Transient Over 3. Input current detection circuit malfunction 3. Check input current detection circuit SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 25: Removal Of Inverter

    Once these steps have been completed, remove the nut and washer on the lower part of the inverter than remove the inverter by sliding it up from the bracket. 10.1-1 Italy self test view SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 26: Technical Specifications

    MPPT Rated current 17.5 A System information / communication LCD alphanumeric display, (16 x 2 caracters) Data logger with 10 year capacity User interface and real time clock 30 events External communication RS-485 connection SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 27 Fluctuations and flicker EN 61000-3-11:2000 Grid interface VDE AR-N 4105, CEI-021, VDE126-1-1/A1 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 Immunity SURGE IEC 61000-4-5 IEC 61000-4-6 PFMF IEC 61000-4-8 VOLTAGE DIP IEC 61000-4-11 * Disable reactive power control SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 01...
  • Page 32 HEAD OFFICE YOUR DISTRIBUTOR SOCOMEC GROUP S.A. SOCOMEC capital 10 816 800€ *IOMSUNHMXX05-GB 01* R.C.S. Strasbourg B 548 500 149 B.P. 60010 - 1, rue de Westhouse F-67235 Benfeld Cedex - FRANCE Tel. +33 3 88 57 41 41 IOMSUNHMXX05-GB 12.2013...
