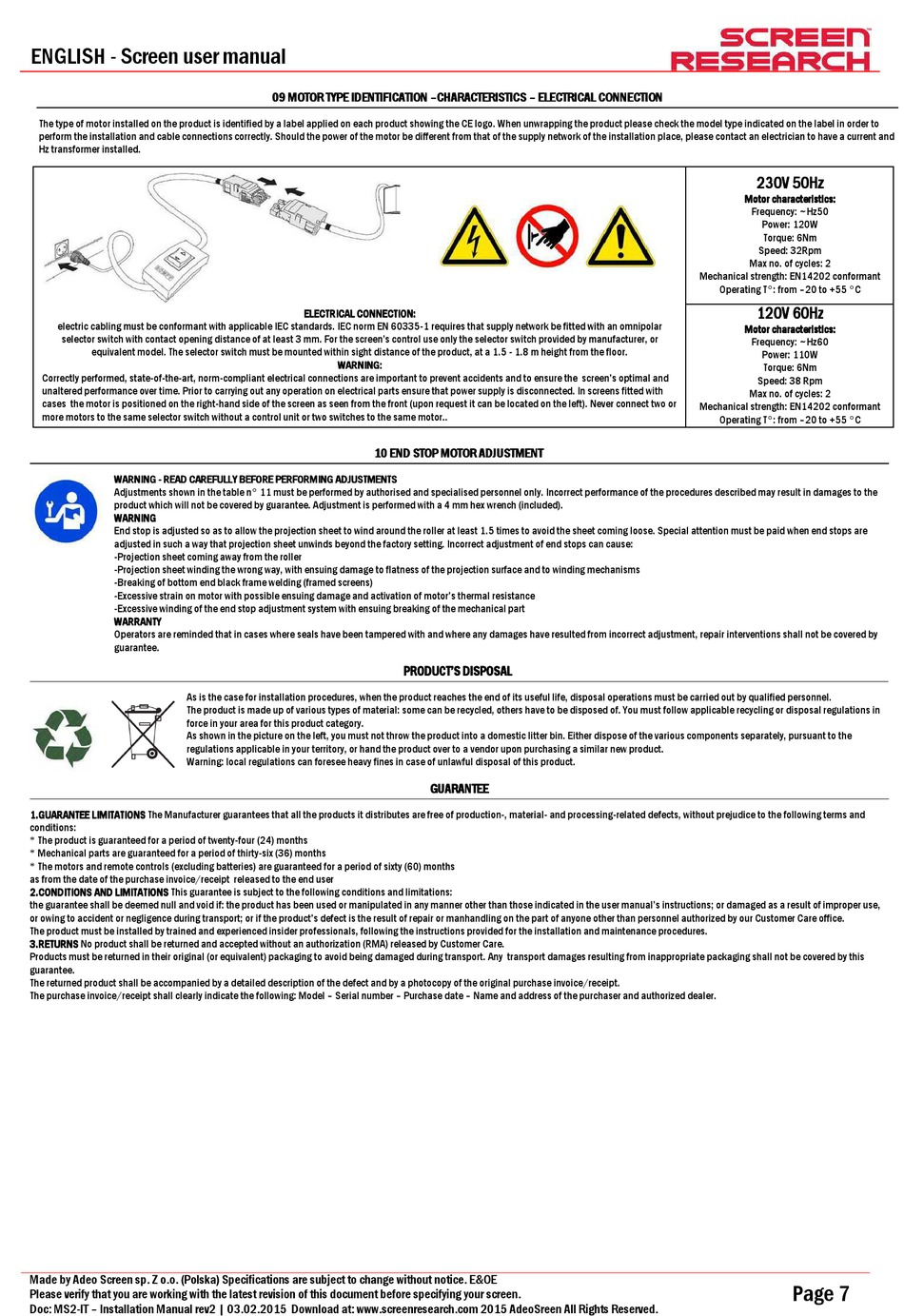

Screen Research MS2-IT Installation Manual page 7

In-ceiling trap supreme 2 roller screen

Installation and operation manual (29 pages)

page of 27

/ 27
Bookmarks

Available languages

ENGLISH - Screen user manual

The type of motor installed on the product is identified by a label applied on each product showing the CE logo. When unwrapping the product please check the model type indicated on the label in order to

perform the installation and cable connections correctly. Should the power of the motor be different from that of the supply network of the installation place, please contact an electrician to have a current and

Hz transformer installed.

electric cabling must be conformant with applicable IEC standards. IEC norm EN 60335-1 requires that supply network be fitted with an omnipolar

selector switch with contact opening distance of at least 3 mm. For the screen's control use only the selector switch provided by manufacturer, or

equivalent model. The selector switch must be mounted within sight distance of the product, at a 1.5 - 1.8 m height from the floor.

Correctly performed, state-of-the-art, norm-compliant electrical connections are important to prevent accidents and to ensure the screen's optimal and

unaltered performance over time. Prior to carrying out any operation on electrical parts ensure that power supply is disconnected. In screens fitted with

cases the motor is positioned on the right-hand side of the screen as seen from the front (upon request it can be located on the left). Never connect two or

more motors to the same selector switch without a control unit or two switches to the same motor..

WARNING

WARNING - - - - READ CAREFULLY BEFORE PERFORMING ADJUSTMENTS

READ CAREFULLY BEFORE PERFORMING ADJUSTMENTS

Adjustments shown in the table n° 11 must be performed by authorised and specialised personnel only. Incorrect performance of the procedures described may result in damages to the

product which will not be covered by guarantee. Adjustment is performed with a 4 mm hex wrench (included).

WARNING

End stop is adjusted so as to allow the projection sheet to wind around the roller at least 1.5 times to avoid the sheet coming loose. Special attention must be paid when end stops are

adjusted in such a way that projection sheet unwinds beyond the factory setting. Incorrect adjustment of end stops can cause:

-Projection sheet coming away from the roller

-Projection sheet winding the wrong way, with ensuing damage to flatness of the projection surface and to winding mechanisms

-Breaking of bottom end black frame welding (framed screens)

-Excessive strain on motor with possible ensuing damage and activation of motor's thermal resistance

-Excessive winding of the end stop adjustment system with ensuing breaking of the mechanical part

WARRANTY

Operators are reminded that in cases where seals have been tampered with and where any damages have resulted from incorrect adjustment, repair interventions shall not be covered by

guarantee.

As is the case for installation procedures, when the product reaches the end of its useful life, disposal operations must be carried out by qualified personnel.

The product is made up of various types of material: some can be recycled, others have to be disposed of. You must follow applicable recycling or disposal regulations in

force in your area for this product category.

As shown in the picture on the left, you must not throw the product into a domestic litter bin. Either dispose of the various components separately, pursuant to the

regulations applicable in your territory, or hand the product over to a vendor upon purchasing a similar new product.

Warning: local regulations can foresee heavy fines in case of unlawful disposal of this product.

1. 1. 1. 1.GUARANTEE LIMITATIONS

GUARANTEE LIMITATIONS The Manufacturer guarantees that all the products it distributes are free of production-, material- and processing-related defects, without prejudice to the following terms and

GUARANTEE LIMITATIONS

conditions:

* The product is guaranteed for a period of twenty-four (24) months

* Mechanical parts are guaranteed for a period of thirty-six (36) months

* The motors and remote controls (excluding batteries) are guaranteed for a period of sixty (60) months

as from the date of the purchase invoice/receipt released to the end user

2. 2. 2. 2.CONDITIONS AND LIMITATIONS

CONDITIONS AND LIMITATIONS This guarantee is subject to the following conditions and limitations:

CONDITIONS AND LIMITATIONS

the guarantee shall be deemed null and void if: the product has been used or manipulated in any manner other than those indicated in the user manual's instructions; or damaged as a result of improper use,

or owing to accident or negligence during transport; or if the product's defect is the result of repair or manhandling on the part of anyone other than personnel authorized by our Customer Care office.

The product must be installed by trained and experienced insider professionals, following the instructions provided for the installation and maintenance procedures.

3.RE

3.RETURNS

TURNS No product shall be returned and accepted without an authorization (RMA) released by Customer Care.

3.RE

TURNS

Products must be returned in their original (or equivalent) packaging to avoid being damaged during transport. Any transport damages resulting from inappropriate packaging shall not be covered by this

guarantee.

The returned product shall be accompanied by a detailed description of the defect and by a photocopy of the original purchase invoice/receipt.

The purchase invoice/receipt shall clearly indicate the following: Model – Serial number – Purchase date – Name and address of the purchaser and authorized dealer.

Made by Adeo Screen sp. Z o.o. (Polska) Specifications are subject to change without notice. E&OE

Please verify that you are working with the latest revision of this document before specifying your screen.

09 09 09 09 MOTOR TYPE IDENTIFICATION

MOTOR TYPE IDENTIFICATION – – – – CHARACTERISTICS

MOTOR TYPE IDENTIFICATION

CHARACTERISTICS – – – – ELECTRICAL CONNECTION

CHARACTERISTICS

ELECTRICAL CONNECTION:

WARNING:

10 END STOP MOTOR ADJUSTMENT

10 10 10

END STOP MOTOR ADJUSTMENT
