Coleman FC9M060B12UP11 Technical Manual

TECHNICAL GUIDE
Echelon

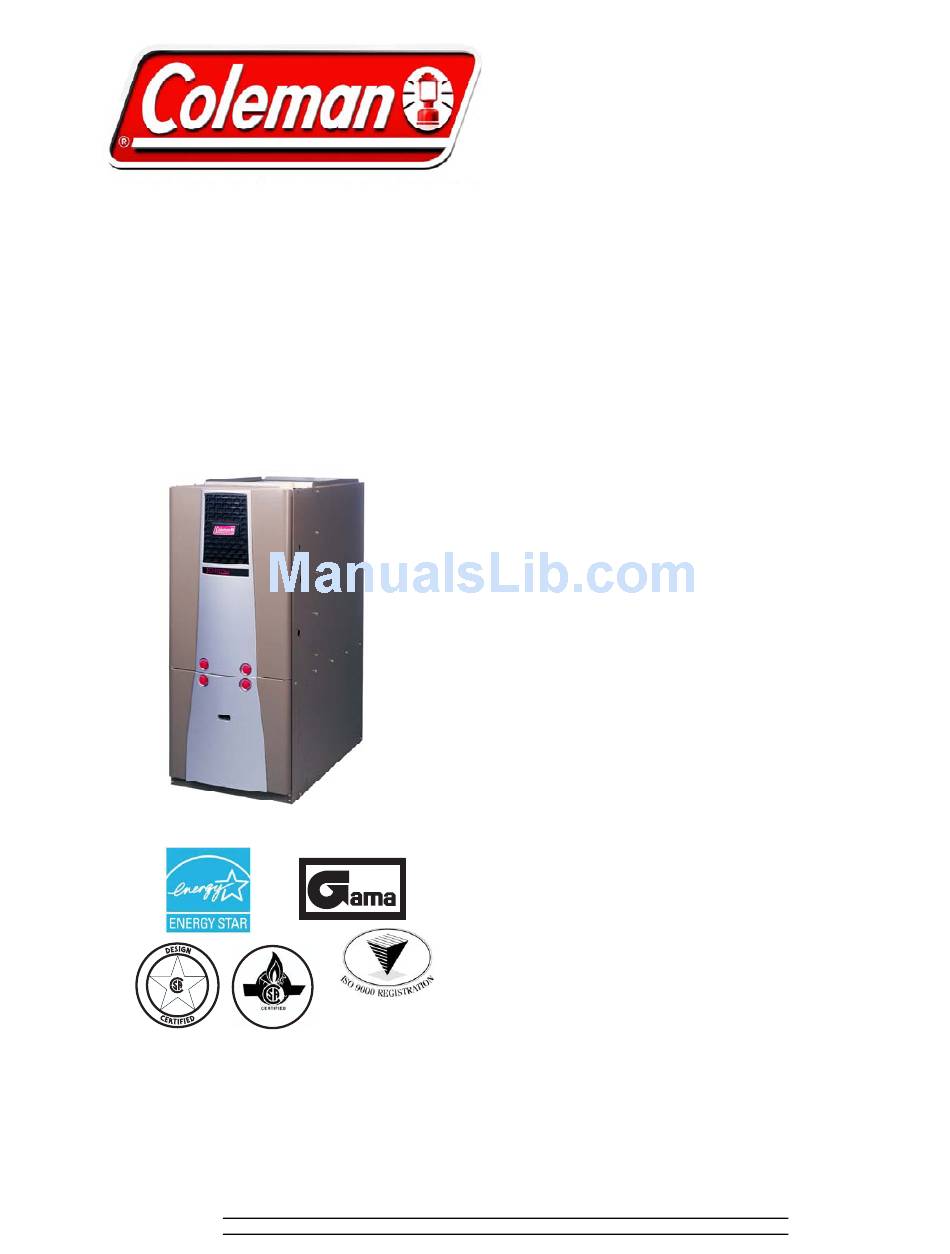

MODELS: FC9M*UP
GAS-FIRED
CONDENSING / HIGH EFFICIENCY
UPFLOW MODULATING FURNACES
NATURAL GAS
60 - 120 MBH INPUT
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.gamanet.org.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
These Category IV, highly efficient, compact, condensing
type furnaces are designed for residential and commercial
installations in a basement, closet, alcove, recreation room or
garage where the ambient temperature is above 32°F, or
higher. They may be either side wall or thru-roof vented using
approved plastic type combustion air and vent piping. All
units are factory assembled, wired and tested to assure
dependable and economical installation and operation.
WARRANTY
Lifetime limited warranty on both heat exchangers to the orig-
inal purchaser; a 20-year limited warranty from original instal-
lation date to subsequent purchaser.
10-year warranty on the heat exchanger in commercial appli-
cations.
5-year limited parts warranty.
FEATURES
• Modulating heating operation includes:
• Provides increased comfort level & very quiet unit opera-
• Compact, easy to install, ideal height 40" cabinet
• Blower-off delay for cooling SEER improvement.
• Easy to connect power/control wiring.
• Built-in, high level self diagnostics with fault code display.
• Low unit amp requirement for easy replacement applica-
• Integrated control module for reliable, economical opera-
• May be installed as either two-pipe (direct vent) or single
• Top intake & vent connection allows installation in narrow
• Electronic Hot Surface Ignition saves fuel cost with
• Induced combustion system with inshot main burners for
• No special vent termination kit required.
• 100% shut off main gas valve for extra safety.
• PSC -four speed, direct drive motor with large, quiet
EFFICIENCY
RATING
• 24V, 40 VA control transformer and blower relay supplied
CERTIFIED
• Hi-tech tubular aluminized steel primary heat exchanger.
• Secondary (condensing) heat exchanger of 29-4C high-
• Solid removable bottom panel allows easy application.
• Easy access from front of unit for cleaning, maintenance or
ISO 9001
Certified Quality
Management System
• Protection from intake, exhaust or condensate blockage.
• Insulated blower compartment for quiet operation.
- Modulating gas valve
- Modulating inducer operation
tion
tion.
tion.
pipe vent (using indoor combustion air)
locations.
increased dependability and reliability.
quiet, efficient operation.
blower.
for add-on cooling.
grade stainless steel.
service.
259720-CTG-B-0108
