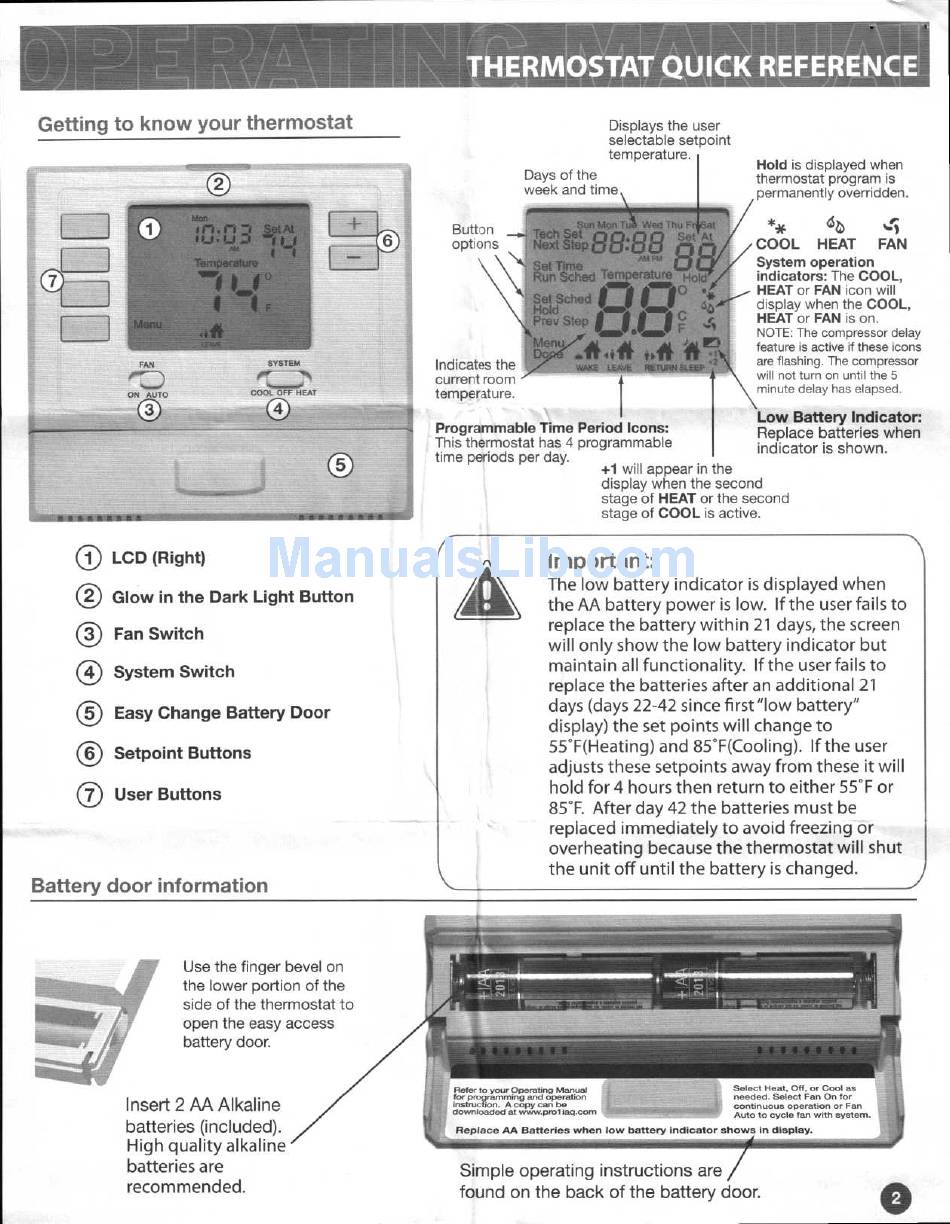

Thermostat Quick Reference - Pro1 IAQ t715 Operating Manual

Getting to know your thermostat
COOL OFF HEAT
Displays the user
selectable setpoint
temperature.
Days of the
week and time
Set Time
Run Sched Temperature Hold
„imp, ,,
Set Sched 0 I l r ,( **-----
Hold
Am ow -ti
Prey Step
Sun Mon Tub Wed Thu
F
N e xt i
n r L in el
set At
Next Step
1/0#01
-00 nri
AM PM u
Indicates
the
current room
temperature.
C
r
F ''')
ti4iii toll * +I
LEAVE RETURNIU
Button
options
Important:
The low battery indicator is displayed when
the
AA
battery power is low. If the user fails to
replace the battery within 21 days, the screen
will only show the low battery indicator but
maintain all functionality. If the user fails to
replace the batteries after an additional 21
days (days 22-42 since first low battery"
display) the set points will change to
55°F(Heating) and 85°F(Cooling). If the user
adjusts these setpoints away from these it will
hold for 4 hours then return to either 55°F or
85°F. After day 42 the batteries must be
replaced immediately to avoid freezing or
overheating because the thermostat will shut
the unit off until the battery is changed.
Use the finger bevel on
the lower portion of the
side of the thermostat to
open the easy access
battery door.
Insert 2 AA Alkaline
batteries (included).
High quality alkaline
batteries are
recommended.
Refer to your Operating Manual
for programming and operation
instruction. A copy can be
downloaded at www.proliaq.com
Replace AA Batteries when low battery indicator shows in display.
Simple operating instructions are
found on the back of the battery door.
Select Heat, Off, or Cool as
needed. Select Fan On for
continuous operation or Fan
Auto to cycle fan with system.
THERMOSTAT QUICK REFERENCE
Programmable Time Period Icons:
This thermostat has 4 programmable
time periods per day.
Hold is displayed when
thermostat program is
permanently overridden.
*
*
COOL HEAT FAN
System operation
indicators: The COOL,
HEAT or FAN icon will
display when the COOL,
HEAT or FAN is on.
NOTE: The compressor delay
feature is active if these icons
are flashing. The compressor
will not turn on until the 5
minute delay has elapsed.
Low Battery Indicator:
Replace batteries when
indicator is shown.
+1 will appear in the
display when the second
stage of HEAT or the second
stage of COOL is active.
0 LCD (Right)
0 Glow in the Dark Light Button
Fan Switch
System Switch
Easy Change Battery Door
Setpoint Buttons
User Buttons
Battery door information
