Equipment damage hazard
Do not operate the cooling system if the outdoor temperature is below 50˚ F (10˚ C) to prevent possible compressor damage.
Need Help?
For assistance with this product please visit http://www.pro1iaq.com or call Pro1 Customer Care toll-free at 888-Pro1iaq (776-1427) during normal business hours (Mon-Fri 9 AM - 6 PM Eastern)

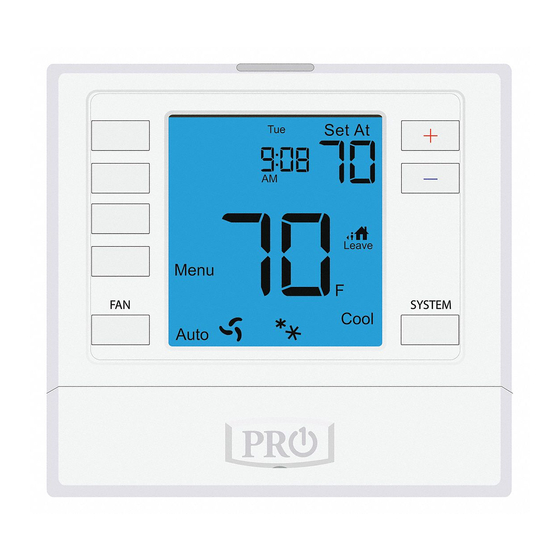

THERMOSTAT QUICK REFERENCE
Getting to know your thermostat
LCD
Days of the week and time
Displays the user selectable setpoint temperature.
Menu Options:
Shows different options
+1 will appear in the display when second stage of heat or cool is on.
+2 will appear for third stage of heat.
Indicates the current room temperature.
HOLD is displayed when thermostat program is permanently overridden.
Low Battery Indicator:
Replace batteries when this indicator is shown.
Programmable Time Period Icons:
This thermostat has 4 programmable time periods per day.
System:
Selects heat, off or cool as needed.
The COOL, HEAT or FAN icon will display when the COOL, HEAT or FAN is on. NOTE: The compressor delay feature is active if these icons are flashing. The compressor will not turn on until the 5 minute delay has elapsed.
Glow in the Dark Light Button
Fan Button
System Button
User Program Buttons
Temperature Setpoint Buttons
Battery Door
Universal Private Label Badge
The low battery indicator is displayed when the AA battery power is low. If the user fails to replace the battery within 21 days, the thermostat display will only show the low battery indicator as a final warning before the thermostat becomes inoperable. The batteries are located on the front of the thermostat.
Battery information
Open the battery door on the front of the thermostat and insert 2 AA Alkaline batteries (included).
THERMOSTAT OPERATION
Easy to use controls
When the battery icon appears replace your AA batteries immediately. Failure to do so may result in your heating & cooling system becoming inoperable.
LCD Display
Glow in the Dark Light Button:
The glow in the dark light button will self illuminate for several hours after exposure to ambient light. This button turns on the display light when pressed.
Fan Button:
Select ON or AUTO. The ON key will run the fan continuously. The AUTO key will cycle the fan on only when the heating or cooling system is on. A Note About Programmable Fan:
The programmable fan feature will run the fan continuously during any time period it is programmed to be on. This is the best way to keep the air circulated and to eliminate hot & cold spots in your building.
System Button:
Selects the operation mode of your HVAC system. Selecting HEAT turns on the heat mode. Selecting COOL turns on the air conditioning mode. Selecting OFF turns both heating and cooling off. (EM Heat will appear as an option if operating a heat pump. EM Heat setting will turn on Emergency Heat.)
User Buttons:
Use these buttons to set up your programming options.
Temperature Setpoint Buttons:
Press the + or - buttons to select the desired room temperature.
PROGRAMMING THE THERMOSTAT
Set Time
You will see a TECHNICIAN SETUP option after the MENU key is pressed.
This TECHNICIAN SETUP key is for installer configuration and should NOT be changed unless you consult your Professional Heating and Air Conditioning Technician.
Follow the steps below to set the current time:
Press MENU
Press SET TIME
Day of the week will be flashing.
Use the or key to select the current day of the week.
Press NEXT STEP
The current hour is flashing.
Use the or key to select the current hour. When using 12-hour time, make sure the correct a.m. or p.m. choice is selected.
Press NEXT STEP
Minutes are now flashing.
Use the or key to select current minutes.
Press DONE when completed
Set Program Schedule 5+1+1
To customize your 5+1+1 program schedule, follow these steps:
Weekday:
Select HEAT or COOL using the SYSTEM key. Note: You have to program heat and cool each separately.
Press MENU
Press SET SCHED. Note: Monday-Friday is displayed and the WAKE icon is shown. You are now programming the WAKE time period for the weekday setting.
Time is flashing. Use the or key to make your time selection for the weekday WAKE time period. Note: If you want the fan to run continuously during this time period, select ON with the FAN key.
Press NEXT STEP
The setpoint temperature is flashing. Use the or key to make your setpoint selection for the weekday WAKE period.
Press NEXT STEP
Repeat steps 4 through 7 for weekday LEAVE time period, for weekday RETURN time period, and for weekday SLEEP time period.
Saturday:
Repeat steps 4 through 7 for Saturday WAKE time period, for Saturday LEAVE time period, for Saturday RETURN time period, and for Saturday SLEEP time period.
Sunday:
Repeat steps 4 through 7 for Sunday WAKE time period, for Sunday LEAVE time period, for Sunday RETURN time period, and for Sunday SLEEP time period.
PROGRAMMING THE THERMOSTAT
Temporary and Permanent Hold Feature
Temporary hold: The thermostat will display HOLD and RUN SCHED on the bottom of your screen when you press the or key. If you do nothing, the temperature will remain at this setpoint temporarily for 4 hours. Your program setpoint will then replace your temporary setpoint.
Permanent hold: If you press HOLD key at the bottom of your screen, you will see HOLD appear below the setpoint temperature in the display. The thermostat will now permanently stay at this setpoint and can be adjusted using the or keys.
To return to program: Press the RUN SCHED key at the bottom of your screen to exit either temporary or permanent hold.
Filter Change Reminder
If your installing contractor has configured the thermostat to remind you when the air filter needs changed, you will see FILT in the display when your air filter needs changed. FILT will be shown in the display after your system has run long enough to require an air filter change.
Resetting the filter change reminder: When FILT reminder is displayed, you should change your air filter and reset the reminder by holding down the second button from the top of the thermostat for 3 seconds.
CONTACT US AND WARRANTY INFORMATION
Contact Us Information
Pro1 IAQ Inc.
1111 S. Glenstone
Suite 2-100
Springfield, MO 65804
Toll-free: 1-888-Pro1iaq (776-1427) Toll Number (Outside the USA): 330-821-3600 Web:http://www.pro1iaq.com Hours of Operation: Monday - Friday 9 AM - 6 PM Eastern
Warranty Registration
Your new Pro1 thermostat has a 5 year limited warranty. You must register your warranty within 60 days of installation. You can register your new thermostat in 2 ways.
Go to www.pro1iaq.com, select warranty registration and fill out a short registration form. - or -
Complete the form below and mail it to the address shown.
