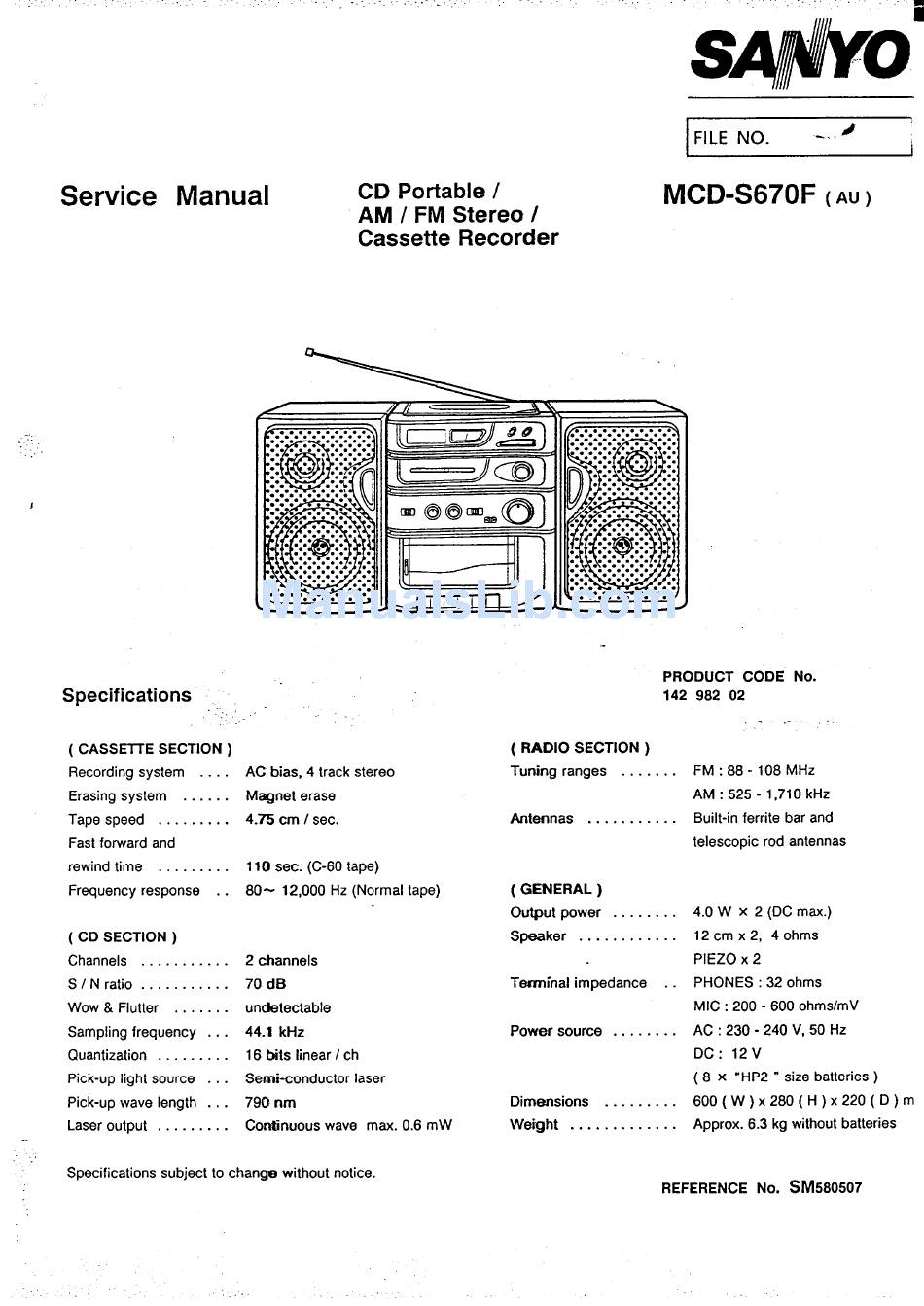

Sanyo MCD-S670F Service Manual

Hide thumbs

Advertisement

.. . . . . . . .
;
Service
Manual
. .. .. .
J
CD Portable/
AM /
FM
Stereo/
Cassette Recorder
KN?lll mW%%oj
E
14
FILE NO.
---4
MCD-S670F (AU)
Specifications"
-.
.'-. ., '..'
.. ..
(
CASSETTE
SECTION)
Recording system
. . . .
AC bias, 4 track stereo
Erasing system
. . . . . .
Magnet erase
Tape speed
. . . . . . . . .
4.7?5cml
sec.
Fast forward and
rewind time
. . . . . . . . .
110 sec. (C-60 tape)
Frequency response
. .
80-12,000
Hz (Normal tape)
(CD
SECTION
)
Channels
. . . . . . . . . . .
2channels
S/ N ratio . . . . . . . . . . .
70dB
Wow & Flutter
. . . . . . .
undetectable
Sampling frequency
. . .
44.1 kHz
Quantization
. . . . . . . . .
16 bits linear/ ch
Pick-up light source
. . .
Semi-conductor
laser
Pick-up wave length
. . .
790
nm
Laser output
. . . . . . . . .
Continuous wave max. 0.6 mW
..
.,
Specifications subject to change without notice.
PRODUCT
CODE
No.
142 982 02
. .
..
. .
( RAD1O SECTION )
Tuning ranges
. . . . . . .
FM :88-108
MHz
AM :525-1,710
kHz
Antennas
. . . . . . . . . . .
Built-in ferrite bar and
telescopic rod antennas
( GENERAL)
Output power
. . . . . . . .
Speaker
. . . . . . . . . . . .
Tes_m;nal impedance
. .
Power source
. . . . . . . .
Dimensions
. . . . . . . . .
Weight
. . . . . . . . . . . . .
4.0 W x 2 (DC max.)
12cm
x2,
4 ohms
PIEZO
X
2
PHONES :32 ohms
MIC :200-600
ohmslmV
AC :230-240
V, 50 Hz
DC:
12V
( 8 x "HP2 " size batteries )
600(
W)x280(H)x220(D)m
Approx. 6.3 kg without batteries
REFERENCE
No.
SM580507

Advertisement

loading
