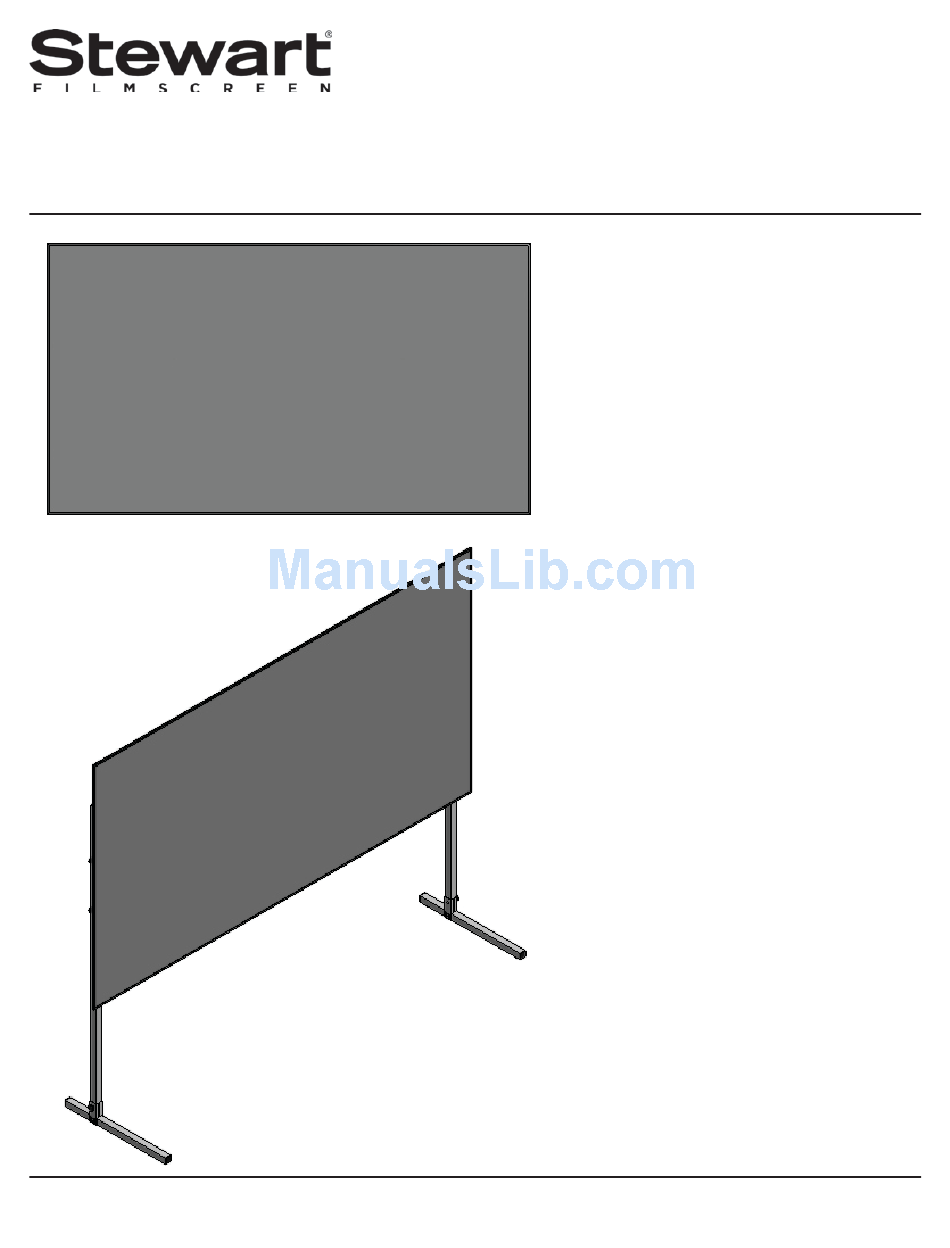

LuminEsse™
Owner's Manual
• Wall Mount (EZ Mount
Bracket System)
• T-Stand Self-Supporting
LUM-0515
TO THE INSTALLER: BE SURE TO LEAVE THIS MANUAL WITH THE OWNER.
INCLUDES: MESSAGE TO THE OWNER, ASSEMBLY, INSTALLATION/MOUNTING, & MAINTENANCE INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the LuminEsse and is the answer not in the manual?

Questions and answers

Related Manuals for Stewart Audio LuminEsse

Summary of Contents for Stewart Audio LuminEsse

  • Page 1 LuminEsse™ Owner’s Manual • Wall Mount (EZ Mount Bracket System) • T-Stand Self-Supporting LUM-0515 TO THE INSTALLER: BE SURE TO LEAVE THIS MANUAL WITH THE OWNER. INCLUDES: MESSAGE TO THE OWNER, ASSEMBLY, INSTALLATION/MOUNTING, & MAINTENANCE INSTRUCTIONS...
  • Page 2 Printed in U.S.A. ©2015 Stewart Filmscreen Corporation From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at:...

  • Page 3: Table Of Contents

    LuminEsse™ Owner’s Manual Contents To the Owner ..........2 General Notes for Preparing the Installation.

  • Page 4: To The Owner

    Using this manual for installation If you are using this manual to install the LuminEsse, be aware that it describes procedures for two types of mounting options. Refer to the appropriate section for either mounting option.

  • Page 5: General Notes For Preparing The Installation

    GENERAL NOTES FOR PREPARING THE INSTALLATION Preparation Specifications regarding the individual screen dimensions, weight, mounting type, and controls are provided by the factory when the unit is ordered. Before beginning the installation: Check the specifications for the type of frame and mounting to be used. Make sure there is a clean surface to work with.

  • Page 6: Wall Mount Option (With Ez Mount Bracket System)

    WALL MOUNT - EZ MOUNT BRACKET SYSTEM Required Tools: • Power Drill • 24” level • Phillips Screw Driver bit • Stud • 5/16th Socket Driver bit (5/16th Hex Driver bit optional) • Safety glasses • Measuring Tape • Gloves •...
  • Page 7 WALL MOUNT - EZ MOUNT BRACKET SYSTEM Screen Centering and Puck Mounting Using a hex wrench, loosen the hex bolts securing the magnets on the lower frame member so that they are free to move from side to side Position the frame assembly onto the EZ Mount hanging bracket Verify the centering (or desired horizontal positioning) of the screen on the wall Place pieces of masking tape on the wall corresponding to the outer vertical edges of the frame , locate the studs where they intersect with the bottom edge of the frame and position the...
  • Page 8 WALL MOUNT - EZ MOUNT BRACKET SYSTEM Rehang the screen frame on the EZ Mount Hanging Bar NOTE: Once the screen is positioned horizontally, the magnets will secure themselves to the pucks (Figures 8 & 9) Check the horizontal positioning of the screen against the two pieces of tape and verify that the screen is mounted in the proper position NOTE: If adjustment is necessary to the horizontal position of the screen on the wall, measure the distance the screen needs to be moved and remove the screen from the wall.
  • Page 9 WALL MOUNT - EZ MOUNT BRACKET SYSTEM Figure 8: Magnetic Assembly Mounting Figure 9: Magnetic Assembly Mounting Final Step (to be taken only after you have ensured proper bracket installation): Postion frame assembly onto the wall, top of frame first, then lower bottom to gently grab the magnetic pucks Caution: Be careful not to touch or scratch the viewing surface...

  • Page 10: T-Stand Self-Supporting Option

    T-STAND SELF-SUPPORTING Attaching T-stands: This section describes how to mount a LuminEsse on T-stands. Use the T-stand knobs provided to first attach the vertical members to each base, and then to attach the finished screen to the T-stands. The through holes on each vertical member should run parallel to the...

  • Page 11: Troubleshooting

    TROUBLESHOOTING Problem Cause Action Steps Dirt, finger prints, marks, etc. on Improper handling of screen Brush off or use a mild detergent screen surface LED Lights do not operate Faulty connections Check voltage supply and connec- (LED Light Kit Optional) tions...

  • Page 12: Screen Care & Cleaning

    SCREEN CARE AND CLEANING General maintenance The surface of your screen is delicate. Special attention to these instructions should be followed when cleaning. A draftsman-style brush may be used to lightly whisk away any loose dirt or dust particles. (This type of brush is usually available at office supply stores.) Stewart Filmscreen has an optional screen cleaning kit that contains the proper type of brush.
  • Page 13 LIMITED ONE (1) YEAR WARRANTY ON STEWART FILMSCREEN CORP PROJECTION SCREENS SYSTEM STEWART FILMSCREEN CORPORATION (Stewart) warrants its screens to the original purchaser only, to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase by the vided they are properly operated and maintained according to Stewart instructions and are not damaged due to improper handling or treatment after shipment from the factory.
  • Page 15 800.762.4999 • 310.784.5300 • Fax: 310.326.6870 May 2015 Printed in U.S.A. ©2015 Stewart Filmscreen Corporation...
